ZONESUN ZS-TD400 3D Cellophane Wrapping Machine for Cosmetics and Boxes

Description

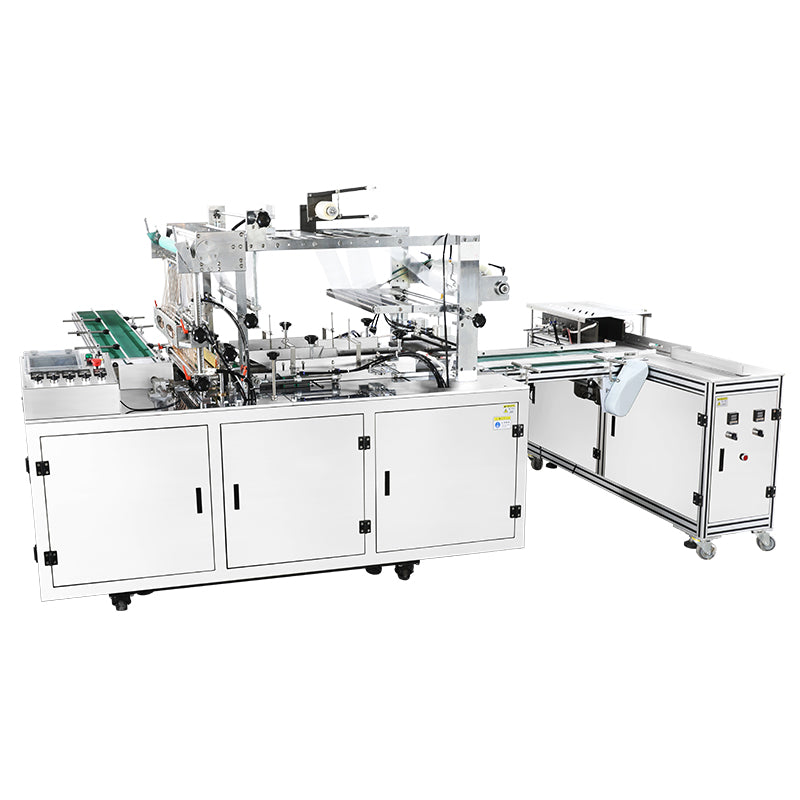

The ZONESUN ZS-TD400 is a high-speed push-type 3D wrapping machine designed for precise and efficient packaging of boxed products. Operating at 10–40 packs per minute, it uses heat sealing to wrap items in BOPP film with clean edges and tight finishes. The system integrates product pushing, film feeding, cutting, sealing, and pressure shaping into one streamlined process. Ideal for cosmetics, pharmaceuticals, and daily goods, it supports various pack sizes and materials, delivering professional-grade wrapping with minimal manual intervention.

Parameter

• Model: ZS-TD400
• Voltage: 220V, 50 Hz
• Power Consumption: 4 kW
• Air Pressure Requirement: 0.6 MPa
• Working Capacity: 10–40 boxes/min
• Applicable Packing Size:
  • Length: 100–300 mm
  • Width: 50–200 mm
  • Height: 30–100 mm
• Packaging Material:
  • BOPP cigarette film
  • BOPP heat-sealable film
  • Tear tape
  • Film thickness: 0.02–0.03 mm
• Film Roll Dimensions:
  • Inner Diameter: 76 mm
  • Outer Diameter: 300 mm
• Net Weight: Approx. 750 kg
