Zonesun ZS-VGPJ1 Pneumatic Paste Filling Machine | Hydraulic Press

Description

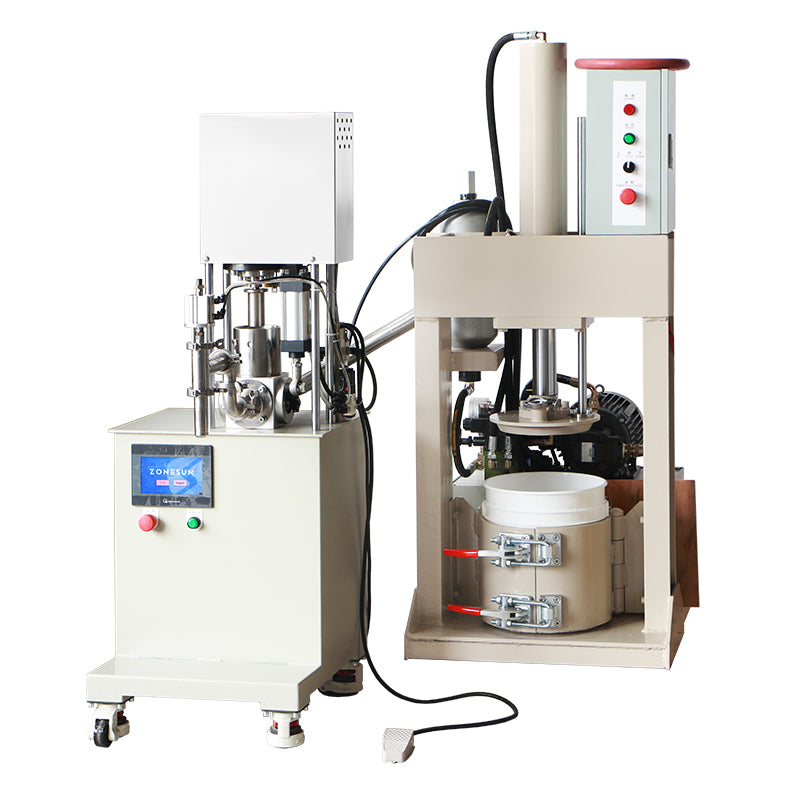

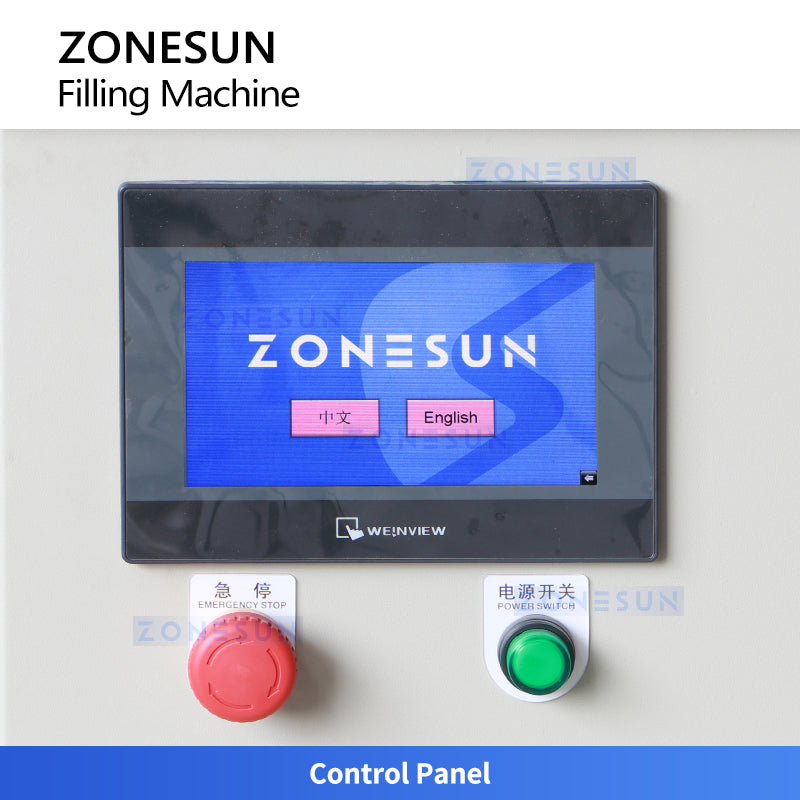

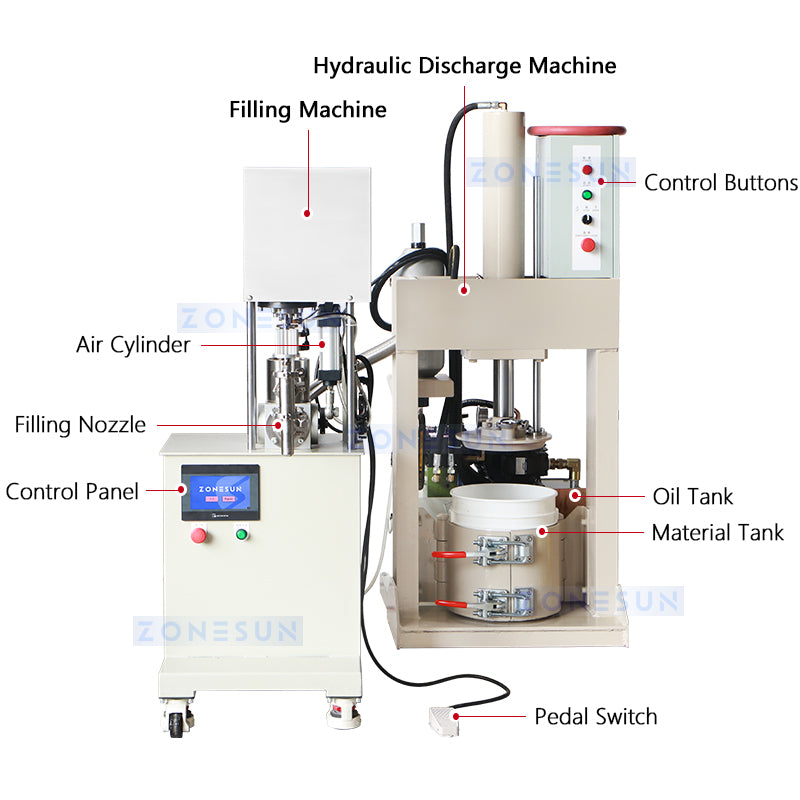

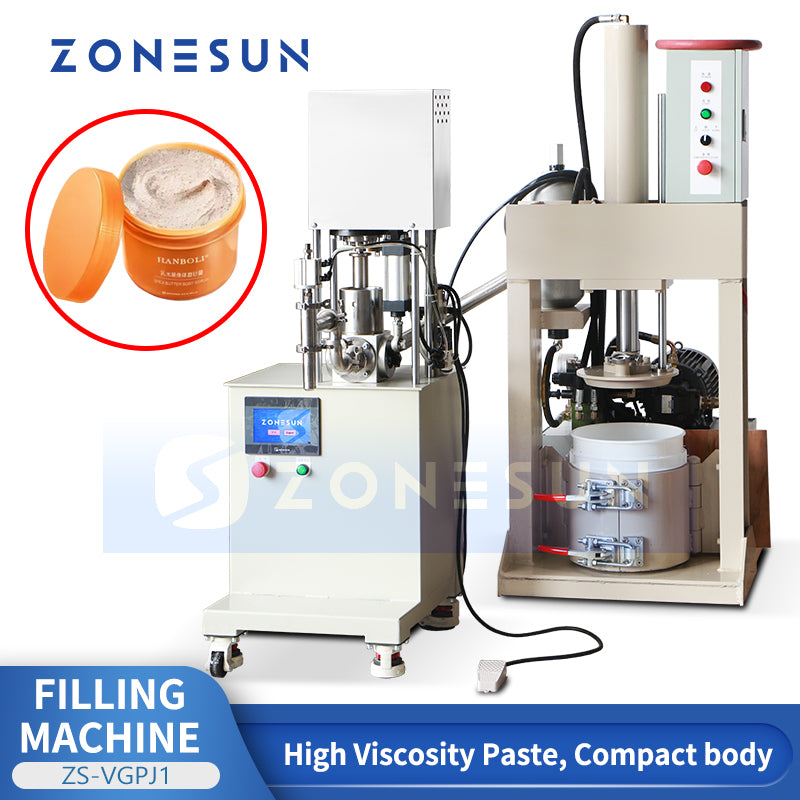

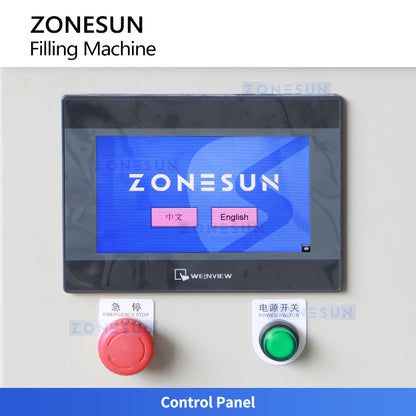

The Zonesun ZS-VGPJ1  semi-automatic filling machine is ideal for high-viscosity materials like abrasive pastes, grease, and gels. It features a PLC controller and touchscreen interface for precise control and easy operation. The volumetric metering cylinder and servo motor ensure accurate filling, while the hydraulic system efficiently handles viscous materials. This versatile machine is widely used in the chemical, pharmaceutical, and food industries.

Filling Machine Parameter

• Machine Model: ZS-VGT1
• Power Supply: 220V/50HZ
• Air Supply: 0.5-0.8 MPa
• Air Consume: <0.3 m³/min
• Filling Volume: Max 350 ML(Can be customized)
• Volume Precision: ≤±0.5℅
• Working speed: 15-45 PCS/min
• Bottle Diameters: φ30-50 MM(Can be customized)
• Machine Size: 650×600*1400 MM(L×W×H)
• Machine Weight: 150 KG

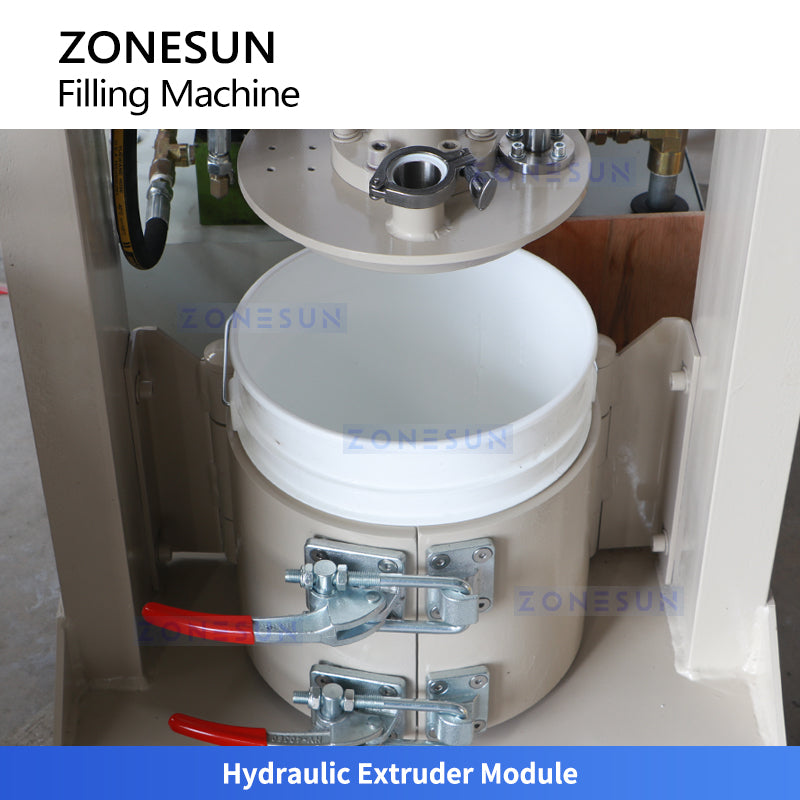

Hydraulic Discharge Machine Parameter

• Machine Model: ZS-PJ15T
• Power Supply: 380V/220V
• Extruding Pressure: 15T(45T/60T are available)
• Material Tank Size: 20L(φ=284 MM*H=880 MM)
• Discharging Outlet Size: DN38
• Oil Tank Capacity: 40L
• Machine Size: About 800*600*1380 MM(L*W*H)
• Machine Weight: About 360 KG
• Package Size: About 950*720*1640 MM
• Package Weight: About 410 KG
