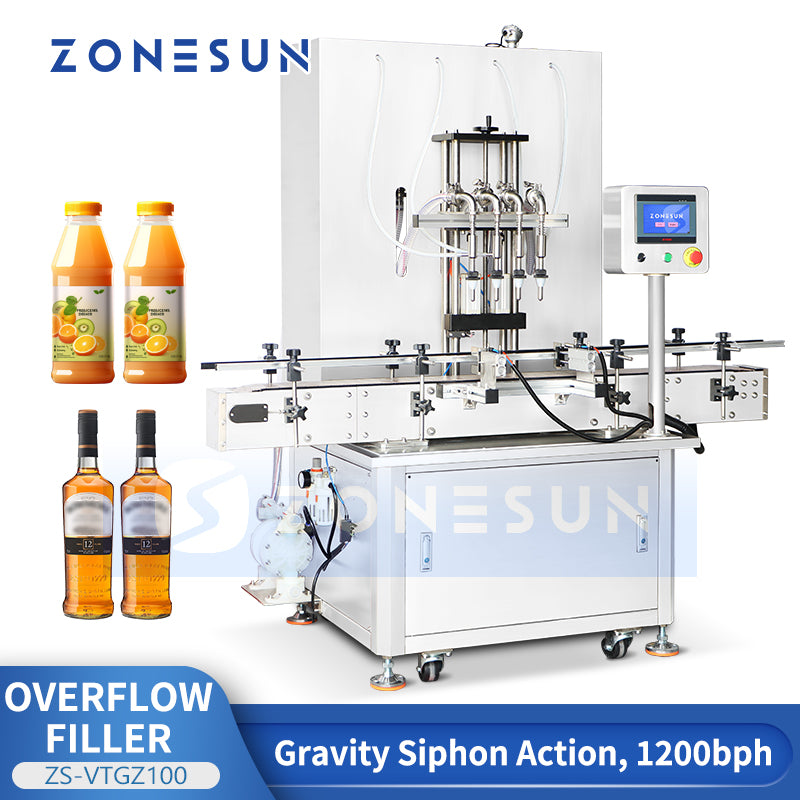

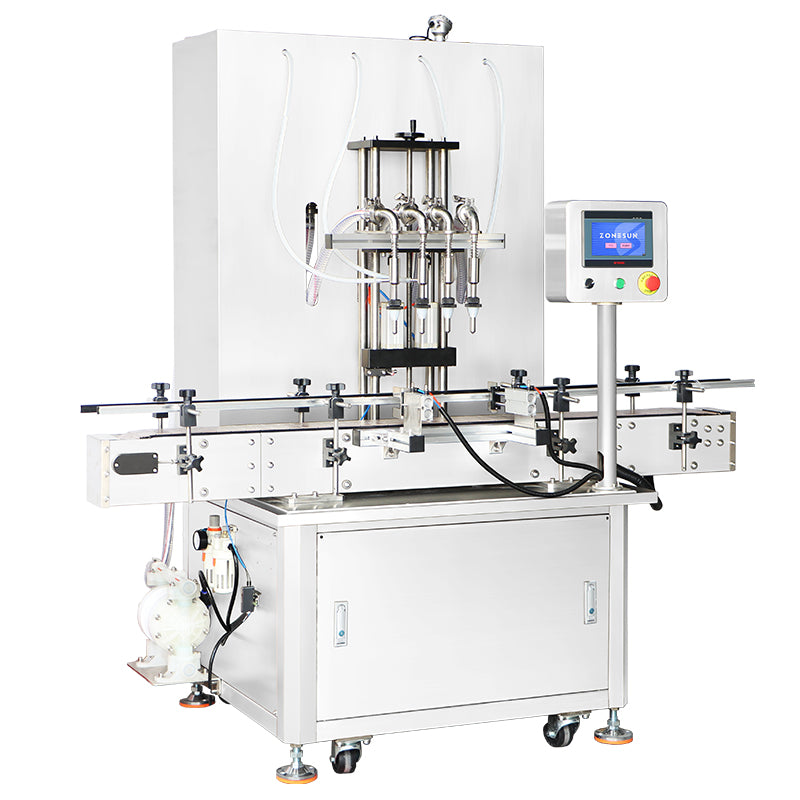

Zonesun ZS-VTGZ100 Automatic Gravity Liquid Level Overflow Filling Machine For Bubble Drinks

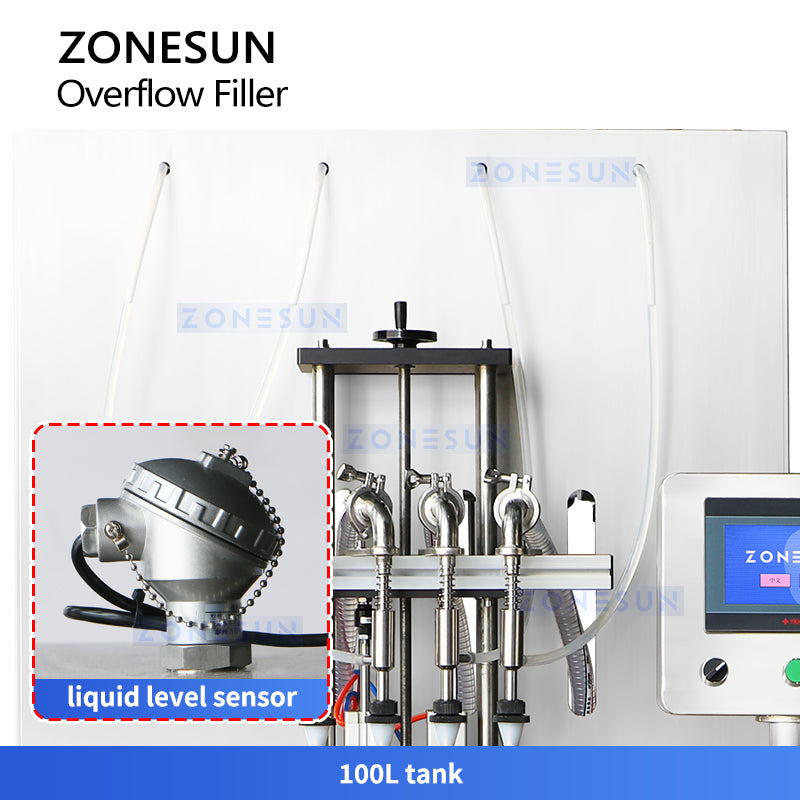

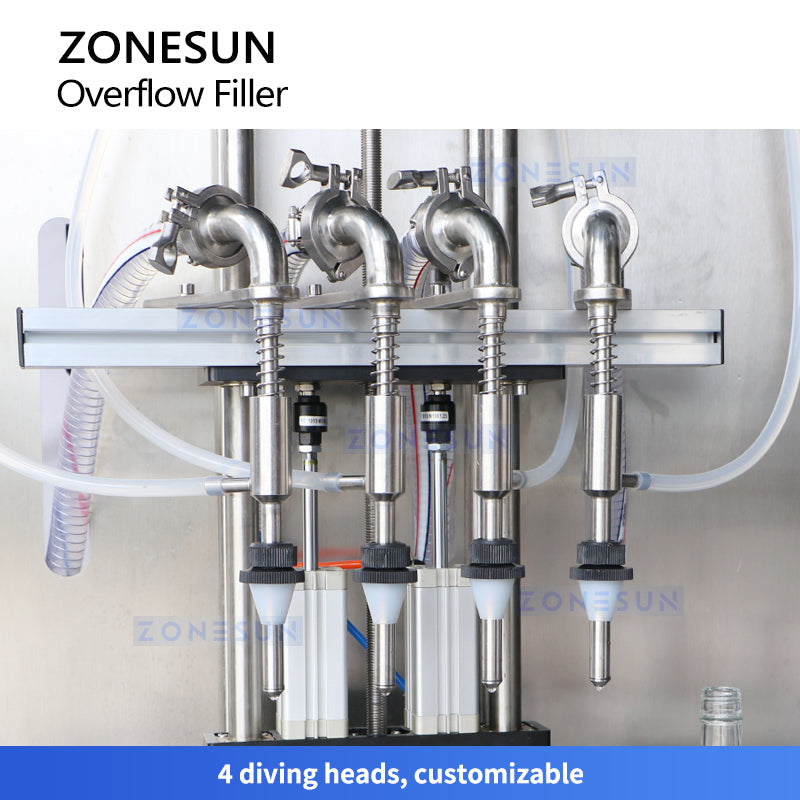

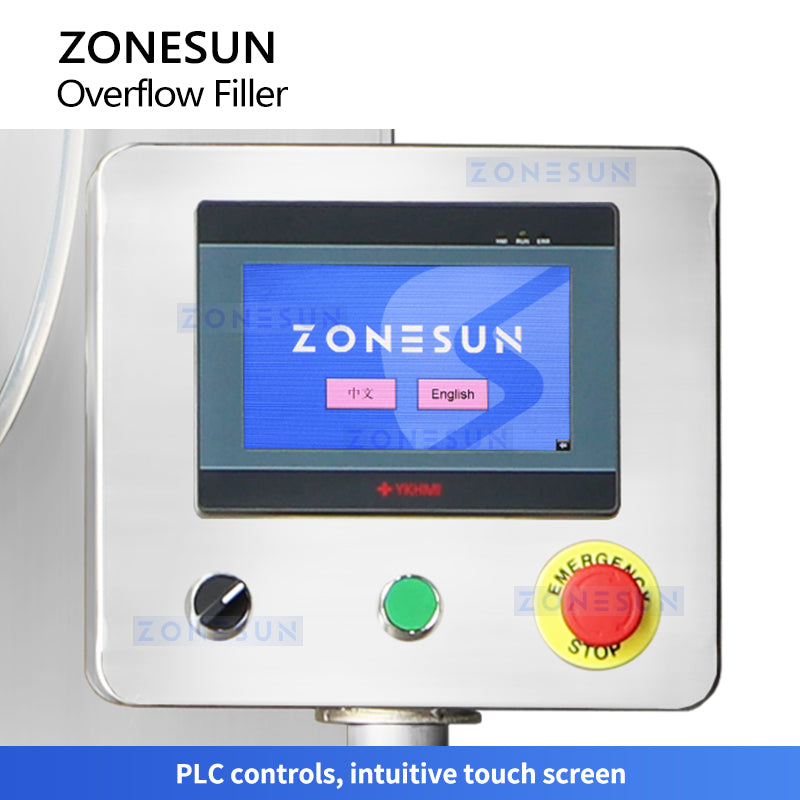

The ZS-VTGZ100 Overflow Filling Machine is engineered for high-volume, precision bottling using gravity-based technology. Its PLC-controlled system and touch screen interface enable seamless operation, while up to four diving heads ensure consistent fill levels. With an integrated upper tank and level sensor, this machine maintains uninterrupted flow, making it ideal for bottling water, spirits, and other low-viscosity liquids in industrial packaging lines.

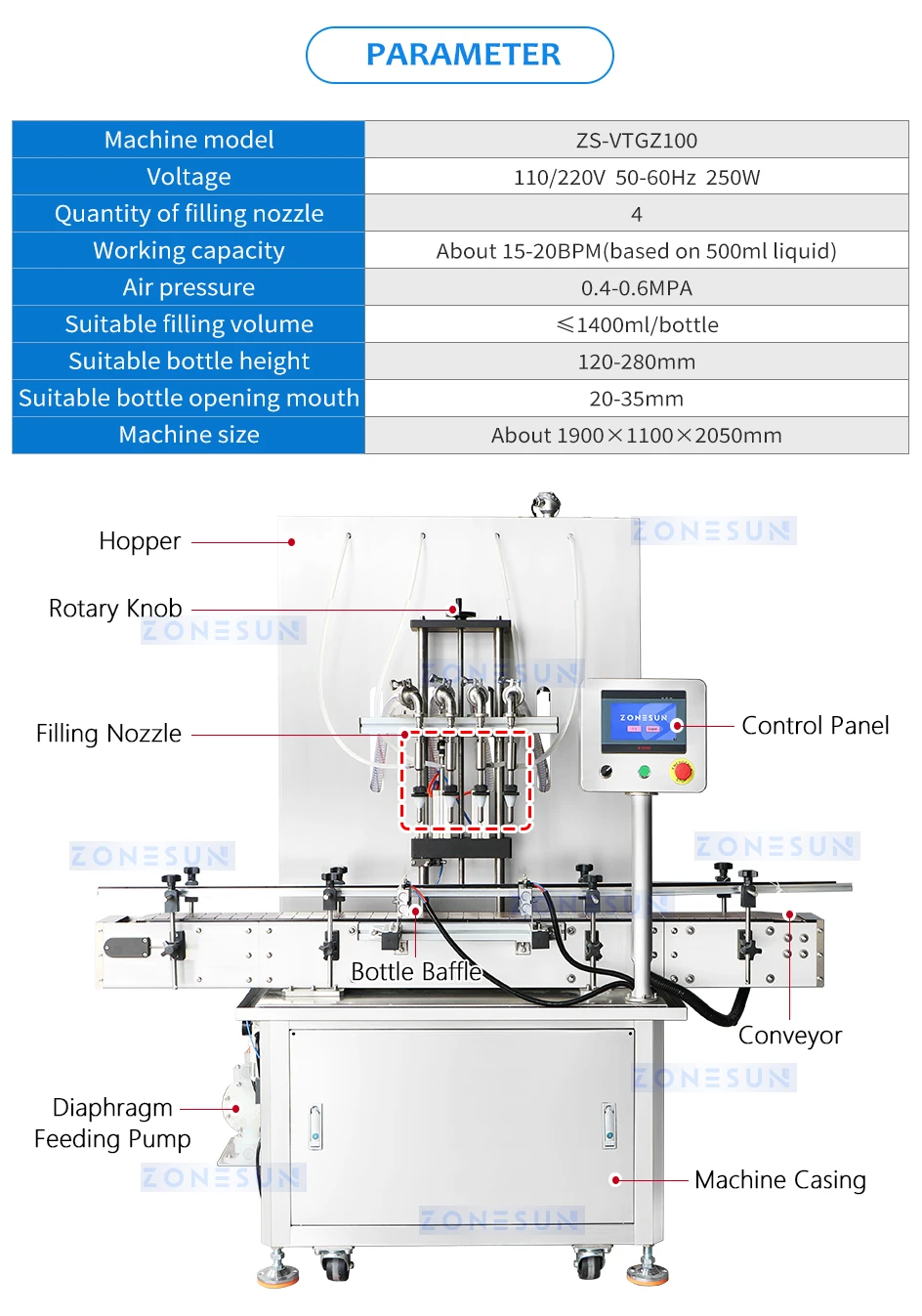

Parameter
Machine Model ZS-VTGZ100
Voltage 110/220V, 50–60Hz, 250W
Quantity of Filling Nozzle 4
Working Capacity Approx. 15–20 BPM (based on 500ml liquid)
Air Pressure 0.4–0.6 MPa
Suitable Filling Volume ≤1400 ml/bottle
Suitable Bottle Height 120–280 mm
Suitable Bottle Opening Mouth 20–35 mm
Machine Size Approx. 1900 × 1100 × 2050 mm
