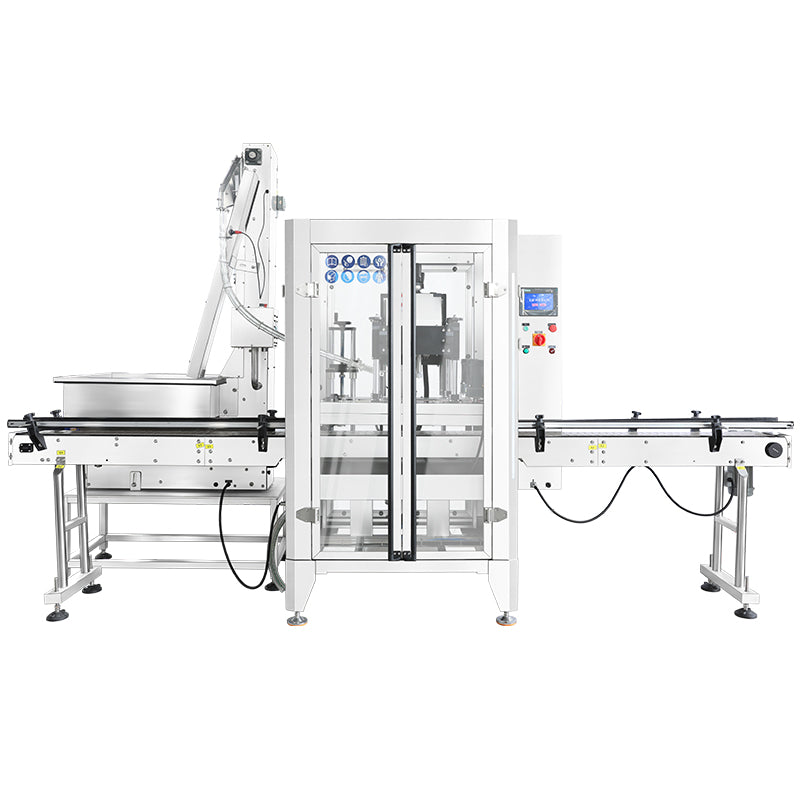

ZONESUN ZS-XG441RSL Servo Automatic Capping Machine for Bottles

Description

The ZONESUN ZS-XG441RSL Automatic Capping Machine features a servo-driven capping system with four rubber heads, ensuring stable and precise screwing for various cap types, including flat screw caps and sprayer caps. Its adjustable design allows quick adaptation to different bottle sizes and shapes, while torque control enables fine-tuning of capping strength for consistent results. The bottle gripping mechanism uses a drive belt for fast and reliable capping, significantly improving efficiency. Widely used in beverage, daily chemical, and biotech industries, this machine supports high-speed production with minimal manual intervention.
Note: This machine requires connection to an air compressor, which must be purchased separately.

Parameter

• Model: ZS-XG441RSL
• Voltage: AC 110V / 220V, 50–60 Hz
• Power Consumption: Approx. 2 kW
• Applicable Cap Diameter: 30–80 mm (customizable)
• Working Pressure: 0.5–0.7 MPa
• Working Speed: Approx. 20–60 bottles/min
• Machine Dimensions: Approx. 2000 × 900 × 1600 mm
• Machine Weight: Approx. 250 kg
