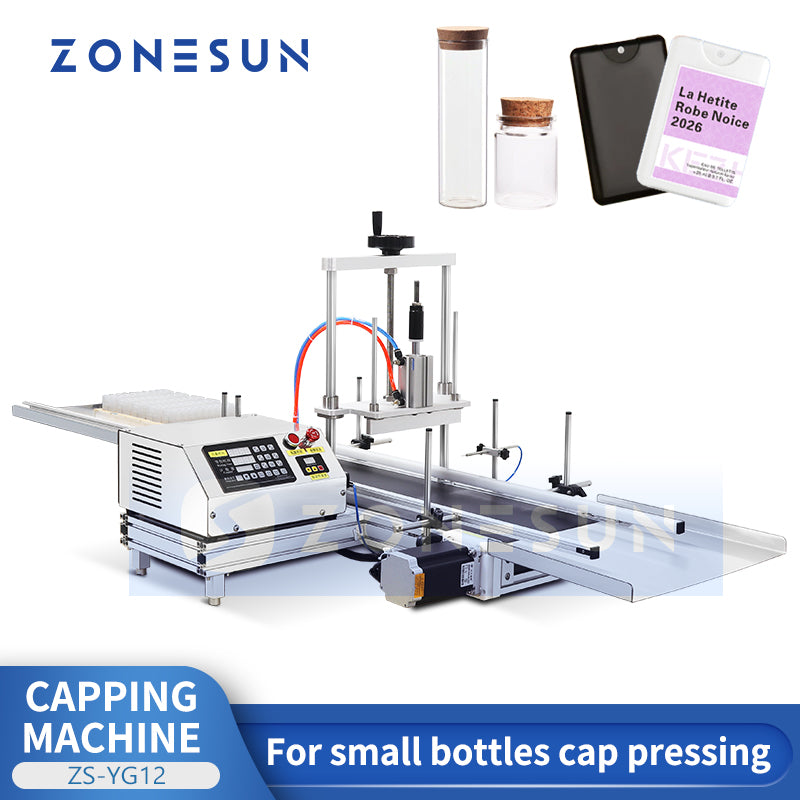

ZONESUN ZS-YG12 Automatic Cap Pressing Machine Pocket Perfume Sealer

DESCRIPTION

The ZONESUN ZS-YG12 Pocket Perfume Capping Machine, the perfect solution for efficient and precise capping of pocket perfumes, as well as cork and small bottle stoppers. This innovative machine streamlines the capping process, ensuring a tight seal every time. Simply place the pocket perfumes in the jig, position the caps, and load the jig onto the conveyor belt. As the jig passes through the sensor, it detects the bottles, and the pneumatic sealing device descends to cap the bottles securely. With the capability to cap multiple pocket perfumes in a single operation, this machine maximizes productivity.

Parameter

• Model: ZS-YG12
• Voltage: 220V/110V 50–60Hz
• Power: 70W
• Capping Speed: Approx. 160 pcs/min (varies by product and cap size)
• Suitable Product Size: Customizable
• Suitable Cap Size: Customizable
• Package Size: Approx. 1117 × 790 × 355mm
• Package Weight: Approx. 68kg

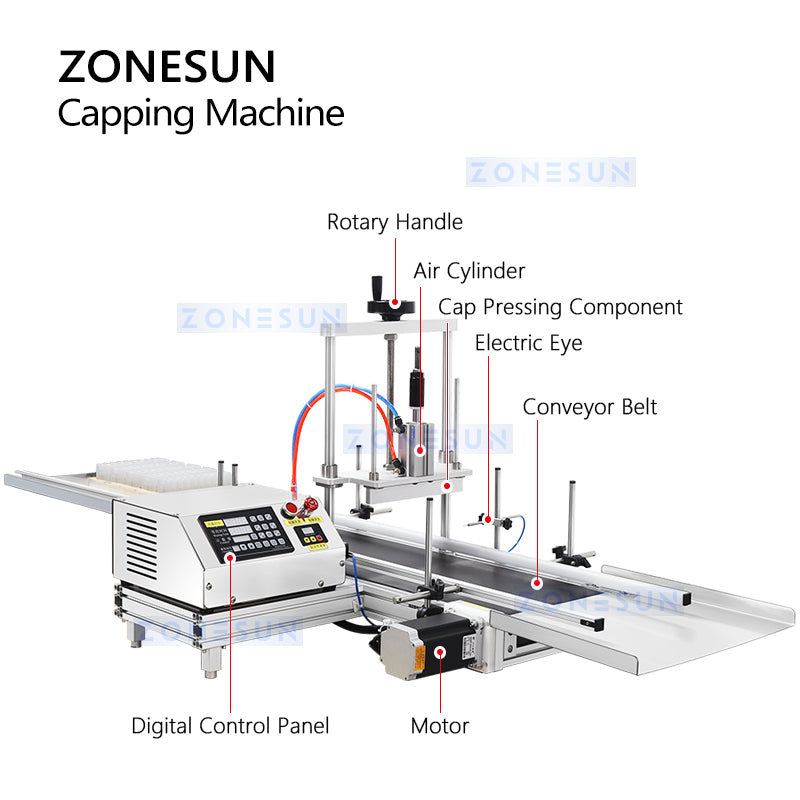

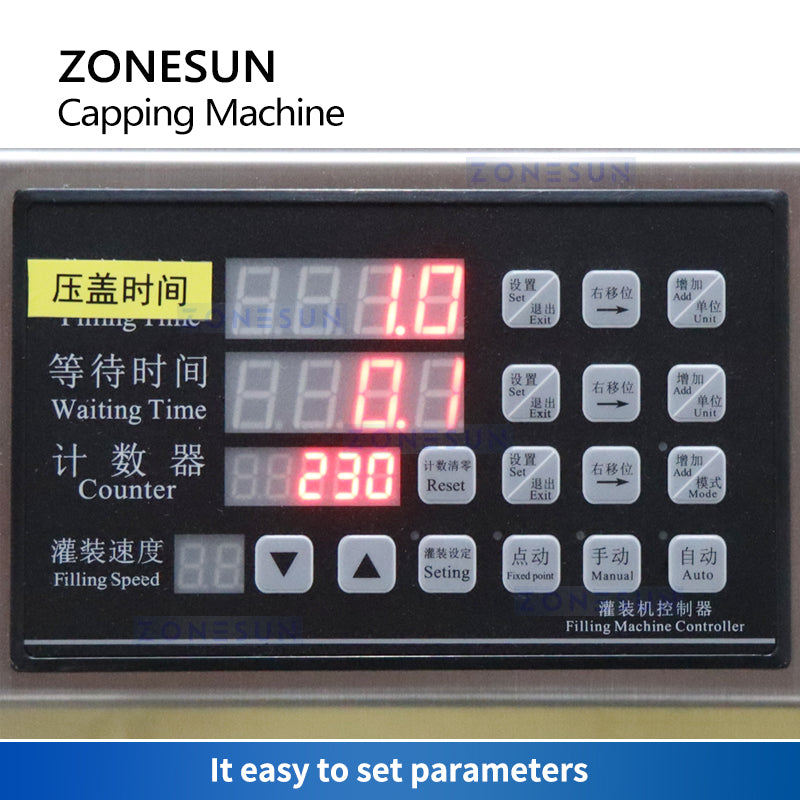

Digital Control Panel

The control panel makes pressing settings easy to adjust and monitor.

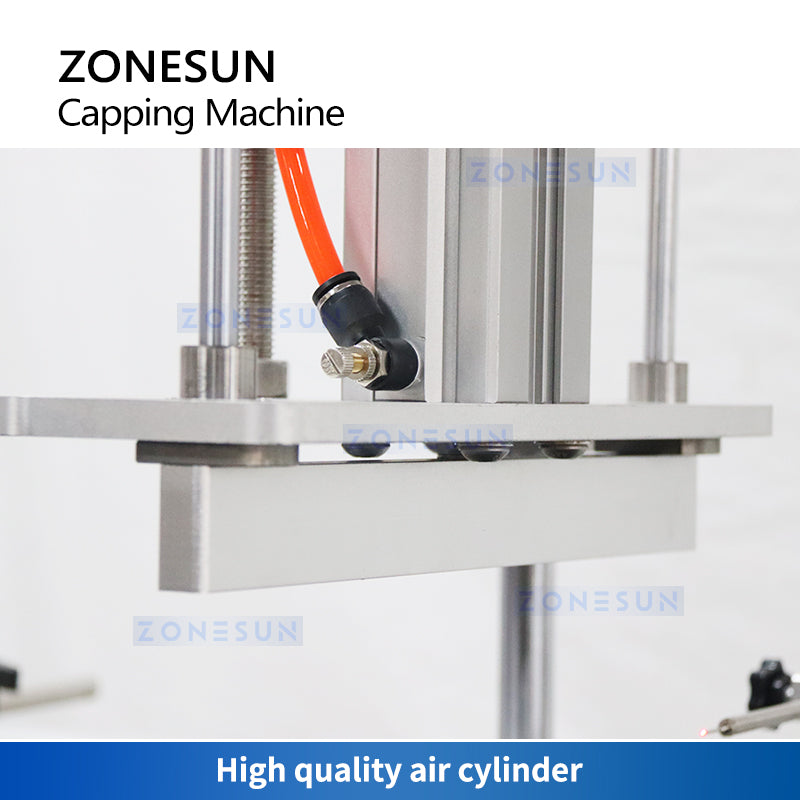

Pneumatic Pressing Cylinder

The air cylinder supplies downward force for consistent cap pressing.

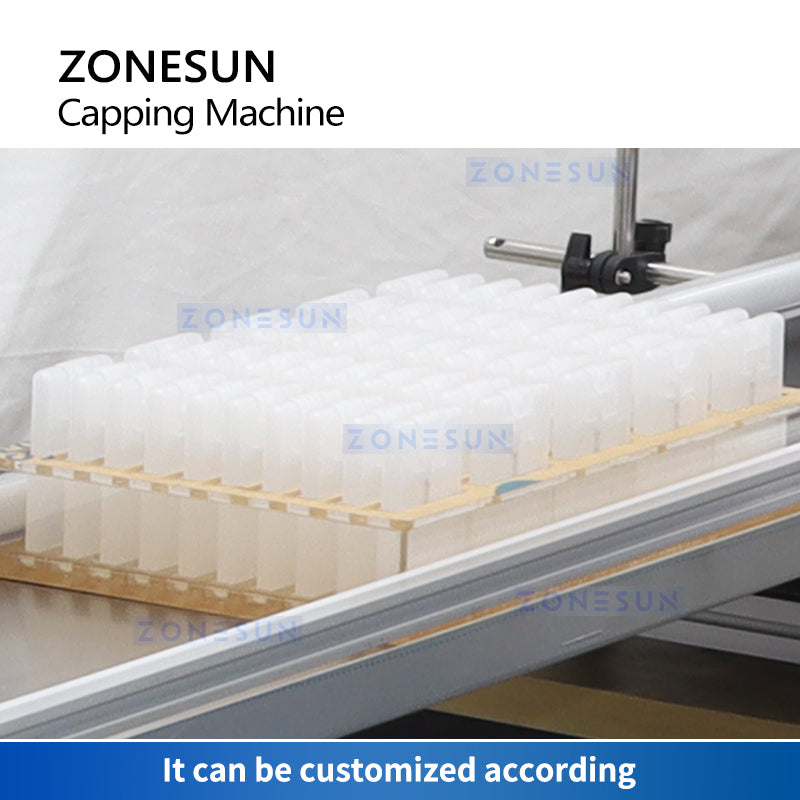

Bottle Positioning Tray

The tray keeps small bottles aligned under the pressing head.

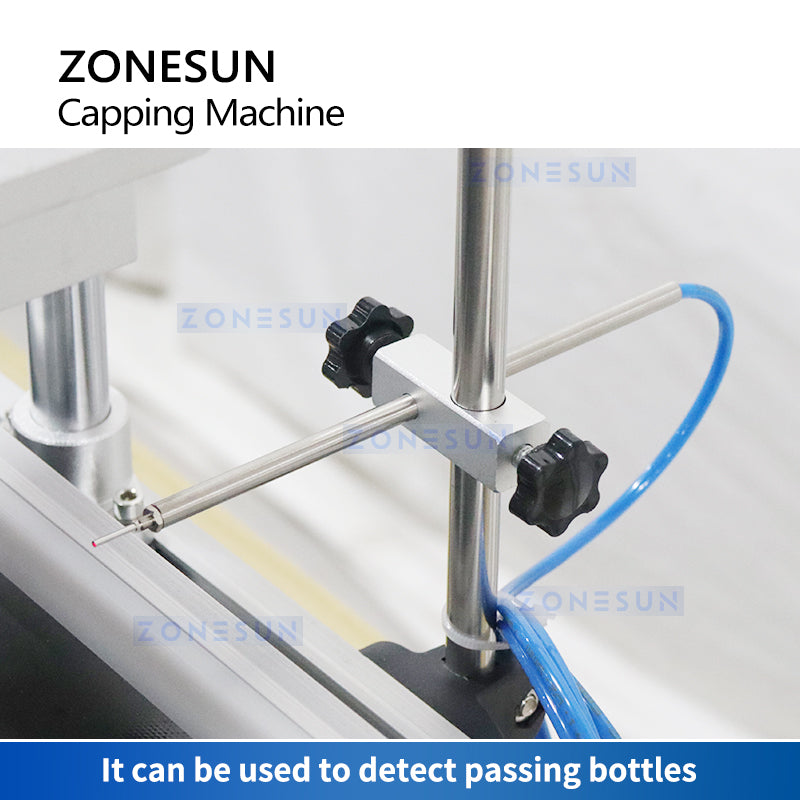

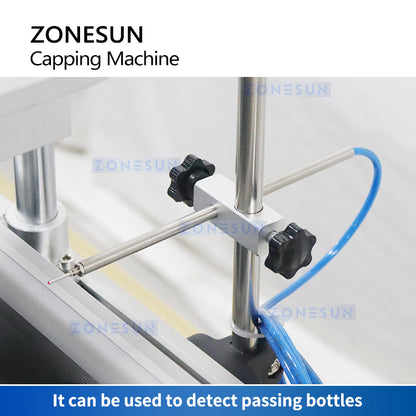

Photoelectric Detection

The sensor detects each bottle and helps trigger automatic pressing.
