ZONESUN ZS-YG17 Automatic Wine Bottle Corking Machine and Wire Hooding Monoblock

DESCRIPTION

The ZS-YG17 is a high-efficiency corking and wire-hooding monoblock designed to streamline wine and beverage bottling. It integrates cork insertion and wire hood application into one compact system, delivering up to 2000 bottles per hour. Ideal for small to medium-sized wineries, it ensures consistent sealing and packaging quality. Customizable for various bottle sizes, this machine is a reliable solution for modern bottling lines.

Parameter

• Voltage: 380V 3 Phase
• Power: 2kW
• Working Speed: About 2000 BPH (depending on product size)
• Suitable Bottle Diameter: 70–155mm (Customizable)
• Suitable Bottle Height: 220–390mm (Customizable)
• Suitable Cork Size: Customizable
• Air Pressure: 0.5MPa
• Air Consumption: 10L/min

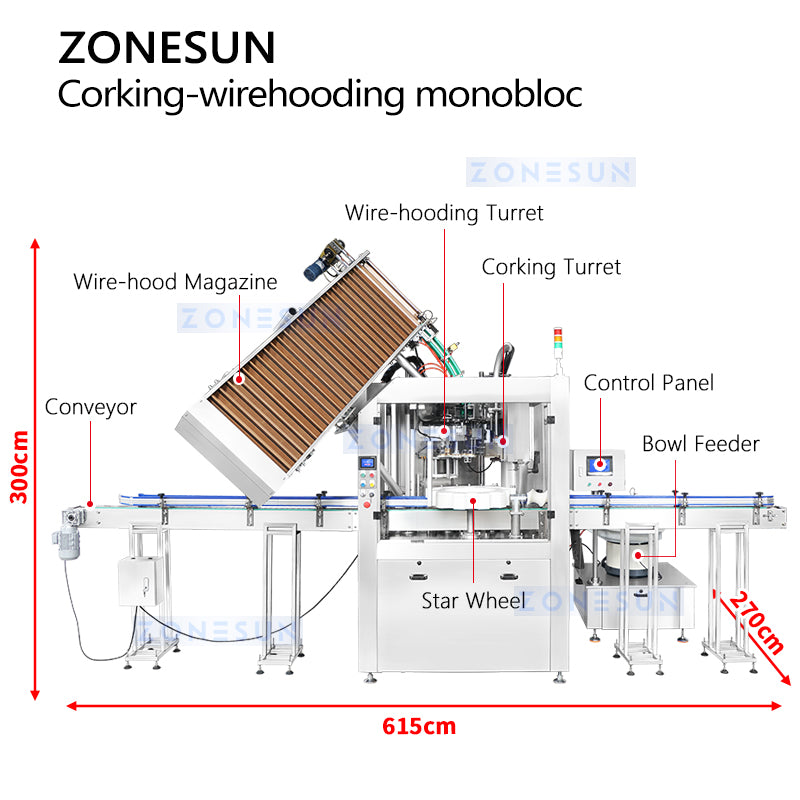

• Machine Size: About 6150 × 2700 × 3000mm
• Machine Weight: About 2000kg
• Machine Configuration: 30L

Product features

• Designed with PLC control panel, it is convenient to set and adjust working parameters. The language of panel can be customized according to your need.

• Equipped with two clamping structures, they can pick up handles and load them onto bottles. This can help to save labor cost.

• The two rods are used for storing the plastic handles. It can be customized as your production need.

• With electric eye, it can detect bottles and control the machine to run automatically, intelligent and efficient.

BOWL FEEDER

The machine is equipped with a vibrating bowl that serves as the cork delivery system. The corks are propelled onto the main unit through a pneumatic system. This innovative method of cork delivery enables quick and precise placement of the corks onto the bottles, optimizing the overall efficiency of the machine.

CORKING TURRET

The corking turret is responsible for securely sealing each bottle with a wooden cork. It ensures a tight and reliable seal, preserving the quality and freshness of the contents inside the bottle.

WIRE-HOODING TURRET

When the bottle reaches the wire-hooding turret, the wire-hood closures are automatically grabbed and placed onto a rotating disc. As the bottle passes through the wire-hooding turret, the wire-hooding mechanism engages. It pulls the wire-hood closure tightly to secure it in place, ensuring a snug fit and a reliable seal.

REVOLVER MAGAZINE

The wire-hood closures are loaded into the machine using a revolver wire-hood magazine. This magazine functions as a clip-like device that holds the wire-hood closures in place, making it convenient for the operator to load the closures in a sequential order.
