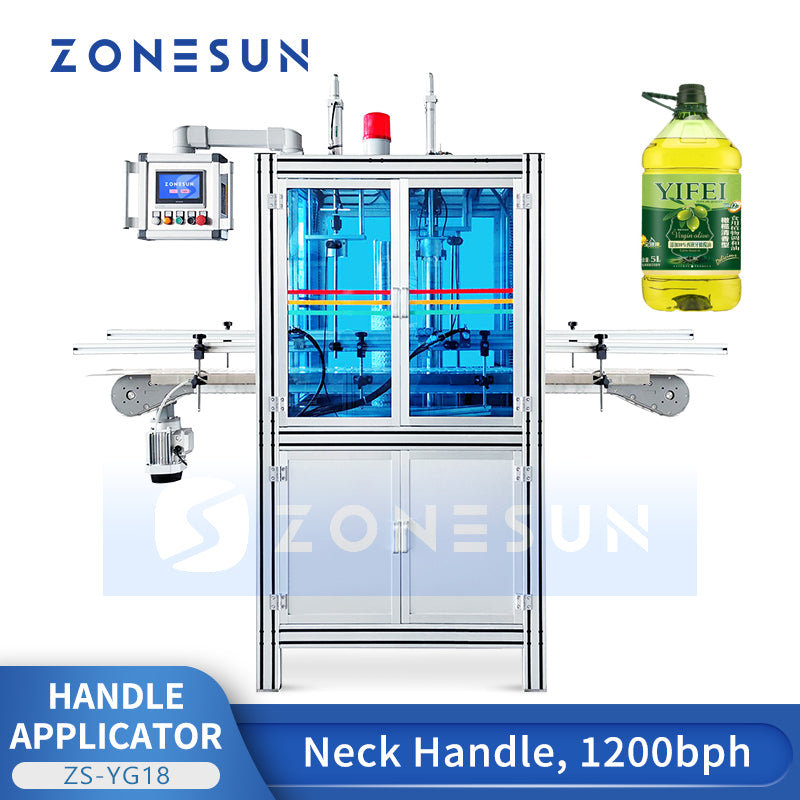

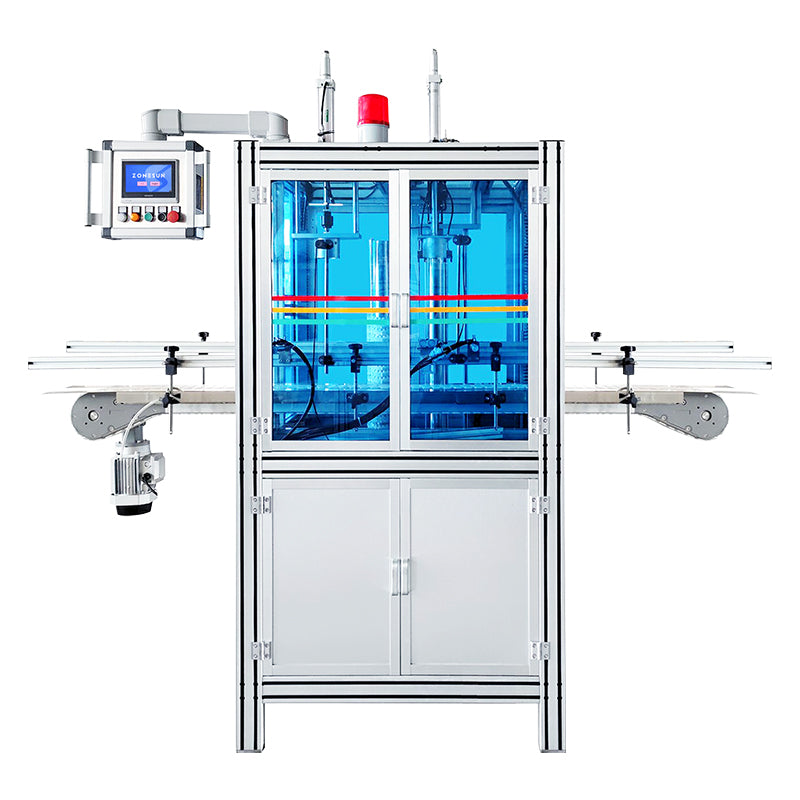

Zonesun ZS-YG18 Bottle Handle Applicator Ring Lifting Insert Machine for PET/HDPE Bottle

Description

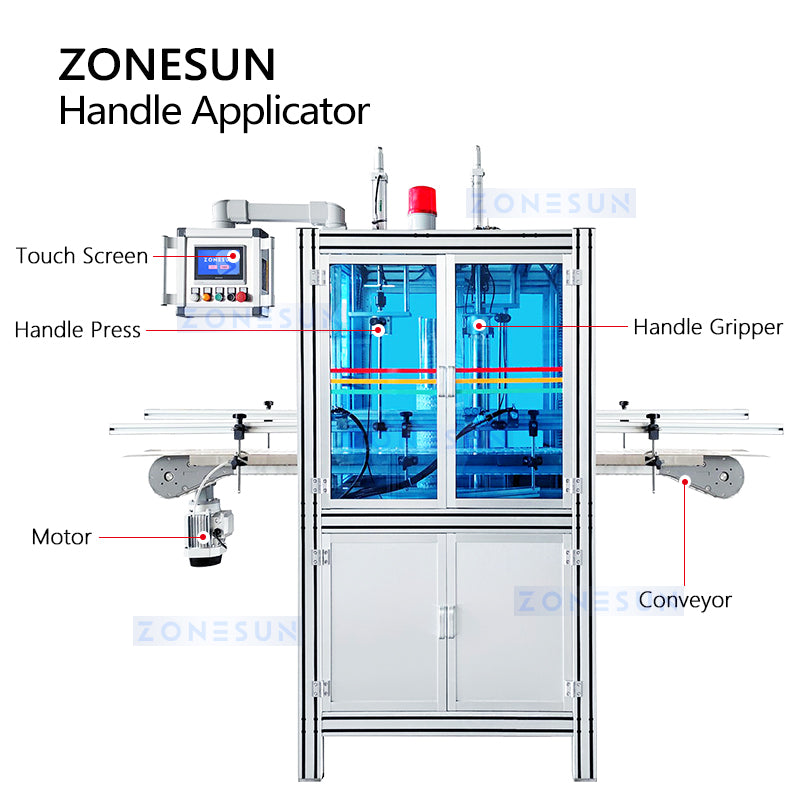

ZS-YG18 Handle Applicator, The bottle ring lifting insert machine automates the process of applying these rings to bottles, improving efficiency and consistency in production. We perform the insertion of handles in up to 20 liters PET or HDPE bottles, regardless of the containers are full or empty.The machine  includes mechanisms for feeding, positioning, and applying the rings to the bottles, it is widely used in food and beverage industries.

Parameter

• Machine Model: ZS-YG18
• Power Supply: 110V / 220V / 380V 450W
• Working Speed: About 1000–1200BPH (depending on product size)
• Suitable Bottle Height: 100–500mm
• Conveyor Height: 1000 ± 100mm (Can be customized)
• Machine Weight: About 300kg

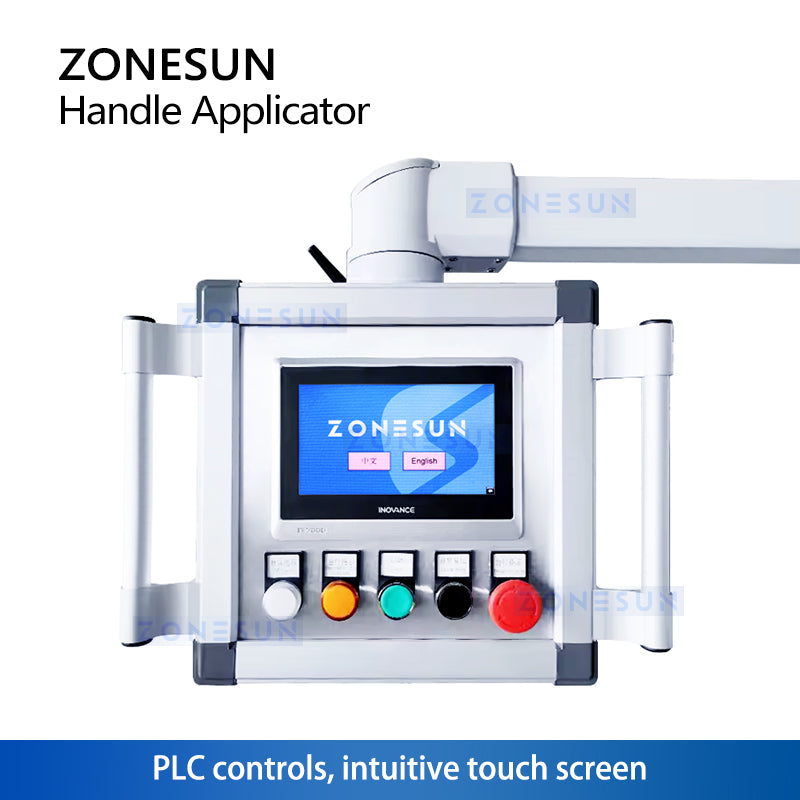

Designed with PLC control panel, it is convenient to set and adjust working parameters. The language of panel can be customized according to your need.

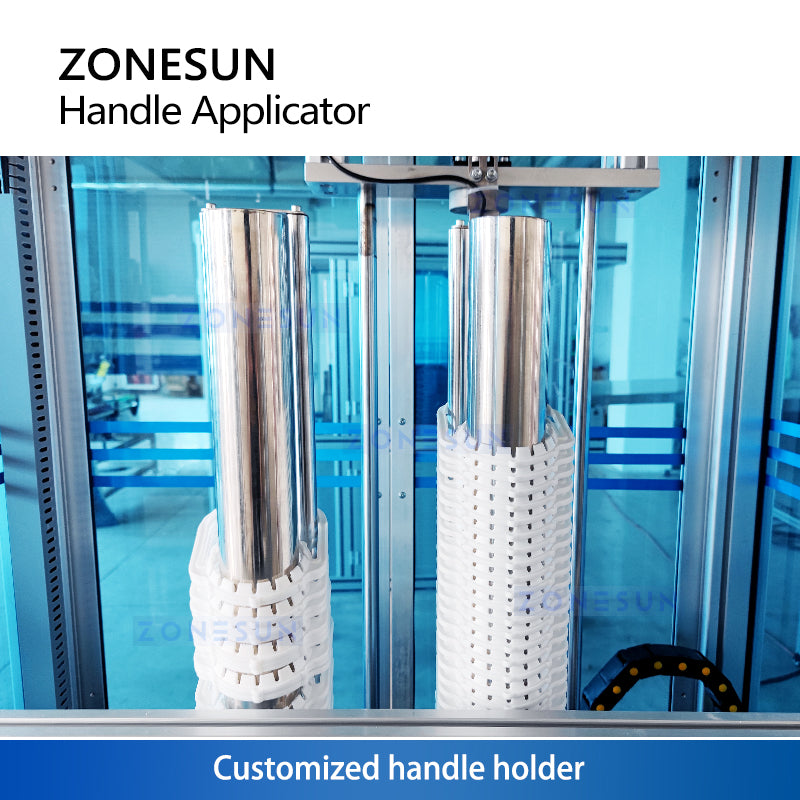

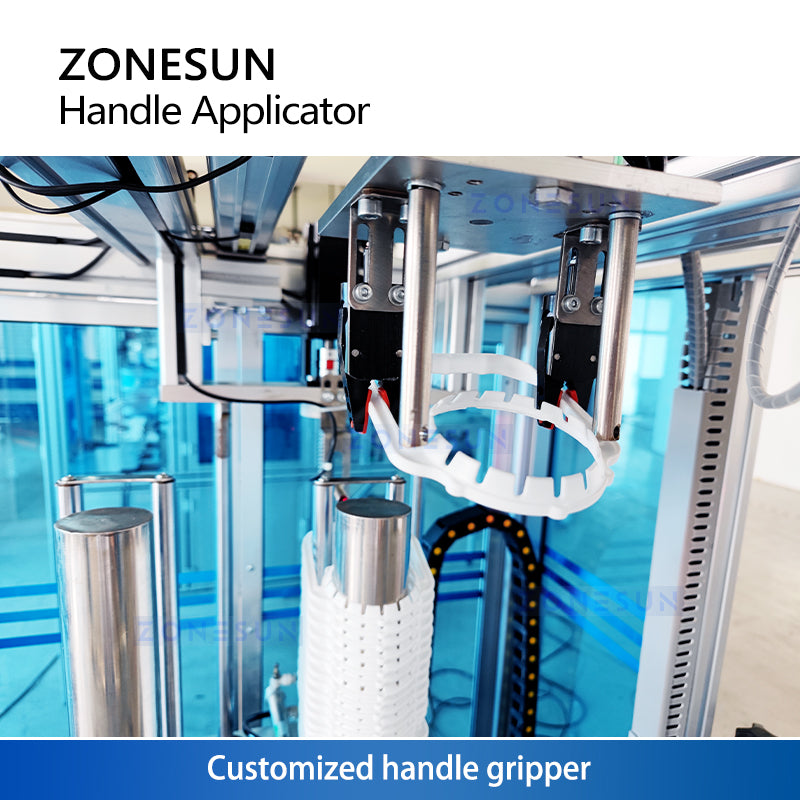

Equipped with two clamping structures, they can pick up handles and load them onto bottles. This can help to save labor cost.The two rods are used for storing the plastic handles. It can be customized as your production need.

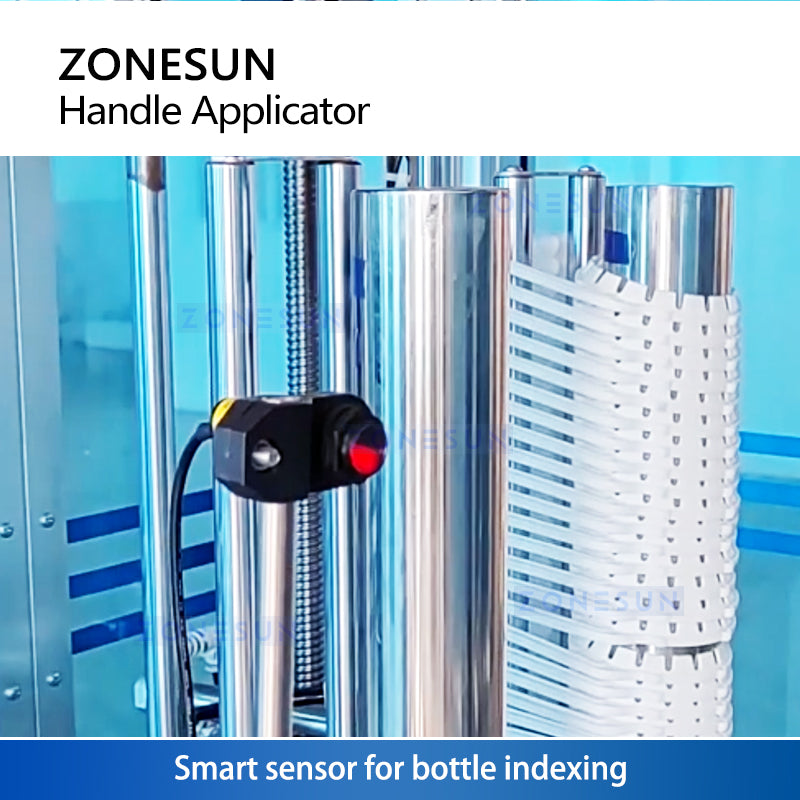

With electric eye, it can detect bottles and control the machine to run automatically, intelligent and efficient.
