ZONESUN ZS-ZB350X Horizontal Flow Wrapping Machine
ZONESUN ZS-ZB350X Horizontal Flow Wrapping Machine
Обычная цена
$4,299.00 USD
Обычная цена
Цена со скидкой
$4,299.00 USD
Цена за единицу
за
Стоимость доставки рассчитывается при оформлении заказа.
Не удалось загрузить сведения о доступности самовывоза

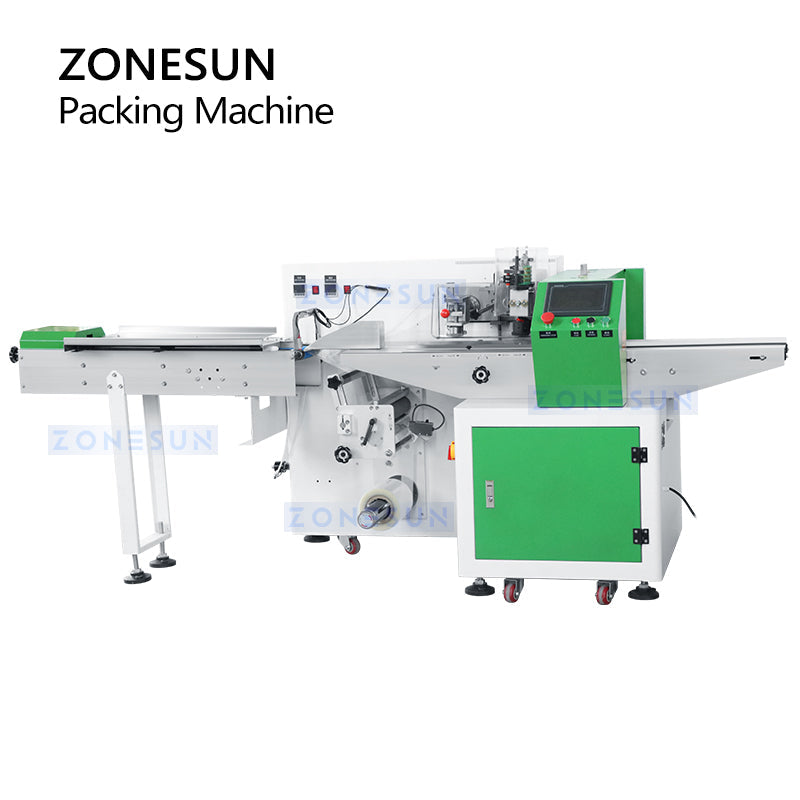

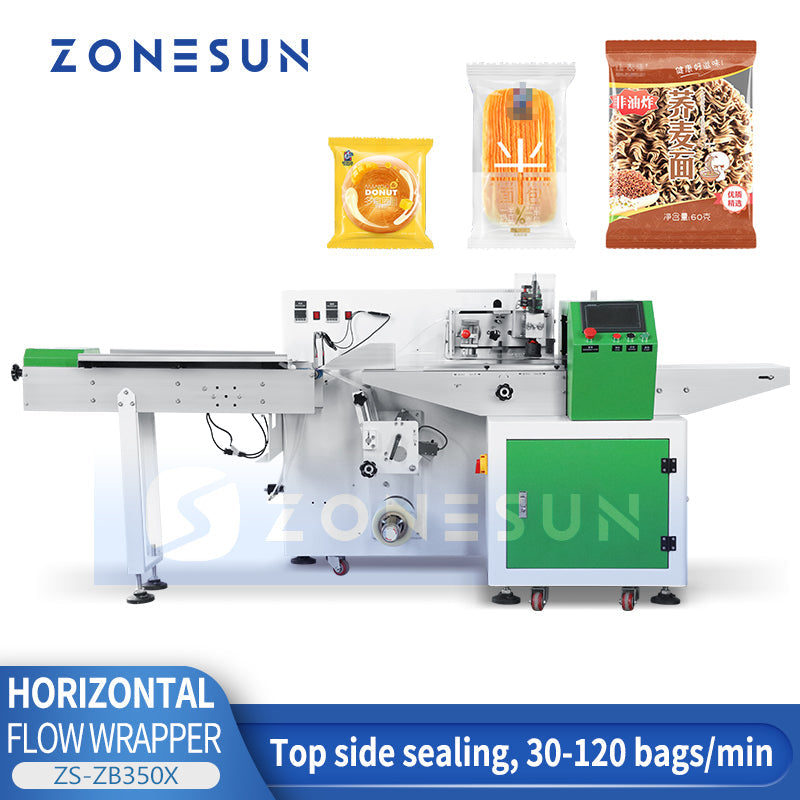

The ZONESUN ZS-ZB350X is a horizontal flow wrapping machine that integrates feeding, wrapping, and sealing into one continuous motion. Designed for high-speed packaging, it efficiently wraps items in film and seals them with precision. Ideal for a wide range of products, this machine is widely used in food, daily chemical, and consumer goods industries. Its customizable settings and compatibility with various packaging materials make it a versatile solution for modern production lines.
ZS-ZB350X Specifications
| Parameter | Specification |
|---|---|
| Model | ZS-ZB350X |
| Power Supply | 110/220/380V, 50/60Hz, 2.4KW |
| Film Width | Max 350 mm (Customizable) |
| Bag Length | 90–6000 mm (Customizable) |
| Bag Width | 30–160 mm (Customizable) |
| Product Height | Max 55 mm (Customizable) |
| Film Roll Diameter | Max 320 mm |
| Sealing Type | Middle side sealing, top side sealing |
| Packaging Rate | 30–120 bags/min |
| Packaging Materials | OPP, OPP/CPP, KOP/CPP, Aluminum film, Bubble wrap |
| Machine Size | Approx. 3836 × 890 × 1079 mm |
| Machine Weight | Approx. 350 kg |
| Packing Size | Machine: 1600 × 1020 × 1250 mm Conveyor: 1590 × 210 × 510 mm |
| Package Weight | Machine: Approx. 378 kg Conveyor: Approx. 36 kg |
Key Features
| PLC Control Panel | The PLC touch-screen interface provides user-friendly operation with separate temperature controls for sealing. |
| Automatic Film Feeding | The machine feeds film automatically. Film width can be adjusted within the stated range using the control mechanism. |
| Photoelectric Sensing | The photoelectric sensor detects packaging film and can automatically measure the bag length when used with a color-mark sensor. With servo controls, it can automatically measure the bagging length. |
| Multi-Material Sealing | Back line sealing pattern applicable to many materials: OPP, OPP/CPP, KOP/CPP, Alu-film, and bubble wrap. |
PRODUCT DETAILS

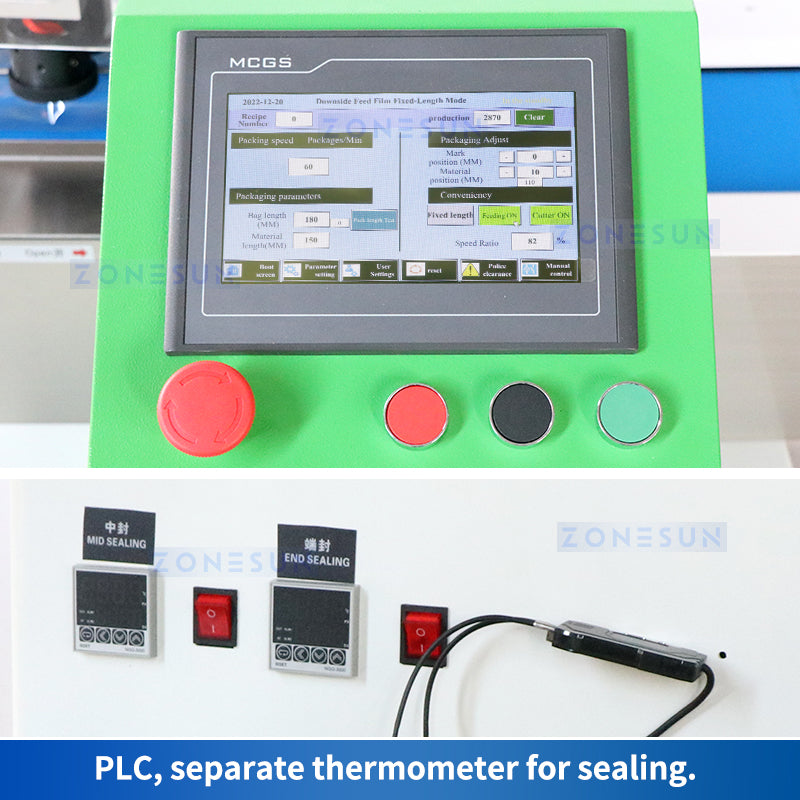

CONTROL PANEL
PLC, touchscreen, user-friendly HMI, separate thermometer for sealing.

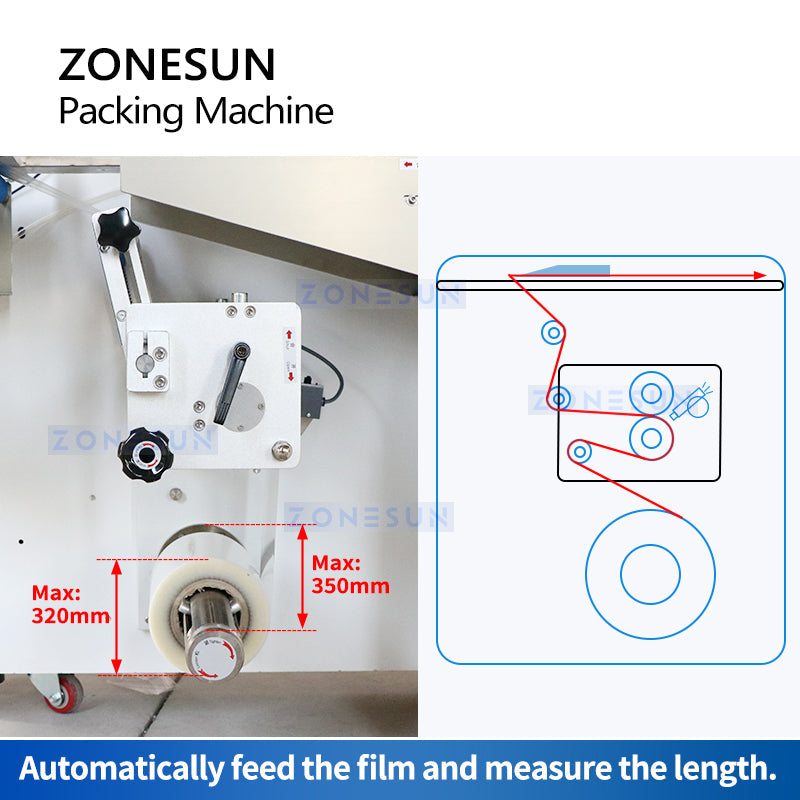

FILM FEEDING
Automatically feed the film and measure the length.
The max width of the film roll for this model is 350mm. Contact us for other options.

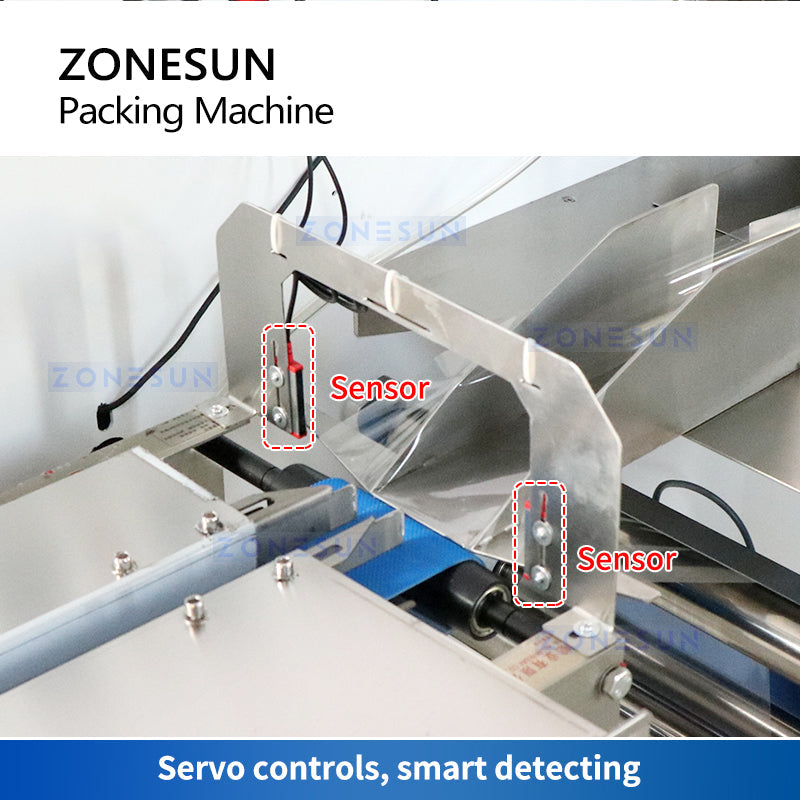

SENSING
Photoelectric eye, smart detecting
With servo controls, it can automatically measure the bagging length.

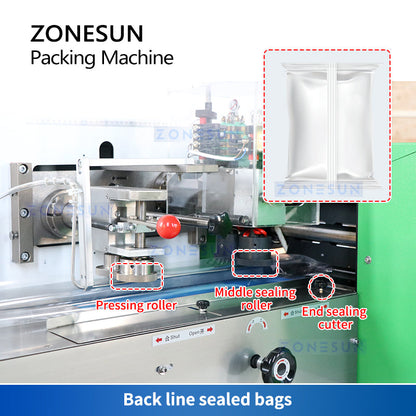

SEALING
The sealing pattern for this model is back line sealing only. It is applicable to many materials, such as OPP, OPP/CPP, KOP/CPP, Alu-film, and bubble wrap.
