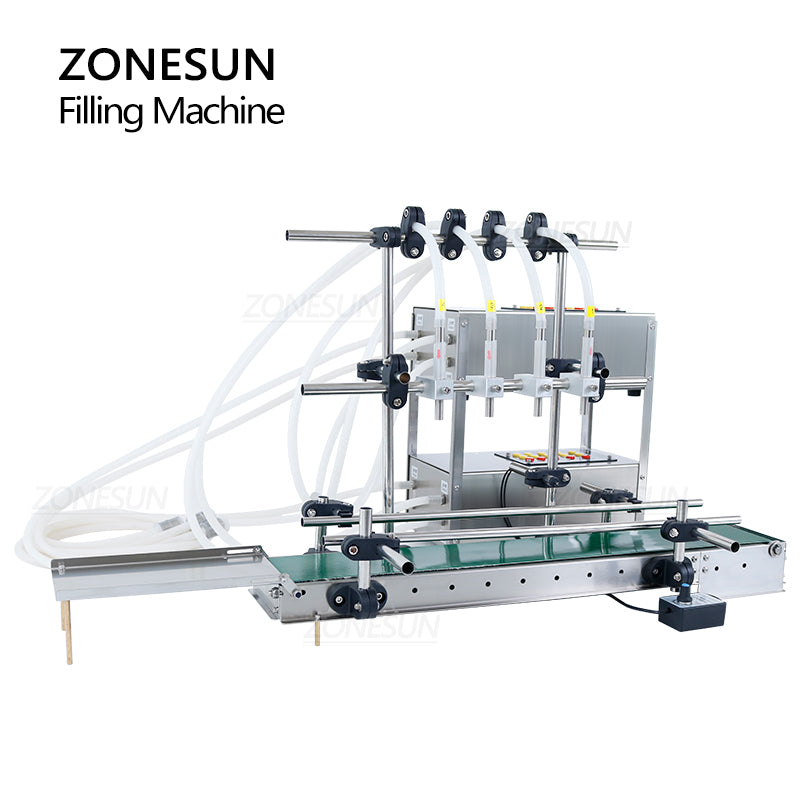

ZONESUN ZS-DTDP4G 4 Nozzles Diaphragm Pump Small Liquid Bottle Filling Machine With Conveyor

DESCRIPTION

The ZONESUN ZS-DTDP4G  automatic filling machine is used for filling low-viscous liquid, such as water, fresh juice, etc. in beverages, cosmetics, and daily chemical industries. It is designed with a conveyor belt, which makes it work automatically. It is space-saving as a small production line.

Parameter

• Machine Model: ZS-DTDP4G
• Machine Pump: Diaphragm Pump
• Voltage: 220V / 110V, 50–60Hz
• Power: About 240W
• Filling Range: 10–5000 ml
• Max Flow Rate: 4 L/min (based on water)
• Filling Speed: About 40–80 bottles/min (based on 100 ml water)
• Filling Accuracy: ±1%
• Applicable Bottle Height: <250 mm
• Applicable Bottle Diameter: 25–80 mm
• Bottleneck Diameter: >15 mm
• Filling Nozzle Diameter: OD 9 mm
• Conveyor Belt Size: About 600 × 100 mm (optional 1200 mm)
• Collecting Tray Size: About 210 × 120 mm
• Main Machine Size: About 285 × 145 × 185 mm
• Machine Weight: About 10.5 kg
• Package Size:
  • Main Machine: About 390 × 200 × 150 mm
  • Conveyor Belt: About 650 × 160 × 180 mm
• Package Weight: About 13 kg
