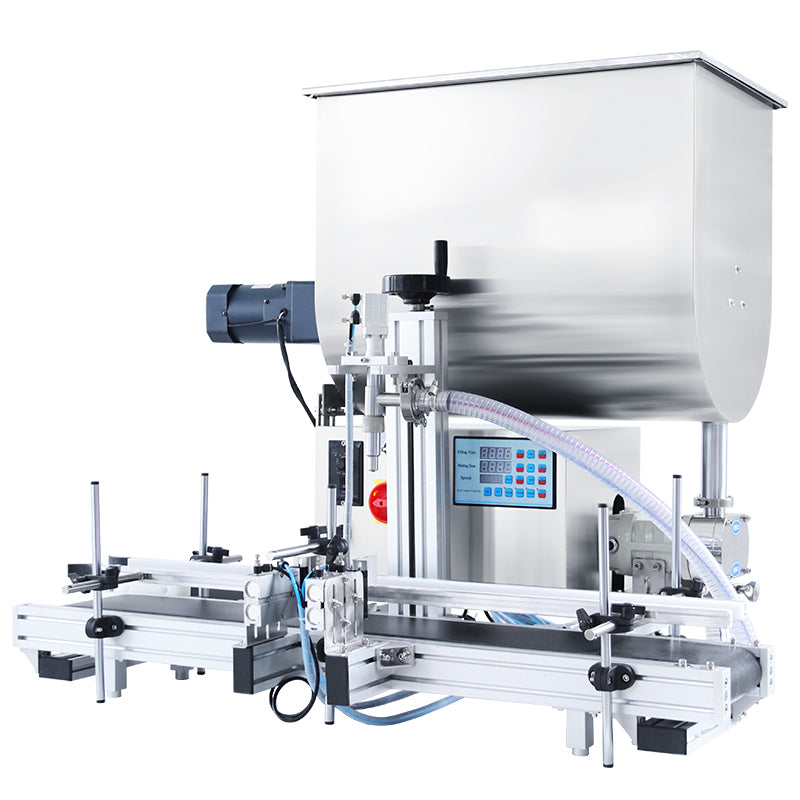

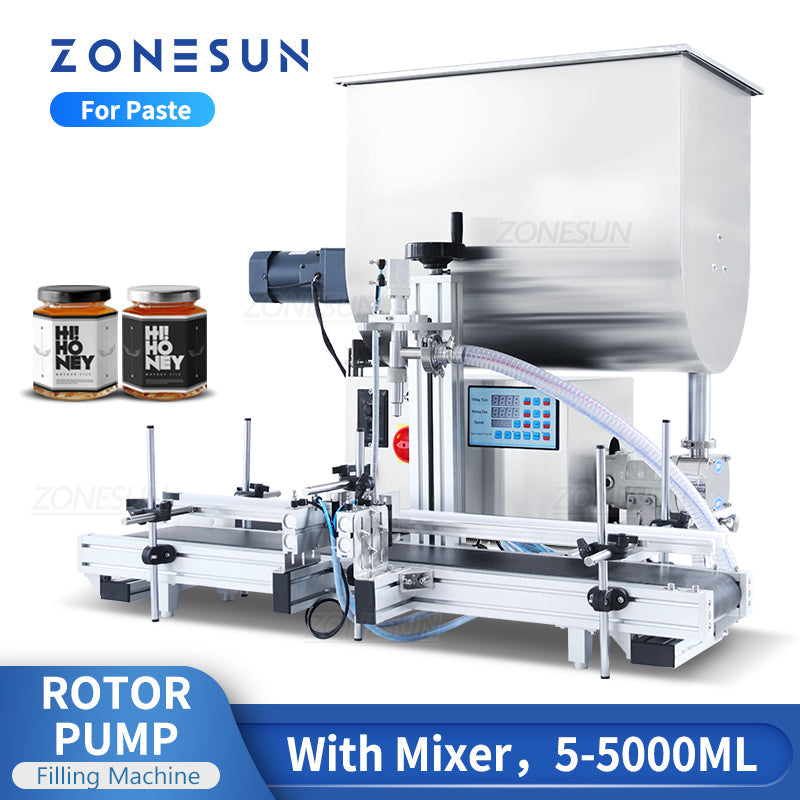

The ZONESUN ZS-DTGT900U is a high-performance automatic filling machine equipped with a rotor pump and a 100L mixer hopper, ideal for handling viscous products such as pasta sauce, ketchup, and jam. Designed for precision and speed, it supports filling volumes from 5ml to 5000ml with ≤±1% accuracy. The pneumatic bottle positioning system ensures stable and accurate filling, while the 1300r/min rotation speed enables efficient throughput of up to 60 bottles per minute. Built for industrial-grade reliability and ease of operation.

ZONESUN ZS-DTGT900U Paste Filling Machine – Technical Specifications
Parameter Specification
Model ZS-DTGT900U
Recommended Filling Volume 5–5000 ml
Filling Accuracy ≤ ±1%
Bottle Opening Size Φ > 20 mm
Hopper Capacity 100 L
Working Speed 10–60 bottles/min (based on 250ml jam)
Rotating Speed 1300 r/min
Machine Dimensions Approx. 1100 × 630 × 840 mm
Package Dimensions Approx. 1205 × 1000 × 1600 mm
Package Weight Approx. 260 kg

PRODUCT DETAILS

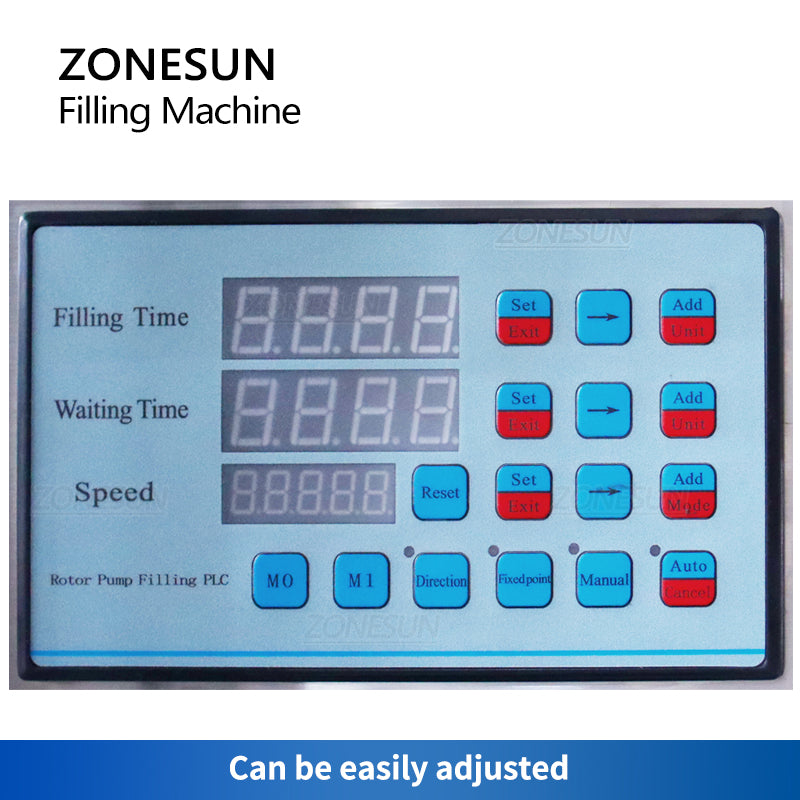

CONTROL PANEL

Digital display, automatic & manual mode, with a counter, adjustable speed.

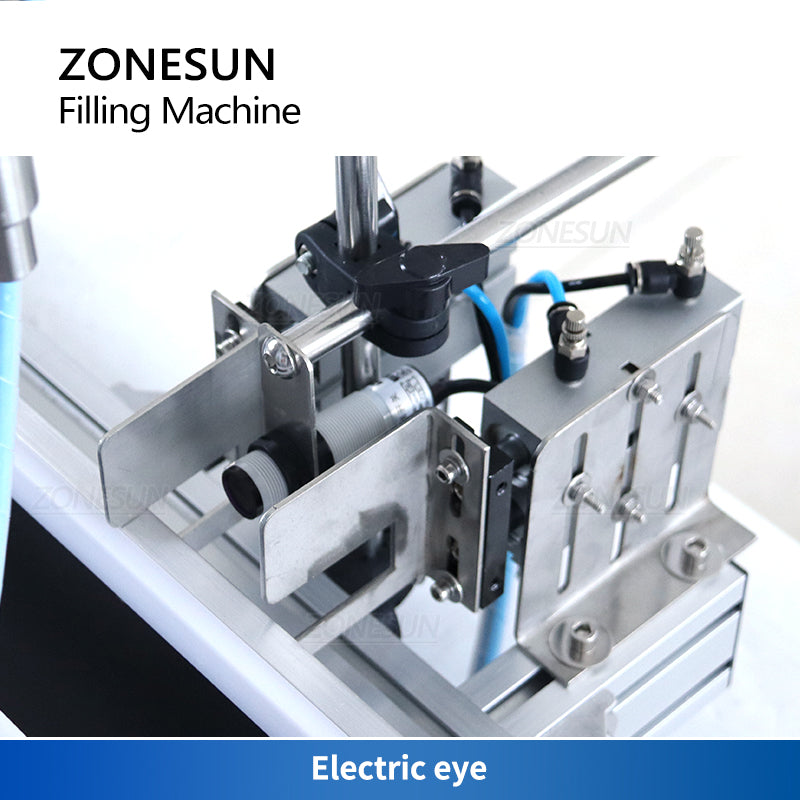

ELECTRIC EYE

Smart detecting, works with the pneumatic blocking device.

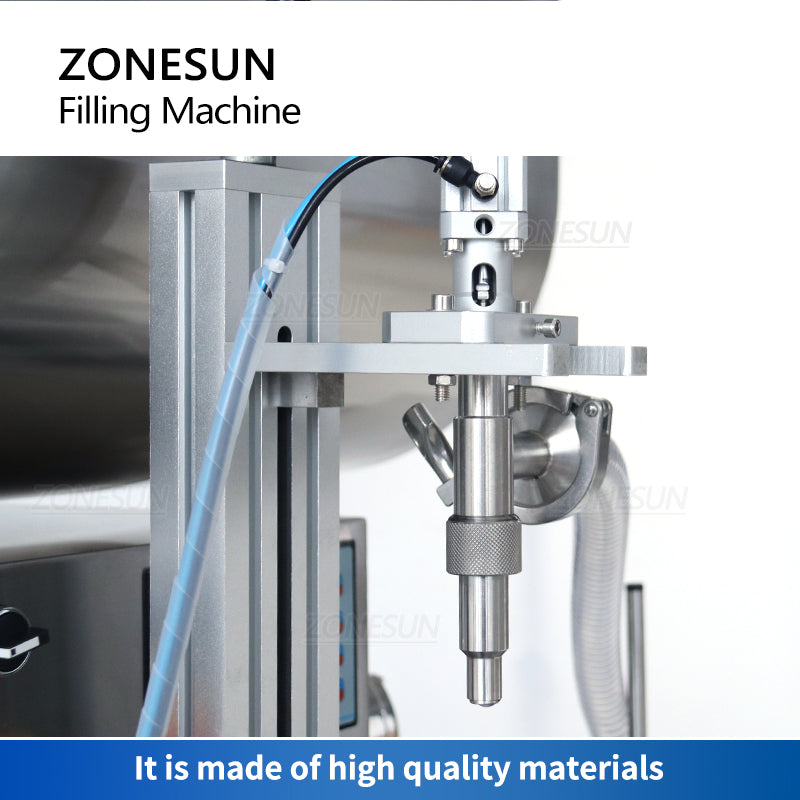

FILLING

Pneumatic filling nozzle, adjustable height, buckle design, easy to be replaced.

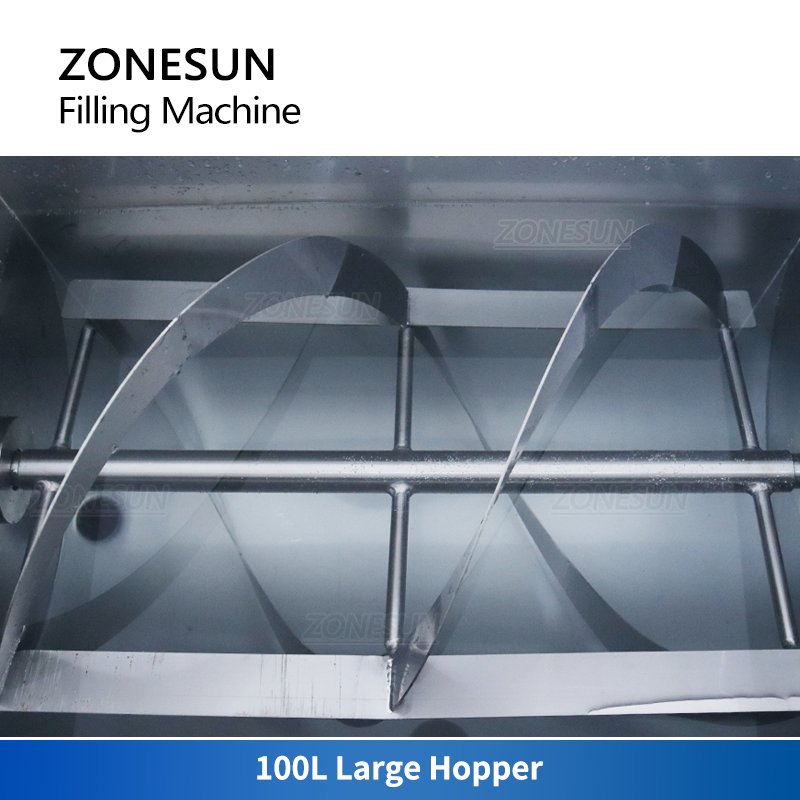

TANK

100L, with a paddle for stirring.

CONVEYOR

100*14cm, max load: 10kg
