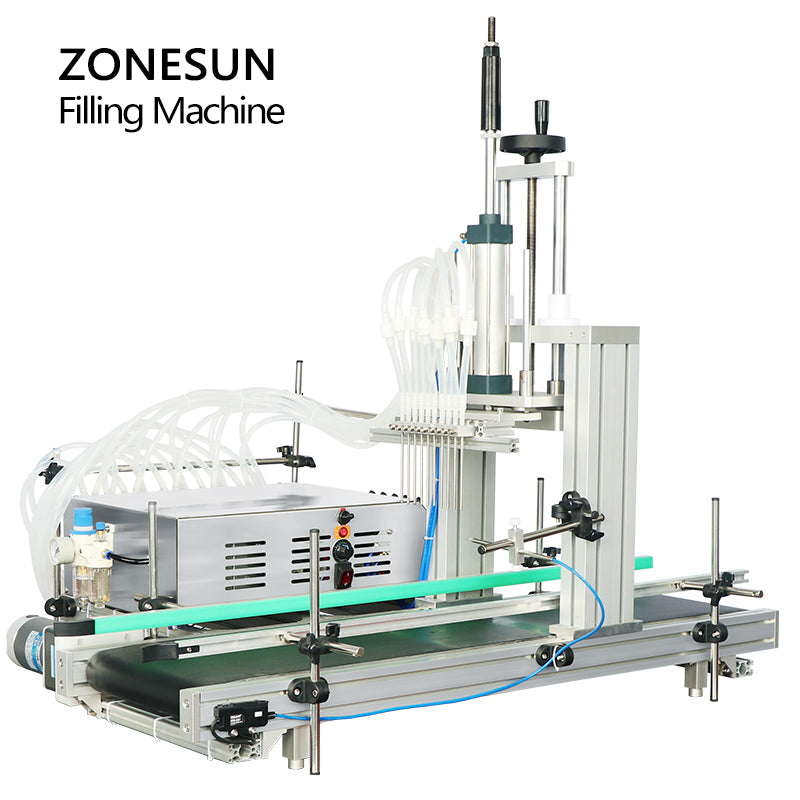

ZONESUN ZS-DTPP10D 10 Diving Nozzles Peristaltic Pump Small Glass Bottle Liquid Filling Machine

The ZS-DTPP10D is a high-speed, multi-head liquid filling machine equipped with ten precision peristaltic pumps. Designed for clean and accurate filling of low-viscosity liquids, it offers excellent control over dosage and flow, making it ideal for pharmaceutical, cosmetic, and laboratory applications. With customizable nozzle options and a compact footprint, this machine delivers consistent performance and is well-suited for small to medium-scale production environments.

Parameter
Model ZS-DTPP10D
Power Supply AC 110V/220V, 50–60Hz, 60W × 10
Pump Type Peristaltic Pump
Filling Range ≤ 50 ml
Max Flow Rate (per nozzle) 650 ml/min (based on water)
Filling Heads 10 (customizable)
Working Speed 70–90 bottles/min (based on 50ml water)
Filling Accuracy ≤ ±1%
Filling Nozzle Diameter Ø4 mm
Delay Range 0.01–99.99 seconds
Conveyor Size 1080 × 350 mm (L × W)
Machine Size (without conveyor) 380 × 490 × 300 mm
Net Weight Approx. 38 kg
Package Size 1180 × 880 × 370 mm
Package Weight Approx. 56 kg
