DESCRIPTION

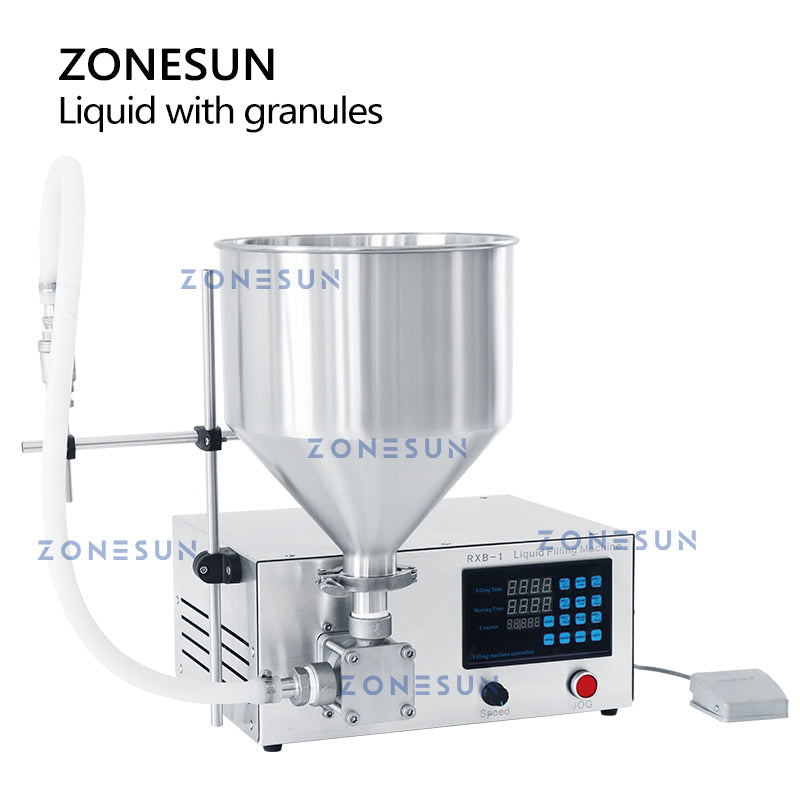

The ZS-RXB1 liquid filling machine, This semi-automatic filling machine is equipepd with rotor pump,it is suitable for filling liquid and paste.When filling paste, operator just need to pour material into hopper.and when filling liquid, you can remove hopper, and put the filling hose into material tank, the machine will suck liquid and fill liquid into containers.It is widely used in food, daly chemical and cosmetic industries.

Parameter

• Model: ZS-RXB1
• Working power: AC 220V
• Pump: Rotary pump
• Power: 400 w
• Maximum flow rate: 28L/min
• Suitable filling range: 0.5-20L
• Suitable PH Value: PH≥3
• Filling accuracy: ±1%(When the filling volume is less than 100 ml, there will be an error of 2-5 ml. Please consult customer service for specific materials.)
• Filling nozzle size: 10*14 mm
• Delay time range: 0.01-999.9 s
• Counting range: 1-59999 times
• Machine size: 500*300*230 mm
• Package size: About 350*310*350 mm(Hopper)+570*450*350 mm(Machine)
• Package weight: About 3 kg(Hopper))+18.5 kg(Machine)

PRODUCT DETAILS

CONTROL PANEL

Digital display, easy learning.
Timer, counter, and speed regulator.

APPLICATION

Dual-purpose, buckle design, easy to replace the hopper with the hose.

PUMP

Flexible impeller pump, up to 28L/min, suitable for liquid with granules.

OPERATION

Dual-mode, manual and automatic.
