DESCRIPTION

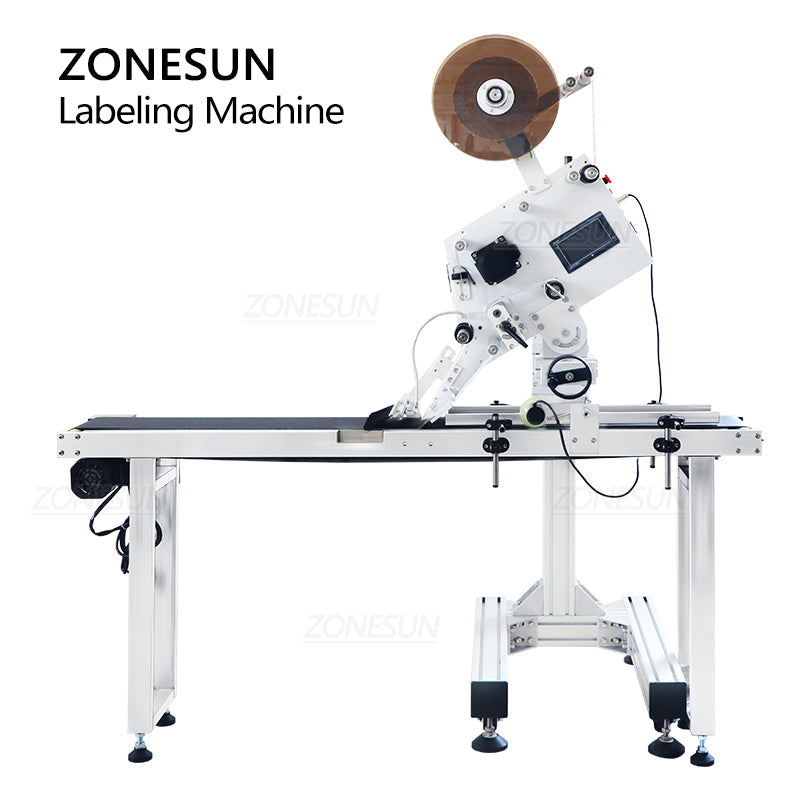

The ZONESUN ZS-TB170 is a high-speed labeling machine designed for flat surface applications. With a maximum output of 300 pieces per minute, it significantly boosts production efficiency. Its scalable design allows seamless integration with various conveyor systems, making it ideal for forming automated labeling lines. Engineered for precision, it supports label sizes from 15×25 mm to 200×300 mm with ±1% accuracy. Compact and reliable, it’s perfect for packaging operations requiring speed, flexibility, and consistent labeling quality.

PARAMETER

• Machine model：ZS-TB170
• Machine voltage：110/220V 50*60HZ 1.5KW
• Labeling speed：0-300 pieces/min(Based on labeling materials and label size)
• Label roll size：15-150mm(H)*25-300mm(L)
• Labeling accuracy：±1%
• Label roll inner diameter：76mm
• Label roll outer diameter：350mm
• Package size：About 860*650*750mm
• Package weight：About 76kg
• Machine size：About 660*700*1600mm
• Machine weight：About 60kg

PRODUCT DETAILS

CONTROL PANEL

PLC controls, touch screen, easy to use.

SENSOR

For labels, smart detecting, high accuracy.

SENSOR 2

For products.

SCALABILITY

It can adapt any conveyor to form an automatic line.

ADJUSTMENT

The working height and labeling head position can be adjusted according to your product size.
