DESCRIPTION

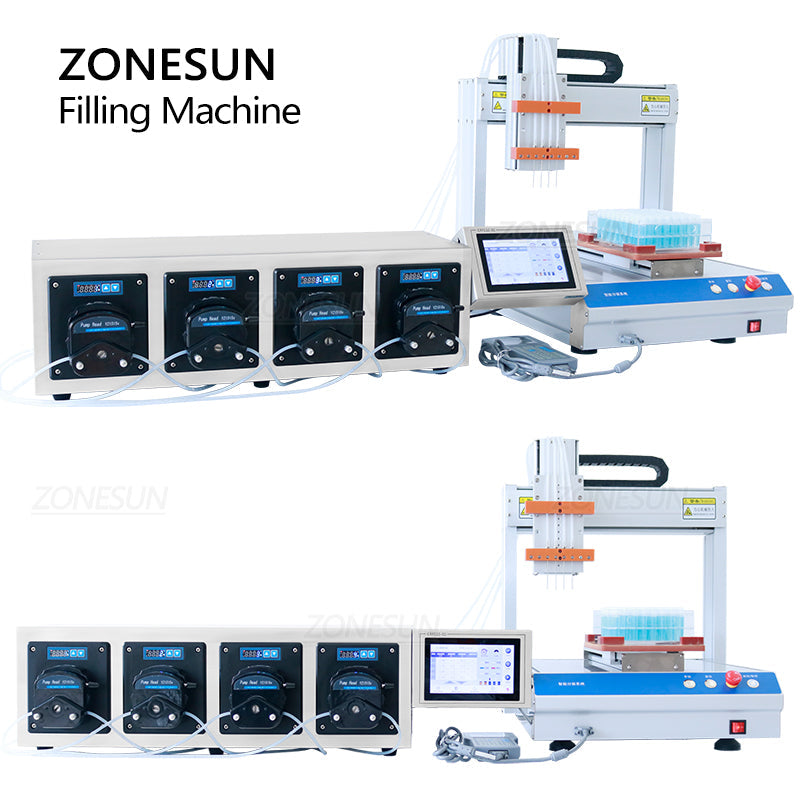

The ZONESUN ZS-XYZ4A is a precision small-dose liquid filling machine equipped with four peristaltic pumps and multiple nozzles. Its intelligent nozzle system moves along the X, Y, and Z axes for flexible, accurate filling. Ideal for handling vials, ampoules, and narrow tubes, this compact device delivers high-speed dosing with minimal contamination risk—perfect for pharmaceutical, cosmetic, and laboratory applications.

Specification Details
Machine Model ZS-XYZ4A
Voltage 110V / 220V, 50–60Hz
Power Consumption 400W
Filling Range 0.1–20ml
Filling Nozzle Quantity 1 / 2 / 3 / 4
Filling Speed Approx. 60–120 bottles/min (depends on liquid & volume)
Filling Pump Type Peristaltic Pump
Machine Size Approx. 720 × 250 × 210mm
Machine Weight Approx. 17kg

PRODUCT DETAILS

CONTROL PANEL

PLC, separately controls the pumps and nozzles.

PERISTALTIC PUMP

Modular design, high filling accuracy, easy to replace the hoses.

FILLING NOZZLE

Small-volume filling, movable along X/Y/Z axis.

JIG

Custom jig for vials or tubes.
