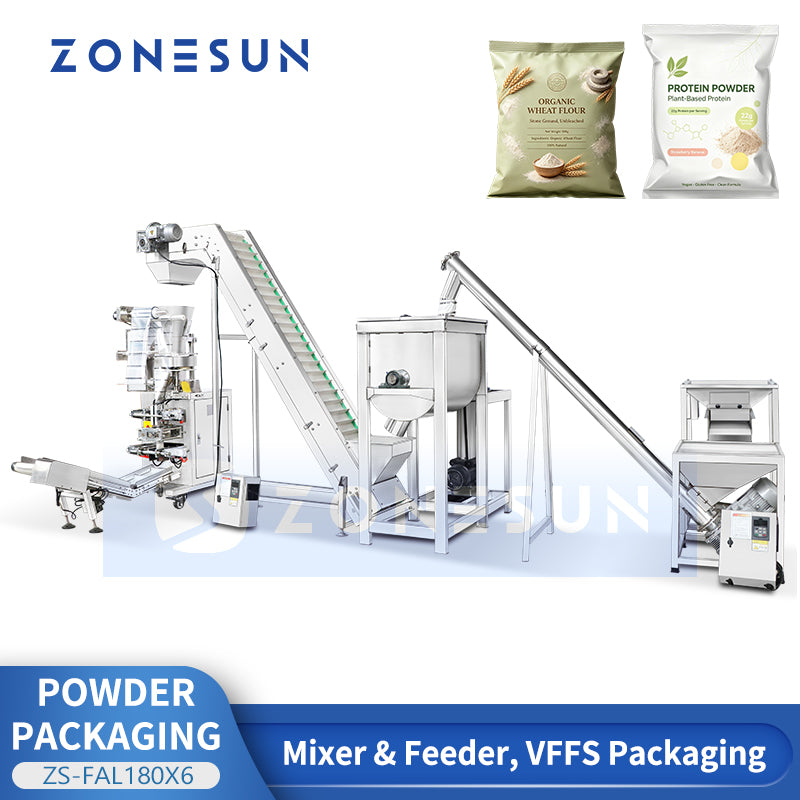

ZONESUN ZS-FAL180X6 Automatic Powder Mixing Feeding Filling Sealing Production Line
ZONESUN ZS-FAL180X6 Automatic Powder Mixing Feeding Filling Sealing Production Line
Verfügbarkeit für Abholungen konnte nicht geladen werden
DESCRIPTION

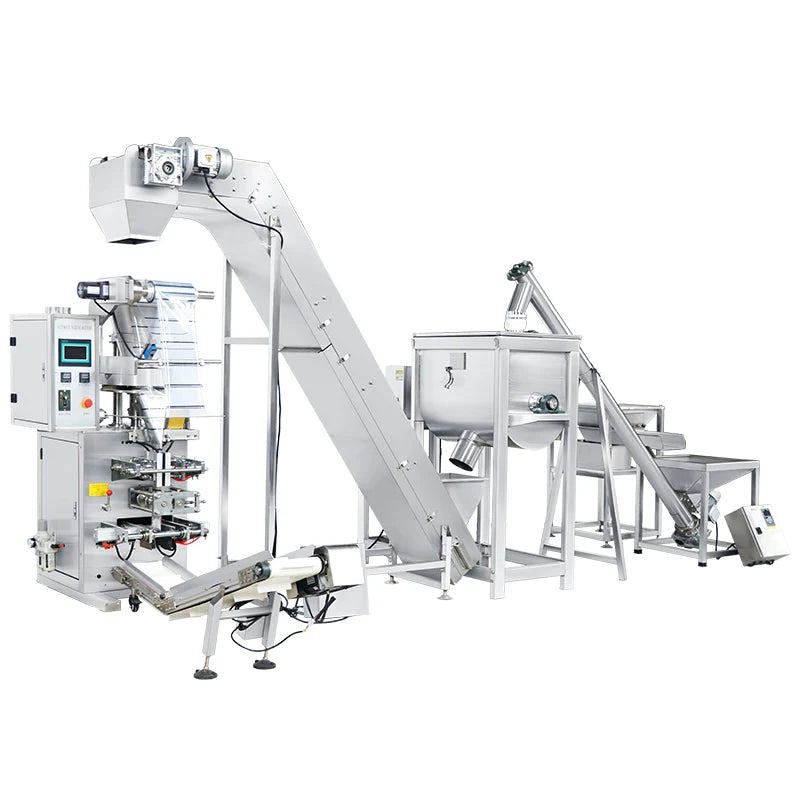

The ZONESUN ZS-FAL180X6 integrates powder mixing, material feeding, dosing, vertical bag forming, filling, sealing, and cutting into a continuous packaging process. The line combines a double-ribbon dry powder mixer, vibratory powder feeder, and VFFS packaging machine to reduce manual material transfer between stages.
The ZS-F100 packaging section handles 5–100 mL per bag at a specified speed of 30–50 bags/min. Back seal, three-side seal, and four-side seal configurations can be customized. Suitable applications include compatible matcha, chili, milk, coffee, flour, and seasoning powders.
Configuration & Utility Requirements
The powder mixer specifications list a 380 V power supply, while the feeder is listed for 110 V / 220 V. Please confirm the power requirements of every machine in the complete line before ordering. The ZS-BM200, ZS-BM500 and ZS-BM1000 mixer specifications are configuration references; please contact us to confirm the mixer model and capacity included in the quoted line. An external compressed-air supply is required for the packaging section; please confirm the required pressure and flow for the final configuration.
Technical Specifications
ZS-VF50 Powder Vibratory Feeder
| Parameter | Specification |
|---|---|
| Model | ZS-VF50 |
| Voltage | 110 V / 220 V, 50–60 Hz |
| Capacity | 50 L |
| Output Frequency | 40–400 Hz |
| Outlet Size (L × W) | 740 × 260 mm |
| Machine Dimensions (L × W × H) | Approx. 630 × 630 × 1065 mm |
| Machine Weight | Approx. 91 kg |
Dry Powder Mixer
| Parameter | Specification |
|---|---|
| Models | ZS-BM200 / ZS-BM500 / ZS-BM1000 |
| Voltage | 380 V |
| Power | 2.2 kW / 4 kW / 7.5 kW, respectively |
| Capacity | 200 L / 500 L / 1000 L, depending on material bulk density |
| Rotating Speed | 15 rpm |
| Machine Material | Stainless steel |
ZS-F100 Powder Packaging Machine
| Parameter | Specification |
|---|---|
| Model | ZS-F100 |
| Bag Length | 40–160 mm |
| Bag Width | 30–120 mm |
| Bag Sealing Type | Back seal / 3-side seal / 4-side seal (configuration can be customized) |
| Packing Range | 5–100 mL |
| Packing Speed | 30–50 bags/min |
| Power | 2.6 kW |
| Machine Dimensions (L × W × H) | 800 × 1000 × 1800 mm |
| Machine Weight | 400 kg |
| Air Pressure | 1.6 MPa |
Product Details

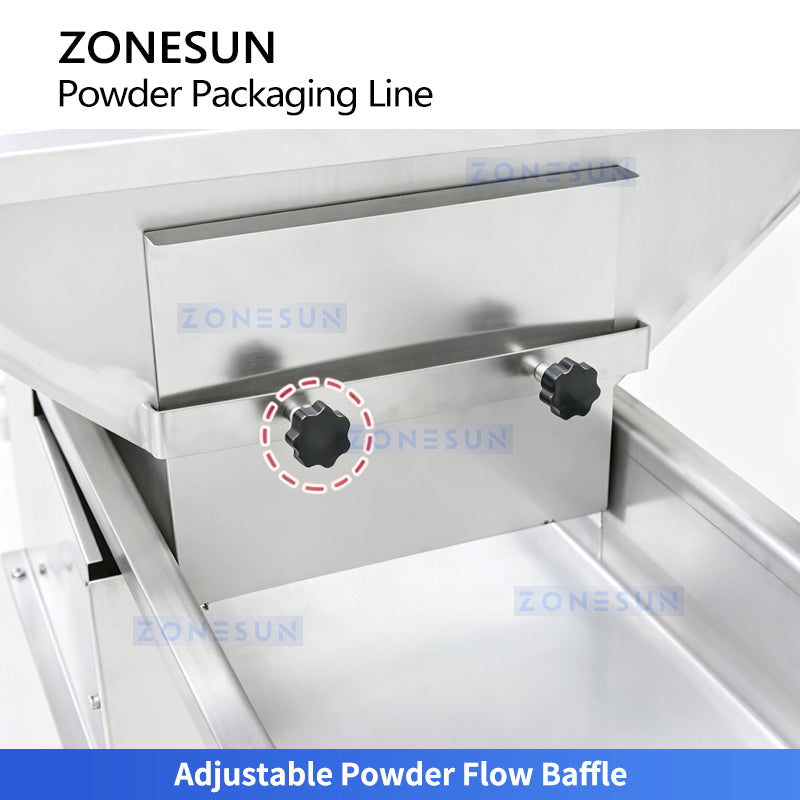

Adjustable Powder Flow Baffle
Rotate the control knobs to adjust the powder flow rate for stable, controlled material feeding.

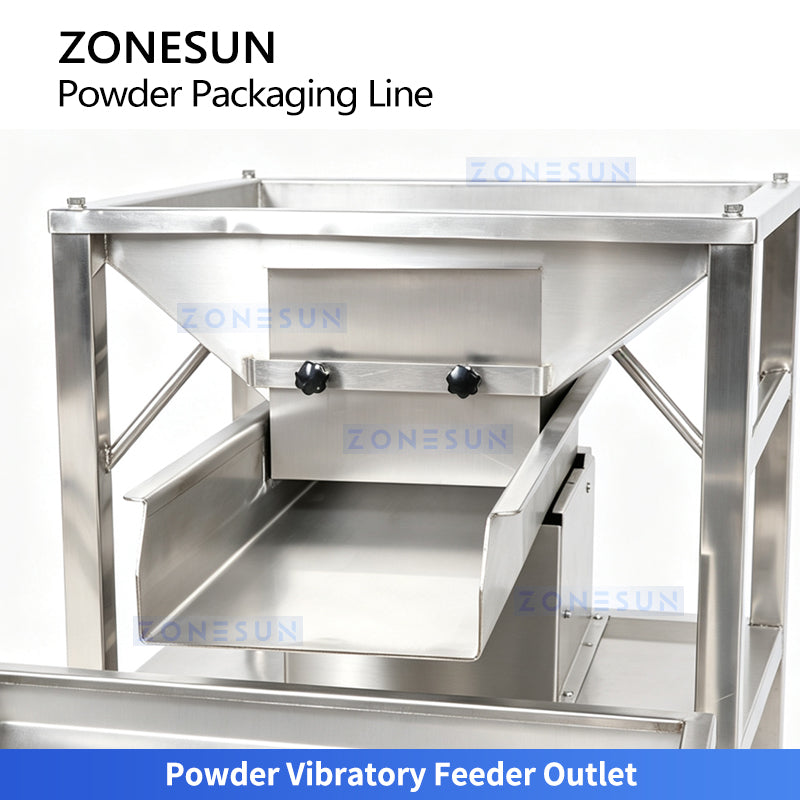

Powder Vibratory Feeder Outlet
The outlet guides powder from the vibratory feeder to the next processing stage for continuous material transfer.

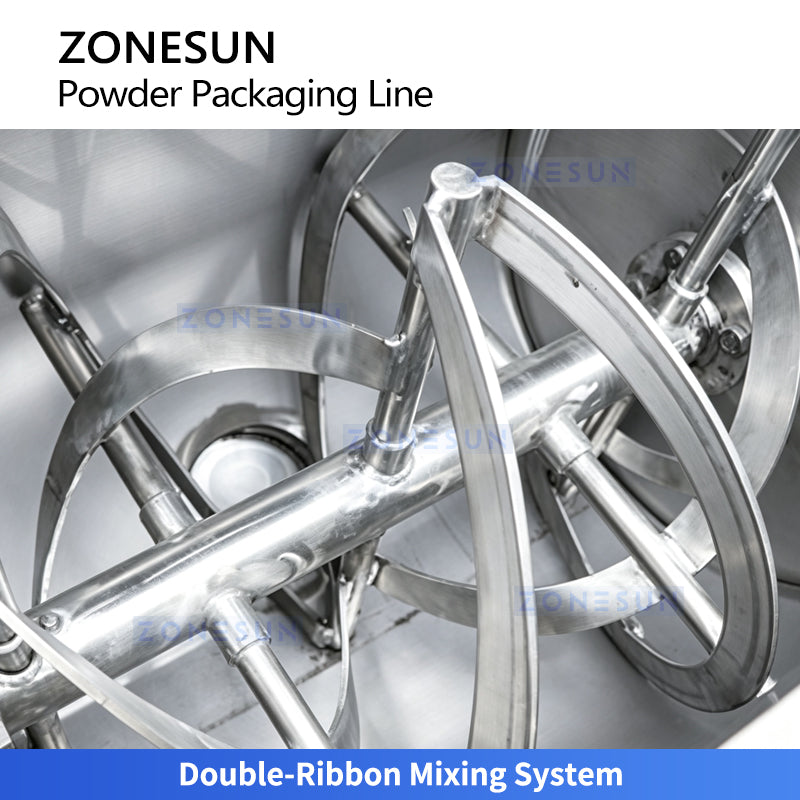

Double-Ribbon Mixing System
The horizontal dual-ribbon design blends powders and compatible granules before filling. Continuous material movement promotes uniform mixing and consistent batch results.
Powder Mixer Discharge Outlet
The discharge outlet transfers mixed powder into the downstream feeding system for continuous production.

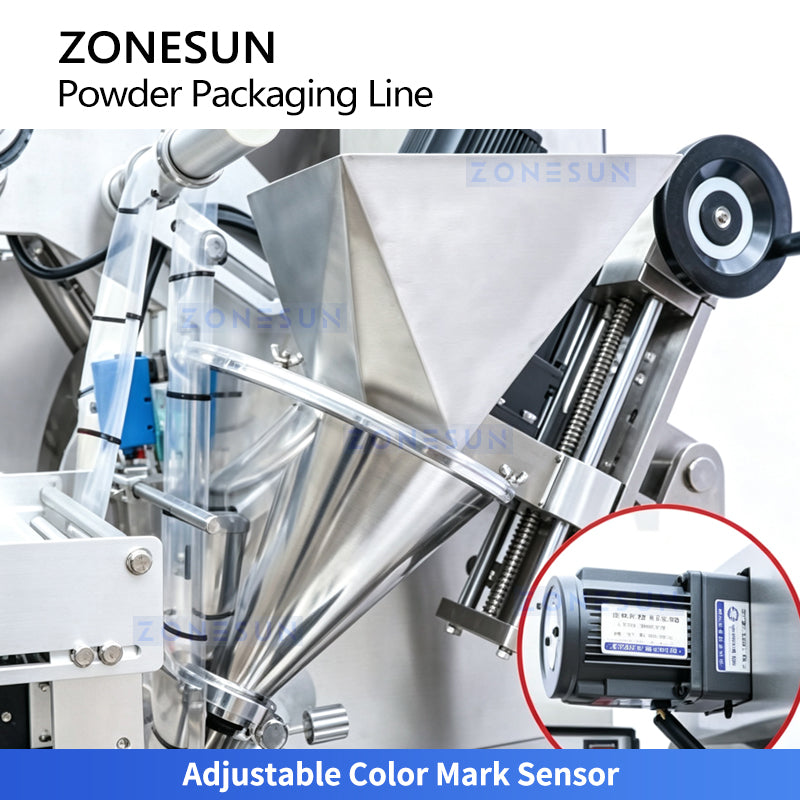

Adjustable Color Mark Sensor
The sensor detects registration marks on printed film for accurate film positioning, cutting, and sealing. Sensitivity can be adjusted for different film materials and print conditions.

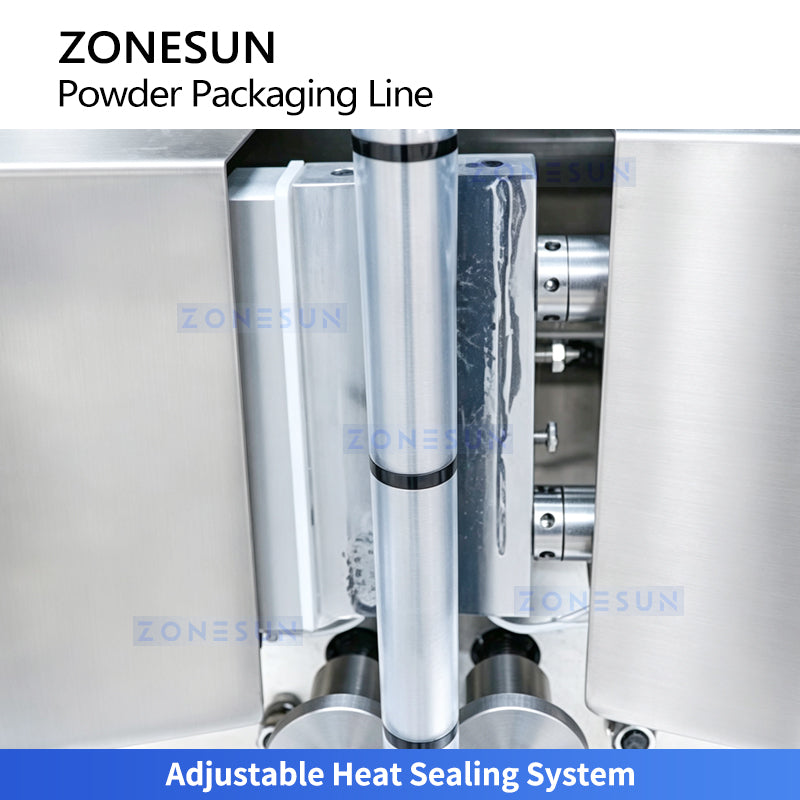

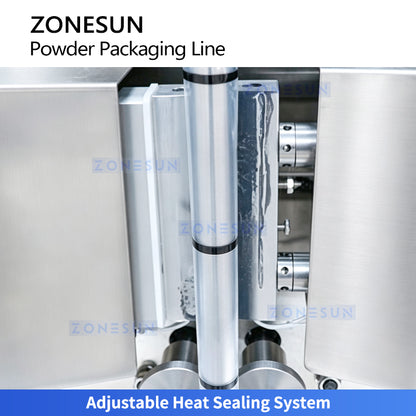

Adjustable Heat Sealing System
The system applies controlled heat and pressure to seal packages. Sealing temperature is adjustable for different film materials. Back seal, three-side seal, and four-side seal configurations are available.
