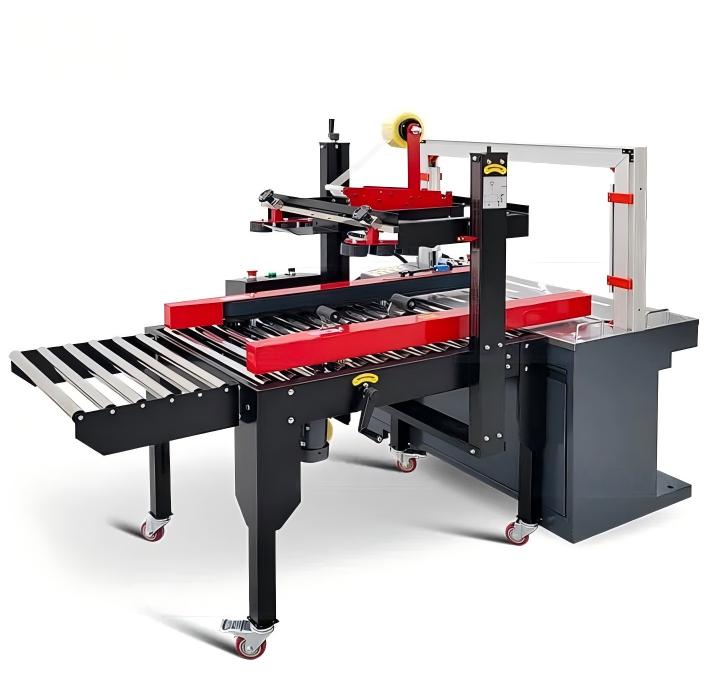

ZONESUN ZS-FK5050S Automatic Carton Sealing Machine
ZONESUN ZS-FK5050S Automatic Carton Sealing Machine
Verfügbarkeit für Abholungen konnte nicht geladen werden
The ZONESUN ZS‑FK5050S carton sealing machine is a practical, high‑efficiency packaging solution designed to securely seal corrugated boxes with precision‑applied tape. It automatically measures and applies the exact amount of tape needed, reducing material waste and ensuring consistent, reliable closure to prevent packages from opening during transit. With adjustable sealing dimensions, fast operation speeds up to 18 m/min, and integrated strapping capability, it is ideal for streamlining packaging processes in warehouses, distribution centers, and manufacturing facilities.
ZS‑FK5050S — Specifications
Parameter Details
Model ZS‑FK5050S
Power Supply 110 V / 220 V, 50‑60 Hz, 400 W
Sealing Width ≥ 50 mm
Sealing Height 130 – 500 mm
Sealing Length ≥ 150 mm
Table Height 750 mm
Sealing Speed 0 – 18 m/min
Sticky Tape Width 48 – 60 mm
Strapping Tape Width 9 – 15 mm
Strap Roll Size Inner Ø: 200 – 210 mm, Outer Ø: 400 – 450 mm, Width: 170 – 190 mm
Strapping Time ≤ 2.5 s
Net Weight 172 kg ± 159 kg (verify specification)
Packing Size 140 × 100 × 134 mm + 150 × 78 × 95 mm
Features：
ONE-KEY OPERATION
Sealing and strapping can be started through a straightforward one-key control.
AUTOMATIC SEALING AND STRAPPING
The system seals the top and bottom of the carton before strapping it automatically.
STAINLESS-STEEL ROLLERS
Strong, smooth stainless-steel rollers transport cartons through the system.
DEFORMED-CARTON HANDLING
The machine can process cartons with minor deformation.
AUTOMATIC TAPING AND CUTTING
The unit applies tape to cartons and cuts it automatically.
TAPE-FLATTENING ROLLERS
The black rollers press the tape flat against the carton surface.
COPPER HEATING BLOCK
The heating block is made of durable pure copper with high thermal conductivity.
