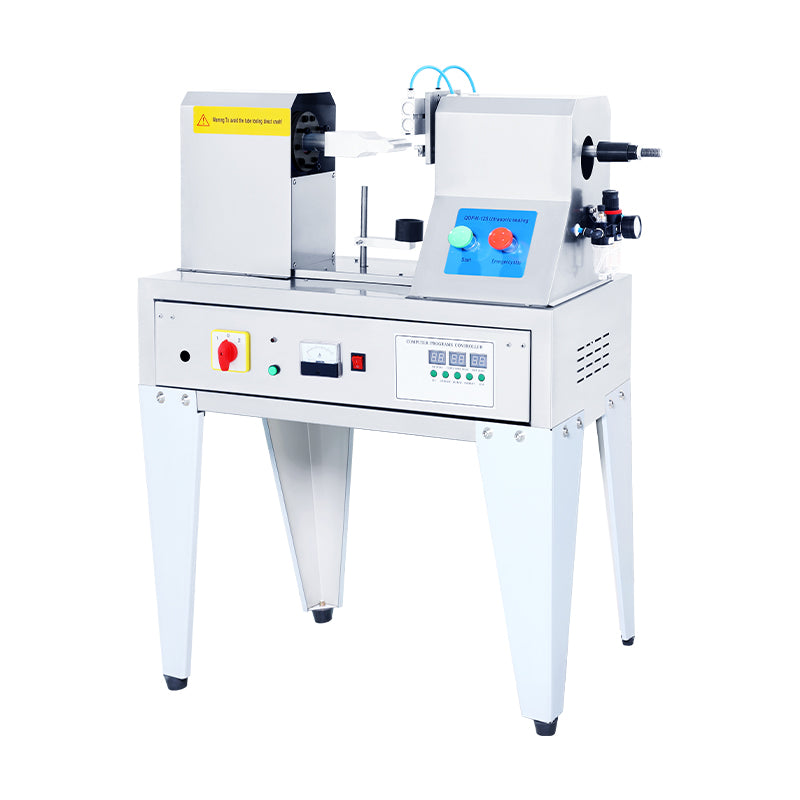

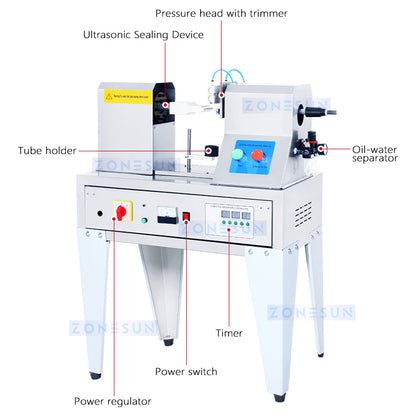

Zonesun ZS-QDFM125 Ultrasonic Soft Tube Sealing Machine

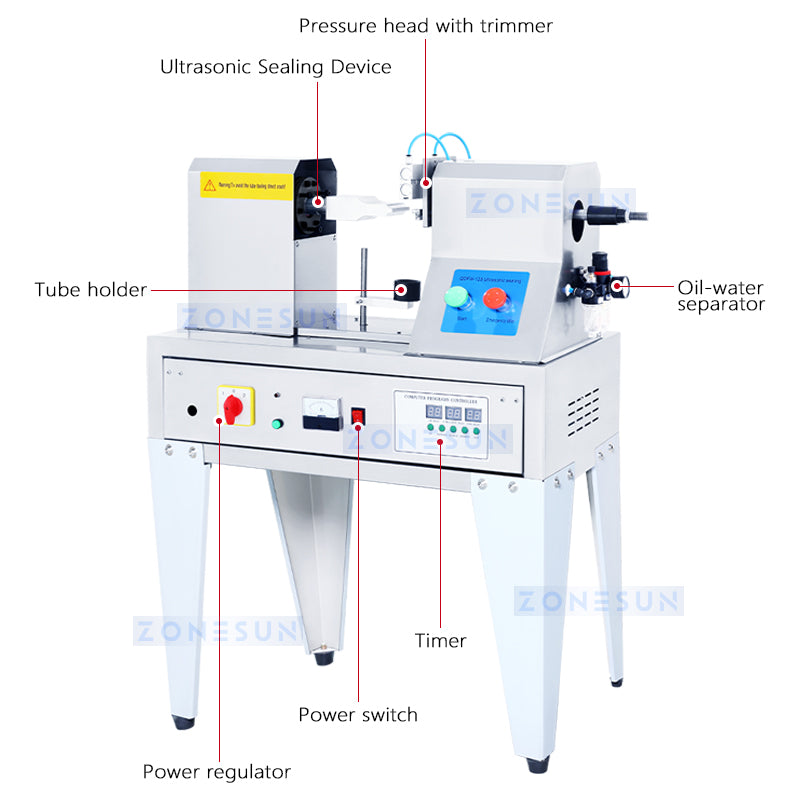

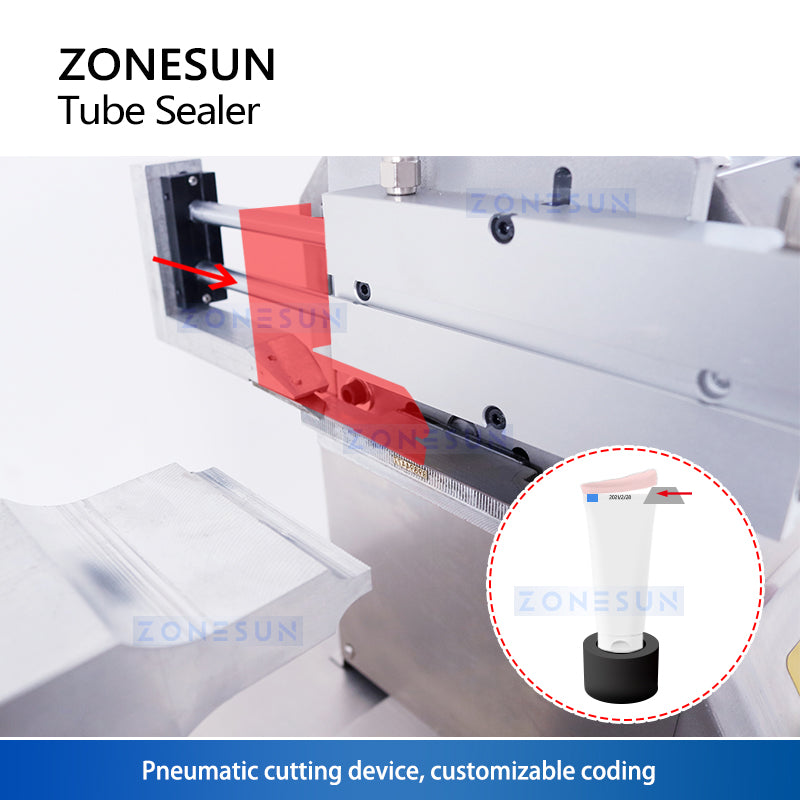

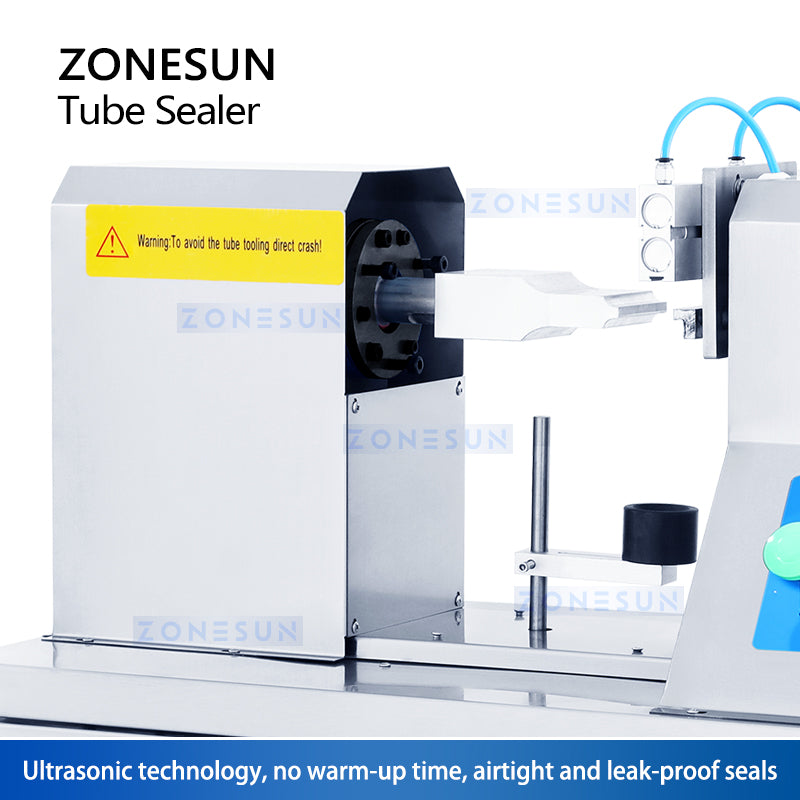

The ZONESUN ZS-QDFM125 is an advanced ultrasonic sealing machine designed for soft cosmetic tubes, ideal for products like toothpaste, sun cream, hand cream, and shampoo. Its ultrasonic technology ensures clean, reliable seals without the need for heating elements, making it highly efficient and safe for a wide range of materials including plastic and plastic-aluminum laminate tubes. Features an integrated cutting mechanism that removes excess tube material post-sealing, resulting in a clean, professional finish. It also supports optional date coding to print production or batch information directly on the tube, with its compact footprint and labor-saving automation.

Parameter
Model    ZS-QDFM125
Power Supply    AC 220V, 50Hz, 1200W
Ultrasonic Frequency    20 kHz
Throughput    10–15 pcs/min
Applicable Tube Material    Plastic / Plastic-Aluminum
Applicable Tube Diameter    10–60 mm (Customizable)
Applicable Tube Height    30–180 mm

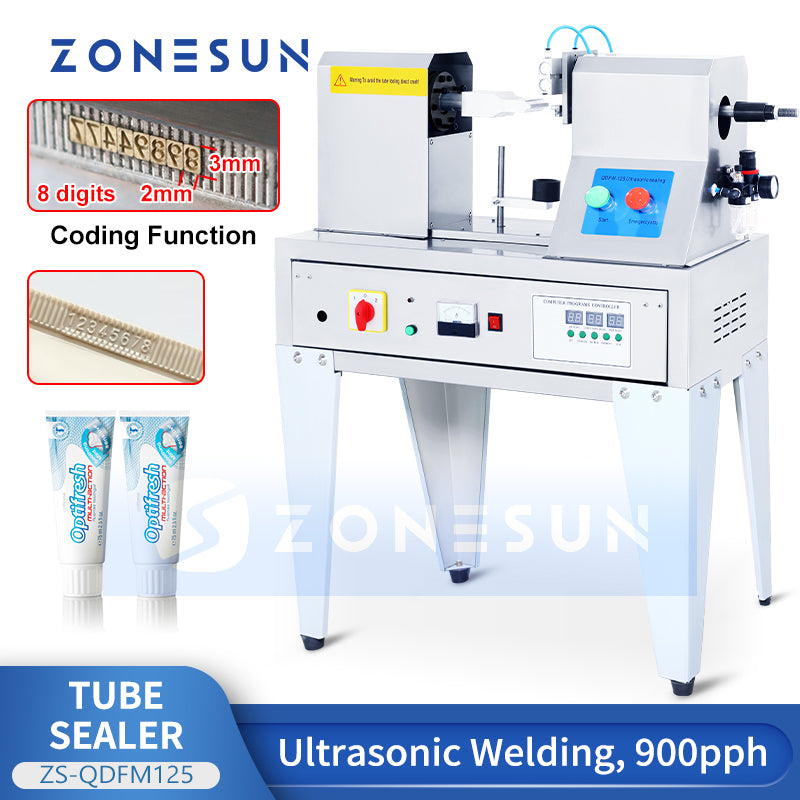

Coding Format    8 digits, 3×2 mm each
Air Connector Diameter    Ø8 mm
Machine Dimensions (L × W × H)    100 × 50 × 104 cm
Net Weight    67.5 kg
Packing Dimensions    107 × 53 × 77 cm
Gross Weight    76 kg
