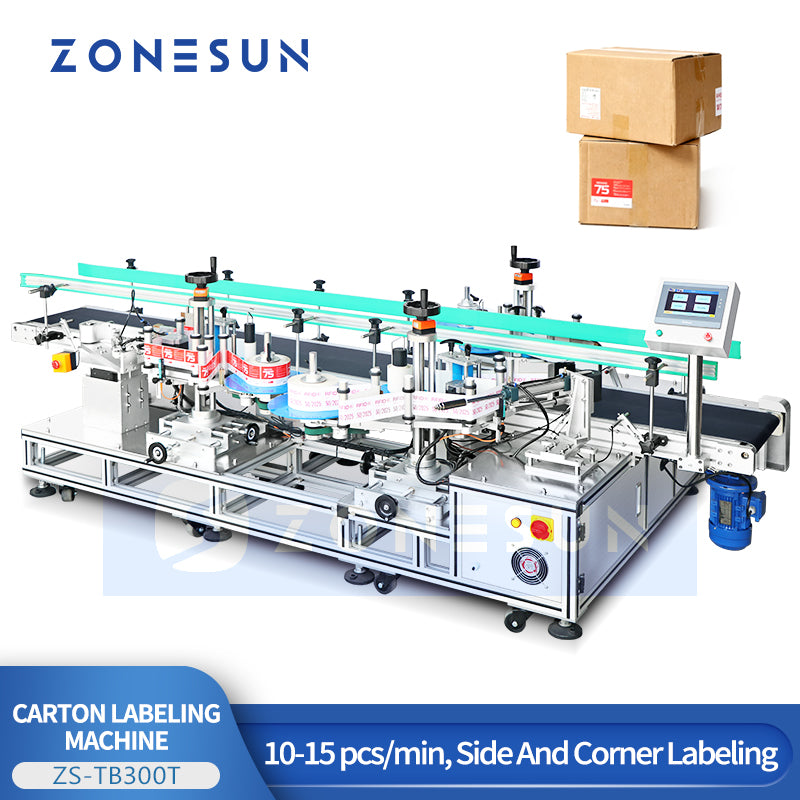

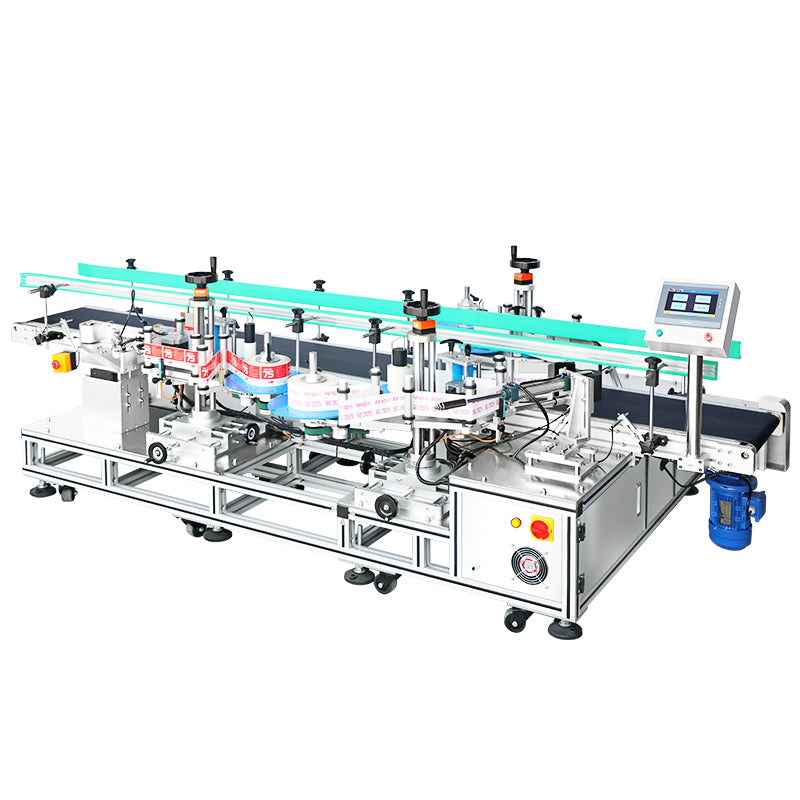

ZONESUN ZS-TB300T Automatic Self-Adhesive Carton Side Corner Labeling Machine

ZONESUN ZS-TB300T Automatic Self-Adhesive Carton Side Corner Labeling Machine

Description

The ZONESUN ZS-TB300T Automatic Self-Adhesive Carton Side and Corner Labeling Machine is designed for applying pressure-sensitive labels to filled cartons for product identification, barcode labeling, warehouse management, logistics tracking, and tamper-evident sealing. Featuring a three-station labeling configuration, vacuum label transfer, side labeling, and corner labeling mechanisms, it supports single, dual, or triple labeling heads for different labeling positions. With a speed of 10–15 pcs/min and labeling accuracy of ±1 mm, it provides flexible and consistent carton labeling for end-of-line packaging applications. An optional thermal transfer coder or inkjet printer can print production dates and batch numbers before label application.

Parameter

• Machine Model: ZS-TB300T
• Machine Type: Automatic Carton Side and Corner Labeling Machine
• Power Supply: 110 / 220 V, 50–60 Hz
• Power: 1 kW
• Labeling Speed: 10–15 pcs/min
• Speed Note: Depending on Product Size
• Labeling Accuracy: ±1 mm
• Accuracy Note: Excluding Errors Caused by Product and Label Itself
• Applicable Product Size: Customizable
• Applicable Label Length: ≤250 mm
• Applicable Label Width: 20–150 mm
• Package Dimensions (L × W × H): About 3350 × 1800 × 1370 mm
• Package Weight: About 690 kg

Key Features

• Side & Corner Labeling: Supports conventional carton side labeling as well as labels extending across carton corners onto two adjoining surfaces.
• Single / Dual / Triple Labeling Heads: Three-station structure can be configured according to different labeling positions.
• Vacuum Label Transfer System: Uses vacuum adsorption to securely transfer labels from the dispensing plate for stable placement.
• Tamper-Evident Corner Labeling: Applies a single label across two adjacent carton surfaces for security and tamper-evident sealing applications.
• PLC Touchscreen Control: Allows operators to set labeling speed, label position, and other operating parameters.
• ±1 mm Labeling Accuracy: Provides consistent label positioning, excluding errors caused by the carton or label itself.
• Photoelectric Sensor Synchronization: Sensors work with the PLC and conveyor to detect cartons and synchronize label application.
• Continuous Conveyor System: Provides smooth carton transport through multiple labeling stations.
• Customizable Carton Size: Product dimensions can be customized according to actual carton specifications.
• 20–150 mm Label Width: Supports compatible self-adhesive labels across the documented width range.
• ≤250 mm Label Length: Suitable for different label formats within the specified range.
• Optional Date & Batch Coding: Thermal transfer or inkjet coding can be added before label application.
• End-of-Line Integration: Can connect with cartoning machines, carton sealers, conveyors, and compatible downstream equipment.

Benefits

• Side & Corner Labeling in One Machine — Combines standard carton side labeling and corner-crossing label application within one production platform.
• Up to Three Labeling Heads — Single, dual, or triple labeling configurations provide flexibility for different label-position requirements.
• Tamper-Evident Packaging — Corner labels can bridge two adjoining carton surfaces to provide visible security sealing.
• ±1 mm Labeling Accuracy — Supports consistent positioning for identification, barcode, logistics, and security labels.
• Vacuum-Assisted Label Placement — Securely holds and transfers labels before application to improve positioning stability.
• 10–15 PCS/Min Production — Provides continuous automatic carton labeling for end-of-line packaging applications.
• Automatic Carton Detection — Photoelectric sensors synchronize product detection with the labeling process.
• Flexible Carton Sizes — Machine configuration can be customized according to the customer's carton dimensions.
• Multiple Label Applications — Suitable for product information, barcode, warehouse, logistics, and tamper-evident labels.
• Optional Coding Integration — Dates, batch numbers, and other variable information can be printed before labels are applied.
• Continuous Conveyor Transport — Supports stable carton movement through each labeling station.
• Easy Production-Line Integration — Designed for connection with compatible end-of-line carton packaging equipment.

Application

Ideal for automatic application of product identification labels, barcode labels, logistics labels, warehouse management labels, and tamper-evident security labels to filled cartons and boxes.

Typical applications include: Product Identification Labels，Barcode Labels， Logistics & Shipping Labels， Warehouse Management Labels，Tamper-Evident Security Labels，Carton Side Labels，Corner-Sealing Labels

Suitable industries include: Food，Pharmaceuticals，Cosmetics，Daily Chemicals，Electronics，E-Commerce，Logistics，Other Boxed Products

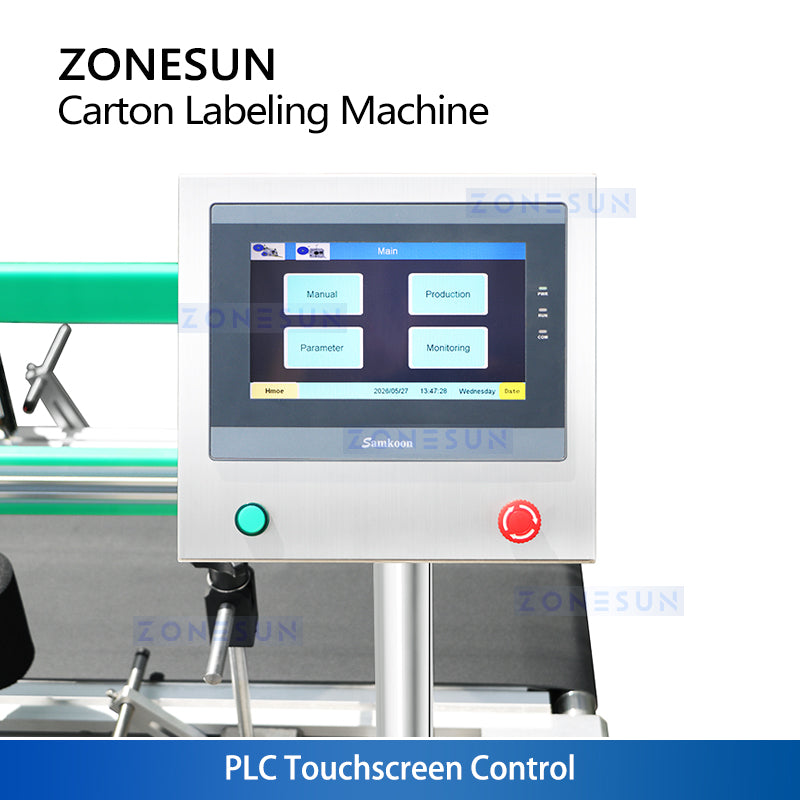

PLC Touchscreen Control

Set labeling speed, label position, and other operating parameters through the touchscreen for quick setup and easy operation.

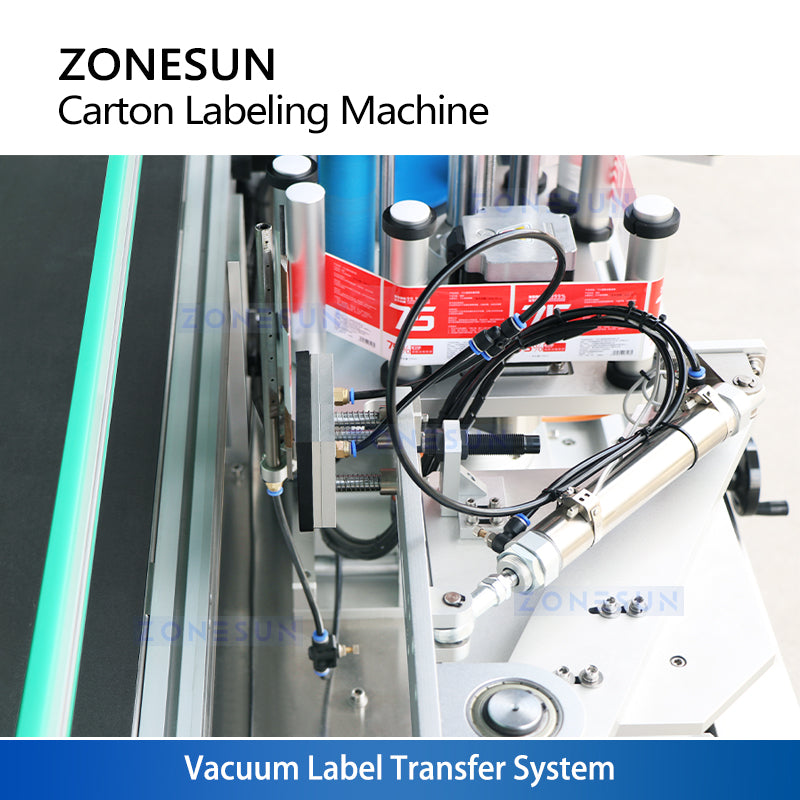

Vacuum Label Transfer System

Vacuum adsorption securely transfers each label from the dispensing plate for stable, accurate label placement.

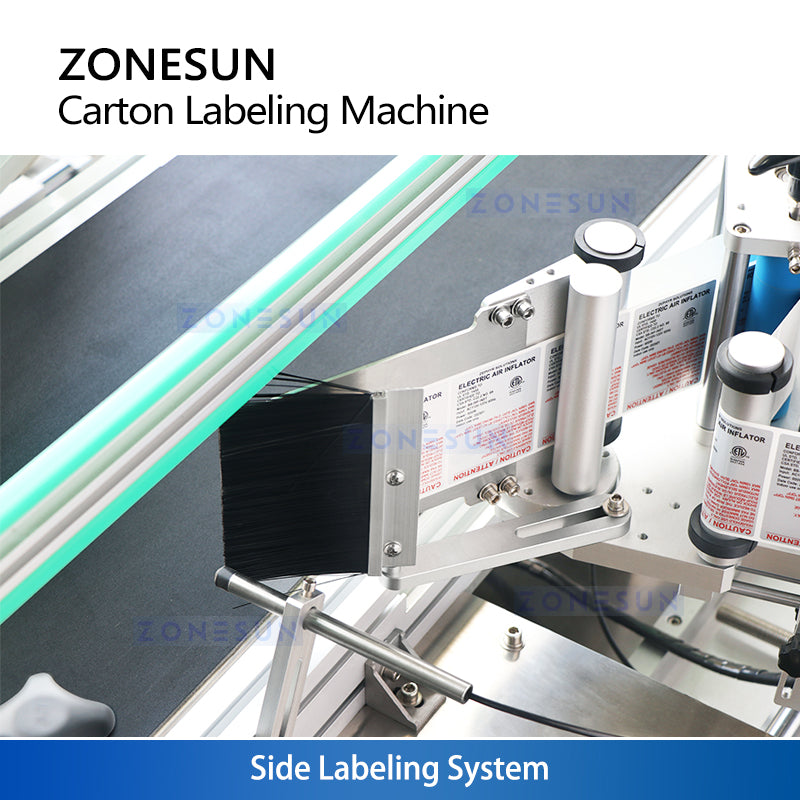

Side Labeling System

Accurately applies self-adhesive labels to carton sides for consistent positioning during continuous production.

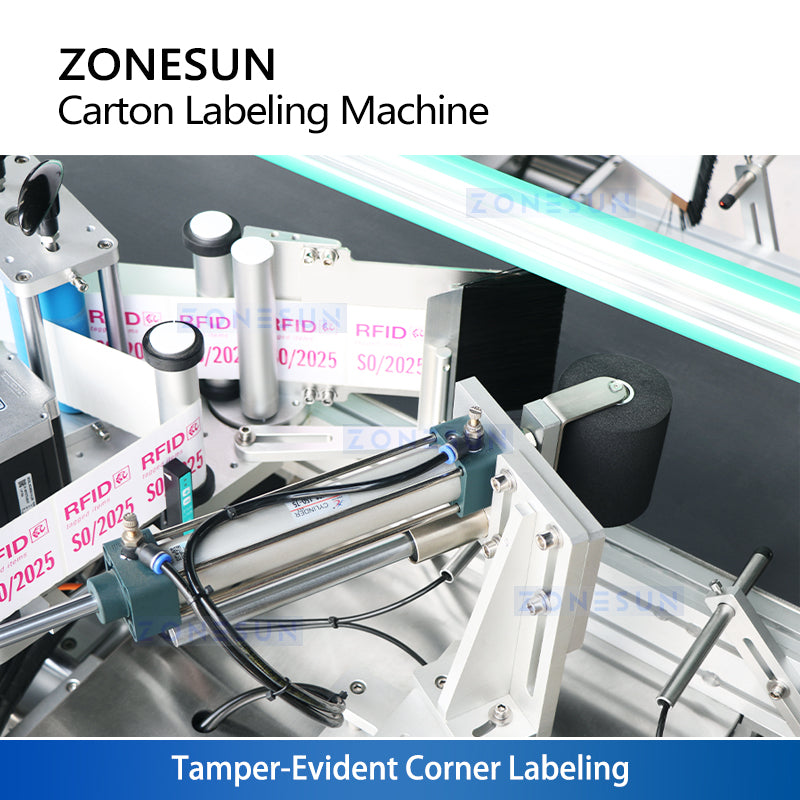

Tamper-Evident Corner Labeling

Applies labels across carton corners to cover two adjacent surfaces, making it suitable for tamper-evident sealing applications.

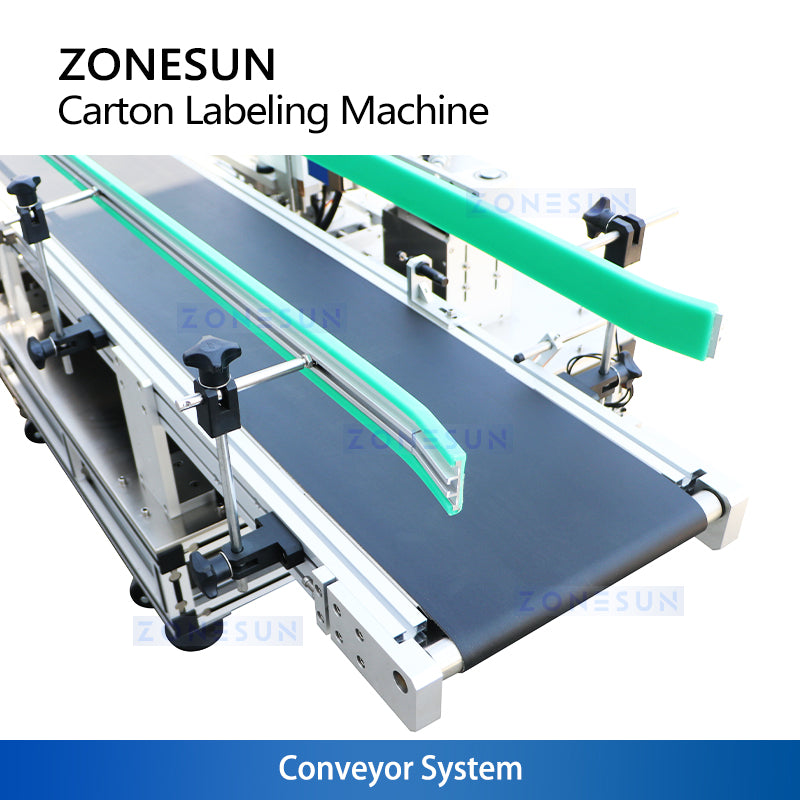

Conveyor System

Provides smooth, continuous carton transport through each labeling station for consistent label positioning.

Electrical Control Cabinet

Organized electrical components provide reliable machine control and stable operation for continuous production.

Why Choose the ZONESUN ZS-TB300T?

✅ Side + Corner Labeling — More Than a Standard Carton Labeler: The ZS-TB300T can apply conventional labels to carton sides while also handling labels that extend across a carton corner onto two adjacent surfaces.

✅ Triple Labeling Head Configuration — Flexible Label Positions: The three-station structure can be configured with single, dual, or triple labeling heads according to the required labeling positions, making the machine adaptable to different carton labeling processes.

✅ Tamper-Evident Corner Labeling — Security Sealing for Cartons: A single label can bridge two adjoining carton surfaces, making the system suitable for tamper-evident and security sealing applications.

✅ Vacuum Label Transfer — Stable Label Placement: The vacuum-assisted transfer mechanism securely picks up and transfers each label from the dispensing plate before application, helping improve label placement stability.

✅ ±1 mm Labeling Accuracy — Consistent Positioning: The documented labeling accuracy is ±1 mm, excluding dimensional or positioning errors originating from the product or label itself.

✅ 10–15 PCS/Min — Continuous Carton Labeling: The machine operates at approximately 10–15 cartons/min, depending on product size, providing continuous labeling for end-of-line packaging applications.

✅ PLC Touchscreen — Convenient Parameter Adjustment: Operators can adjust labeling speed, label position, and other operating parameters directly through the touchscreen for faster production setup.

✅ Photoelectric Sensor Synchronization — Accurate Carton Detection: The PLC control system synchronizes conveyor movement with photoelectric sensors to maintain stable carton detection and label positioning during continuous production.

✅ Continuous Conveyor System — Stable Carton Transport: The conveyor smoothly transports cartons through each labeling station, helping maintain consistent positioning throughout the process.

✅ Customizable Carton Size — Adaptable to Your Packaging: Applicable product dimensions can be customized according to the customer's actual carton specifications and labeling requirements.

✅ 20–150 mm Label Width — Flexible Label Formats: Supports compatible self-adhesive labels with widths from 20–150 mm and lengths up to 250 mm.

✅ Optional Date & Batch Coding — Labeling + Variable Data Printing: An optional thermal transfer coder or inkjet printer can print production dates, batch numbers, and other information before label application.

✅ End-of-Line Integration — Designed for Complete Packaging Lines: The machine can connect with compatible cartoning machines, carton sealers, conveyors, coding systems, and other end-of-line packaging equipment, making it suitable for automated packaging-line integration.

Ideal Applications

Carton Side Labeling: Suitable for automatically applying identification, barcode, logistics, or product-information labels to carton side surfaces.

Tamper-Evident Corner Labels: Suitable for security labels that extend across the carton corner and cover two adjacent surfaces.

Barcode Carton Labeling: Suitable for applying barcode labels used for product identification, inventory control, and tracking.

Logistics & Shipping Labels: Can apply compatible logistics labels to cartons before downstream shipping or palletizing processes.

Warehouse Management Labels: Suitable for carton identification and warehouse-management applications.

Food Cartons: Can be integrated into end-of-line packaging systems for compatible boxed food products.

Pharmaceutical Cartons: Particularly useful where carton identification and tamper-evident security labeling are required.

Cosmetic Cartons: Suitable for boxed cosmetic and personal-care products requiring side or security labels.

Daily Chemical Cartons: Can be integrated into packaging lines for boxed household and chemical products.

Electronics Packaging: Suitable for compatible electronics cartons requiring identification or tracking labels.

E-Commerce Boxes: Useful for e-commerce packaging requiring barcode, logistics, warehouse, or security labels.
