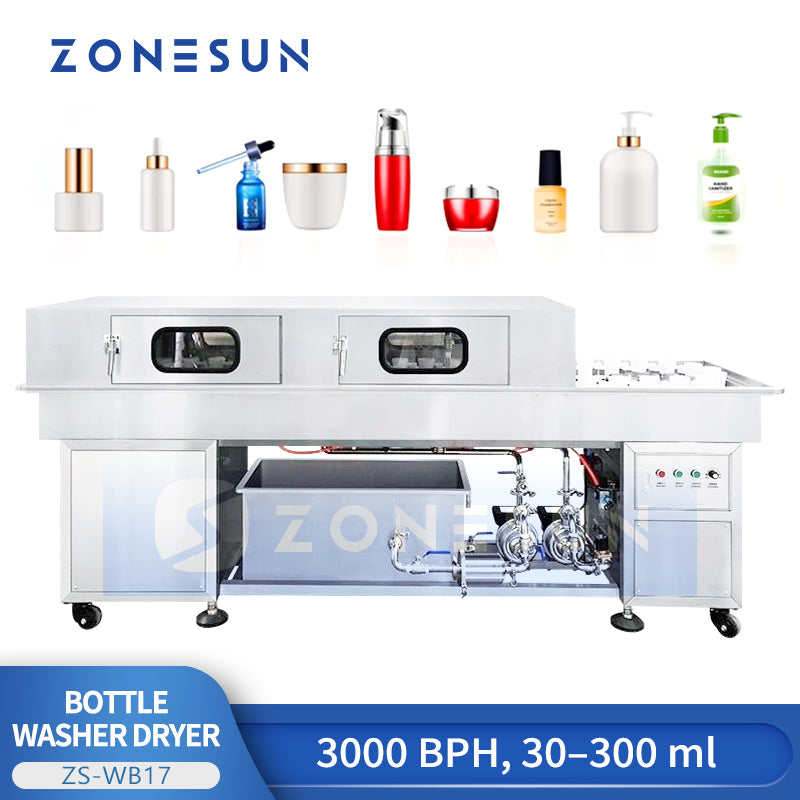

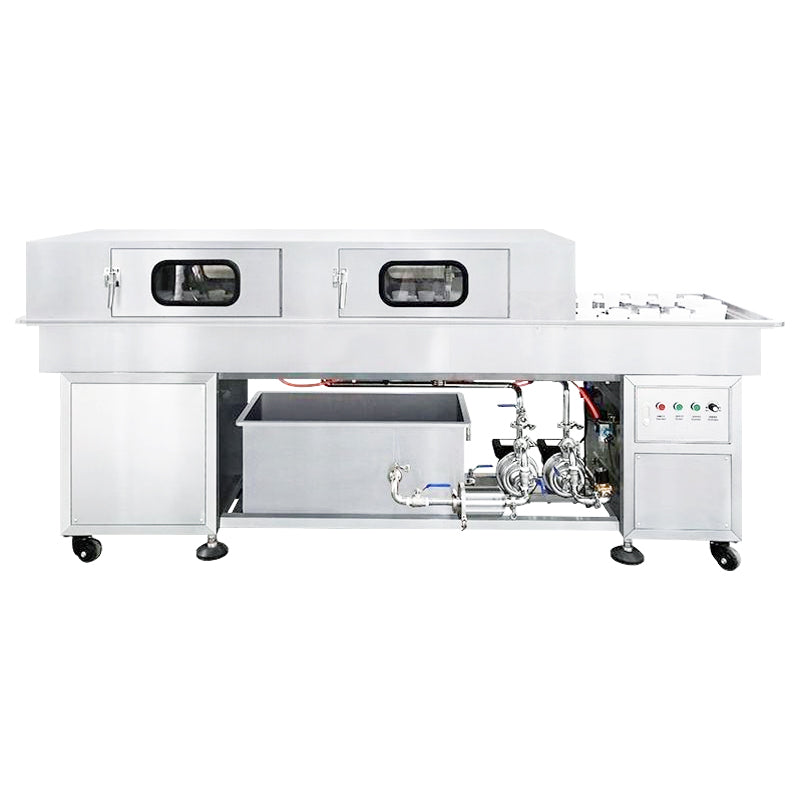

ZONESUN ZS-WB17 Automatic Bottle Washing and Drying Cleaning Machine

Description

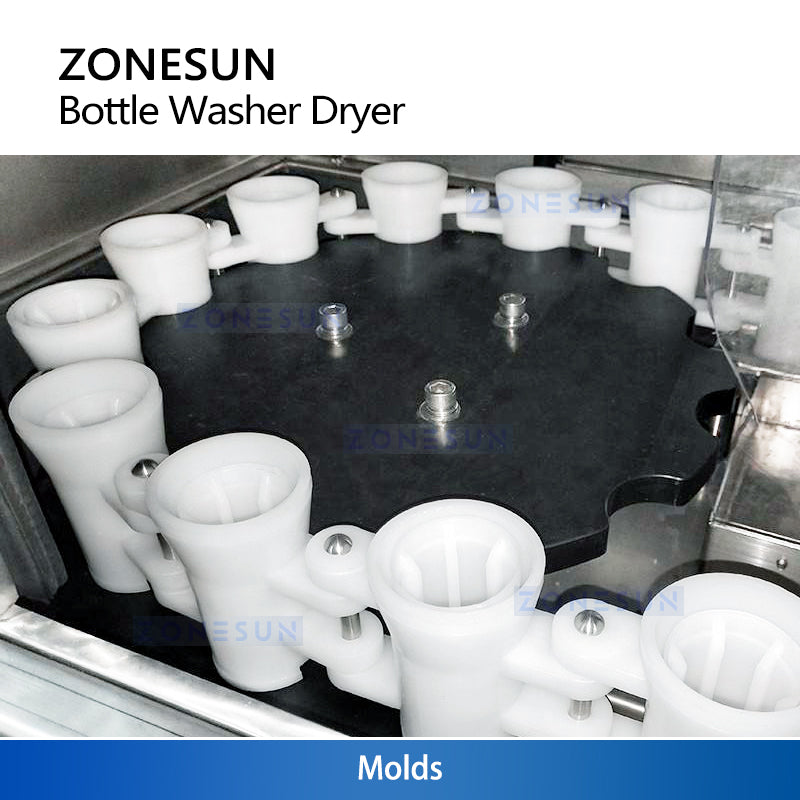

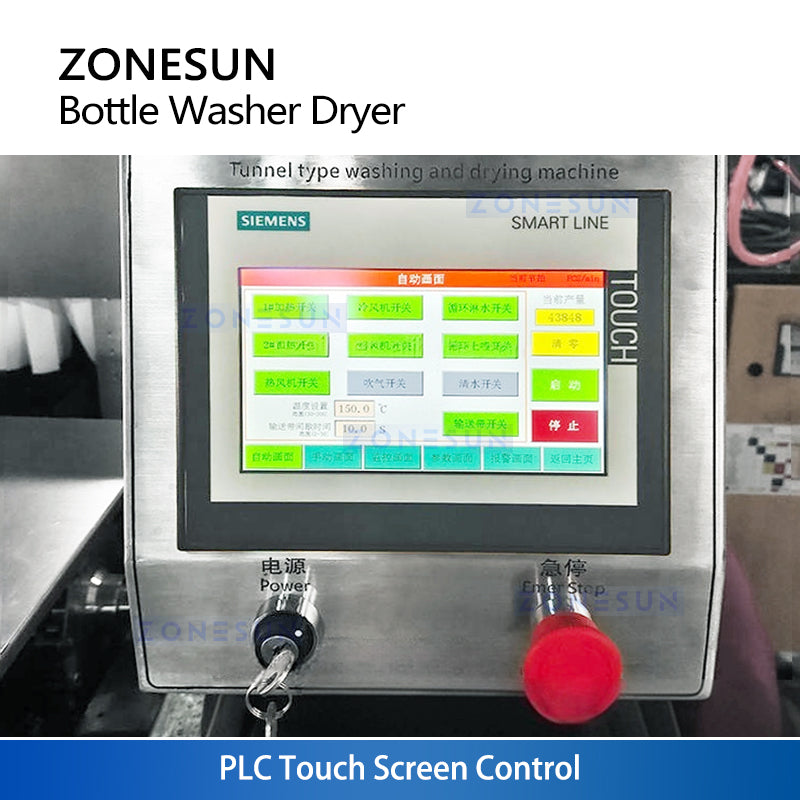

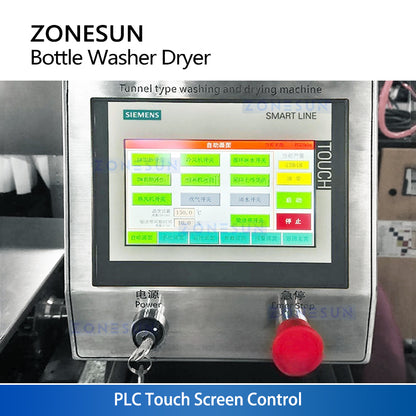

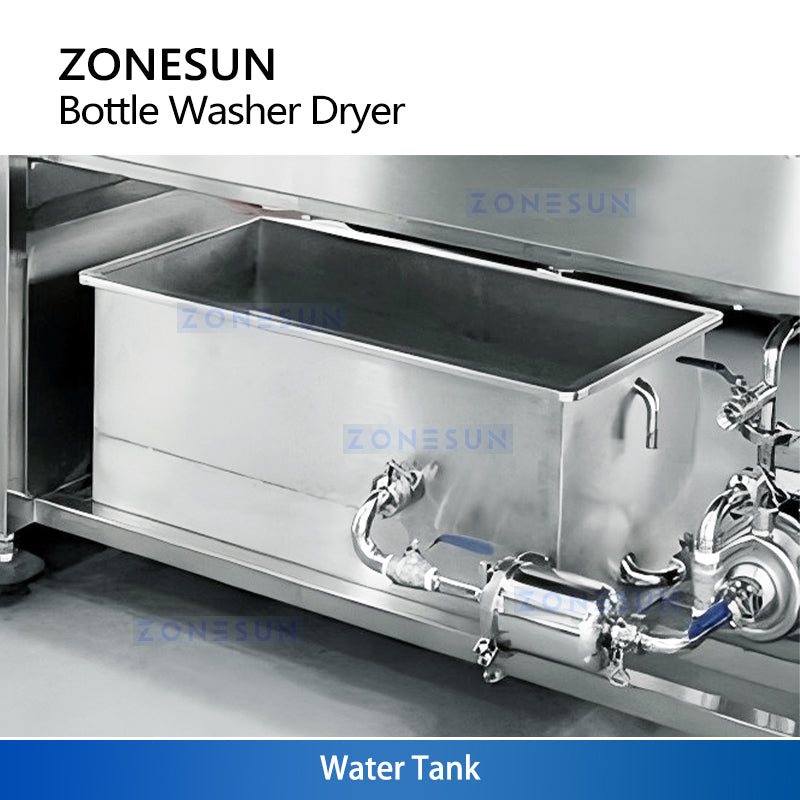

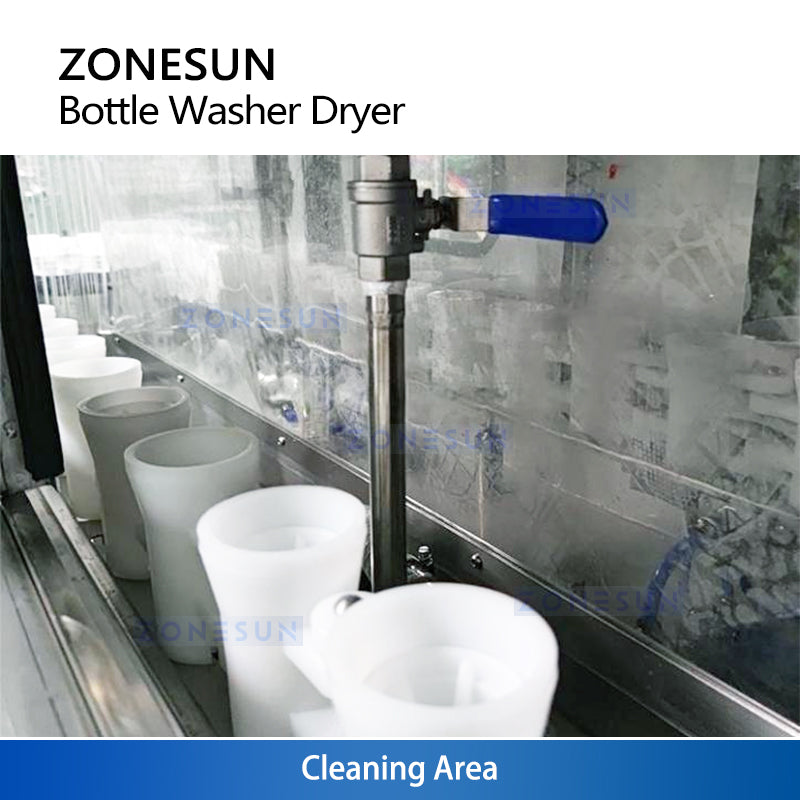

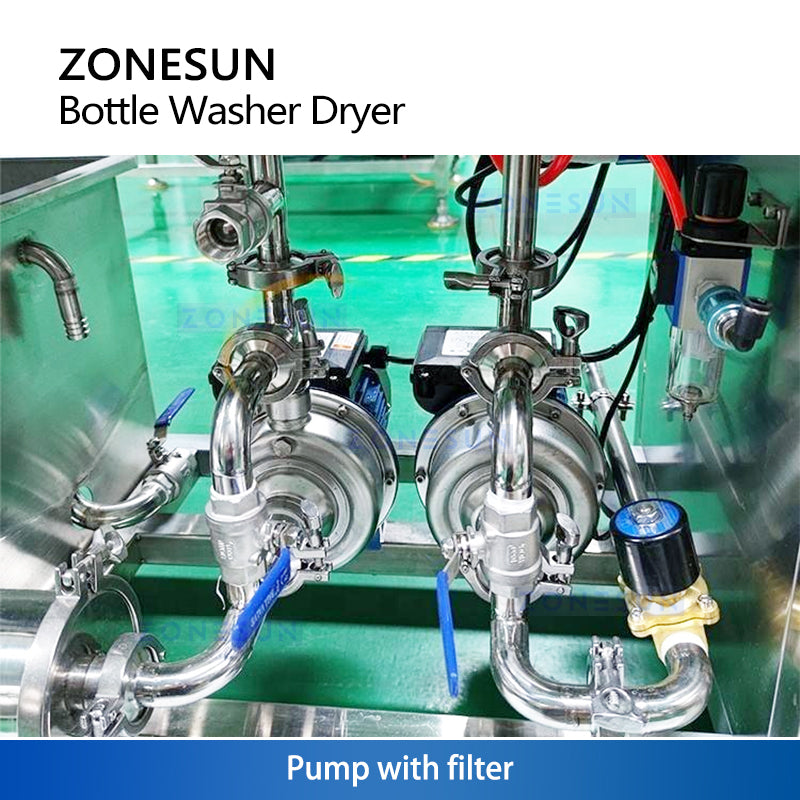

The ZONESUN ZS-WB17 is an automatic bottle washing and drying machine designed for cleaning new and recycled bottles of various materials. With a capacity of up to 3000 bottles per hour, it supports bottle sizes from 30–300 ml and uses a 48-head rinsing system for efficient internal and external cleaning. Equipped with a PLC touchscreen control panel, water tank, pump with filter, and interchangeable molds, the machine ensures hygienic, stable, and high-quality washing performance. Its stainless steel structure provides durability, corrosion resistance, and easy maintenance, making it ideal for small to medium-scale production lines.

Parameter

• Model: ZS‑WB17
• Washing Heads: 48 pcs
• Applicable Bottle Volume: 30–300 ml
• Capacity: 3000 bottles/hour
• Power: 1.5 kW / 220 V
• Applicable Bottle Height: 100–350 mm
• Applicable Bottle Diameter: 20–90 mm
• Water Consumption: 1.5 m³/hour
• Working Pressure: 0.2–0.4 MPa
• Machine Dimensions: 2700 × 670 × 1180 mm
• Machine Weight: 300 kg
