ZONESUN ZS-XG1870 Pneumatic Desktop Automatic Capping Machine
ZONESUN ZS-XG1870 Pneumatic Desktop Automatic Capping Machine
Verfügbarkeit für Abholungen konnte nicht geladen werden

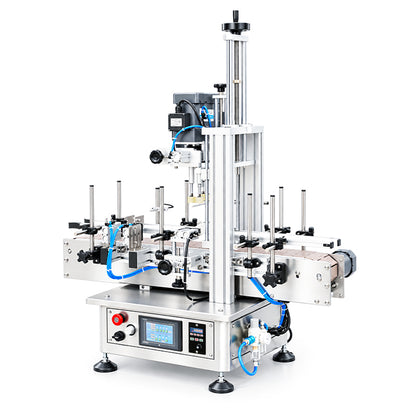

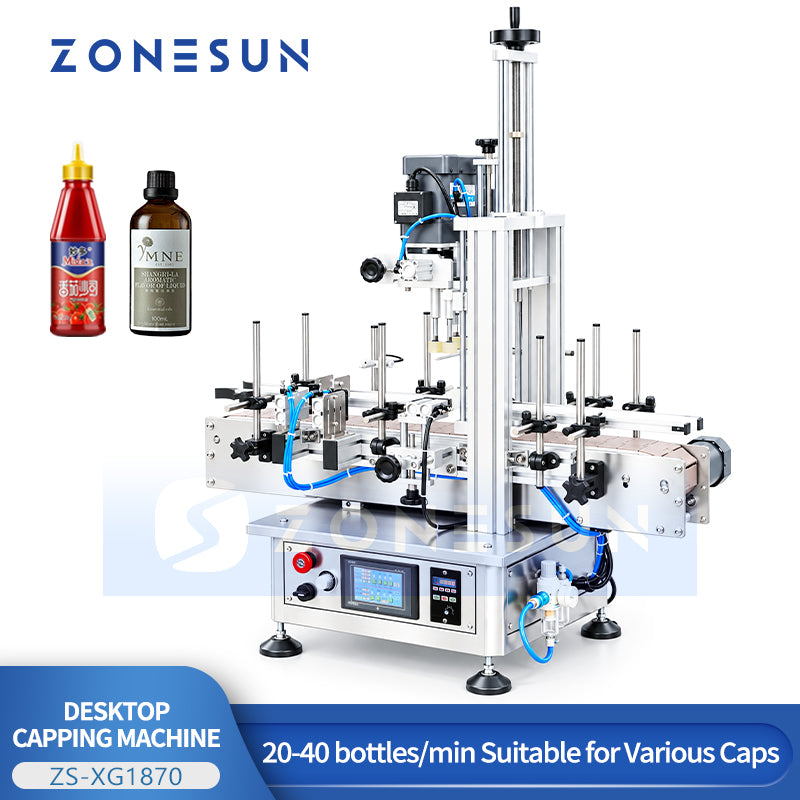

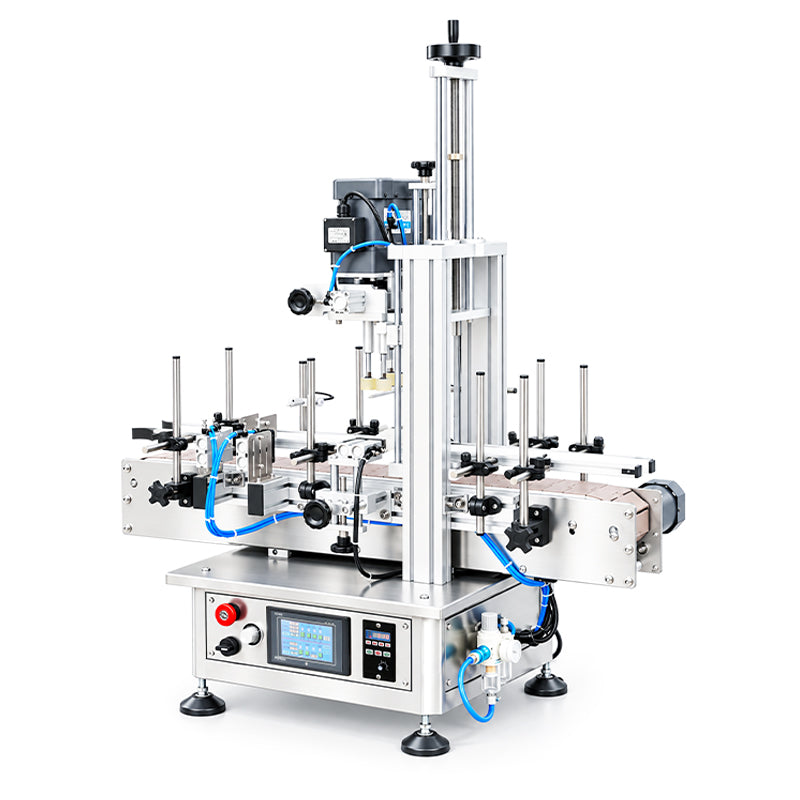

The ZONESUN ZS-XG1870 is a desktop pneumatic spindle capping machine for screw caps. It supports cap diameters of 18–70 mm and bottle heights of 60–270 mm, with a working speed of 20–40 bottles per minute depending on the bottle and cap size. Caps must be placed on bottles manually before screw tightening; this machine does not automatically feed or place caps. A touchscreen control panel, bottle detection and holding system, and adjustable capping height support machine setup and operation.
Before Ordering
- Manual cap placement: Place screw caps on bottles before capping. Automatic cap feeding and placement are not included.
- Air supply: An air compressor is required and must be purchased separately. Working air pressure: 0.4–0.6 MPa; connector size: OD 8 mm.
- Bottle and cap dimensions: Listed bottle height: 60–270 mm; cap diameter: 18–70 mm. Send your bottle and screw cap photos and dimensions for a suitability check.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ZS-XG1870 |
| Suitable Bottle Height | 60–270 mm |
| Suitable Cap Diameter | 18–70 mm |
| Working Speed | 20–40 bottles/min (depending on bottle and cap size) |
| Working Voltage | AC 220 V / 110 V, 50–60 Hz |
| Working Air Pressure | 0.4–0.6 MPa |
| Machine Dimensions (L × W × H) | 1120 × 580 × 1110 mm |
| Conveyor Length | 1117 mm |
| Package Weight | 97.5 kg |
| Package Dimensions (L × W × H) | 1160 × 610 × 1140 mm |
| Air Compressor Connector Size | OD 8 mm |
Frequently Asked Questions
Does it automatically feed and place caps?
No. Caps must be placed on bottles manually before the machine tightens them.
What type of capping does it perform?
This model performs spindle screw capping to rotate and tighten screw caps.
Is an air compressor included?
No. An air compressor is required and must be purchased separately.
What bottle and cap sizes are listed?
Bottle heights of 60–270 mm and cap diameters of 18–70 mm. Share your bottle and cap details so we can confirm suitability.
What is the working speed?
The listed speed is 20–40 bottles per minute, depending on bottle and cap size.
Send your bottle and screw cap details for a machine suitability check, or compare our screw cap capping machines.
Machine Details

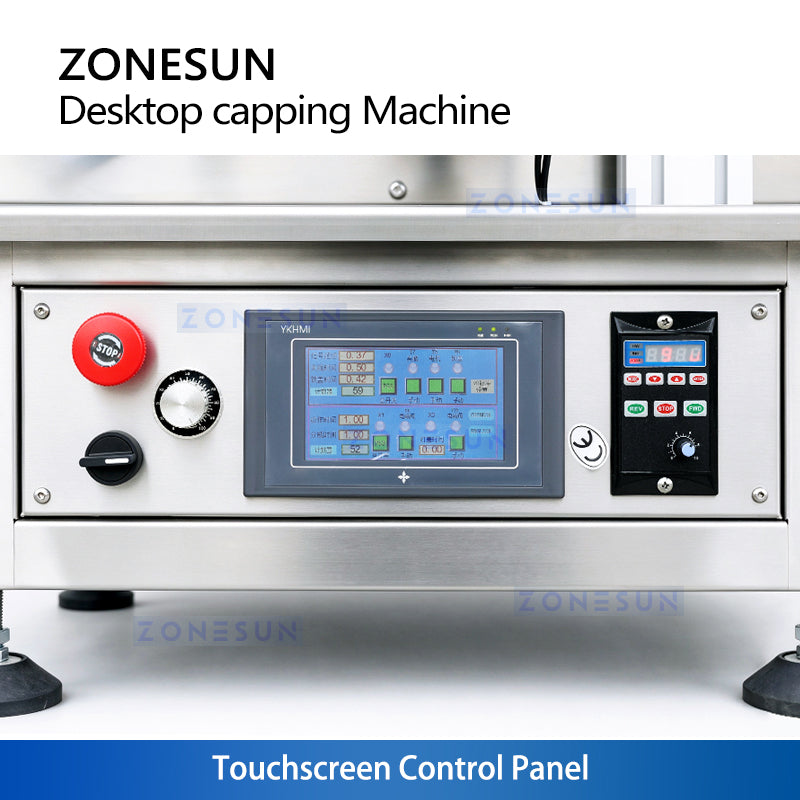

Touchscreen Control Panel
The touchscreen provides an intuitive interface for setting parameters and operating the machine.

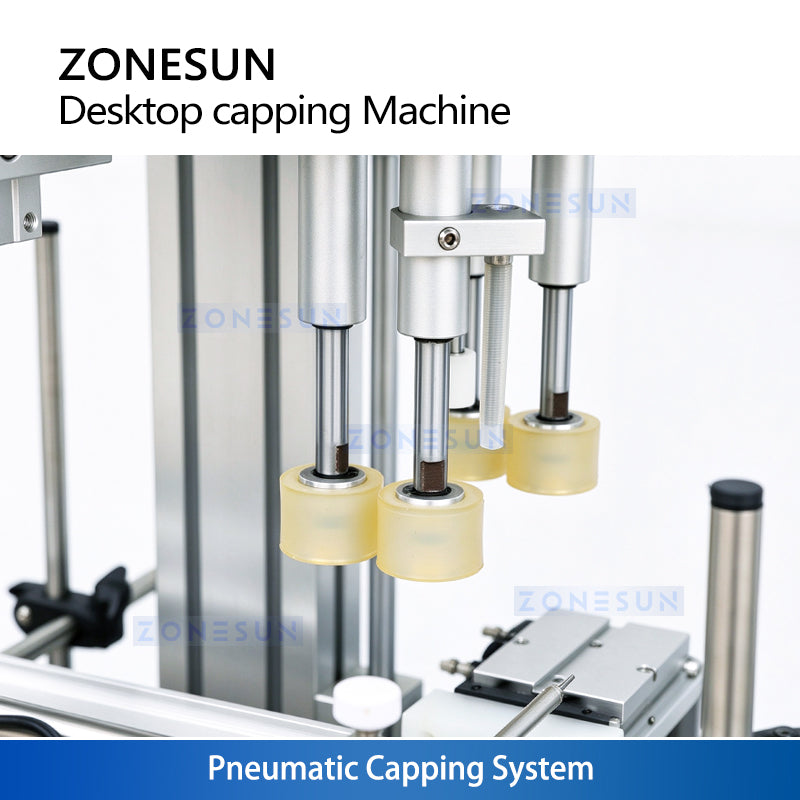

Pneumatic Capping System
The spindle capping system rotates and tightens screw caps. It can be customized for different cap shapes and sizes, including e-liquid, spray, and beverage bottle caps.

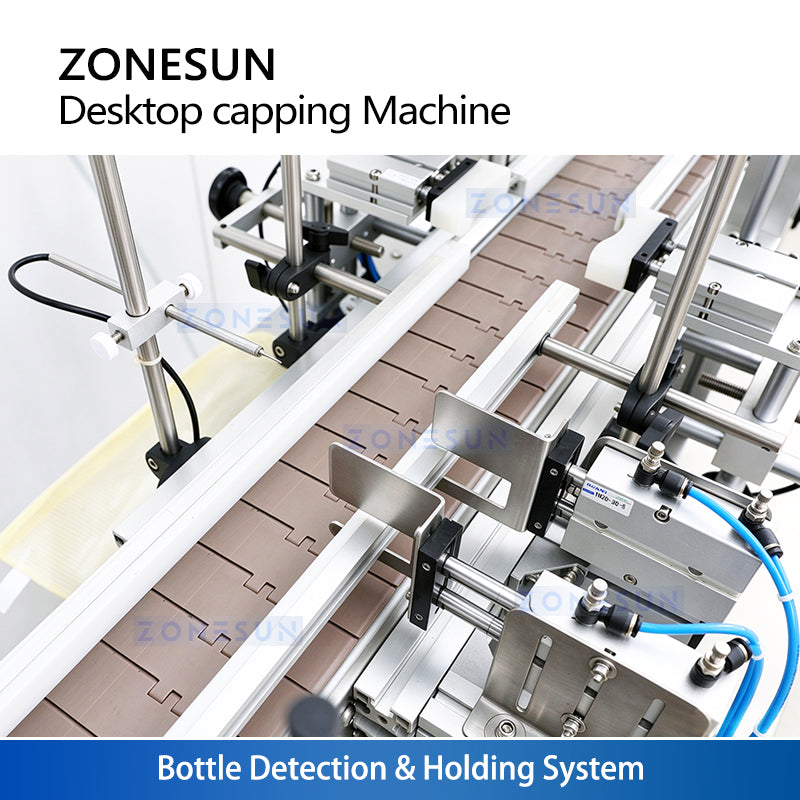

Bottle Detection & Holding System
The system detects incoming bottles and holds them securely in position during capping for stable, accurate operation.

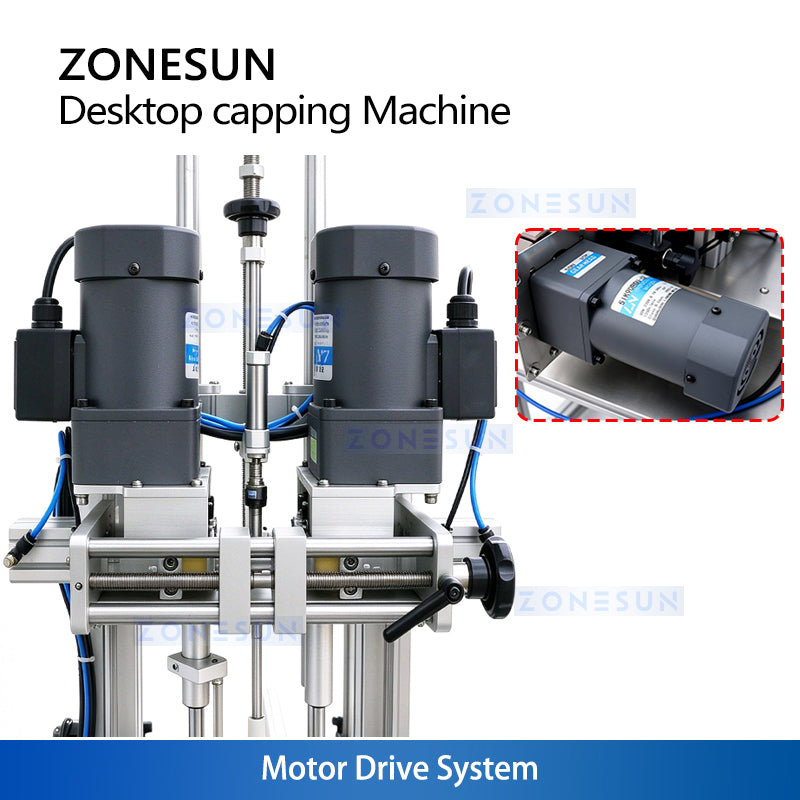

Motor Drive System
The capping motors and conveyor motor are separate, supporting stable and safe machine operation.

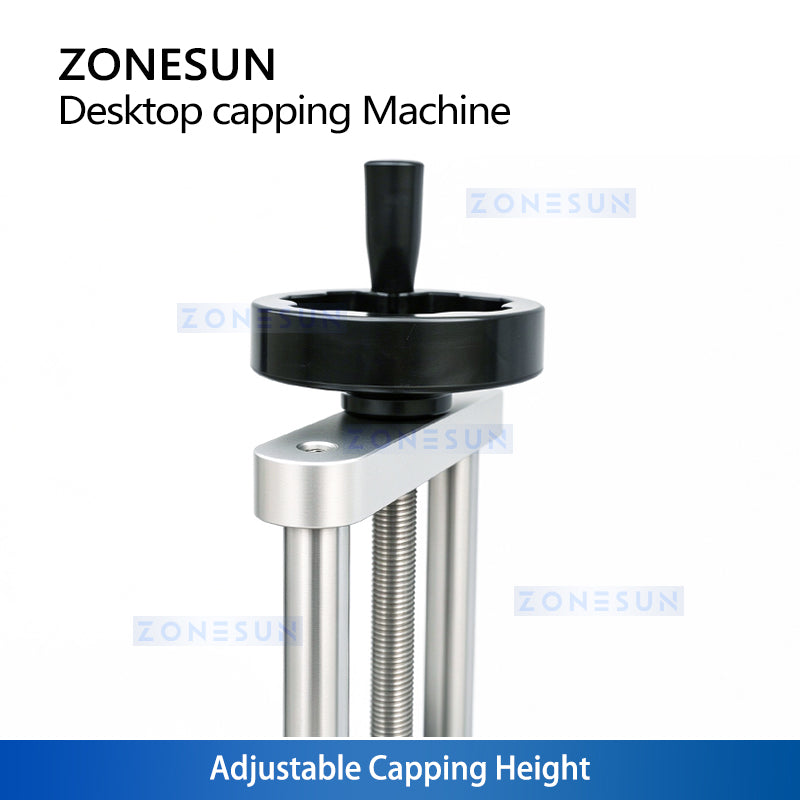

Adjustable Capping Height
Use the rotary knob to adjust the capping height for bottles of different heights.
Air Pressure Gauge
The gauge displays air pressure in real time. This machine requires an air compressor, which must be purchased separately. Please contact us if you need one.
