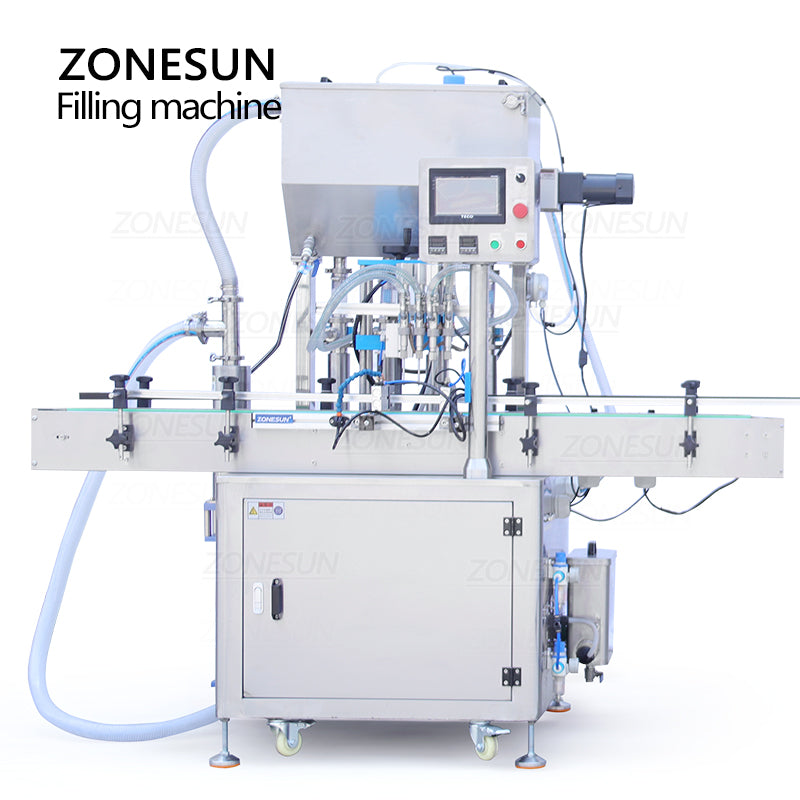

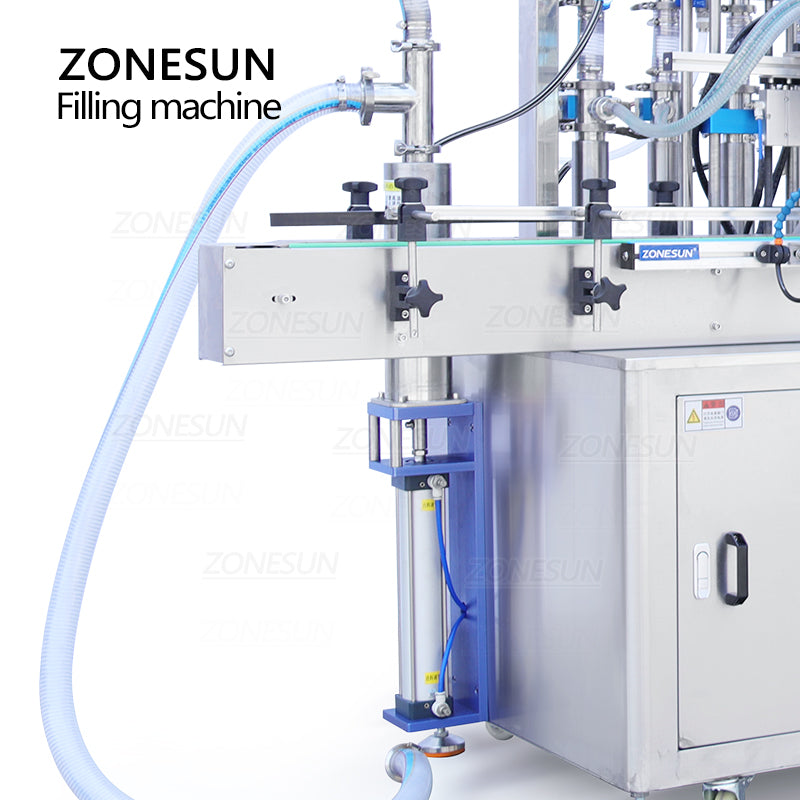

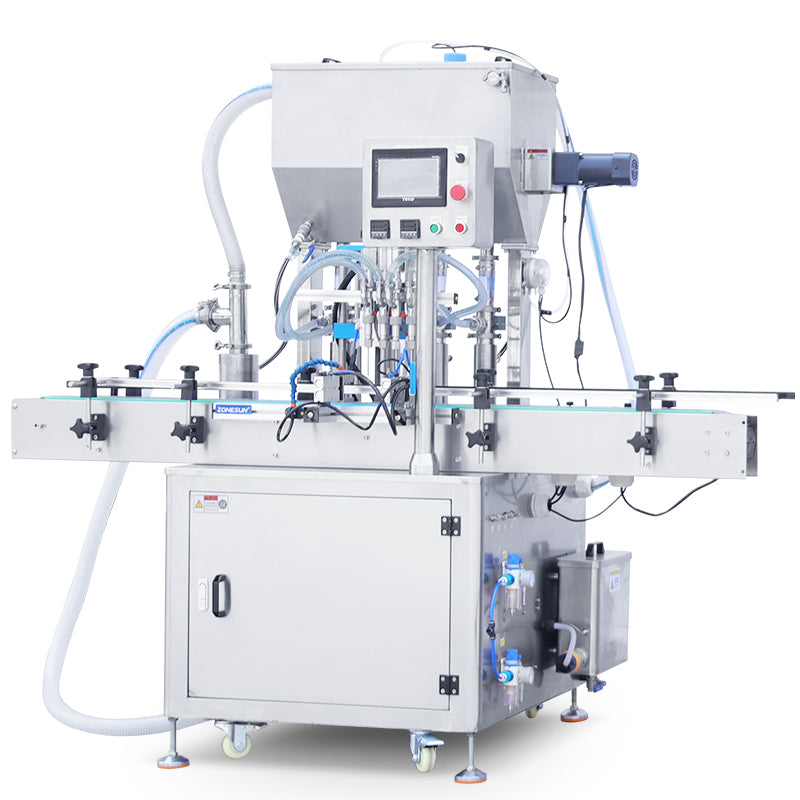

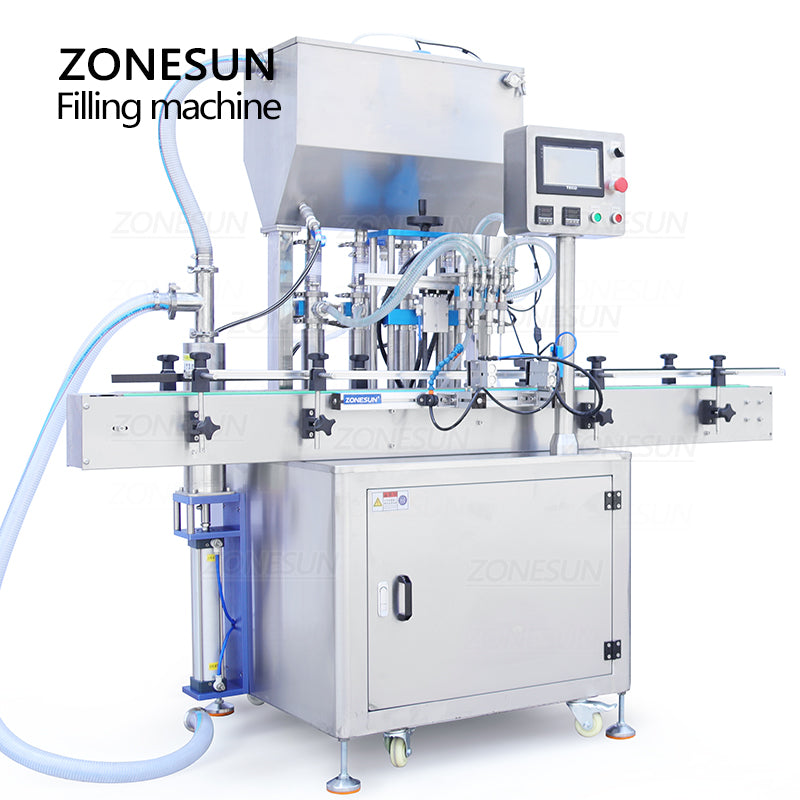

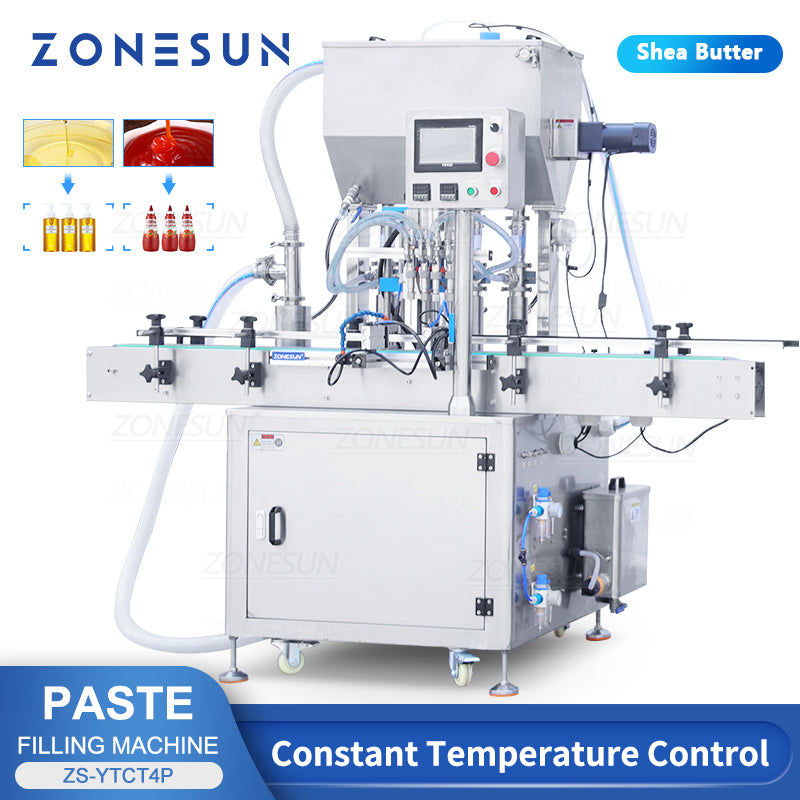

ZONESUN ZS-YTCT4P Automatic Constant Temperature Paste Filling Machine

Description

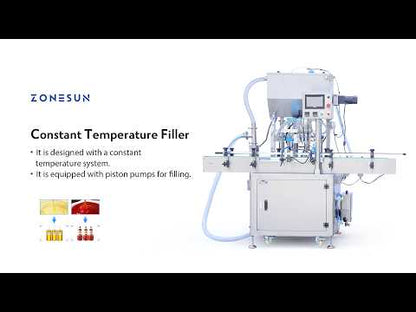

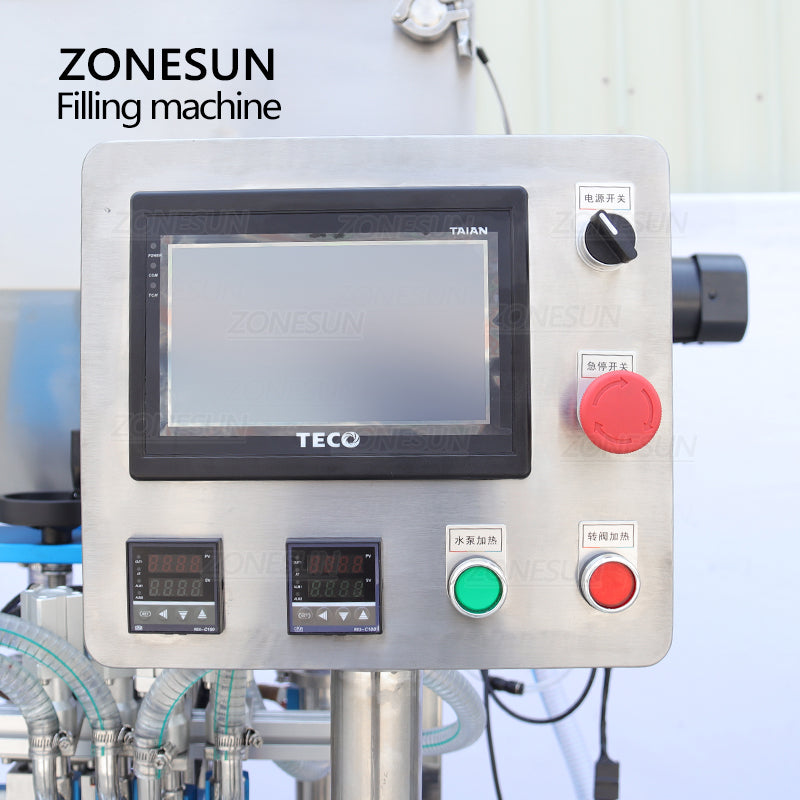

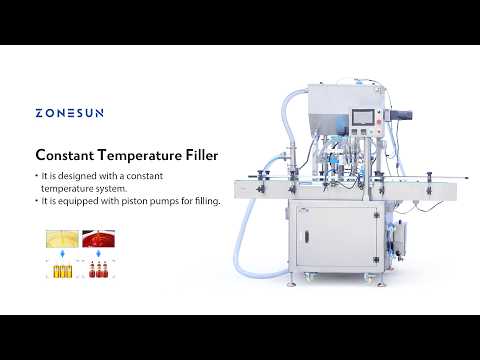

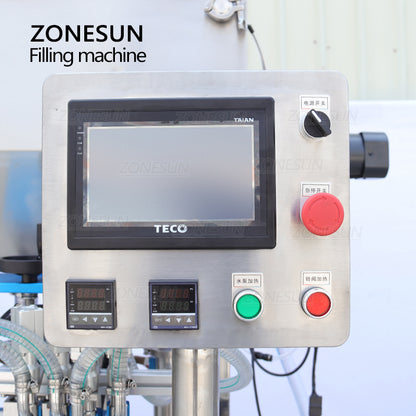

The ZONESUN ZS-YTCT4P Automatic Constant Temperature Paste Feeding Filling Machine is equipped with a feeding pump and a built-in temperature control system. Unlike conventional filling machines, it maintains a consistent temperature throughout the feeding and filling process, ensuring stable viscosity and accurate dosing. Ideal for temperature-sensitive liquids and pastes such as honey, syrup, glue, and creams, this machine delivers reliable performance and high filling precision.

ZS‑YTCT4P

• Machine Model: ZS‑YTCT4P
• Voltage: 220 V / 380 V
• Max Temperature: 80 °C

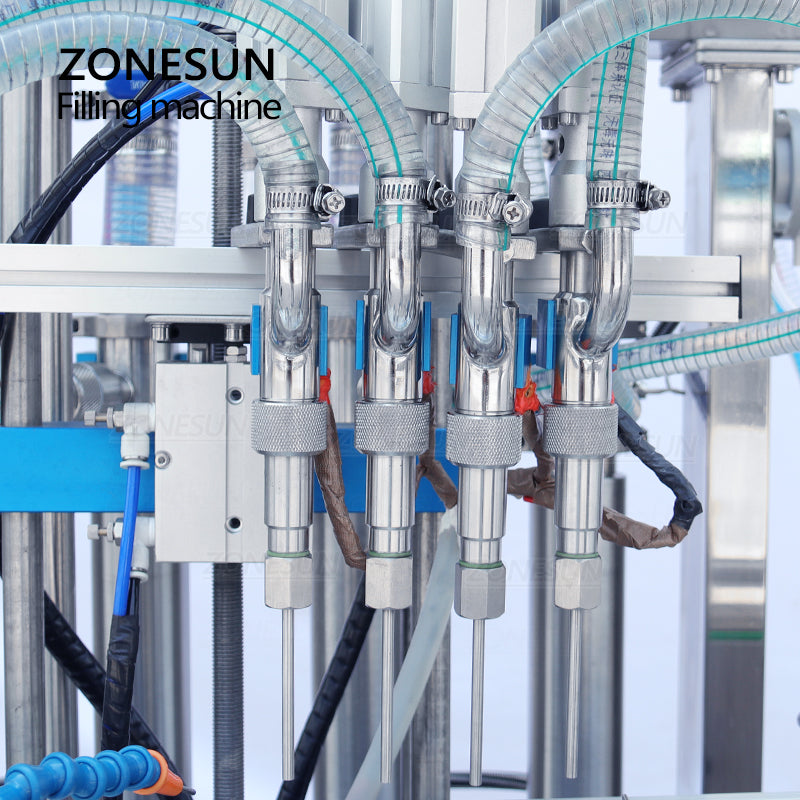

• Filling Nozzles: 4 (customizable)
• Nozzle Diameter: 8 mm (customizable)
• Filling Range: 10–180 ml / 30–500 ml / 100–1000 ml
• Capacity: About 30–100 bottles/min
• Air Pressure: 0.6–0.8 MPa
• Margin of Error: ±1%
• Machine Size (L×W×H): About 200 × 80 × 180 cm
• Net Weight: About 350 kg

Package Information

• Packing Size (L×W×H): 204 × 95 × 194 cm
• Gross Weight: 367 kg
