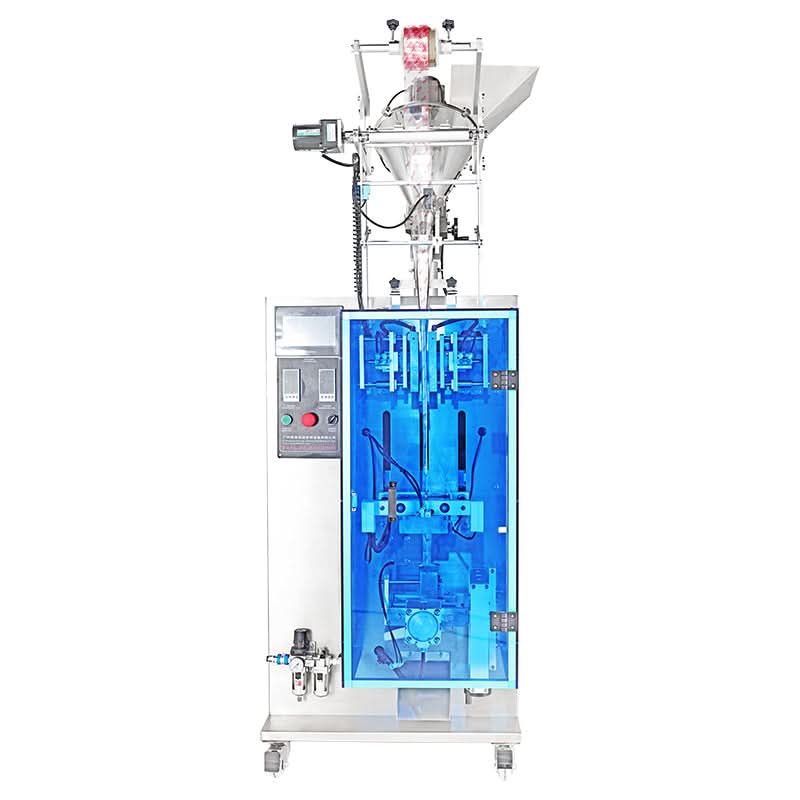

ZONESUN ZS-PL240P1 Automatic Powder Filling Sealing Machine

DESCRIPTION

The ZS-PL240P1 is a fully automatic sachet packaging machine designed for precise powder filling and efficient sealing. It integrates measuring, bag forming, filling, and sealing into one streamlined process, making it ideal for high-speed production. With user-friendly controls and easy maintenance, it’s perfect for packaging milk powder, matcha, coffee, flour, and other fine powders in food and agricultural industries. ZONESUN delivers reliability and performance for your powder packaging needs.

PARAMETER

• Model：ZS-PL240P1

• Power Supply：AC220V, 50Hz

• Rated Power：2KW

• Filling Range：0.5–50g

• Sealing Type：Back sealing or side sealing

• Bag Size Length: 40–160mm<br>Width: 20–110mm

• Packing Speed：30–60 bags/min (depends on product material)

• Machine Dimensions：800 × 960 × 1800mm

• Machine Weight：Approx. 230kg

Smooth Foil Rack

The steel film rack supports the packaging roll and feeds foil smoothly into the machine.

Servo Film Puller

The servo-driven pulling mechanism advances the packaging film steadily through the forming area.

Touchscreen Control Panel

The touchscreen provides simple centralized operation of the packaging machine.

Organized PLC System

The electrical and PLC components are arranged inside the cabinet for inspection and maintenance.

CUTTING JAW

The cutting jaw cuts packaged sachets and can be customized to meet production requirements.
