ZONESUN ZS-FAL180X15 Automatic Tea Weighing Filling and Capping Line

Description

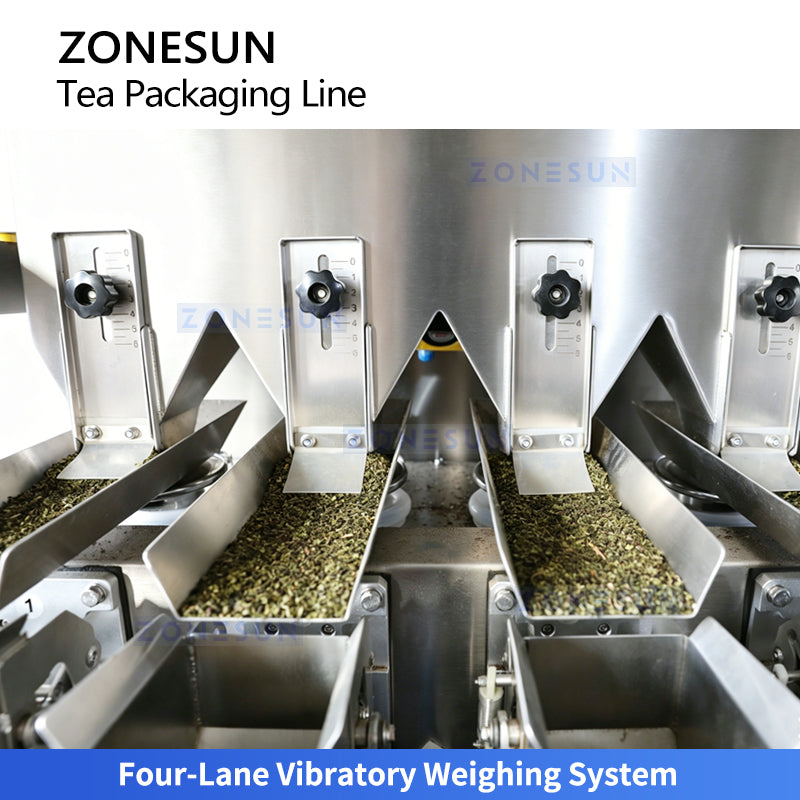

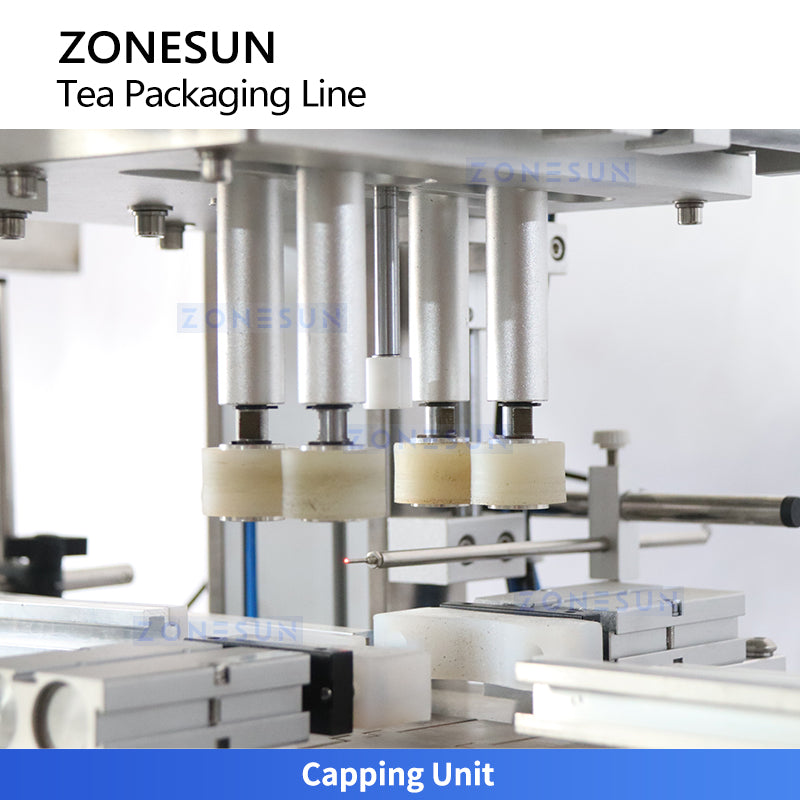

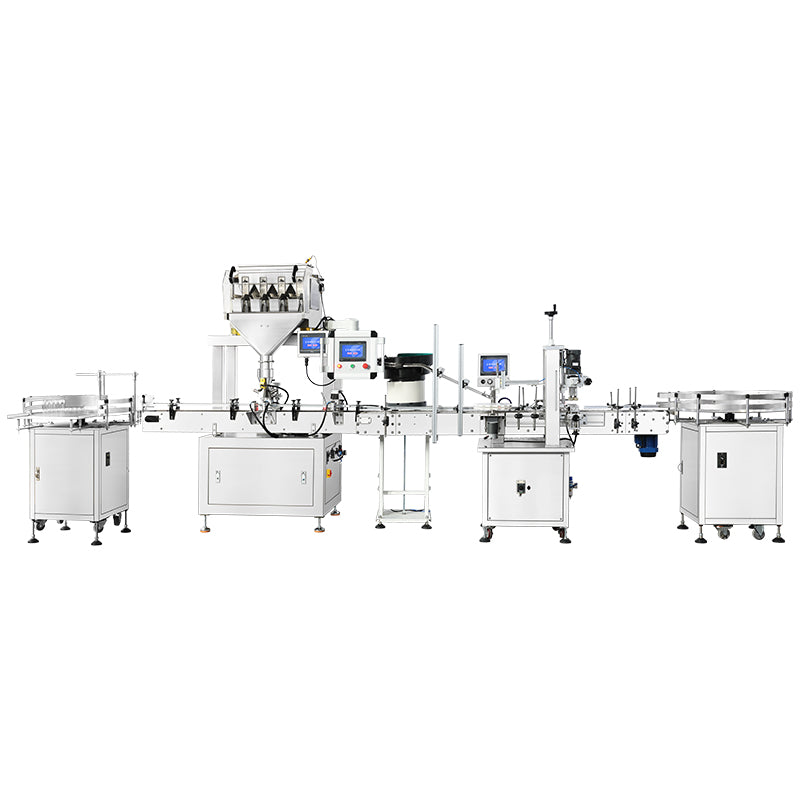

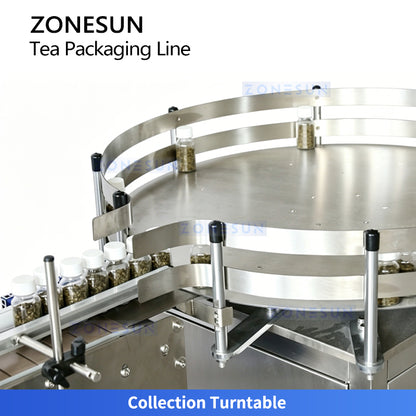

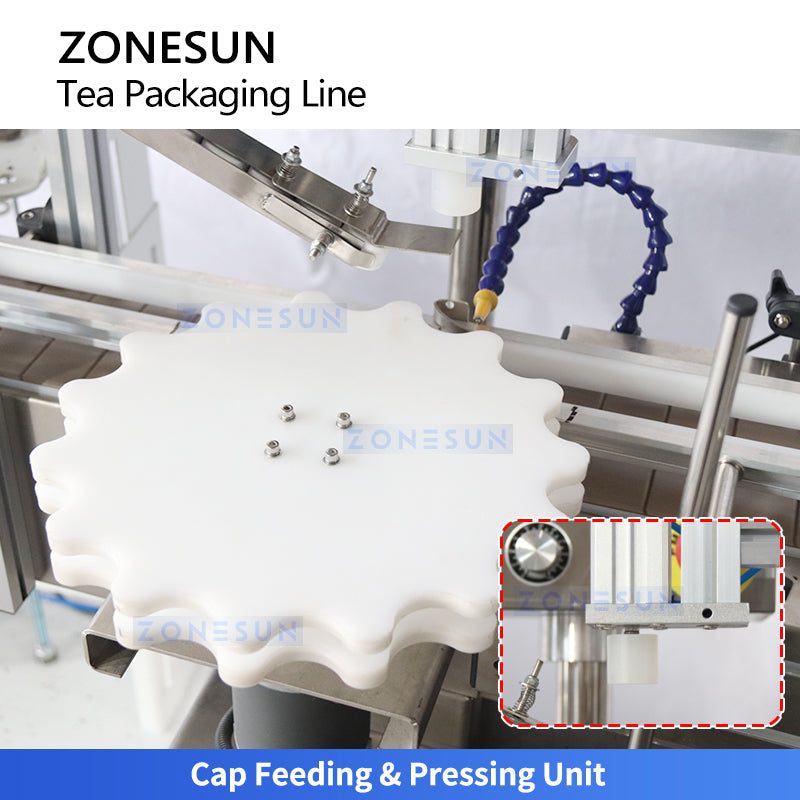

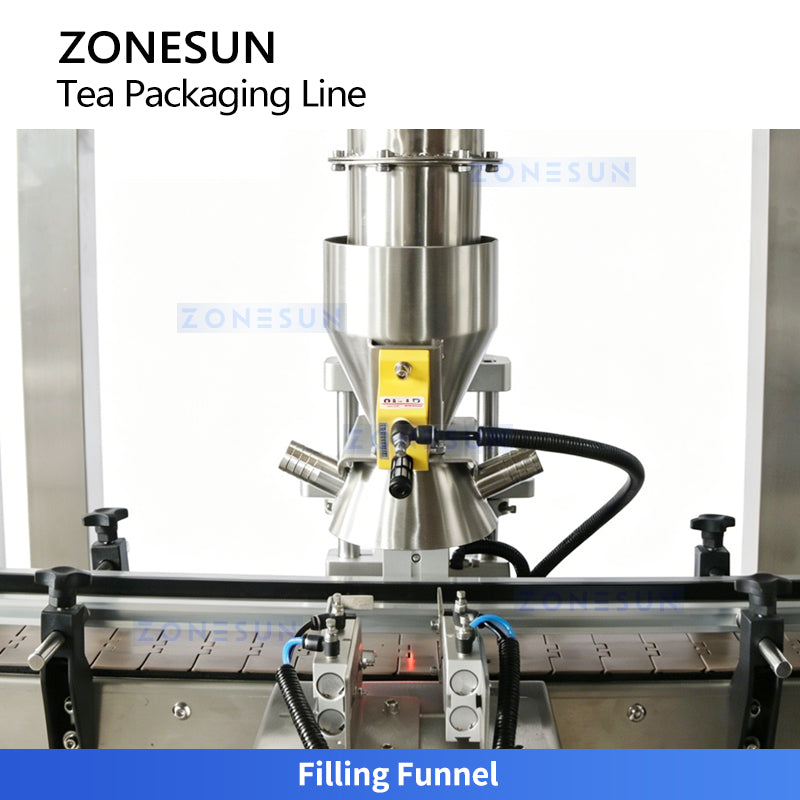

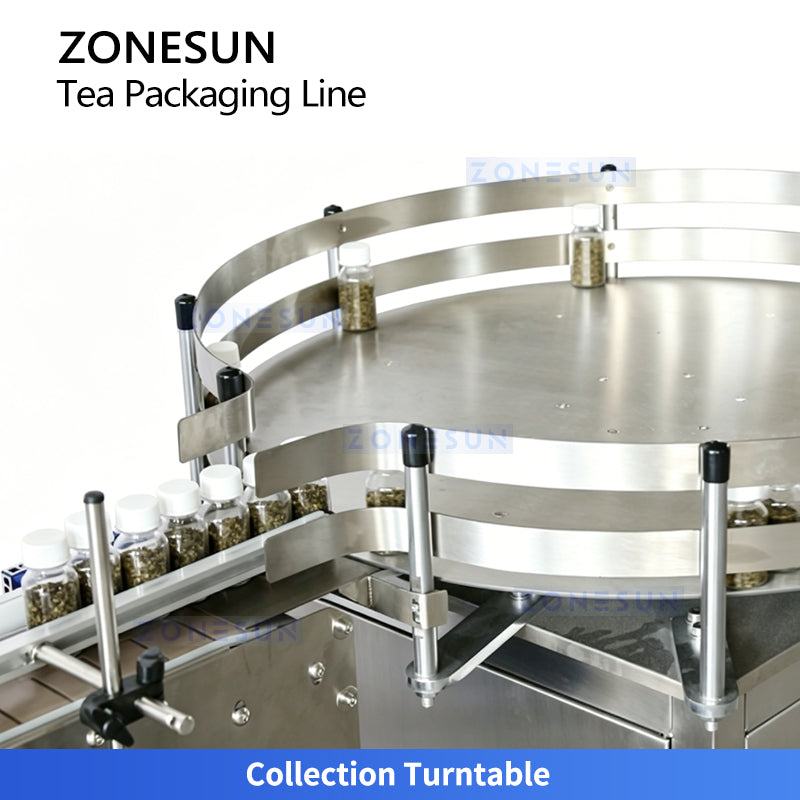

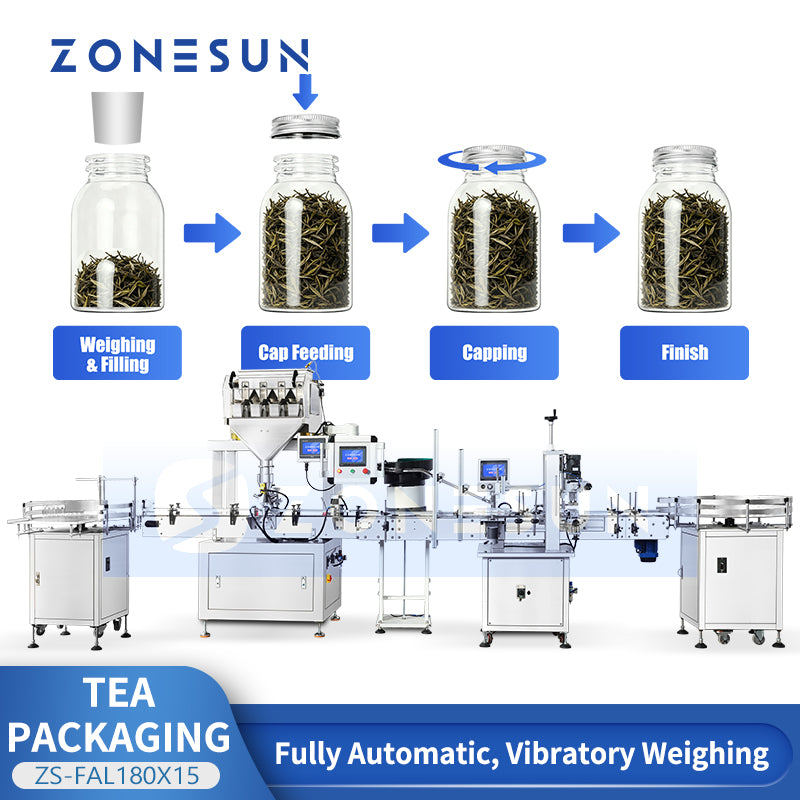

The ZONESUN ZS-FAL180X15 is a fully automatic tea packaging line designed for weighing, filling, and capping bottles with precision and efficiency. Featuring a four-lane vibratory weighing system, it ensures accurate dosage and smooth product flow. The line integrates filling, brushing, conveying, cap feeding, capping, and bottle accumulation into one continuous process, achieving a capacity of 20-24 bottles per minute. Its multi-cap compatibility supports droppers, sprays, and pump heads, making it versatile for different packaging needs.

ZS‑KLCZ02

• Voltage: 110 V / 220 V, 50/60 Hz
• Hopper: 20 L
• Lane: 4
• Weigh Bucket: 4 × 500 ml
• Range: 10–120 g
• Accuracy: ±0.2–2 g
• Storage: 10 product memory
• Capacity: 20–24 bottles/min
• Machine Size (L×W×H): 2180 × 884 × 2038 mm
• Packing Size (L×W×H): 212 × 97 × 231 cm
• Gross Weight: 407 kg

ZS‑XG16V

• Model: ZS‑XG16V
• Working Voltage: AC 220 V / 110 V, 50–60 Hz
• Applicable Bottle Height: 30–300 mm
• Applicable Cap Diameter: 18–70 mm
• Applicable Bottle Diameter: 20–160 mm
• Working Speed: 20–60 bottles/min (depending on bottle & cap size/shape)
• Working Pressure: 0.4–0.6 MPa
• Machine Dimensions (L×W×H): About 1930 × 740 × 1600 mm
• Machine Weight: About 150 kg
• Package Size (L×W×H): About 2000 × 820 × 1760 mm
