ZONESUN ZS-FS500K4 4-Lane Automatic Granule Sachet Packaging Machine VFFS Packing System
ZONESUN ZS-FS500K4 4-Lane Automatic Granule Sachet Packaging Machine VFFS Packing System
Precio habitual
$34,999.00 USD
Precio habitual
Precio de oferta
$34,999.00 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
ZONESUN ZS-FS500K4 Multi Lanes Automatic Granule Saline Packets Salt Sachet Vertical Form Fill Seal Packing Machine

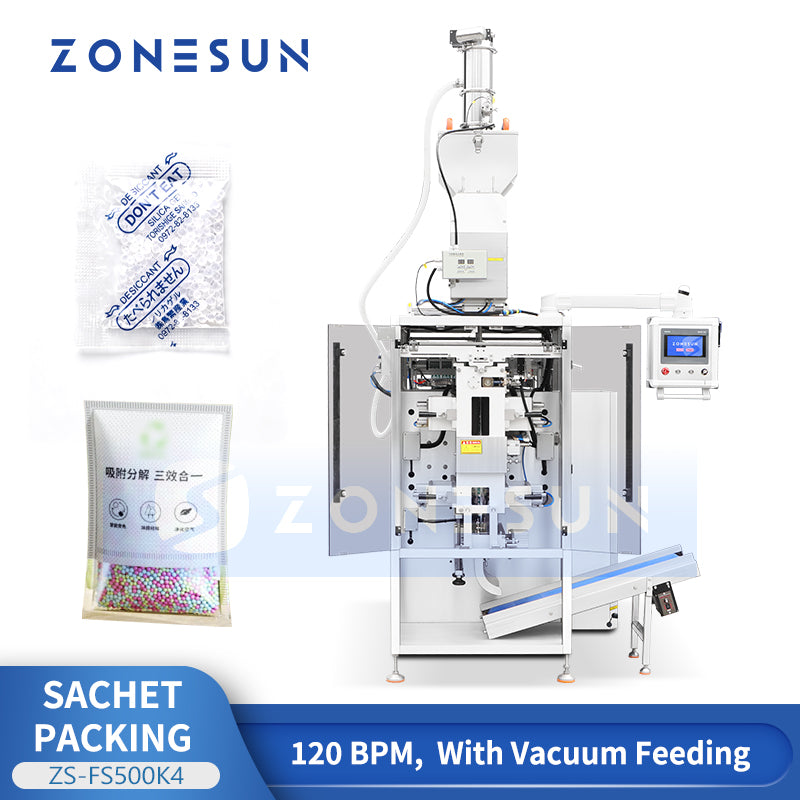

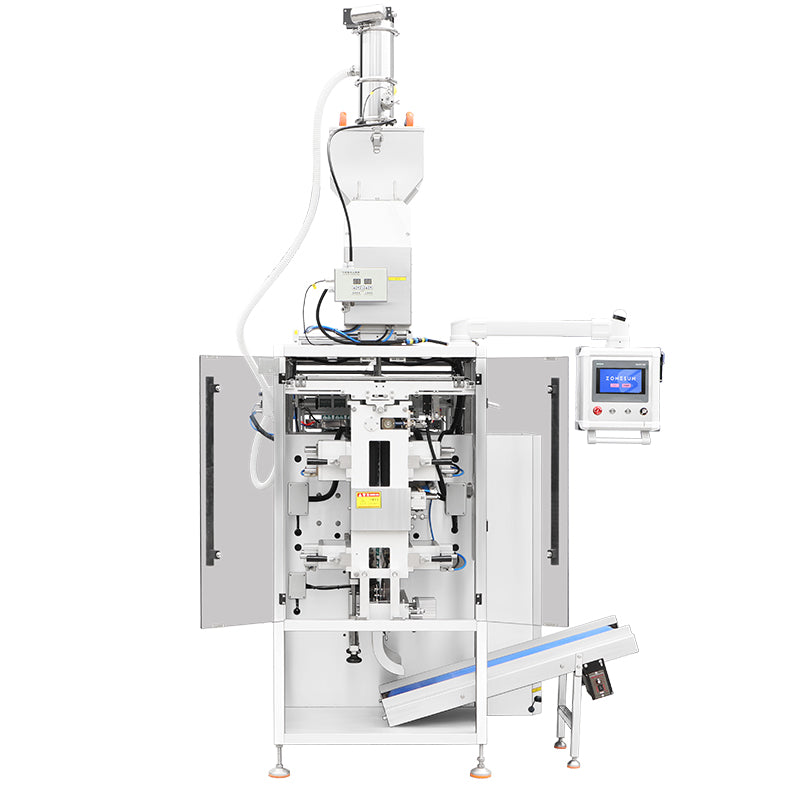

The ZONESUN ZS-FS500K4 is a high-speed automatic 4-lane vertical form-fill-seal (VFFS) packaging machine designed for free-flowing granules such as salt, sugar, sweeteners, saline packets, and water testing reagent sachets. It uses volumetric cup dosing combined with vacuum feeding for continuous operation, achieving around 120 bags per minute. The machine performs film forming, filling, vertical & horizontal sealing, cutting, and optional easy-tear notching and date coding in one integrated process. It is ideal for efficient, high-volume production of small sachets in food, seasoning, and chemical industries.
Parameter
- Model: ZS-FS500K4
- Power Supply: 1N+PE, 50 HZ, AC220V, 4.5 KW
- Number of Lanes: 4 Lanes
- Measuring Method: Volumetric Cup
- Filling Volume: 6.5 g (Customized As Needed)
- Packing Speed: Around 120 Bags/min
- Bag Size: L 50-160 mm * W 65 mm (Customizable)
- Film Width Range: Max. 500 mm
- Film Thickness: 0.05-0.1 mm
- Hopper Size: About 30L
- Optional Function: Date Coding, Easy-tear Notch & Vacuum Feeding
- Machine Size: About 1080 * 1440 * 1750 mm (Total height including hopper approx. 3000 mm)
- Machine Weight: About 600 kg
- Package Size: About 1880 * 1680 * 1980 mm (L * W * H)
- Package Weight: About 680 kg

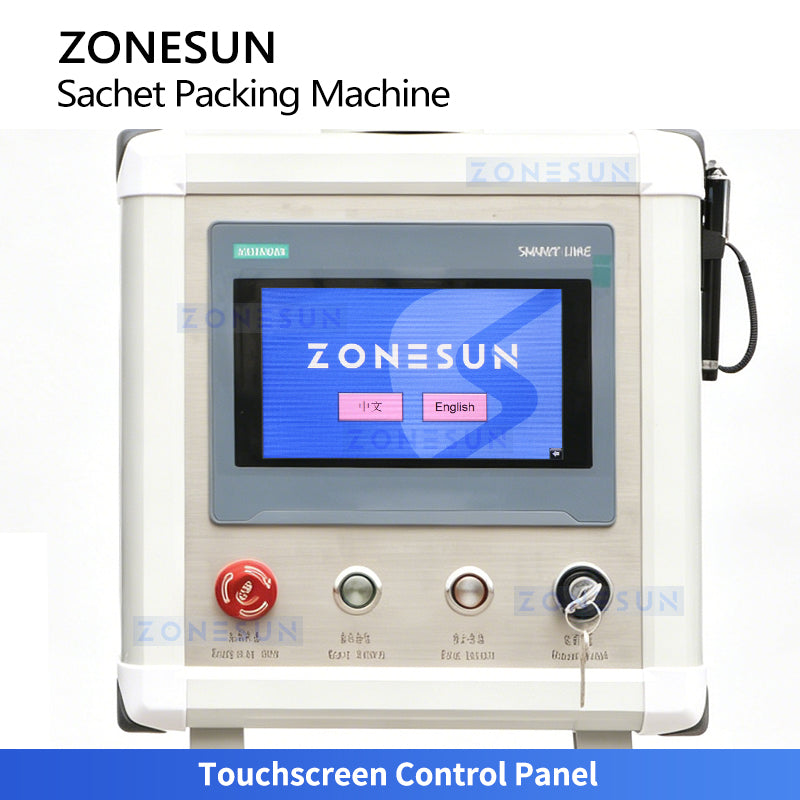

CONTROL PANEL
Allows operators to manage multi-lane packaging parameters intuitively, multiple language can be customized as needed.

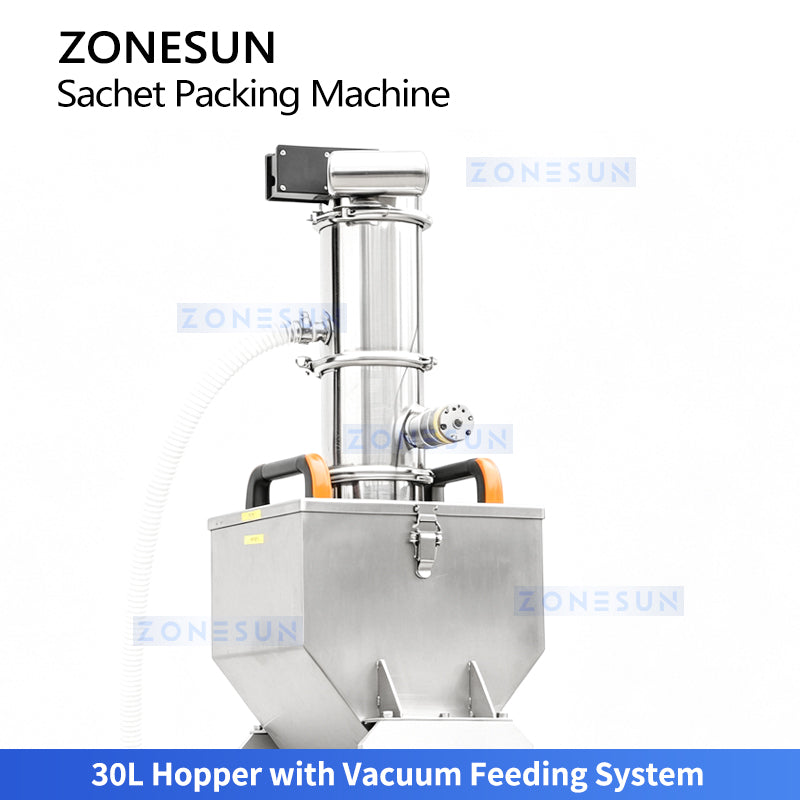

VACUUM FEEDING
The level sensor automatically triggers the optional vacuum loader for continuous material replenishment.

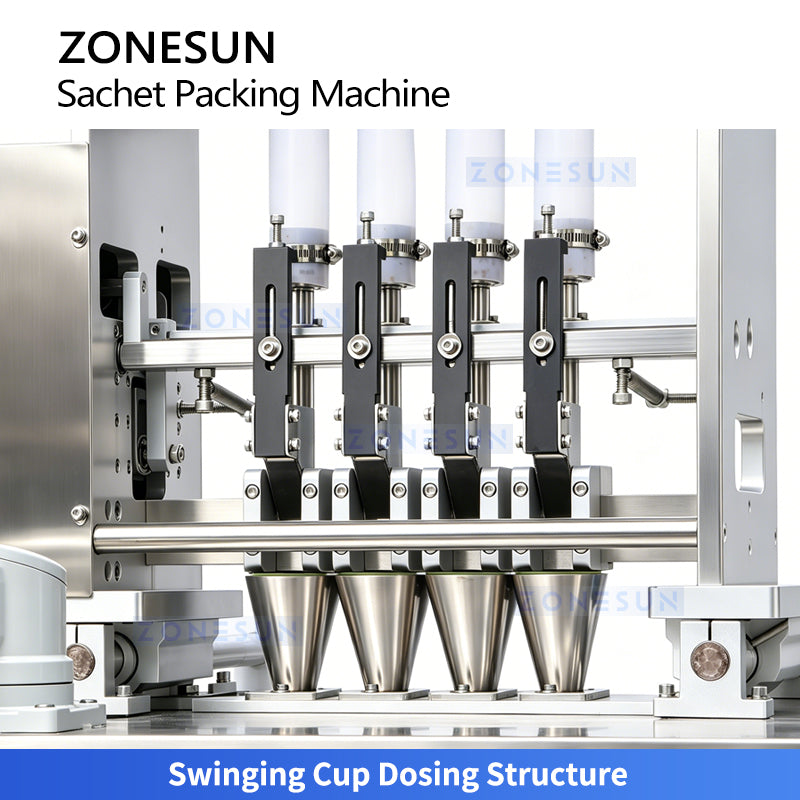

SWINGING CUP DOSING
Designed for free-flowing granules like salt and sugar, utilizing a swinging cup mechanism to ensure highly smooth and consistent dispensing across all lanes.

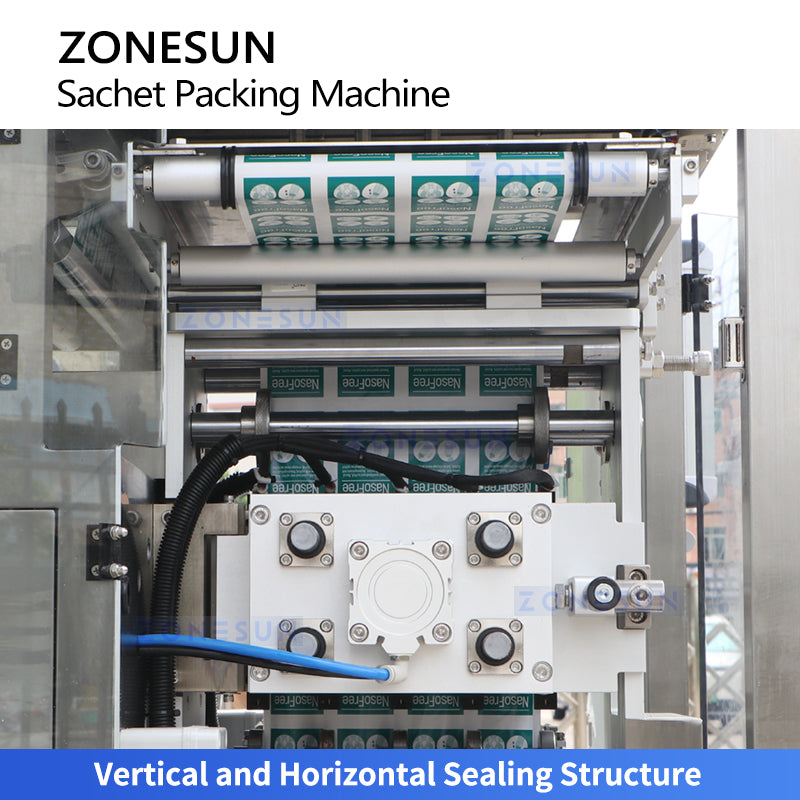

VERTICAL & HORIZONTAL
Utilizes Teflon-coated rollers to execute clean and reliable seals across multiple lanes while significantly reducing material buildup and mechanical wear.

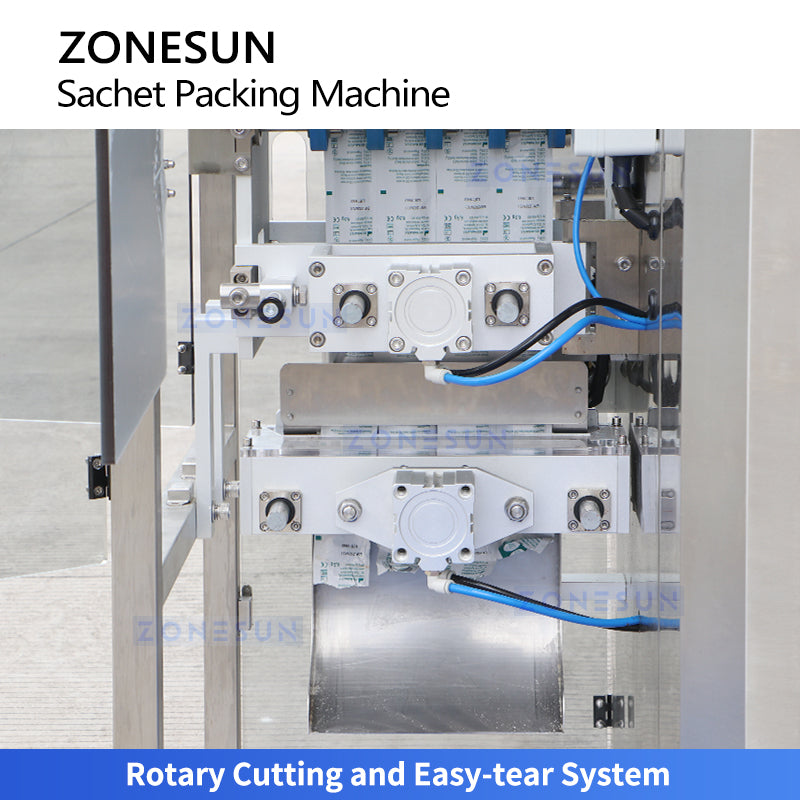

ROTARY CUTTING
Produces individual or connected sachets featuring optional easy-tear notches and highly uniform perforation lines.
DATE CODING
Prints production dates or batch information directly onto sachets during the real-time packaging process, ensuring clear and indelible batch identification.
ELECTRICAL CONTROL
Coordinates multi-lane operation, film feeding, and sealing actions precisely via premium circuits to ensure stable, high-speed, and synchronized production.
DISCHARGE CONVEYOR
Collects and transfers completed sachets efficiently via an inclined conveyor belt to facilitate downstream handling or cartoning.
Why Choose the ZS-FS500K4?
- ✅ 4-Lane Simultaneous Output at 120 Bags/Min: Quadruple-lane design multiplies throughput — equivalent to running four single-lane machines in one compact footprint
- ✅ Volumetric Cup + Vacuum Feeding: Consistent cup dosing combined with vacuum material supply ensures stable, continuous filling without bridging or interruption
- ✅ Full VFFS Integration: Film forming → filling → vertical sealing → horizontal sealing → cutting — all in one automated continuous process
- ✅ Optional Easy-Tear Notch: Adds consumer-friendly tear notches to sachets for easy opening — ideal for single-serve food and condiment packaging
- ✅ Optional Date Coding: Integrated date/batch code printing eliminates the need for a separate coding station
- ✅ Wide Film Compatibility: Accepts film widths up to 500mm and thicknesses of 0.05–0.1mm for flexible packaging material sourcing
- ✅ Customizable Bag & Fill Dimensions: Bag length 50–160mm and fill volume adjustable to match your specific sachet format requirements
Ideal Applications
- Food & Condiments: Salt sachets, sugar sachets, sweetener packets, seasoning granules, MSG, instant soup mix, spice granule single-serve packs
- Beverage & Health: Electrolyte powder sachets, vitamin C granules, health supplement granule packs, instant drink mix sachets
- Medical & Laboratory: Saline solution packets, water testing reagent sachets, pharmaceutical granule single-dose packs
- Agricultural & Chemical: Fertilizer granule sachets, pesticide granule packs, water treatment chemical sachets
- Industrial & Retail: Desiccant sachets, silica gel packets, small hardware granule packs, promotional single-serve sample sachets
