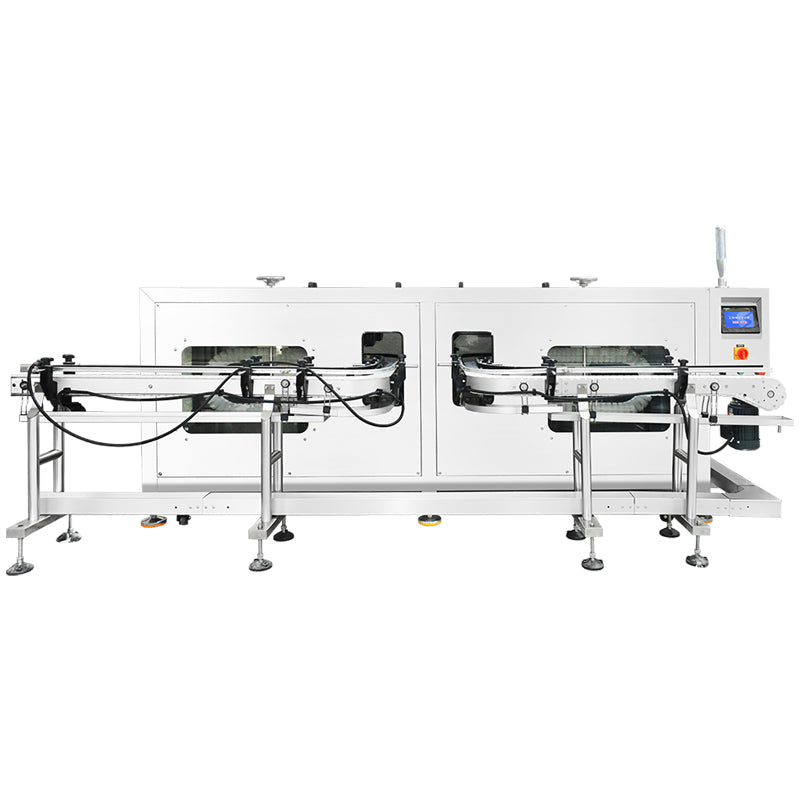

ZONESUN ZS-WB02A Automatic Bottle Water & Air Rinsing Machine for Glass & Plastic Bottles

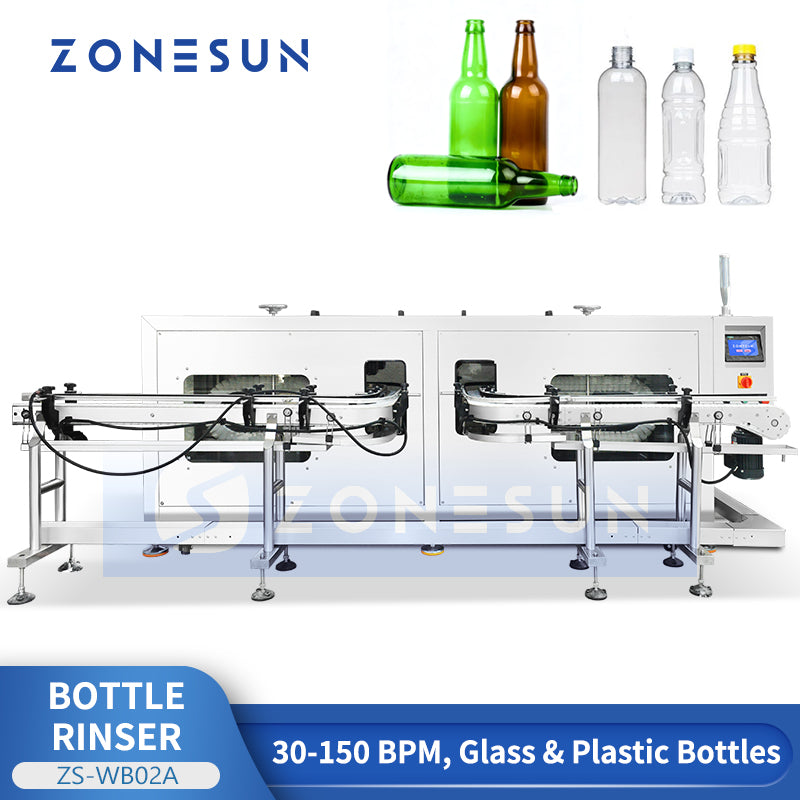

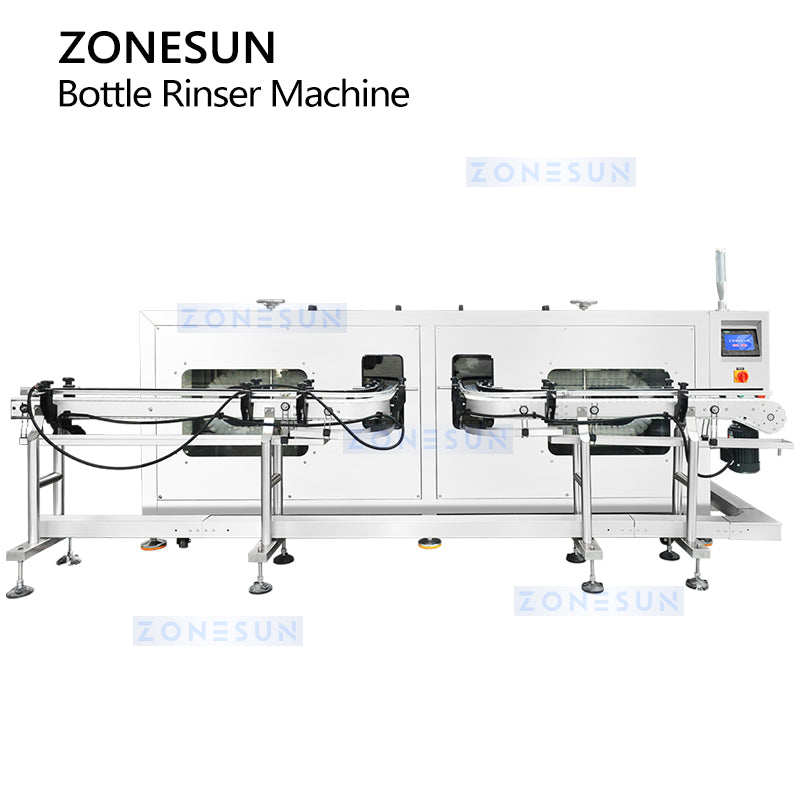

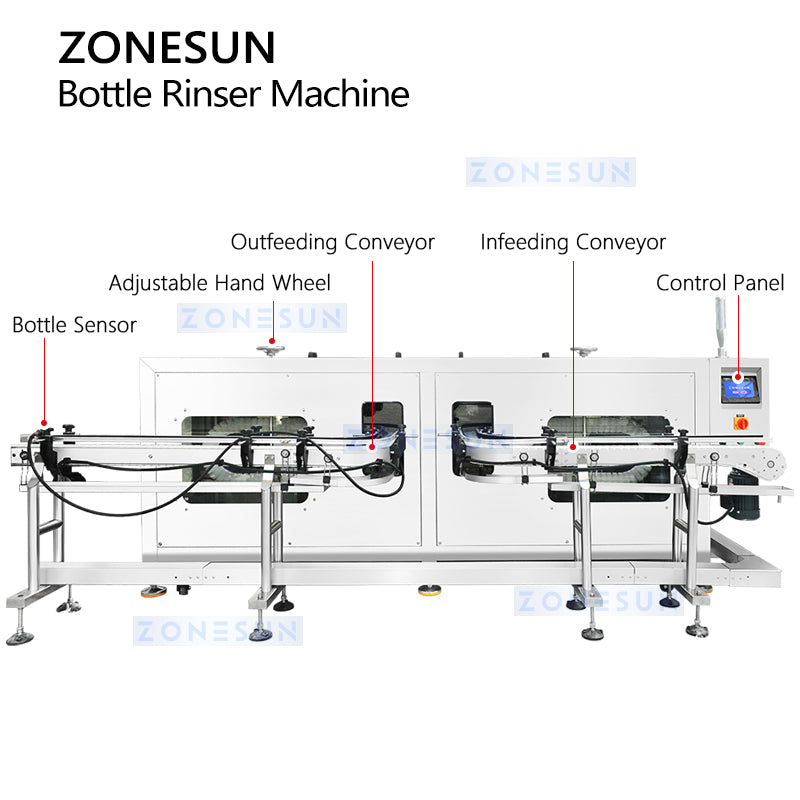

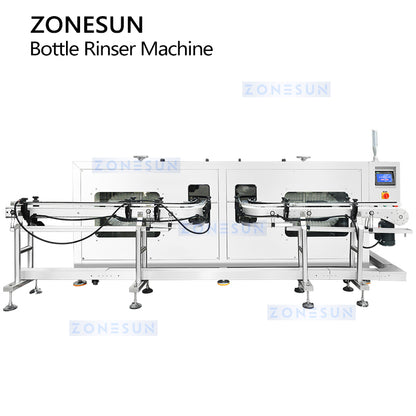

The ZONESUN ZS-WB02A is an automatic water-and-air bottle rinser designed for cleaning glass and plastic bottles before filling. Operating at 30–150 BPM, it uses a sanitary pump to pressurize water for internal rinsing, combined with air injection to complete both water and air cleaning processes.

Containers are gripped and inverted over rinsing nozzles for thorough internal cleaning, ensuring high hygiene standards for food, pharmaceutical, and daily chemical production lines. The machine supports bottles of various shapes and sizes, offers simple changeover without replacing parts, and can work independently or be integrated into a full filling and packaging line. Its modular POM conveyor enables flexible horizontal and vertical movement for compact layout design.

The ZONESUN ZS-BDM35 is a high-efficiency 9-pass continuous tunnel drying and sterilizing machine engineered for pharmaceutical, food, and beverage packaging lines. Utilizing hot air sterilization technology within a fully automated aseptic tunnel, this machine is specifically designed to thoroughly dry and sanitize various glass containers—such as ampoules, oral liquid bottles, penicillin vials, and syrup jars—ensuring ultimate hygiene and compliance with strict production standards through uniform heat distribution and precise moisture elimination.

Bottle Rinser

• Machine Model: ZS‑WB02A
• Machine Voltage: AC 220/380 V, 4.5 kW
• Working Speed: 30–150 BPM
• Water Consumption: 0.8–3 m³/h
• Air Consumption: 0.3 m³/min
• Air Pressure: 0.5–0.6 MPa
• Suitable Bottle: Glass & plastic bottles
• Bottle Size: Customizable
• Machine Size (L×W×H): 4800 × 2000 × 1200 mm
• Machine Weight: 800 kg

9-Pass Dryer 5m

• Model: ZS-BDM35
• Production Capacity: 20–35 Bottles/min
• Conveyor Speed: 0–22 m/min
• Heating Method: Far-Infrared Radiation Heating
• Stable Adjustment Range: 50°C ~ 150°C
• Exhaust Air Volume: 3000 ~ 4500 m³/h
• Power Supply: 380V / 50Hz
• Power: 18 kW
• Machine Net Weight: 1200 kg
• Overall Dimensions: 4000 × 700 × 1700 mm

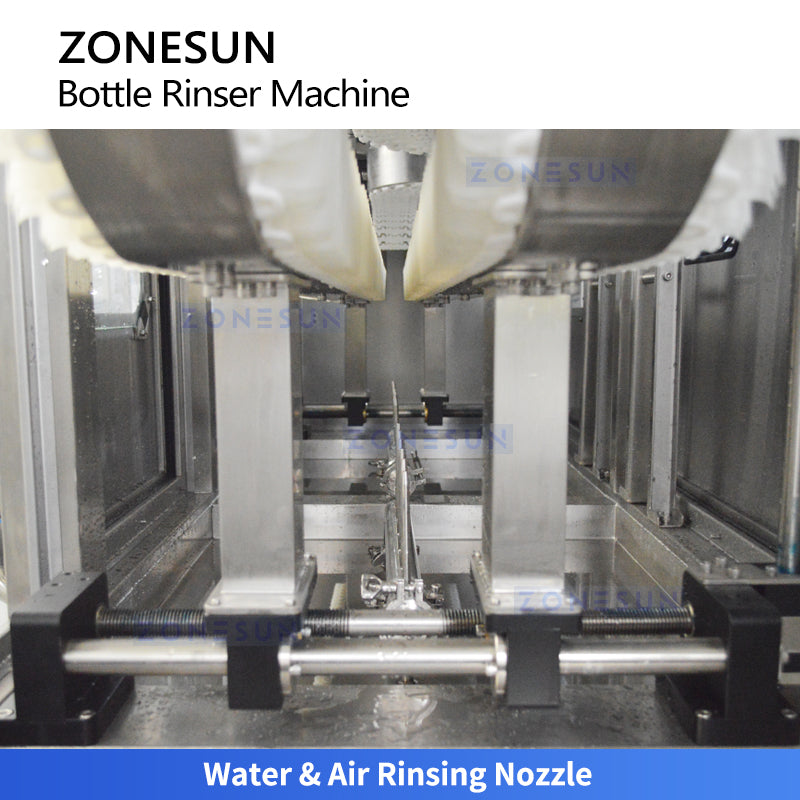

Water & Air Rinsing Nozzle

Nozzles insert directly inside bottles, combining water and air cleaning to maximize internal cleaning efficiency and hygiene.

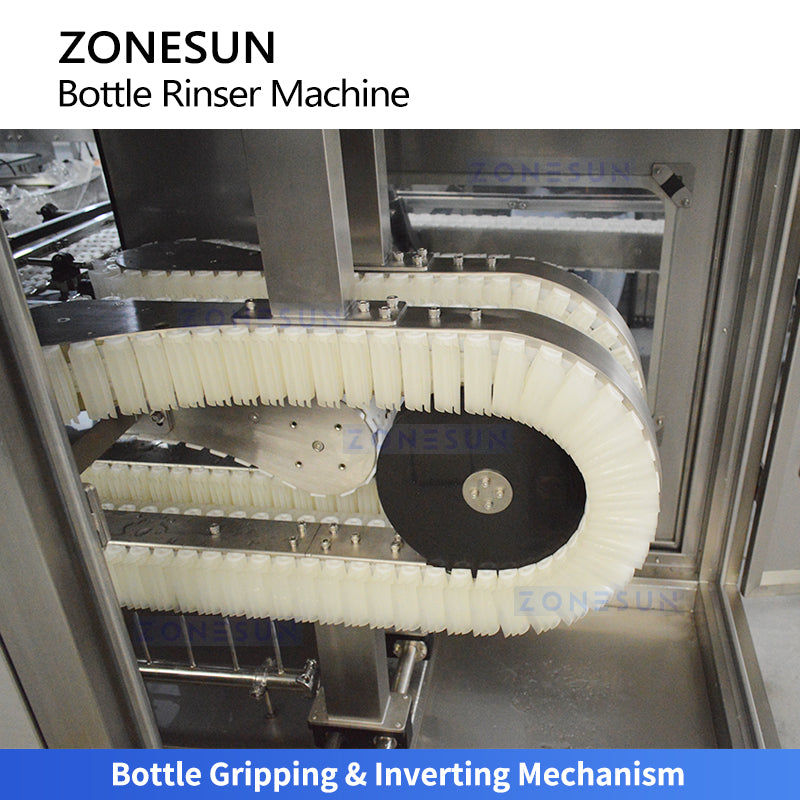

Bottle Gripping & Inverting Mechanism

Holds bottles securely and inverts them for complete internal rinsing, with easy adjustment to fit different bottle sizes without replacing parts.

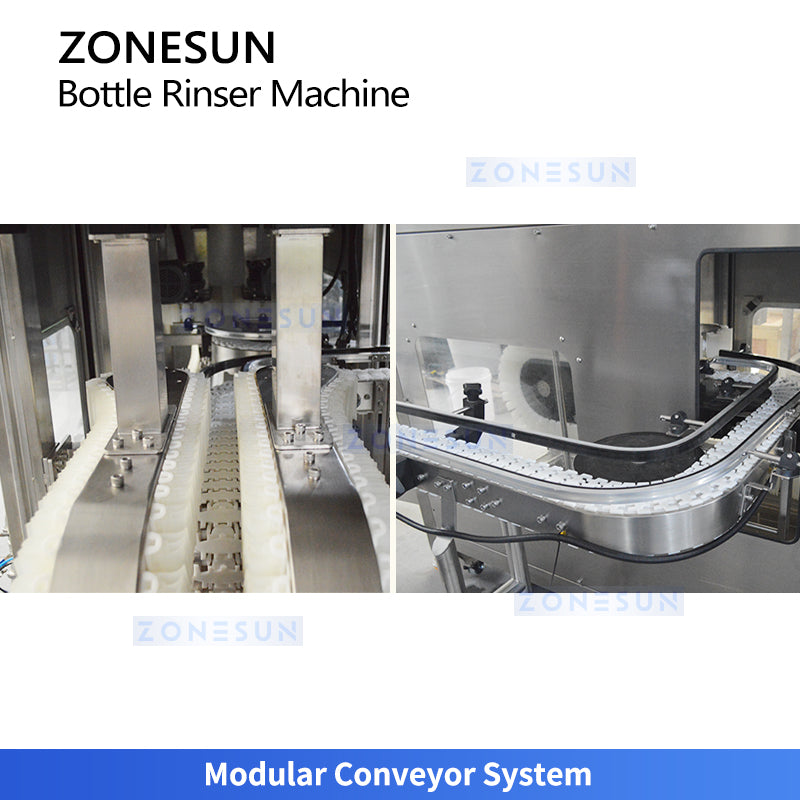

Modular Conveyor System

Enables flexible horizontal and vertical bottle transport, optimizing space usage and ensuring smooth, continuous movement through the rinsing process.
