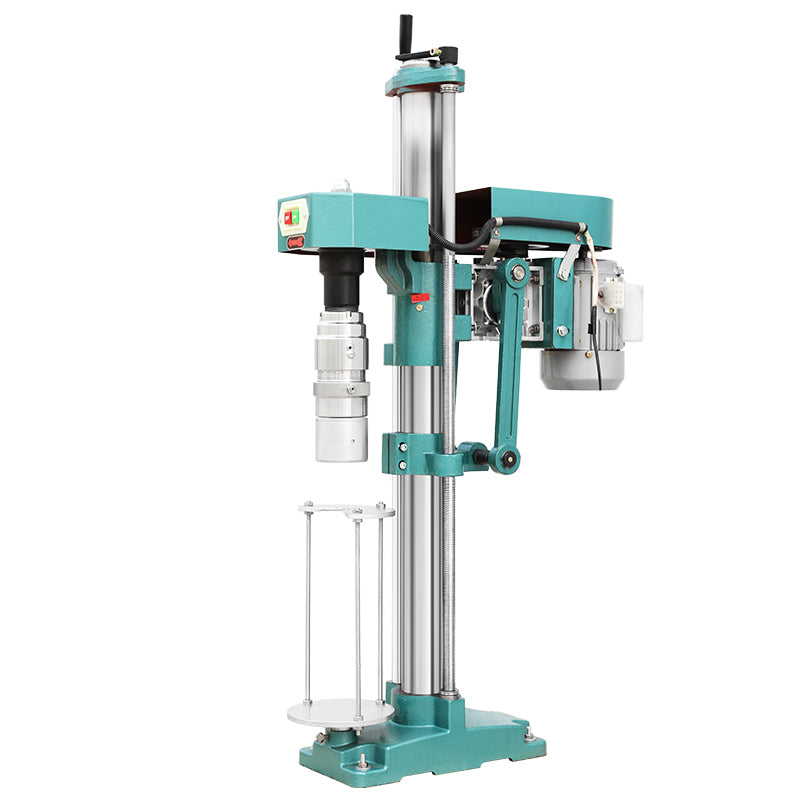

ZONESUN ZS-YG60B2 Semi-Automatic 28mm Screw Cap Bottle Capping Machine

ZONESUN ZS-YG60B2 Semi-Automatic 28mm Screw Cap Bottle Capping Machine

Description

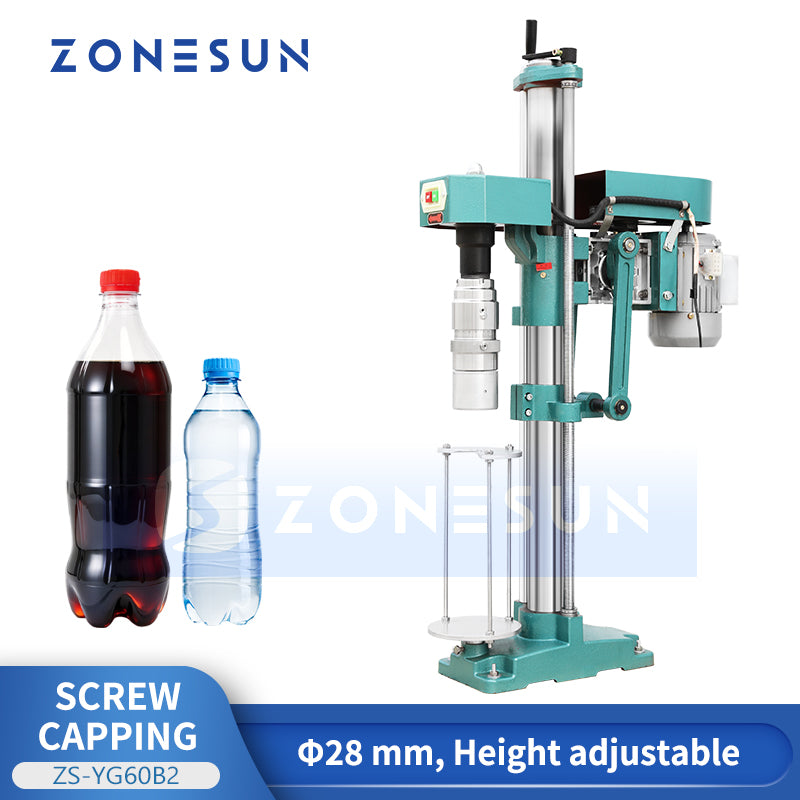

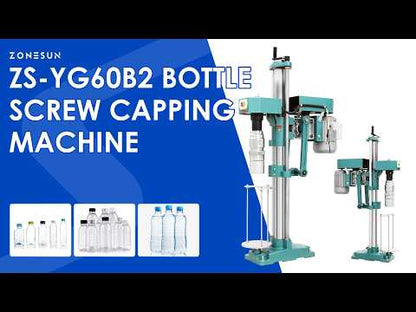

The ZONESUN ZS-YG60B2 Semi-Automatic Screw Cap Capping Machine is designed for tightening 28 mm screw caps on compatible bottles. With a working speed of approximately 1200 bottles/hour, it features an automatically lifting capping head, graduated torque adjustment, adjustable capping height, and a bottle neck holder for stable operation. The machine accommodates bottle heights of 150–280 mm, making it suitable for 250 ml, 500 ml, 1000 ml, and other compatible bottles with 28 mm screw caps.

Parameter

• Model: ZS-YG60B2
• Voltage: 220 V, 50 Hz
• Power: 370 W
• Working Speed: Approx. 1200 bottles/hour (Depending on bottle size)
• Suitable Bottle Height: 150–280 mm
• Suitable Bottle Mouth Diameter: Φ28 mm
• Package Dimensions (L × W × H): Approx. 290 × 750 × 1060 mm
• Package Weight: Approx. 78 kg

Key Features

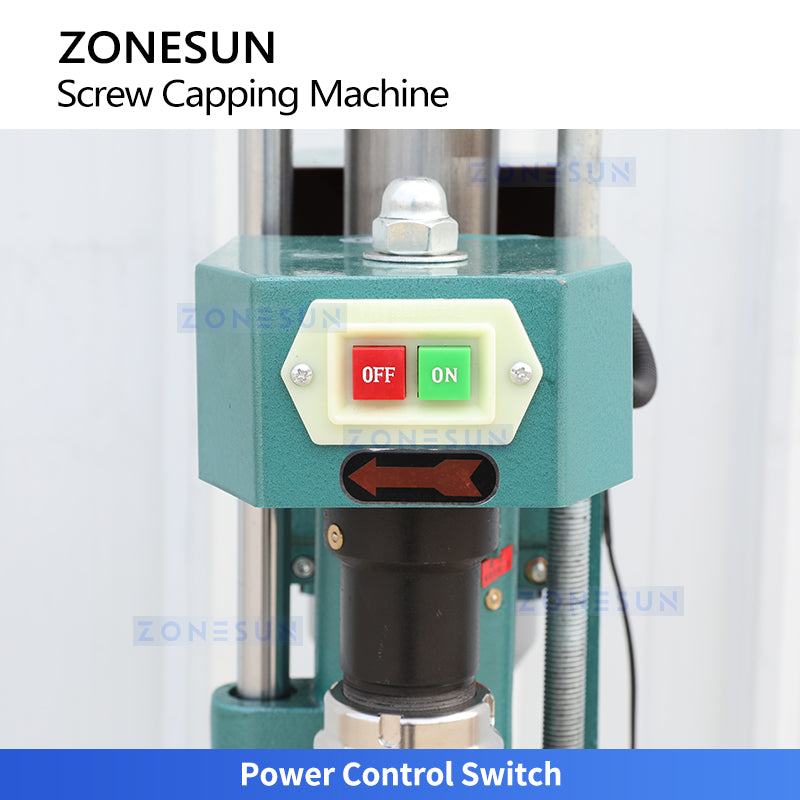

Power Control Switch

Press the control button to automatically lower the capping head, complete the cap-tightening process, and return the capping head to its starting position.

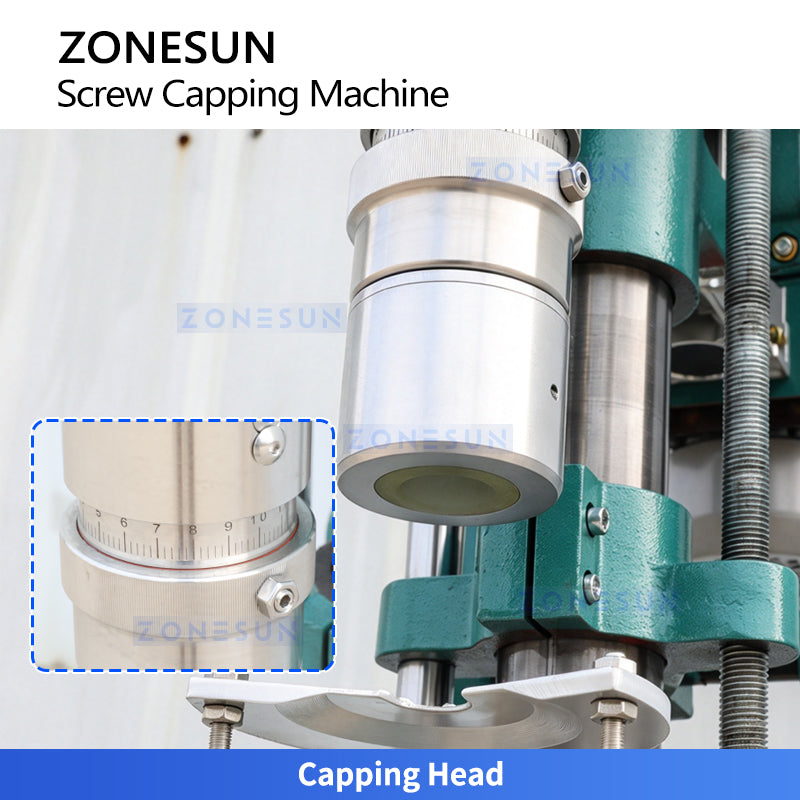

28 mm Capping Head

The capping system is specifically designed for compatible bottles using 28 mm screw caps, providing stable and consistent cap tightening.

Graduated Torque Adjustment

The capping head is equipped with a graduated torque adjustment ring, providing a visible reference for adjusting capping pressure and helping achieve repeatable tightening settings.

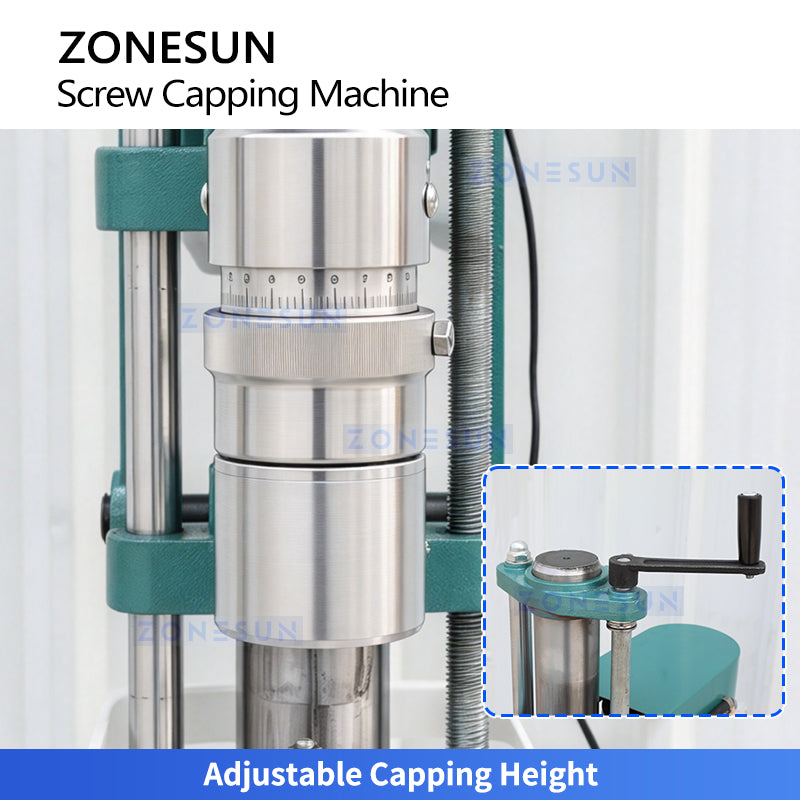

Adjustable Capping Height

The vertical position of the capping head can be adjusted using the rotary handle to accommodate bottles with different heights.

150–280 mm Bottle Height Range

The adjustable structure supports compatible bottles with heights ranging from 150 to 280 mm.

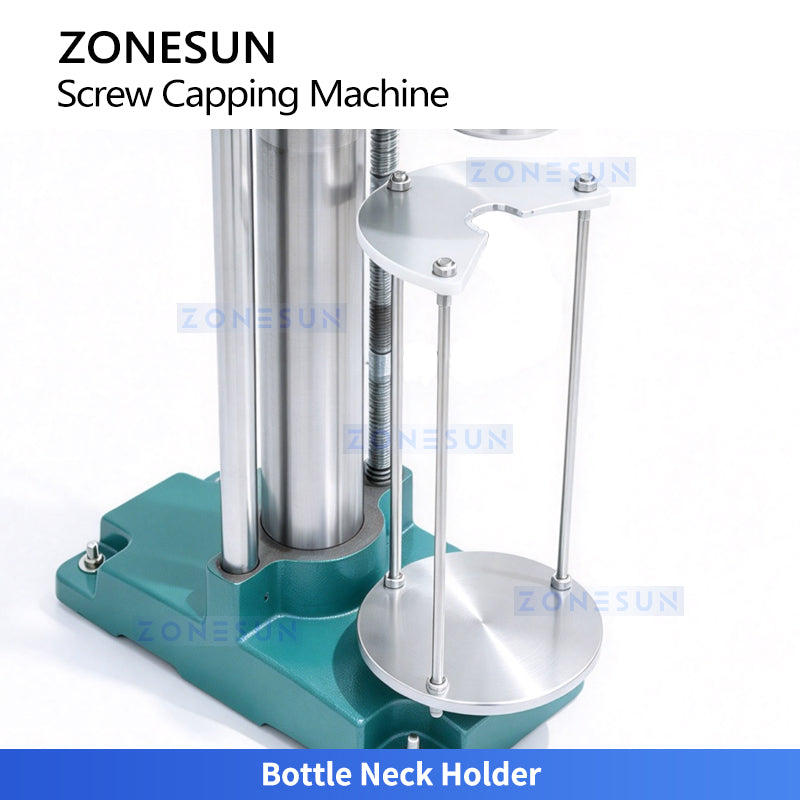

Bottle Neck Holder

Securely holds the bottle around the neck during capping to help prevent the container from rotating while the screw cap is tightened.

Adjustable Bottle Positioning

The bottle neck holder can be repositioned according to bottle size, helping maintain proper alignment between the bottle and capping head.

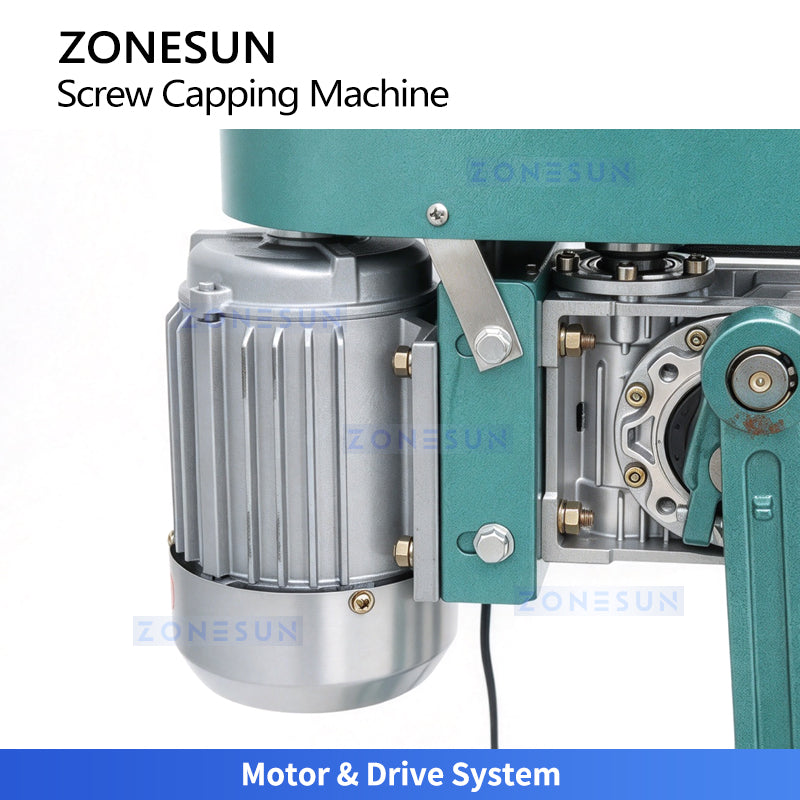

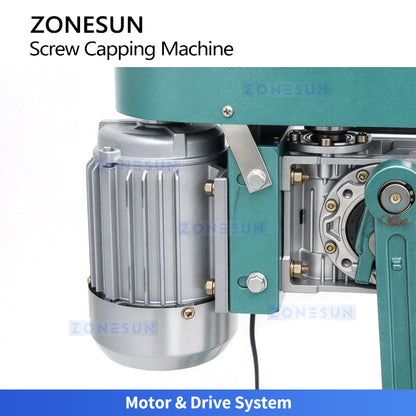

Motor & Drive System

Provides stable power transmission for smooth and consistent capping operation.

Automatic Head Lifting

After the capping process is completed, the capping head automatically returns to its starting position, preparing the machine for the next bottle.

Benefits

Approx. 1200 Bottles/Hour

Provides a working speed of approximately 1200 bottles/hour, depending on bottle size.

One-Button Capping Operation

The control switch simplifies operation by controlling the automatic downward and return movement of the capping head.

Automatic Capping Head Movement

After activation, the capping head automatically lowers to tighten the screw cap and then returns to its original position.

Adjustable Capping Torque

The graduated adjustment ring allows the operator to fine-tune capping pressure for more consistent tightening results.

Stable Bottle Positioning

The bottle neck holder keeps the container securely positioned and helps prevent bottle rotation during capping.

Adjustable Bottle Height

The mechanical height-adjustment structure allows the machine to handle compatible bottles ranging from 150 to 280 mm in height.

28 mm Screw Cap Compatibility

The capping system is specifically designed for compatible bottles using 28 mm screw caps.

Multiple Bottle Capacities

Reference bottle formats include 250 ml, 500 ml, and 1000 ml, provided they meet the required bottle height and 28 mm cap specifications.

Compact Semi-Automatic Design

Combines manual bottle loading with automatic capping-head movement, providing a practical alternative when a fully automatic capping line is unnecessary.

Simple Mechanical Adjustment

Bottle height and bottle neck positioning can be mechanically adjusted according to compatible bottle dimensions.

Application

Ideal for semi-automatic capping of 250 ml, 500 ml, 1000 ml, and other compatible bottles using 28 mm screw caps. The ZS-YG60B2 is suitable for bottle packaging applications requiring consistent screw-cap tightening without the complexity of a fully automatic capping line. Its adjustable capping height accommodates compatible bottles from 150 to 280 mm, while the adjustable bottle neck holder helps maintain stable bottle positioning during cap tightening. With a working speed of approximately 1200 bottles/hour, it provides a practical solution for small- to medium-scale bottle capping operations.

Why Choose the ZONESUN ZS-YG60B2?

28 mm Screw Cap Capping

Specifically designed for compatible bottles using 28 mm screw caps, providing a dedicated solution for this common closure size.

Approx. 1200 Bottles/Hour

Provides a working speed of approximately 1200 bottles/hour, depending on the actual bottle size.

One-Button Operation

The operator simply positions the bottle and activates the control switch. The capping head automatically lowers, tightens the cap, and returns to its starting position.

Graduated Torque Adjustment Ring

Provides a visible reference for adjusting capping pressure, helping operators reproduce suitable tightening settings for compatible caps.

Automatic Head Return

After each capping cycle, the capping head automatically rises back to the starting position, preparing the machine for the next bottle.

150–280 mm Bottle Height

The adjustable capping structure accommodates compatible bottles with heights ranging from 150 to 280 mm.

Stable Bottle Neck Holding

The bottle neck holder helps prevent bottle rotation while the cap is being tightened, improving capping stability.

Adjustable Bottle Positioning

The holder position can be adjusted according to bottle size to maintain proper alignment beneath the capping head.

250 ml / 500 ml / 1000 ml Reference Bottles

The supplied reference configurations include 250 ml, 500 ml, and 1000 ml bottles, all using 28 mm caps.

370 W Motor

The machine uses a 370 W motor and drive system to provide stable power transmission during capping.

Semi-Automatic Operation

Combines manual bottle placement with automatic capping movement, making it suitable for production environments that do not require a fully automatic cap feeding and conveying system.

Ideal Applications

250 ml Bottles

The reference 250 ml bottle has a diameter of 5.5 cm, height of 15 cm, and uses a 28 mm cap.

500 ml Bottles

The reference 500 ml bottle has a diameter of 6.5 cm, height of 20 cm, and uses a 28 mm cap.

1000 ml Bottles

The reference 1000 ml bottle has a diameter of 7.5 cm, height of 28 cm, and uses a 28 mm cap.

28 mm Screw Cap Bottles

Suitable for compatible bottle formats using 28 mm screw caps.

Different Bottle Heights

Suitable for compatible bottles ranging from 150 to 280 mm in height, with mechanical height adjustment.

Small-Batch Bottle Capping

Suitable for production environments where operators manually position bottles but require powered and repeatable screw-cap tightening.

Small- to Medium-Scale Production

The approximately 1200 bottles/hour working speed makes the machine suitable for compatible small- and medium-scale bottle capping operations.
