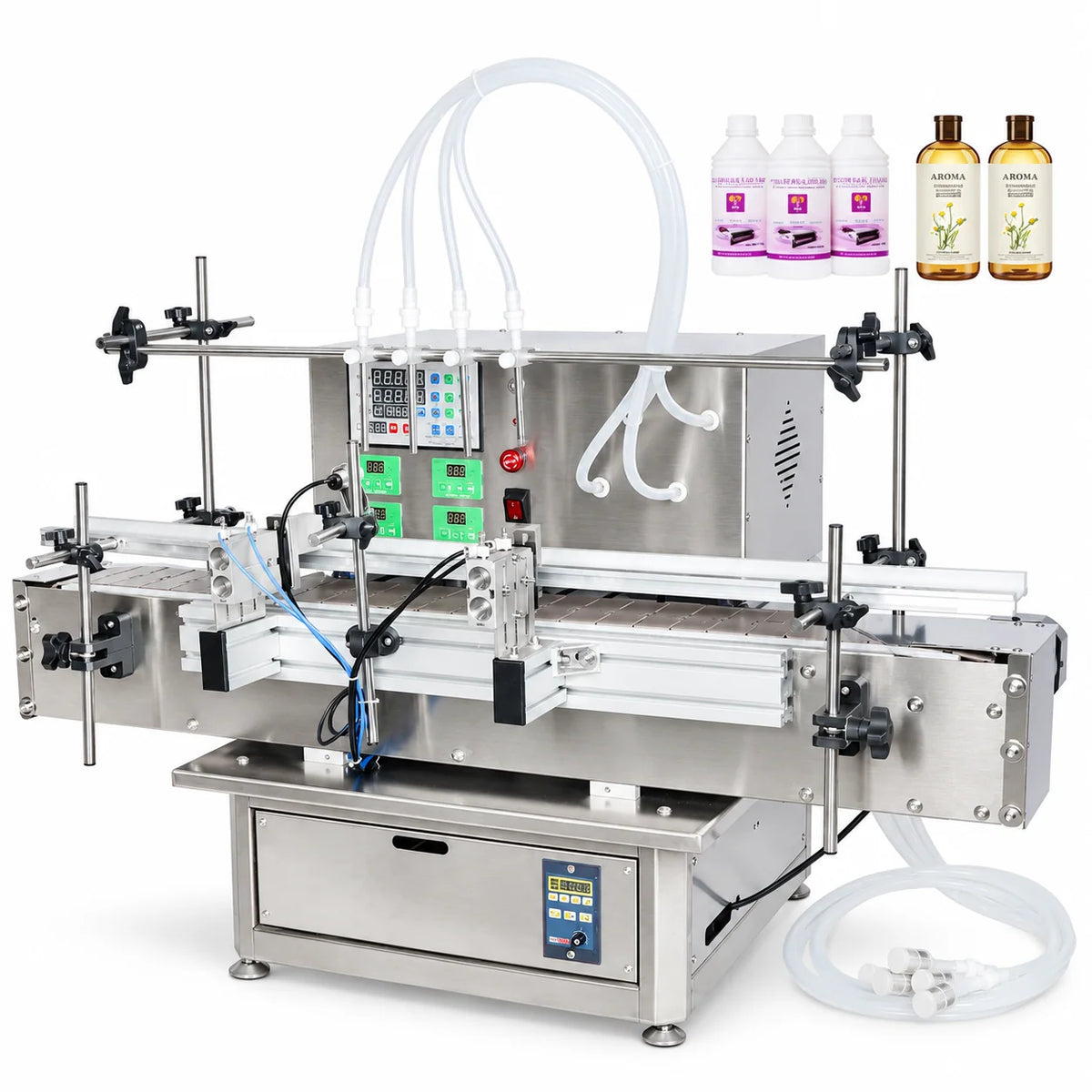

ZONESUN ZS-DTDP-4P Automatic 4 Nozzles Diaphragm Pump Liquid Filling Machine
ZONESUN ZS-DTDP-4P Automatic 4 Nozzles Diaphragm Pump Liquid Filling Machine
픽업 사용 가능 여부를 로드할 수 없습니다.
Description
This automatic filling machine is suitable for liquid that has no particles, such as shampoo, juice, perfume, essential oil, etc. Equipped with a chain conveyor, it can bear heavy products, and the conveyor belt will run steadily. Durable and reliable. The machine can be widely used in pharmaceutical, cosmetic, beverage, daily chemical industries.
Parameter
|
Machine Model |
ZS-DTDP-4P |
|
Voltage |
110/220V 50-60HZ |
|
Power |
250W |
|
Maximum flow velocity |
4000ml/min(Each nozzle and base on water) |
|
Working speed |
1500-3000 bottles/hour(depends on bottle size and liquid) |
|
Air pressure |
0.3-0.4MPa |
|
Filling accuracy |
≤+1% (For water) |
|
Bottle height |
＜220mm(Can be customized,max height 300mm) |
|
Diameter of filling nozzle |
6/8mm |
|
Conveyor size |
1030*115mm(L*W) |
|
Size of air compressor connector |
OD 8mm |
|
Machine size |
About 1114*650*765mm |
|
Package size |
About 1145*605*795mm |
|
Net weight/Gross weight |
About 52kg/78kg |
Simple operation panel,can show the detailed setting parameter like the filling time and filling speed,these can be simply controlled according to production need during work.
This machine is designed with 4 filling nozzles,the filling speed and time of each nozzle can be controlled separately. We can customize 6 filling nozzle of this machine to achieve efficient production,if you need this please contact us.
The electric eye will detect passing by containers and send the signal to the system which will control the machine to fill liquid,and achieve automated production.This can reduce the production error.
The chain conveyor has larger weight capacity which is good for transport heavier products.Compared with belt conveyor,it is more suitable for large volume products.The conveyor speed can be controlled separately by the below operation panel.
