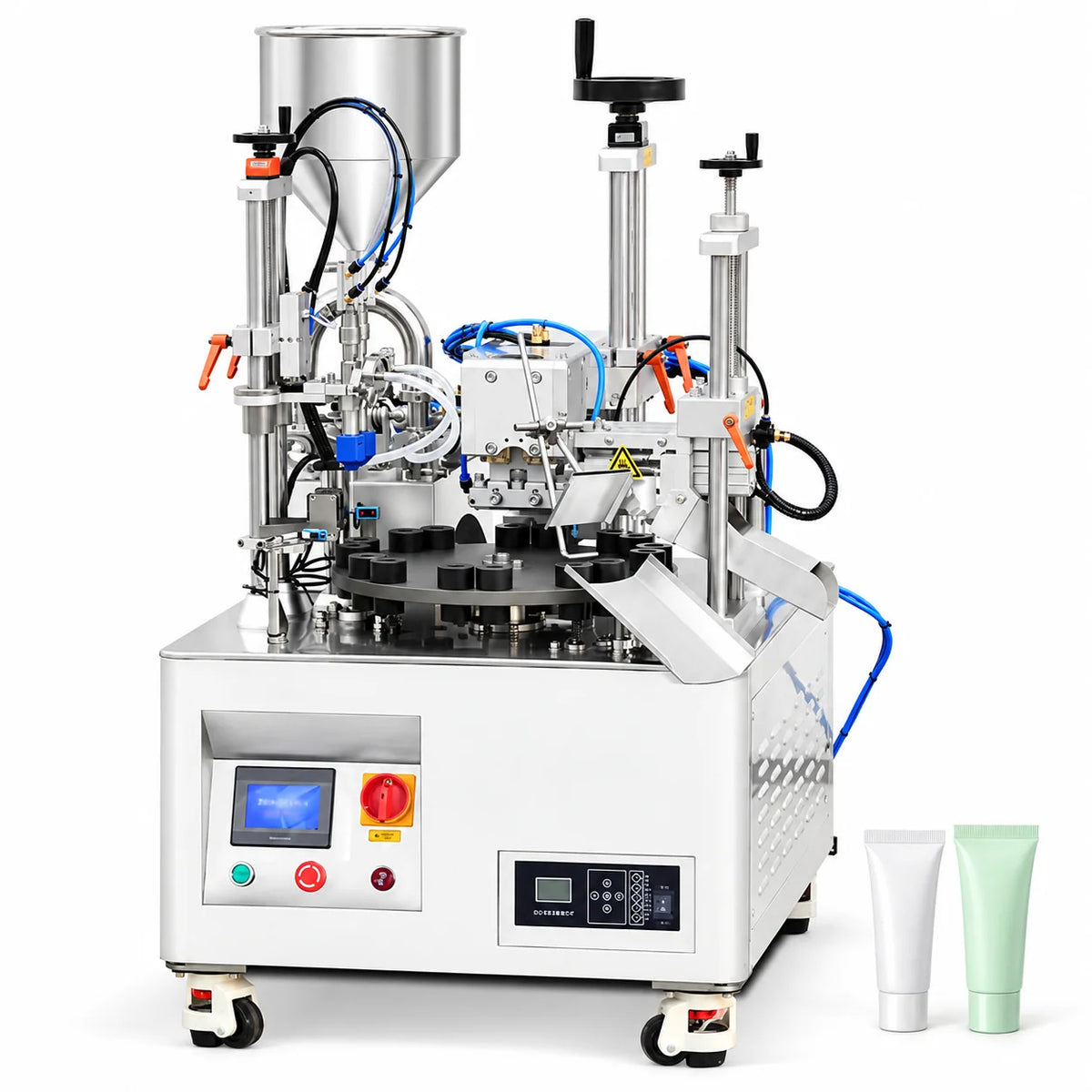

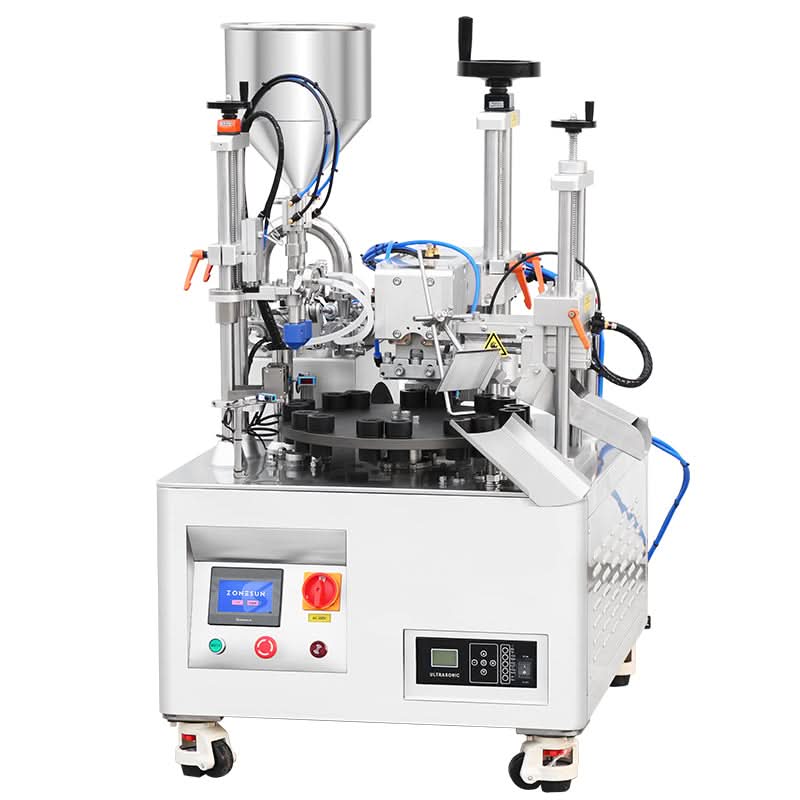

ZONESUN ZS-AFS05 Automatic Ultrasonic Ceramic Pump Paste Tube Filling and Sealing Machine

ZONESUN ZS-AFS05 Automatic Ultrasonic Ceramic Pump Paste Tube Filling and Sealing Machine

$11,499.00 USD
$12,000.00 USD $11,499.00 USD
할인 품절
배송료는 결제 시 계산됩니다.
Voltage
DESCRIPTION

This is a tube filling and sealing machine. Users need to place the tubes and it will automatically proceed filling and sealing process. The sealing uses ultrasonic technology, bringing a perfect sealing effect. This monoblock filling sealing machine can automatically fill paste into soft tube, seal soft tube at one rotary table. Ultrasonic controlled sealing structure, this ensures packaging quality and accuracy. It is suitable for packaging hand cream, lip gloss, facial cleanser.

Parameter

  • Machine Model: ZS-AFS05
  • Voltage: 220V/110V 50-60Hz
  • Power: 2.6KW
  • Filling Range: 3-30 ml
  • Filling Pump: Ceramic Pump/Piston Pump
  • Quantity of Filling Nozzle: 2
  • Filling Accuracy: ±0.25-0.5 ml(based on filling material and volume)
  • Sealing Speed: 40-50 pcs/min
  • Sealing Diameter: 13-22 mm
  • Sealing Height: 50-210 mm
  • Sealing Method: Ultrasonic Sealing
  • Ultrasonic Frequency: 20KHz
  • Air Pressure: 0.5 Mpa
  • Machine Weight: About 212 kg
  • Machine Size: About 900*1150*1360 mm
  • Package Weight: About 1230*980*1460 mm
  • Package Size: About 287 kg

PLC CONTROL PANEL

The user-friendly panel supports intuitive operation, helping operators manage and control the process efficiently.

CERAMIC PUMP

The ceramic pump provides thermal stability, sealing performance, corrosion resistance, and non-magnetic properties.

FILLING & COLOR-CODE DETECTION

Two nozzles support efficient filling. Automatic color-code detection helps ensure accurate tube positioning, reduce incorrect filling or sealing, and maintain consistency and quality.

SEALING

Ultrasonic tube sealing provides a tight seal. The sealing temperature can be adjusted according to the tube material, and each workstation uses a sensor for automated operation.

ROTARY TABLE

The rotary table uses bottom molds customized to the tube size, helping the machine accommodate different products.
