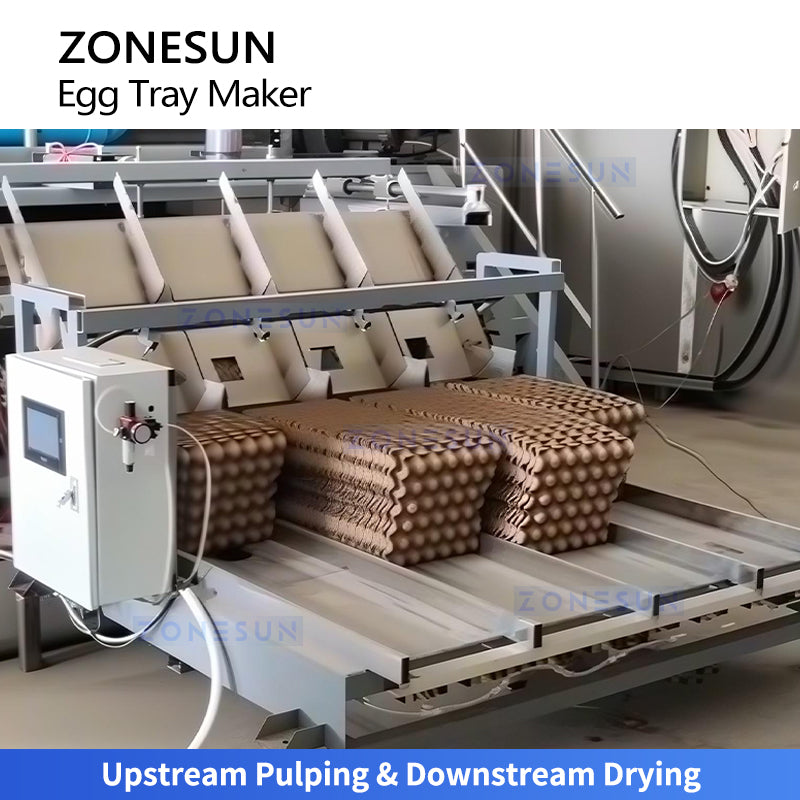

ZONESUN ZS-PT1000 Automatic Rotary Paper Pulp Egg Tray Molding Machine Fruit Tray Making Equipment
ZONESUN ZS-PT1000 Automatic Rotary Paper Pulp Egg Tray Molding Machine Fruit Tray Making Equipment
픽업 사용 가능 여부를 로드할 수 없습니다.
Description
The ZONESUN ZS-PT1000 is an automatic rotary pulp molding machine for high-efficiency production of egg trays, fruit trays, and other paper pulp packaging. It mixes raw materials with water to produce a consistent pulp slurry, which is then formed into wet trays via vacuum suction and rotary continuous forming technology with quick-change molds. The wet trays require downstream drying to become finished products. Optional front-end pulping and drying systems can be added for a fully integrated production line. With capacities from 800 to 1000 pcs/hour (scalable in the series), the ZS-PT1000 is a core component of a complete pulp molding line.
Parameter
- Model: ZS-PT1000
- Voltage: 220V/380V
- Capacity: 800-1000 pcs/hr
- Molds (Qty): 3
- Power Consumption: 33 kW/hr
- Paper Consumption: 85 kg/hr
- Water Consumption: 255 kg/hr
ROTARY CONTINUOUS
Utilizes a multi-sided rotary structure where molds alternately execute pulp suction forming and dehydration, enabling high-volume, continuous automated production.
Why Choose the ZS-PT1000?
✅ Rotary Continuous Forming Technology: Continuous rotary forming mechanism enables uninterrupted high-speed production at 800–1000 pcs/hour — significantly higher throughput than reciprocating or batch-type pulp molding machines
✅ Vacuum Suction Forming — Consistent Tray Quality: High-efficiency vacuum suction system draws pulp slurry uniformly onto mold surfaces, producing egg trays and fruit trays with consistent wall thickness, shape accuracy, and structural integrity
✅ Quick-Change Mold System: Modular quick-change mold design allows rapid switching between egg tray, fruit tray, cup carrier, and other packaging formats — maximizing production flexibility with minimal changeover downtime
✅ Recycled Paper Raw Material: Uses waste paper, recycled cardboard, and paper scraps as raw material — reducing raw material costs while producing fully biodegradable, compostable packaging that meets global sustainability requirements
✅ Scalable Complete Production Line: Optional front-end pulping systems and downstream drying lines can be integrated with the ZS-PT1000 forming unit to create a fully automated, end-to-end pulp molding production line
✅ 3-Mold Configuration — High Output Efficiency: Three-mold rotary setup maximizes forming cycles per revolution, delivering 800–1000 pieces per hour from a single compact machine footprint
✅ 220V / 380V Dual Voltage: Available in both 220V and 380V configurations for flexible installation in different facility power environments across global markets
Ideal Applications
Egg Tray & Egg Carton Production: High-volume egg tray and egg carton manufacturing for poultry farms, egg distributors, supermarket packaging suppliers, and food packaging manufacturers
Fruit & Produce Packaging: Molded pulp fruit trays, apple trays, mango trays, and other produce packaging for agricultural exporters, supermarkets, and fresh produce packaging operations
Industrial Protective Packaging: Molded pulp corner protectors, end caps, and cushioning inserts for electronics, ceramics, glassware, and fragile product packaging requiring biodegradable protective packaging
Beverage & Coffee Cup Carriers: Paper pulp cup holders, coffee cup carriers, and beverage tray packaging for coffee shops, fast food chains, and food service operations seeking eco-friendly alternatives
Sustainable Packaging Manufacturing: Biodegradable packaging production for brands and manufacturers transitioning from plastic to eco-friendly molded pulp packaging for retail, e-commerce, and export markets
