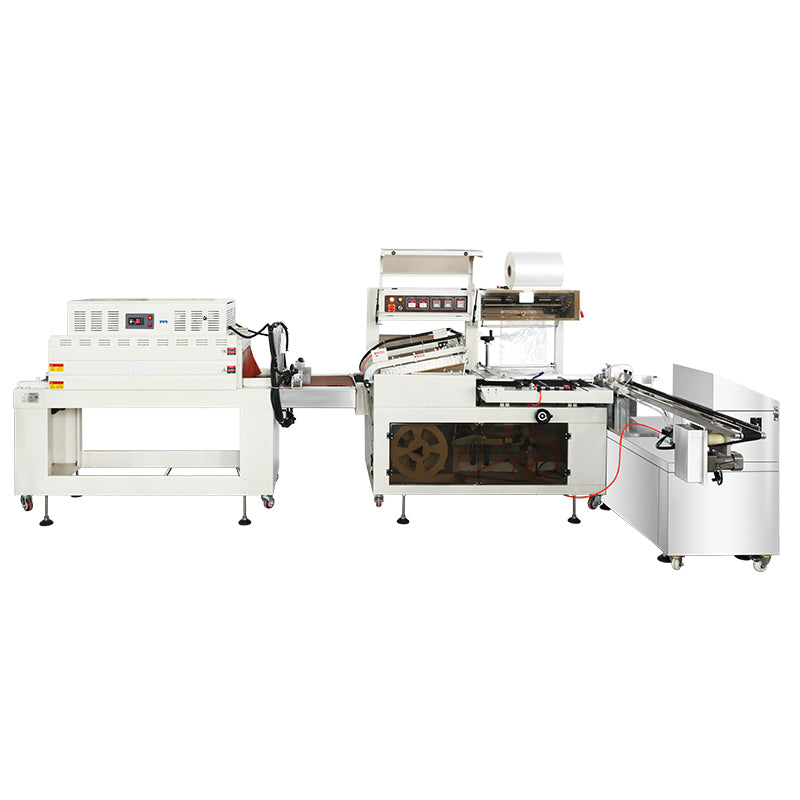

ZONESUN ZS-SPL9 Automatic Feeding Multi-Pack Shrink Wrapping Sealing Machine for Boxes and Books

Description

The ZONESUN ZS-SPL9 is a fully automatic shrink sealing machine designed for efficient packaging of boxed and bundled products. It integrates automatic feeding, film forming, sealing, cutting, and shrink wrapping into one streamlined system, supporting continuous operation with minimal manual input. Equipped with film waste recycling, wind circulation heating, and a teflon-coated sealing blade, it delivers clean and reliable shrink packaging using PVC, POF, or PP films. Widely used across industries such as hardware tableware, cosmetics, books, food, electronics, pharmaceuticals, and daily chemicals, it enhances product presentation and protection for retail and logistics.

 ZS-MD2 — Customizable Conveyor Platform Specifications

• Machine Model: ZS-MD2
• Voltage: 110V / 220V, 50–60 Hz
• Machine Material: Stainless Steel
• Conveyor Length: Customizable
• Conveyor Speed: Customizable
• Machine Dimensions: Customizable

ZS-FQL450A — Automatic Sealing & Cutting Machine Specifications

• Machine Model: ZS-FQL450A
• Power Supply: 220V, 50/60 Hz
• Power Consumption: 1.6 kW
• Sealing & Cutting Speed: 15–30 bags/min
• Shrink Film Material: POF
• Air Pressure Requirement: 0.6 MPa (requires air compressor connection)
• Max Packing Height: 140 mm
• Sealing & Cutting Size: 560 × 440 mm
• Machine Dimensions: 1660 × 920 × 1450 mm
• Machine Weight: 300 kg

ZS-BS4522 — Shrink Tunnel Machine Specifications

• Model: ZS-BS4522
• Voltage: 380V, 50–60 Hz
• Power Consumption: 12 kW
• Tunnel Size: Approx. 1200 × 145 × 220 mm
• Conveying Speed: 0–10 m/min
• Transport Load Capacity: 30 kg
• Suitable Film Materials: PVC / POF / PE
• Machine Dimensions: Approx. 2300 × 700 × 1370 mm
• Machine Weight: Approx. 200 kg
