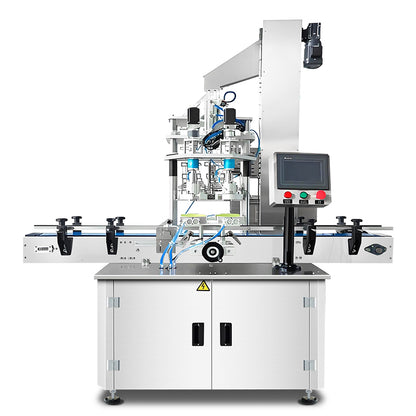

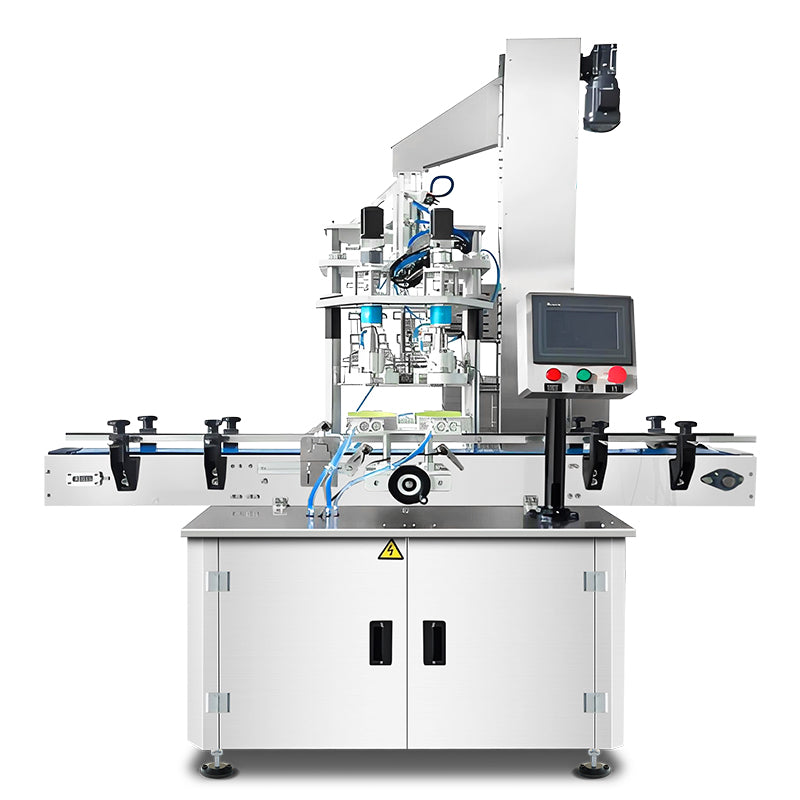

ZONESUN ZS-SVXG01 Automatic Double Heads Servo Screw Capping Machine for Sauce Jar Cap
This fully automatic capping machine is ideal for the seasoning, food, daily chemical, and cosmetics industries. It integrates automatic cap feeding, bottle clamping, conveying, and screw capping, significantly improving production efficiency and consistency.
Designed to handle bottles of various shapes, sizes, and cap types, it offers excellent versatility. The servo-driven system enables precise torque control, while the pneumatic cap-transfer mechanism ensures stable and reliable capping performance.

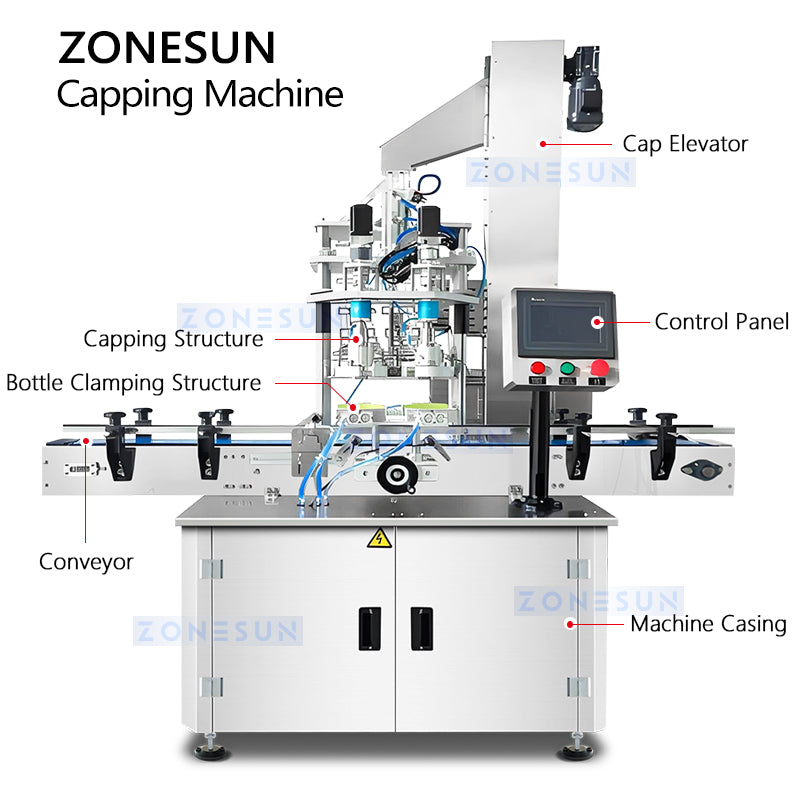

The ZONESUN ZS-SVXG01 is an automatic capping machine for jars and bottles in food, pharmaceutical, cosmetic, daily chemical, and seasoning production. It features dual servo-controlled capping heads with adjustable torque settings and pneumatic grippers for stable cap handling and quick changeovers. With a speed of approximately 2100–2300 BPH, it stores parameter data for fast recall when switching between different specifications. Interchangeable tooling parts accommodate various bottle and cap sizes. Constructed of SUS304 stainless steel and equipped with an automatic cap elevator, it supports continuous cap feeding and can operate as a standalone unit or integrate with filling, labeling, and other packaging equipment.
Parameter
- Machine Model: ZS-SVXG01
- Machine Voltage: 110/220 V, 50-60 HZ, 1.5 KW
- Suitable Bottle Size: φ = 20–150 mm, H = 20–220 mm
- Suitable Cap Size: Customizable
- Working Capacity: 2100–2300 BPH
- Conveyor Size: 2000 × 114 mm (L × W), Working Height: 850 mm
- Machine Casing Material: SUS304 Stainless Steel
- Air Consumption: 0.4–0.6 MPa
- Machine Size: About 2280 × 2050 × 2250 mm
- Machine Weight: About 260 kg
- Package Size: About 2290 × 1340 × 1420 mm (Cap Elevator) + 1150 × 1050 × 1200 mm (Capping Machine)
- Package Weight: About 270 kg (Cap Elevator) + 314 kg (Capping Machine)

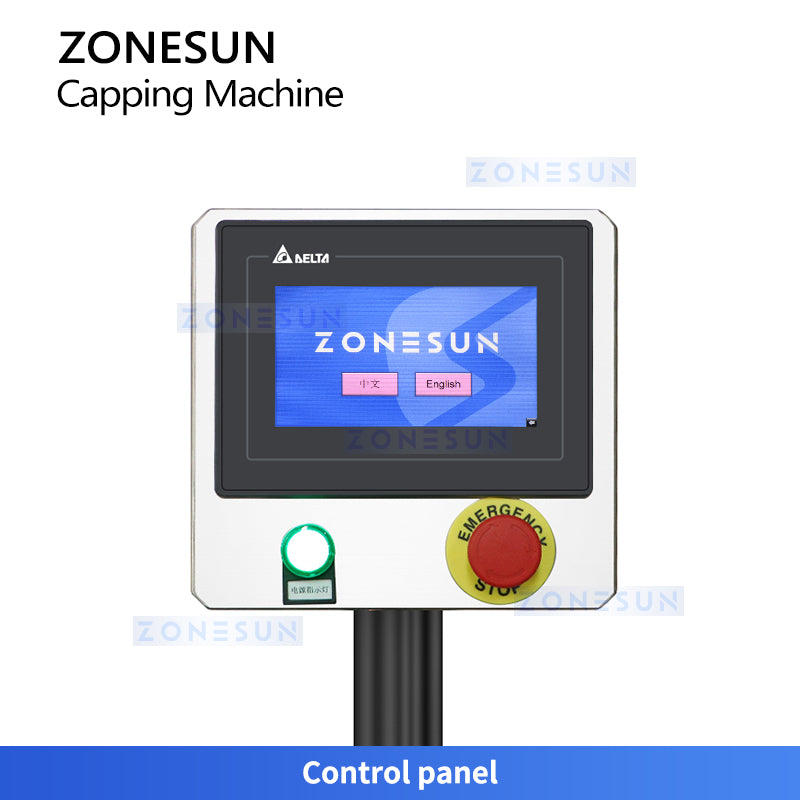

Touchscreen Control Panel
The HMI supports recipe storage and recall, allowing operators to switch between different bottle and cap specifications without repeated parameter adjustments.

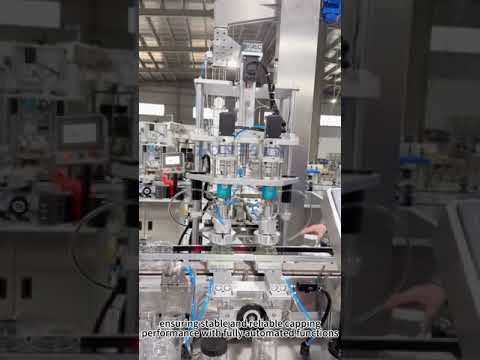

Dual Servo Capping Heads
Two servo-driven capping stations provide precise torque control and stable sealing performance at speeds of up to 2,100-2,300 bottles per hour.

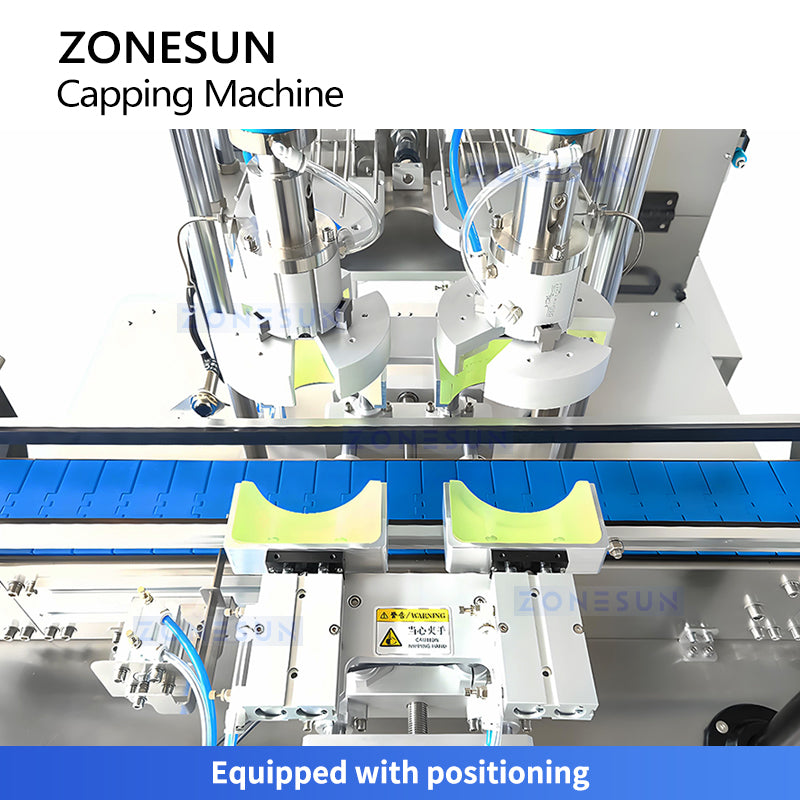

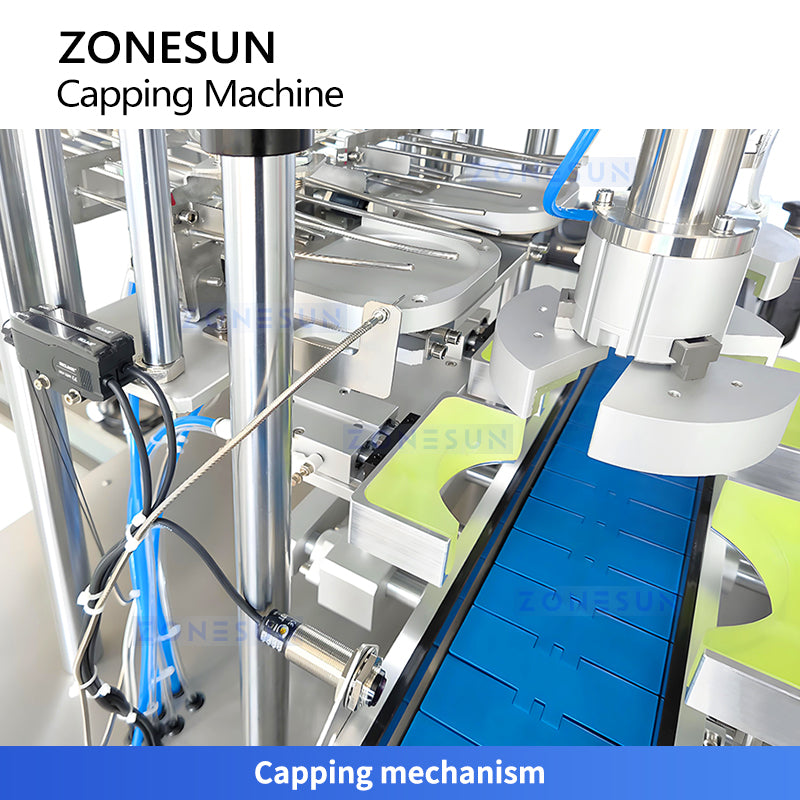

Pneumatic Cap Gripper System
The cap placement mechanism uses pneumatic grippers for smooth and reliable handling while reducing changeover time during multi-SKU production.

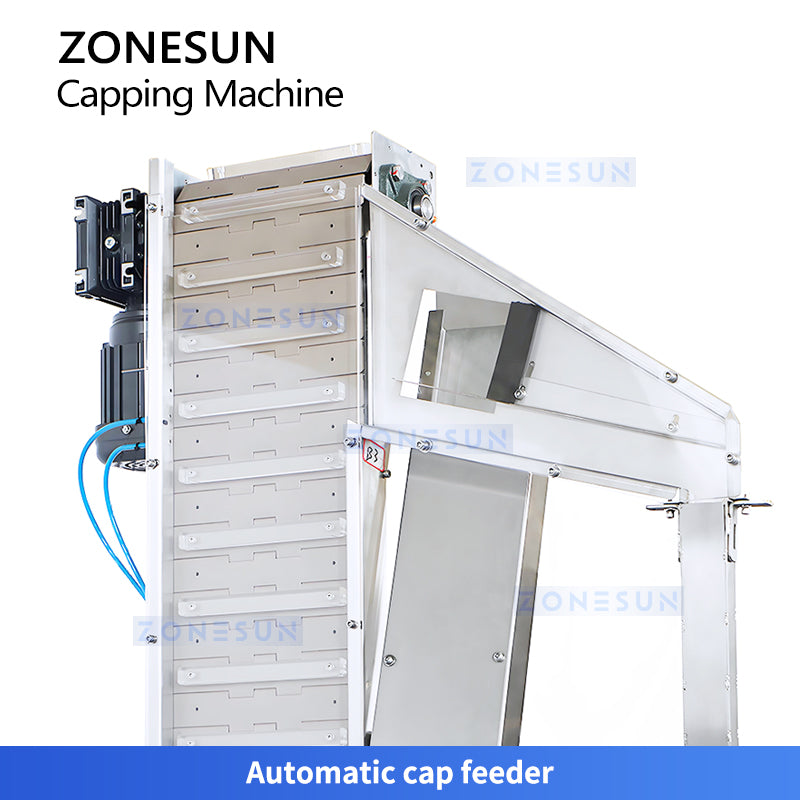

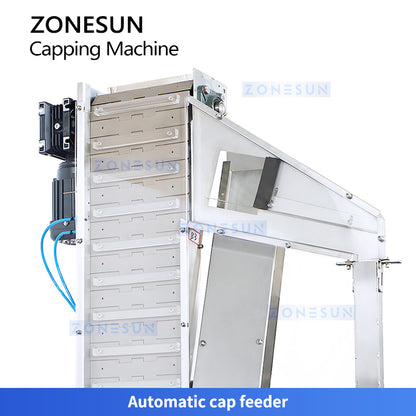

Automatic Cap Elevator
Continuously supplies caps to the machine, ensuring stable operation and minimizing manual intervention during production.
Adjustable Caps Handling Structure
Selected change parts can be replaced to accommodate different cap sizes, providing greater production flexibility.
Electrical Control Cabinet
Adopts organized electrical layouts and supports future upgrades according to specific production requirements.
Why Choose the ZONESUN ZS-SVXG01?
✅ Dual Servo Capping Heads — Precise & Stable Sealing Control: Equipped with two servo-controlled capping heads with adjustable torque settings, the machine delivers accurate and consistent cap tightening force, preventing loose or over-tightened caps while ensuring reliable sealing quality
✅ High-Speed Automatic Capping — Up to 2100–2300 BPH Output: Designed for continuous bottle and jar capping operations, the machine provides high production efficiency to support medium and large-scale packaging lines across food, pharmaceutical, cosmetic, and chemical industries
✅ Pneumatic Cap Grippers — Secure Cap Handling: Advanced pneumatic gripping system firmly holds and positions caps during the capping process, improving stability, reducing cap misalignment, and supporting smooth high-speed operation
✅ Automatic Cap Elevator System — Continuous Cap Supply: Integrated automatic cap feeding system continuously delivers caps to the capping station, reducing manual loading requirements and ensuring uninterrupted production performance
✅ Stored Parameter Data — Fast Specification Changeover: Intelligent control system saves different capping parameters, allowing operators to quickly recall settings when switching between bottle and cap specifications, reducing setup time and improving production flexibility
✅ Interchangeable Tooling Parts — Wide Container Compatibility: Replaceable capping components enable the machine to accommodate various bottle sizes and cap types, providing a versatile solution for different packaging requirements
✅ SUS304 Stainless Steel Construction — Hygienic & Durable Design: Built with food-grade SUS304 stainless steel, the machine provides corrosion resistance, easy cleaning, and long-term durability for industries with strict hygiene requirements
✅ Standalone or Production Line Integration — Flexible Packaging Solution: Can operate independently or connect with filling machines, labeling machines, and other packaging equipment to create a complete automated packaging system
Ideal Applications
Food & Seasoning: Ideal for capping jars and bottles containing sauces, condiments, spices, beverages, and other food products, ensuring secure sealing and efficient packaging production
Pharmaceutical & Healthcare: Suitable for pharmaceutical bottles, healthcare products, and medical-related packaging requiring accurate torque control and reliable sealing performance
Cosmetics & Personal Care: Designed for capping cosmetic bottles and jars such as creams, lotions, shampoos, and skincare products with consistent sealing quality and professional packaging results
Daily Chemical & Industrial Products: Applicable for detergents, cleaning products, and other chemical liquid packaging requiring stable automatic capping and flexible container compatibility
Automatic Packaging Lines: Easily integrated into complete filling, capping, and labeling systems, providing an efficient automation solution for manufacturers seeking higher production capacity and reduced labor requirements
