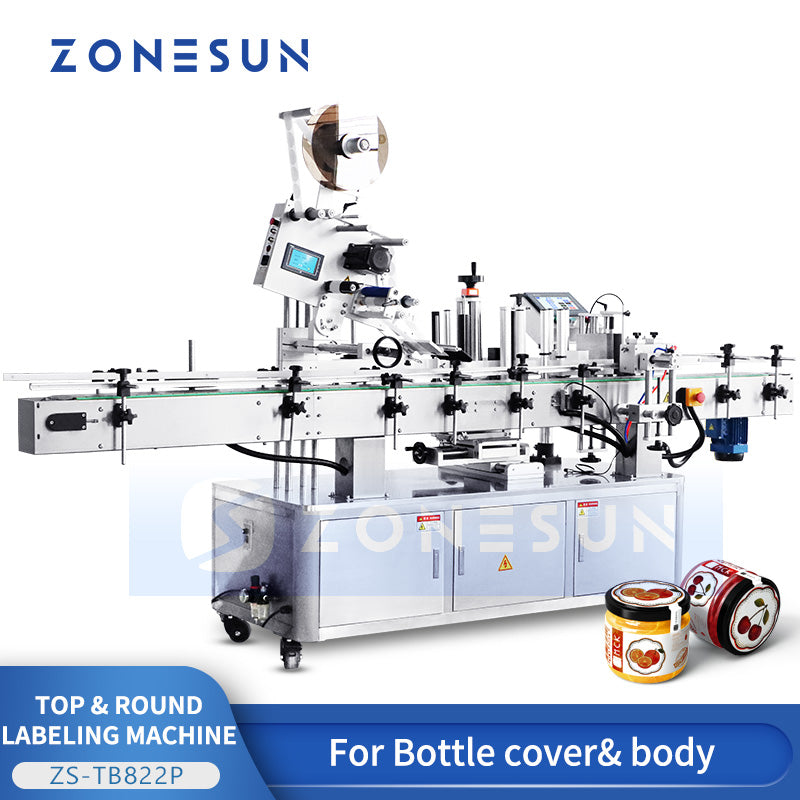

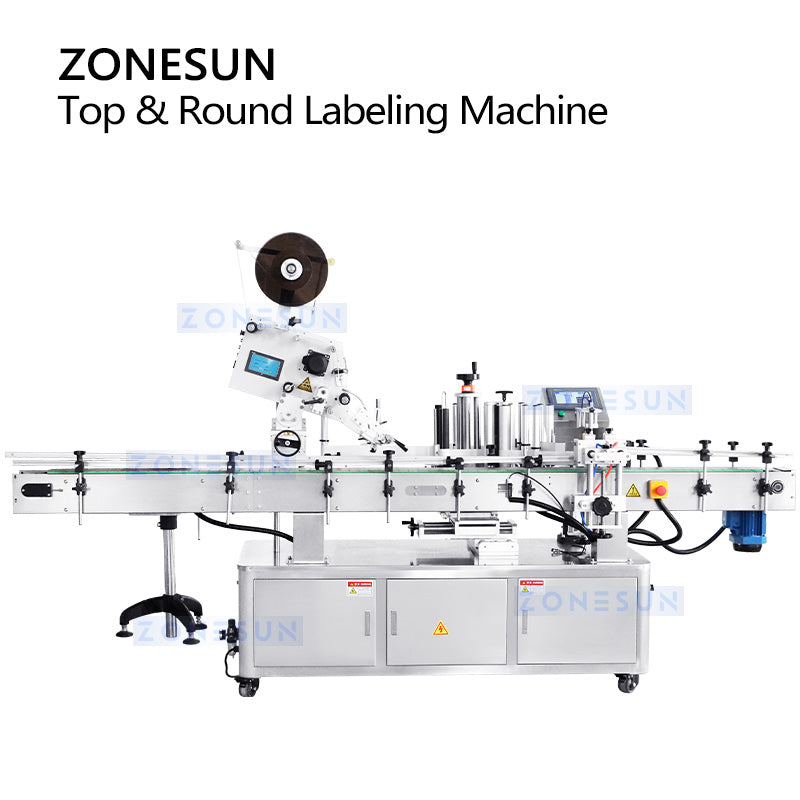

ZONESUN ZS-TB822P Automatic Labeling Machine for Bottle Top and Body Label Applicator
ZONESUN ZS-TB822P Automatic Labeling Machine for Bottle Top and Body Label Applicator
픽업 사용 가능 여부를 로드할 수 없습니다.
ZONESUN ZS-TB822P labeling machine delivers reliable and high-efficiency labeling on both round and flat surfaces. Built for large-scale production, it supports a wide range of industries including cosmetics, food and beverage, and household products. Its automated operation ensures consistent accuracy and speed—making it a smart addition to modern packaging lines.
Parameter
Machine Model ZS-TB822P
Voltage 220V / 110V, 50–60Hz
Power Approx. 2200W
Labeling Speed Approx. 25–45 pcs/min (depends on bottle and label size)
Labeling Accuracy ±1mm
Suitable Bottle Diameter Φ25–100mm
Label Size Length: 20–285mm / Width: 20–150mm
Label Roll Inner Diameter Φ76mm
Label Roll Outer Diameter Φ280mm
Package Size Approx. 2360 × 1010 × 1660mm
Package Weight Approx. 430kg

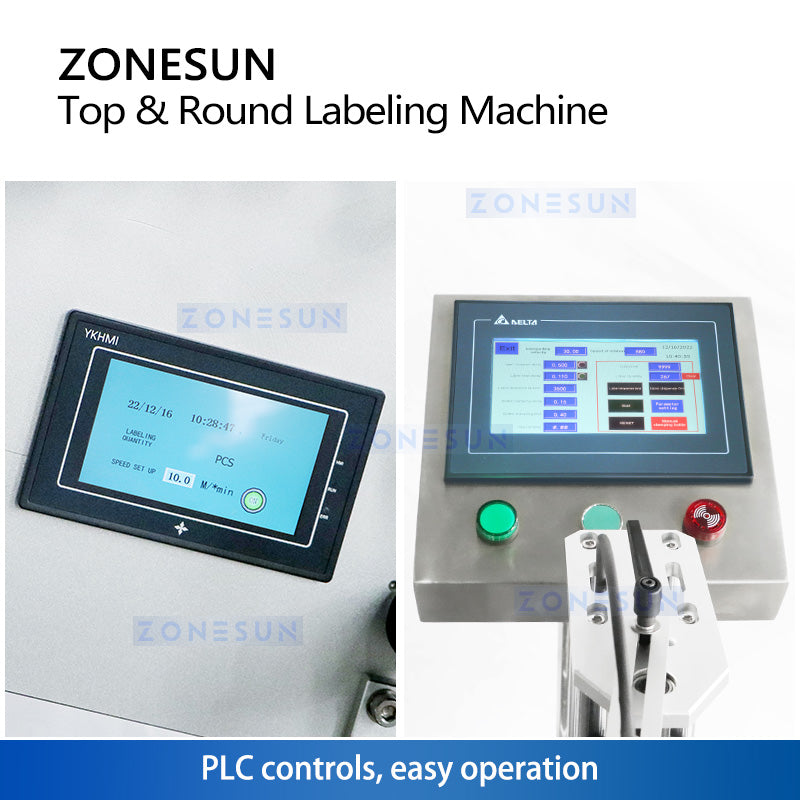

PLC CONTROLS
The PLC control panel makes it convenient to set and adjust operating parameters such as label output length. The interface language can be customized as required.

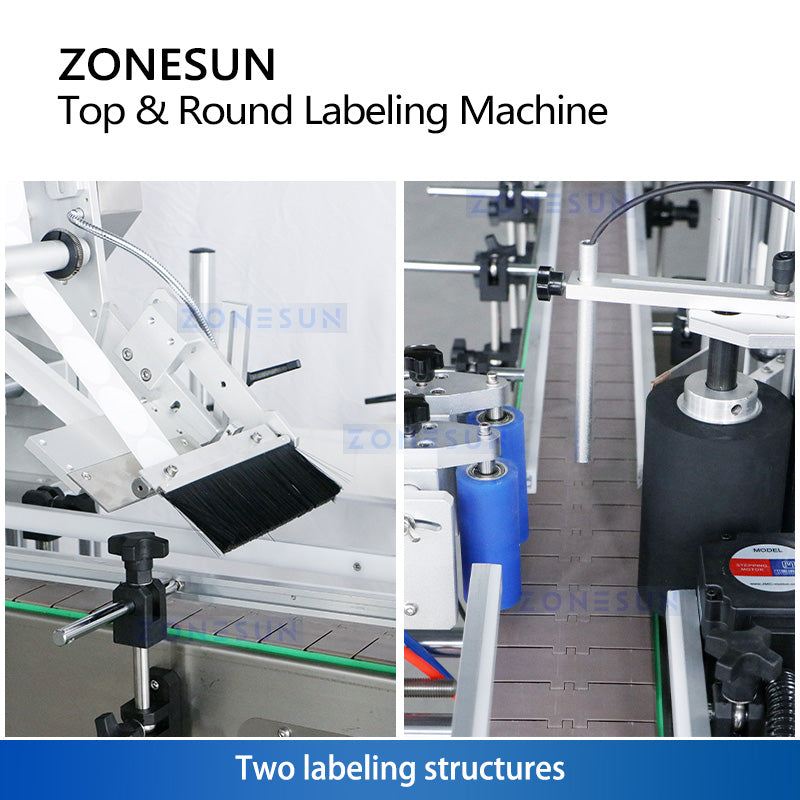

DUAL LABELING STRUCTURES
Two independently controlled labeling structures can apply labels to a flat bottle's cap and body at the same time.

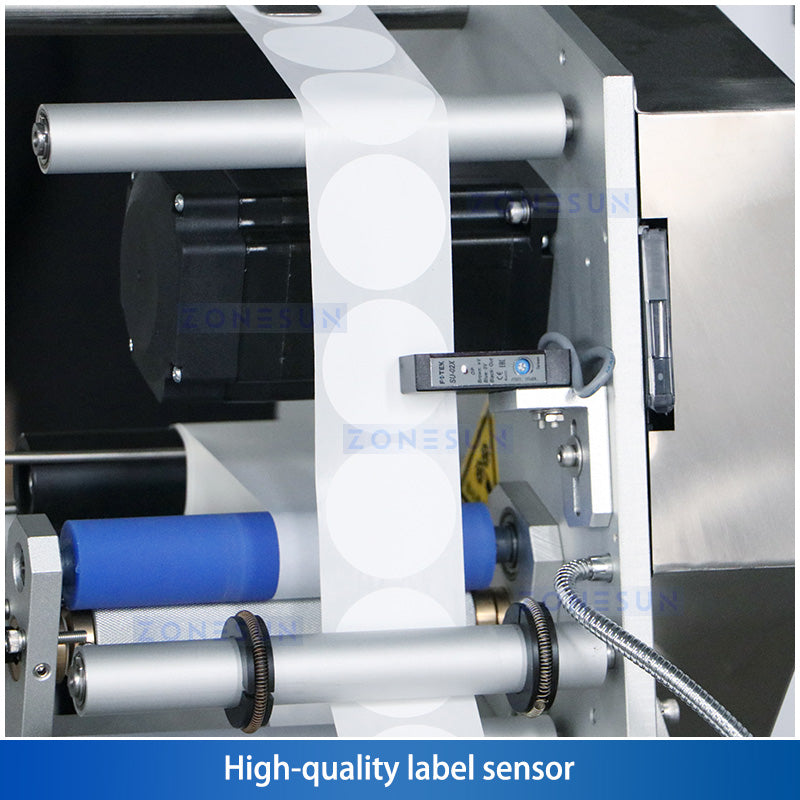

LABEL SENSOR
The adjustable-sensitivity label sensor detects labels and controls label output accurately, helping avoid missing or wasted labels.

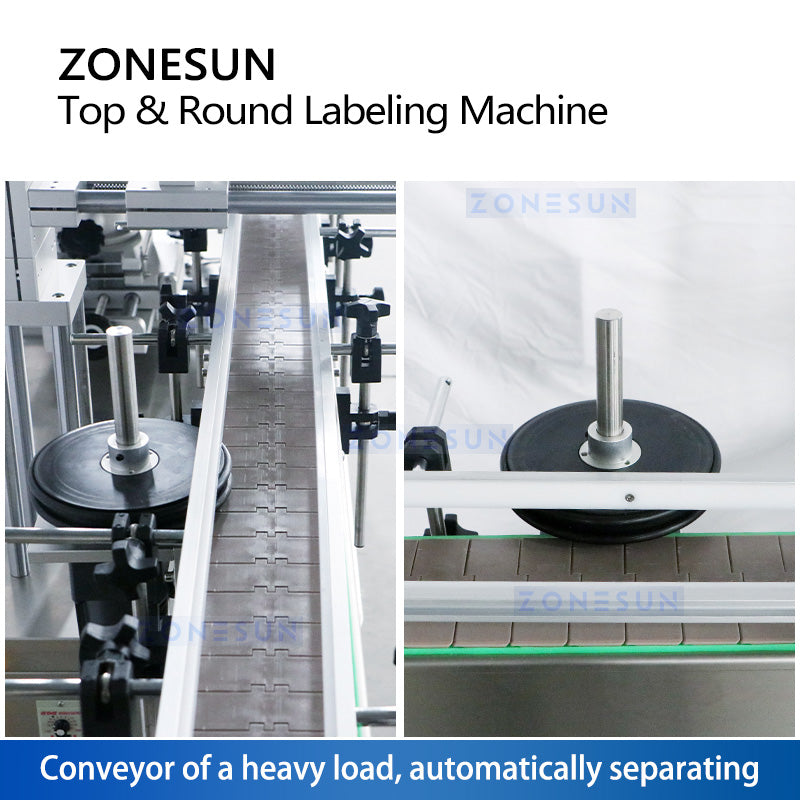

CONVEYOR BELT
The heavy-duty conveyor transports and separates bottles automatically.
