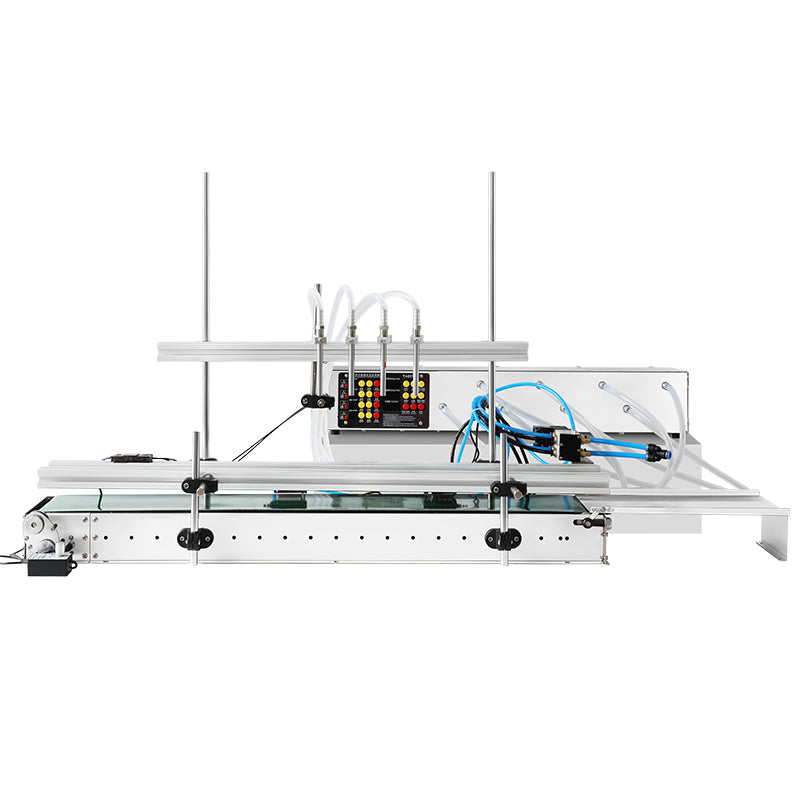

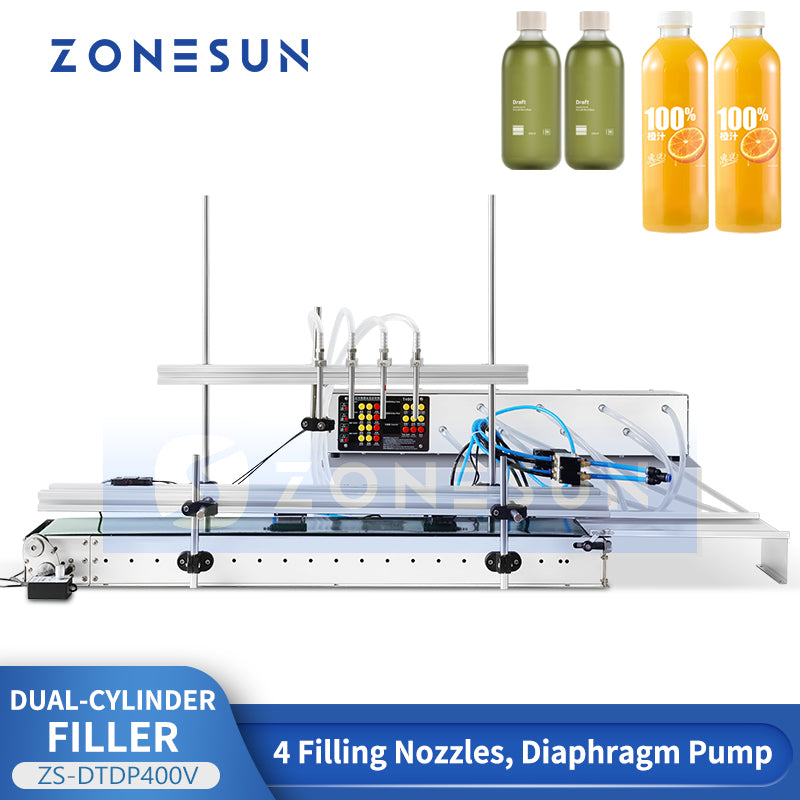

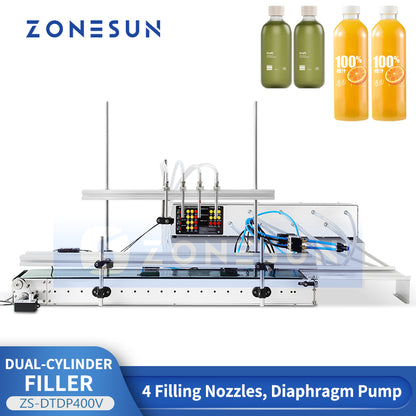

ZONESUN ZS-DTDP400V Automatic Liquid Filling Machine with 4 Nozzles for Bottles Jars

Description

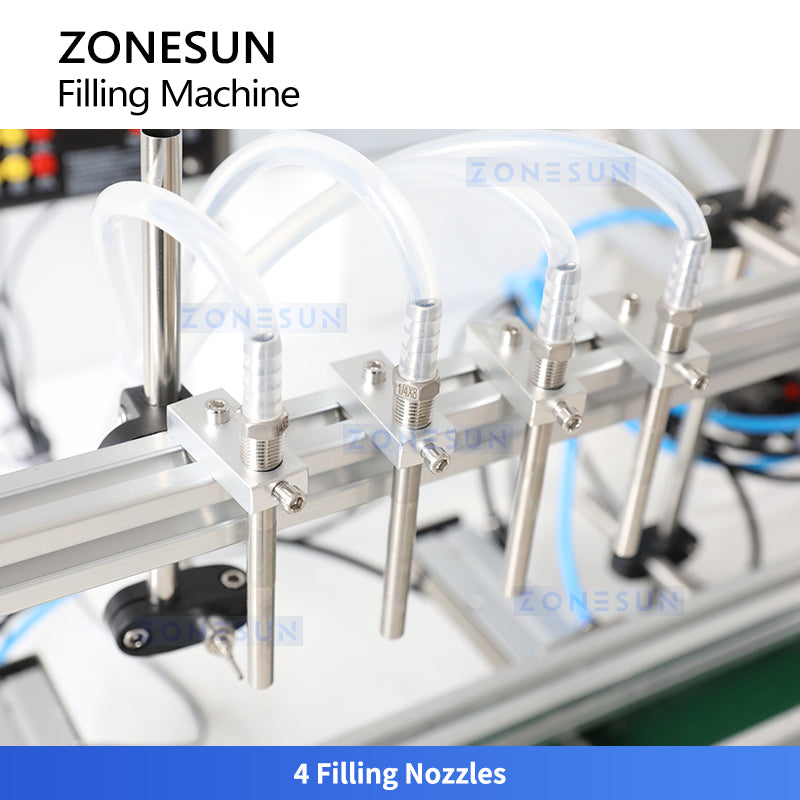

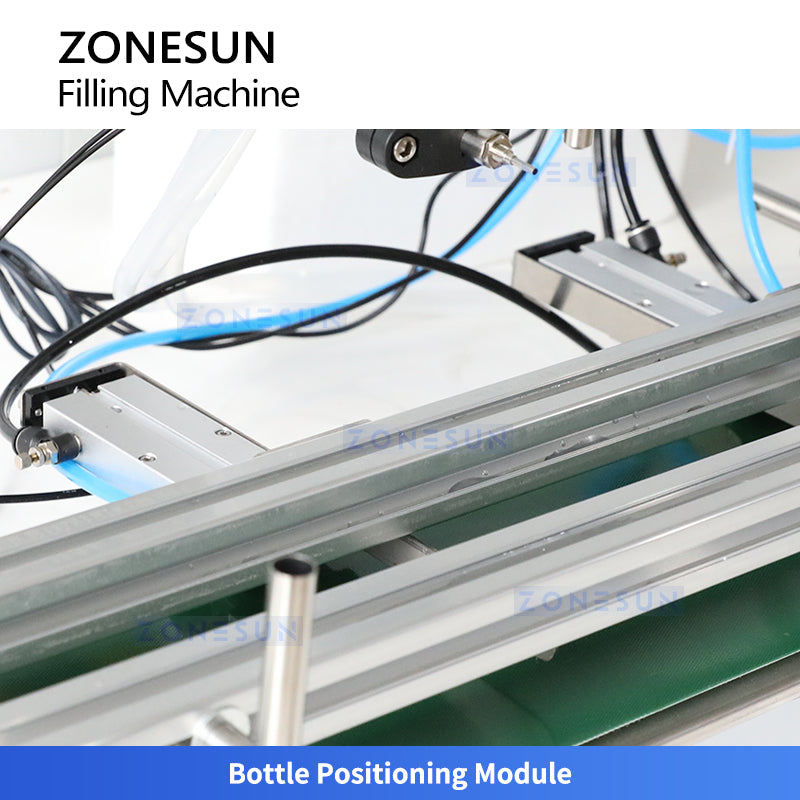

The ZS-DTDP400V is a precision-engineered liquid filling machine featuring dual-cylinder bottle separation and four independent filling heads. Designed for high-efficiency dispensing of low-viscosity liquids, it supports jog, manual, and automatic sensor-based operation. With PWM-controlled brushless pumps, adjustable nozzle spacing, and a modular aluminum alloy platform, this compact tabletop system is ideal for small-scale production lines in cosmetics, pharmaceuticals, and food industries.

Parameter

• Model: ZS-DTDP400V
• Voltage: Input: AC 110–220V，50/60Hz；Output: DC 15V
• Pump Type: Diaphragm Pump
• Pump Speed: Adjustable
• Speed Range: Slow: 0.1–9.9 / Fast: 00–99
• Application: High-fluidity liquid, no original granules

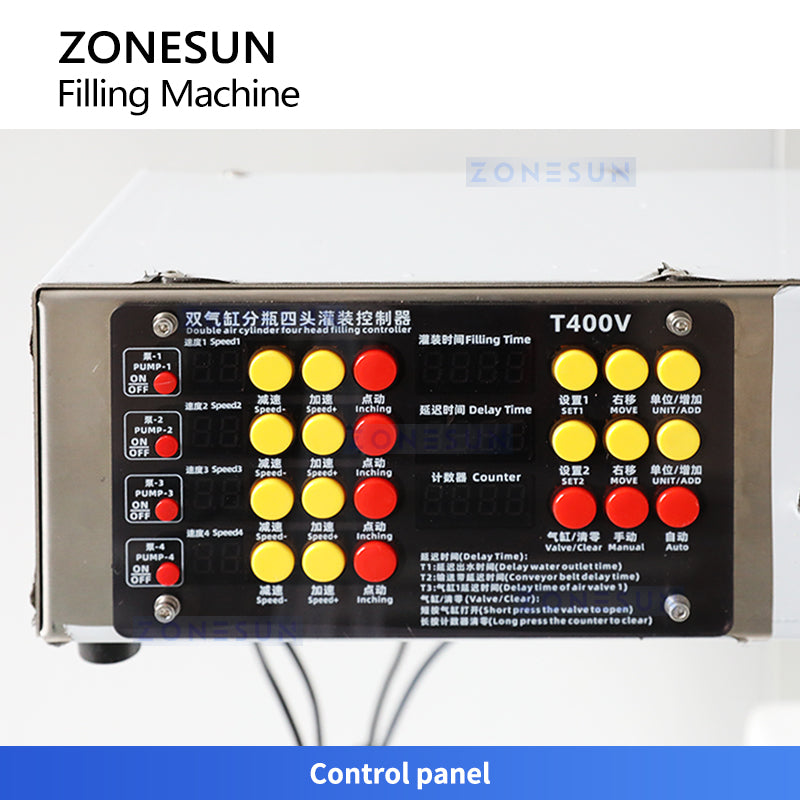

• Operating Modes: Jog / Manual / Automatic (Sensor-Controlled)
• Max Bottle Outer Diameter: 100 mm
• Bottle Height Range: 70–200 mm
• Minimum Bottle Neck Inner Diameter: >12 mm
• Adjustable Filling Bracket Range: 50–250 mm
• Filling Volume Range: 30–1000 ml (customizable)
• Conveyor Dimensions: 900 × 150 × 80 mm
• Main Machine Dimensions: 660 × 150 × 170 mm
• Machine Weight: 22 kg
