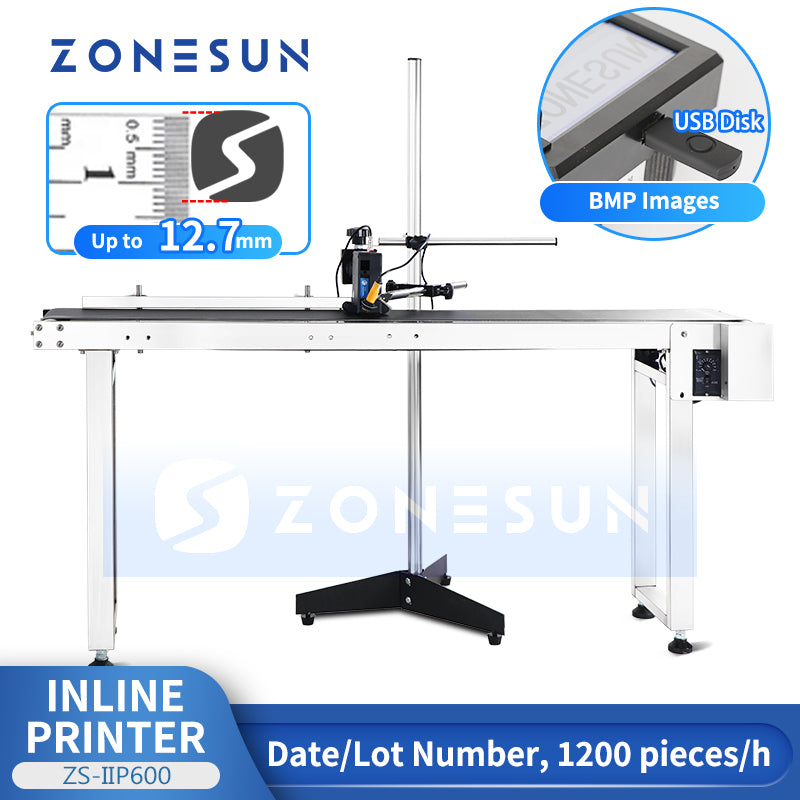

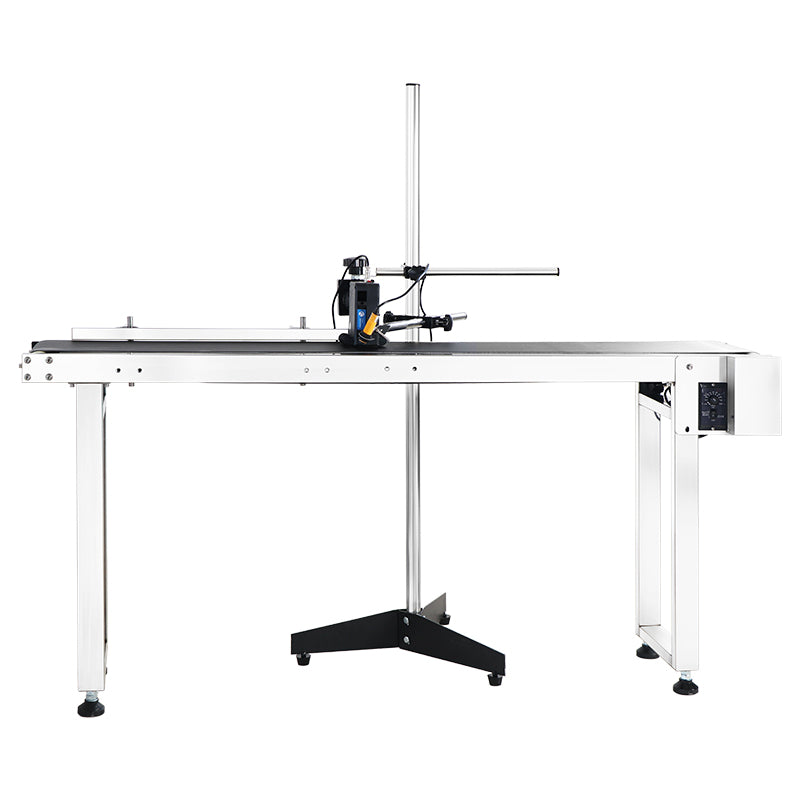

Zonesun ZS-IIP600 Continuous Inkjet Printing Machine

Advantage:

1.This conveyor helps you save time and improve the work efficiency greatly when you printiing date or batch number.

2.The printing effect will also better and precise.

3.The conveyor speed can be adjusted.(From 0-100m/min).

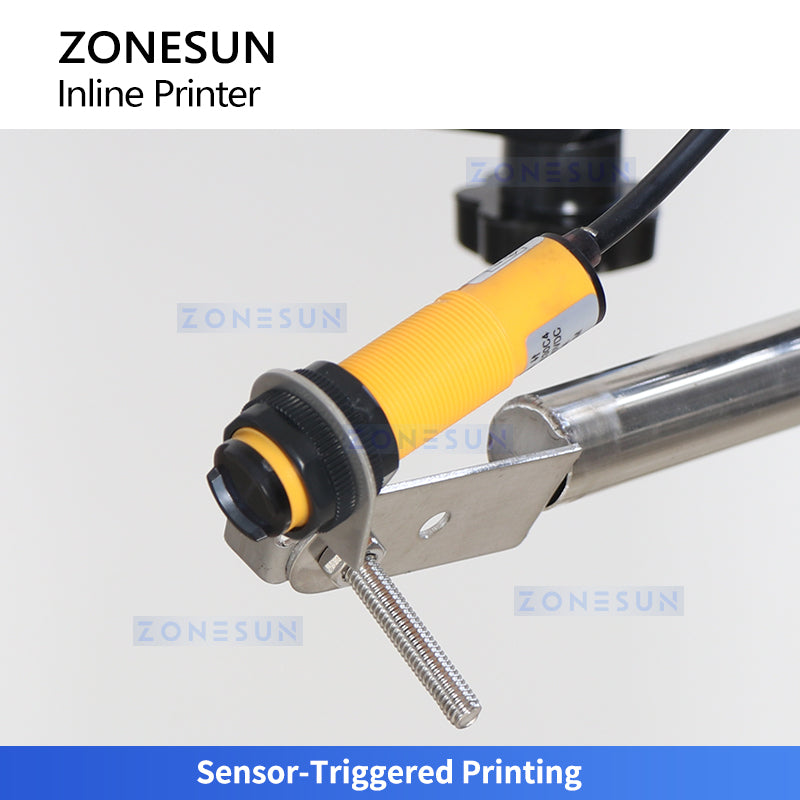

4.We also offer the sensor for this conveyor,so that the full automatic working may be realized when matched with conveyer.

5.This conveyor can be used with handheld printing machine and handheld capping machine.Help you save time and make the work easier.

Description:

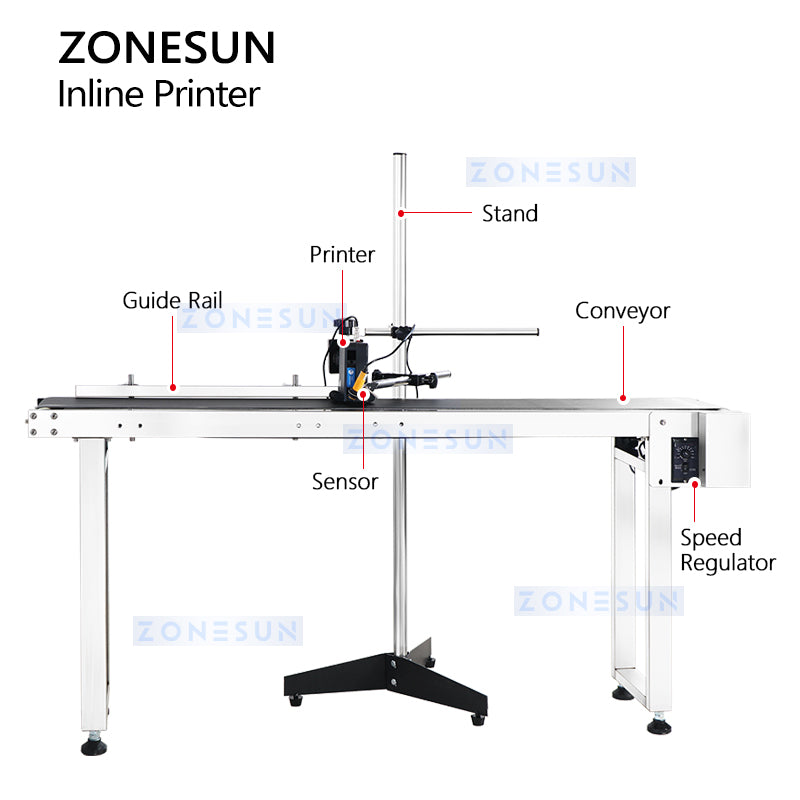

This conveyor is mainly used to transfer the bottles/metal/plastic bag/paper box/sticker, etc, for the printing work of inkjet printer. It is widely used in food, drinking, medicine, electric, auto, etc.

Model    ZS-IIP600
Motor Power    60W, 110/220V, 50/60Hz

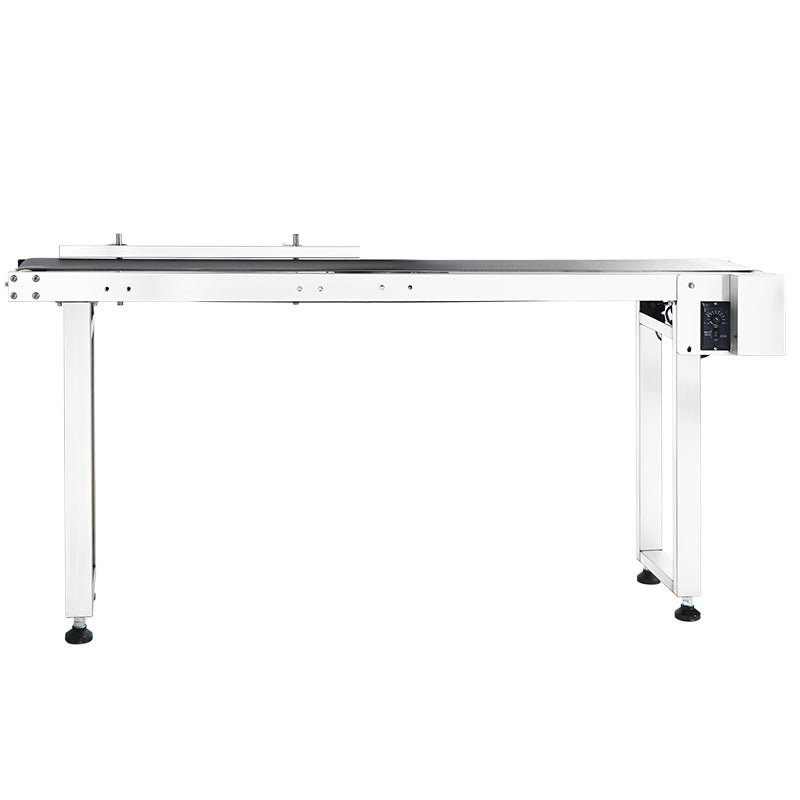

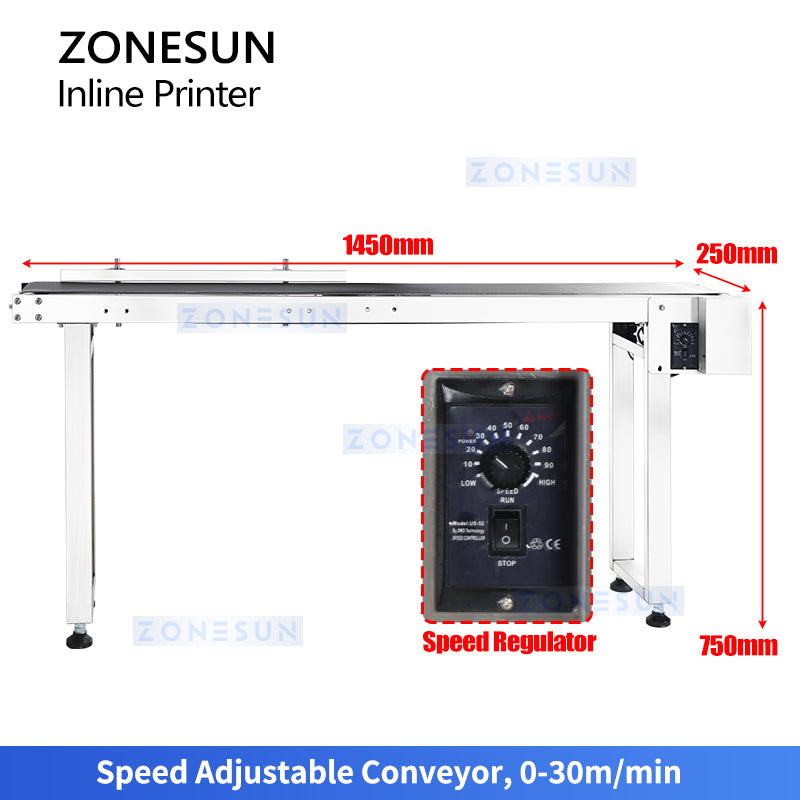

Conveyor Dimensions    1450 × 250 × 750 mm (L × W × H)
Belt Thickness    2 mm
Belt Material    PVC
Printing Content    Logos, images, barcodes, QR codes, dates, text

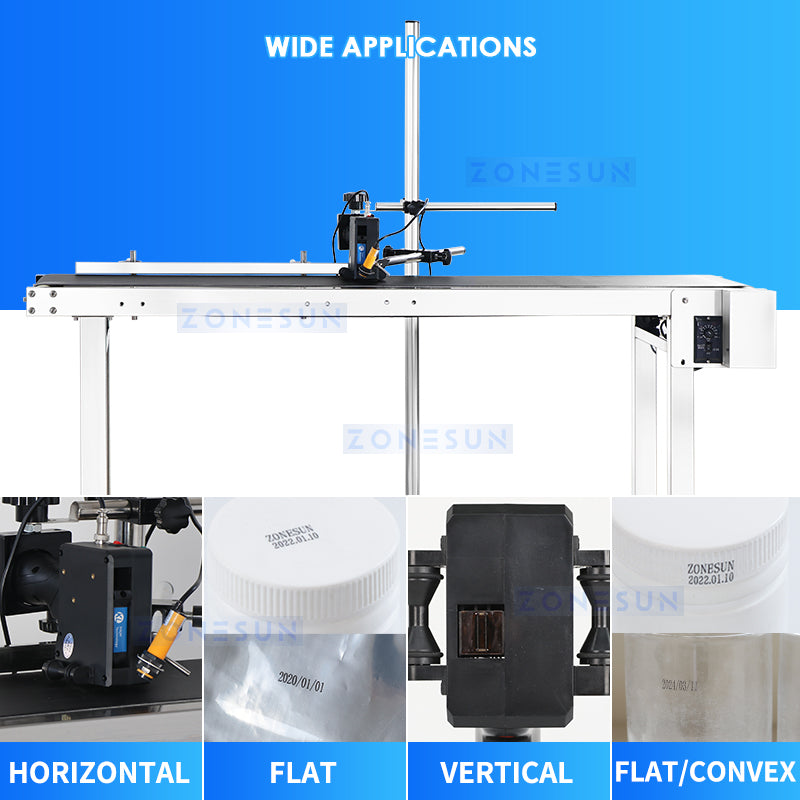

Compatible Surfaces    Plastic, metal, glass, cardboard, wood

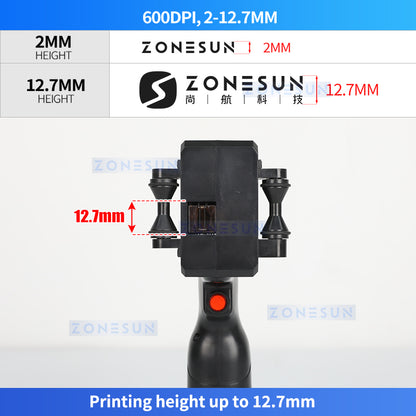

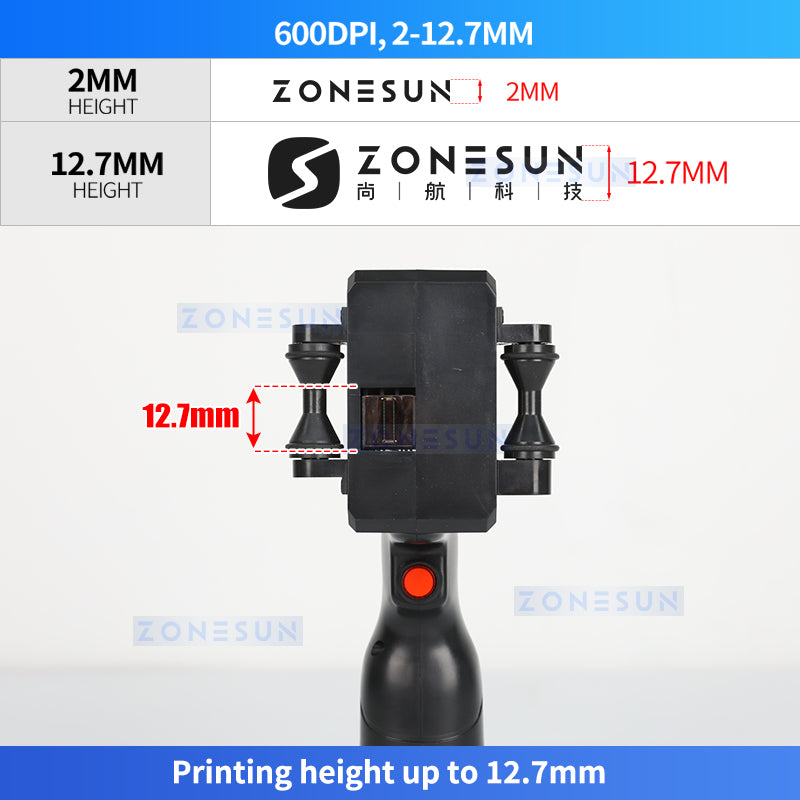

Print Height    2–12.7 mm
Print Distance    2–5 mm
Load Capacity    ≤5 kg
Working Speed    5–20 pcs/min (based on product type)
Weight    Approx. 20.5 kg
Package Dimensions    1530 × 340 × 210 mm (Conveyor)
600 × 150 × 800 mm (Printer)
Package Weight    Approx. 23.5 kg
