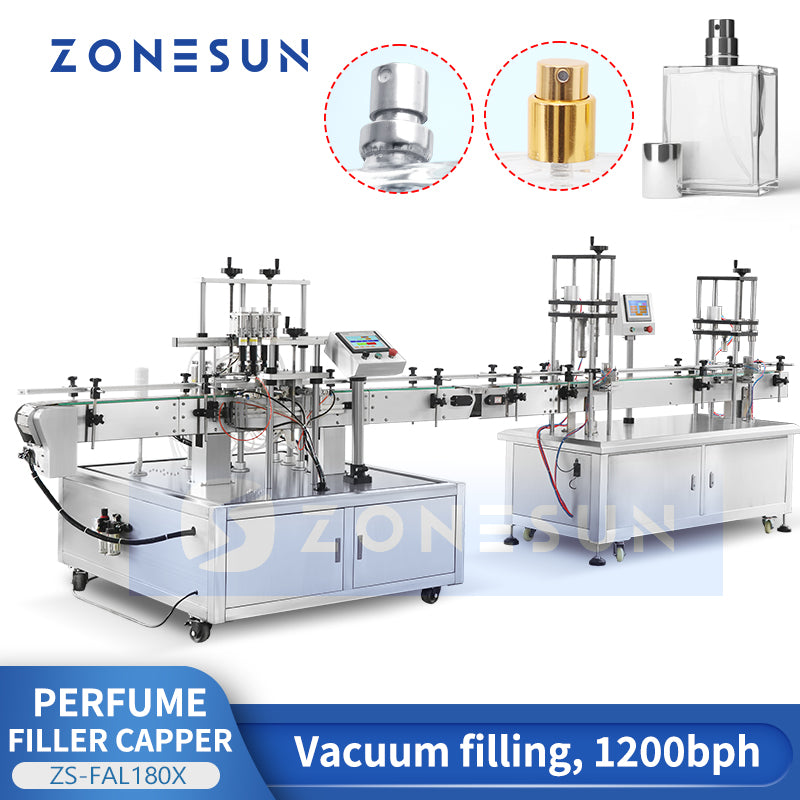

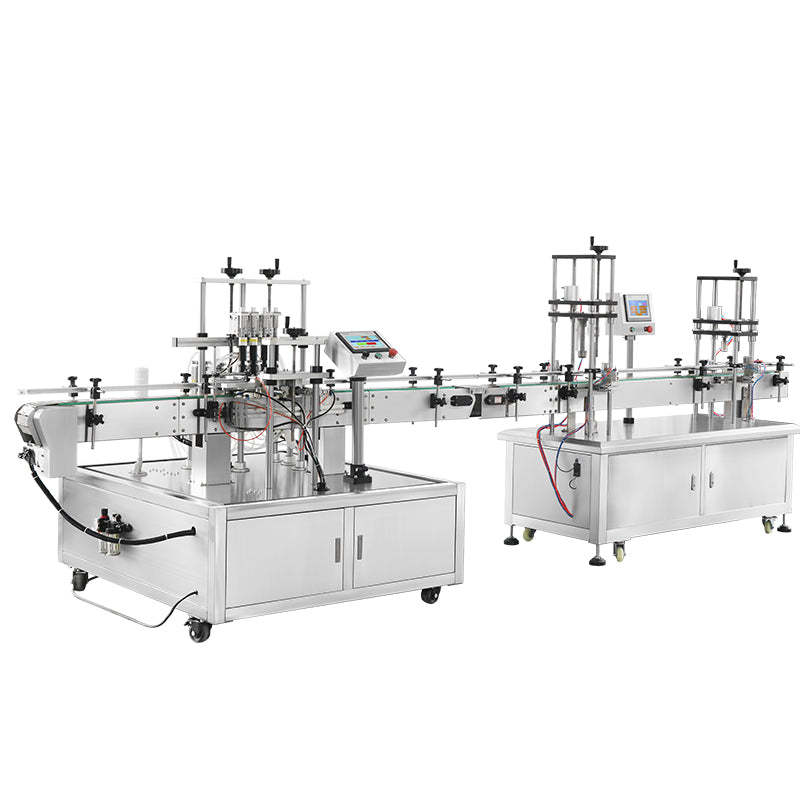

ZONESUN ZS-FAL180X Automatic Perfume Bottle Vacuum Pump Filling Crimping Machine

DESCRIPTION

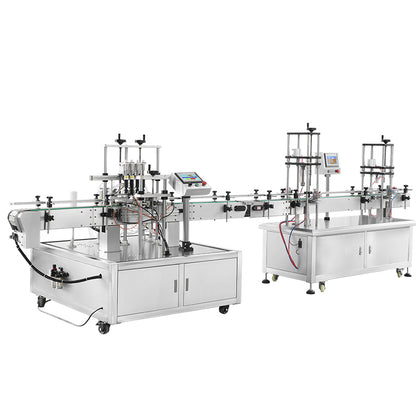

ZONESUN ZS-FAL180X machine is perfect for small to medium-sized perfume manufacturers or bottling companies. It consists of a vacuum filling machine and a capping machine, both designed to work seamlessly together to provide accurate and efficient filling and capping of perfume bottles.

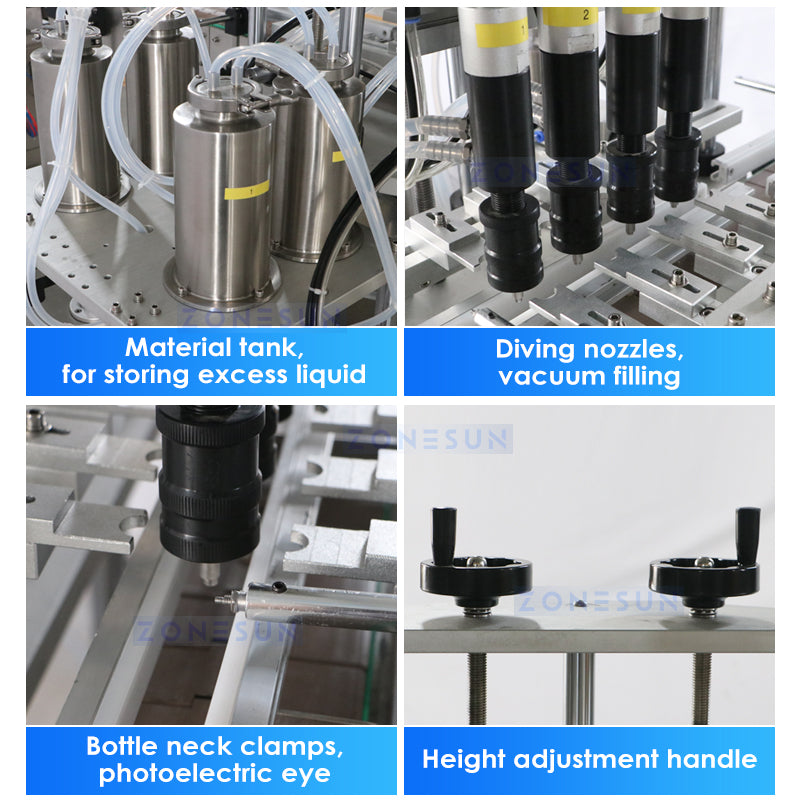

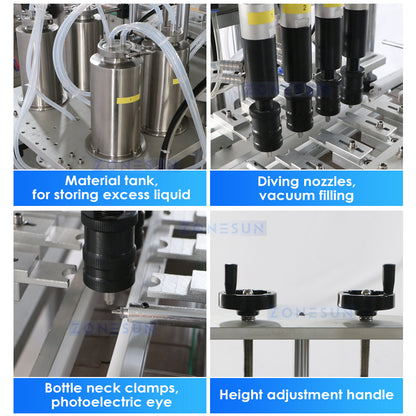

The filling machine uses vacuum technology to ensure precise filling without spills or overflows. It can also suck back any excess liquid into the liquid tank, reducing waste and preventing mess. With 4 filling heads, it can fill up to 120 bottles per minute.

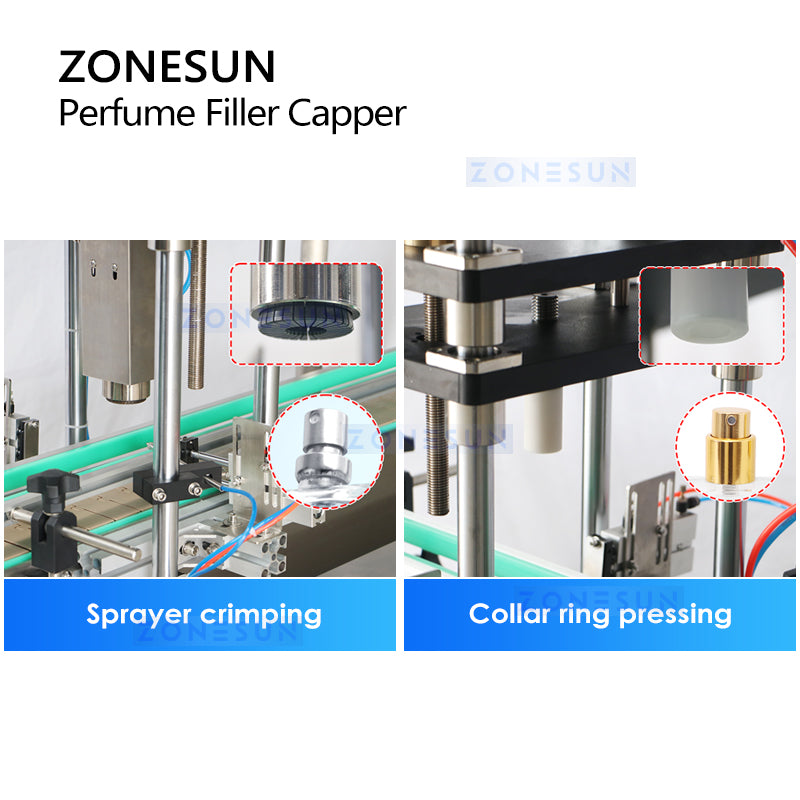

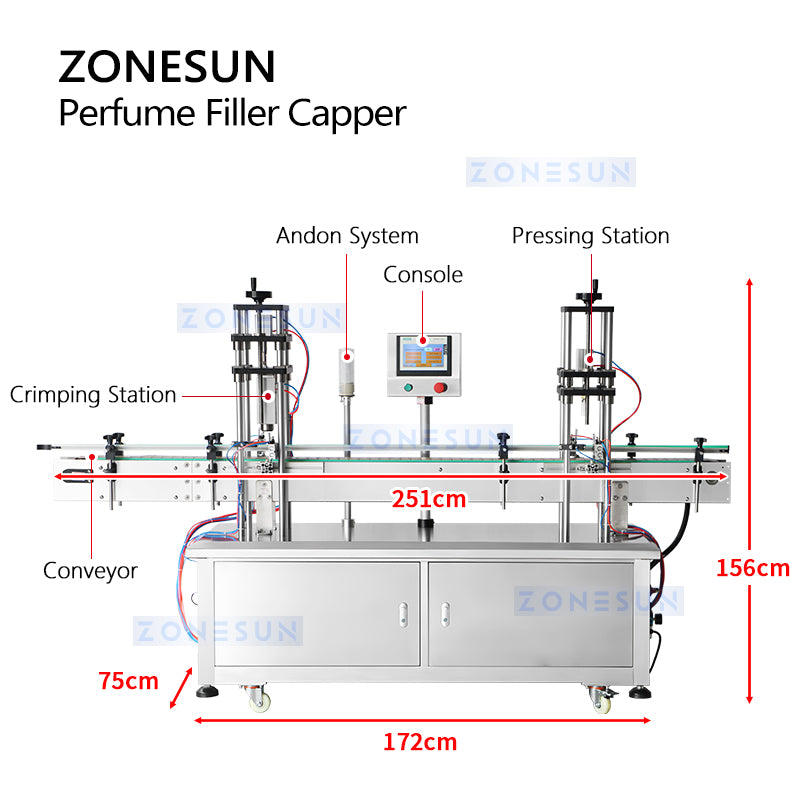

The capping machine has 2 stations, one for crimping the sprayer caps and the other for snapping the collar rings. This ensures that the caps are securely attached and aligned with the bottle, preventing leaks and spills. It can cap up to 80 bottles per minute.

PARAMETER

• Model：ZS-YTZL4A
• Filling Head：4 Head
• Air Pressure：0.5-0.8MPa
• Liquid Level Accuracy：±1mm
• Viscosity Range：≤20cps (static viscosity)
• Working Speed：20-40 Bottles/Minute
• Bottle Height：≤250mm
• Minimum Bottle Mouth Inner Diameter: ⌀8mm (Can be Customzed)
• Adjustable Liquid Level (from the bottle mouth)：≤27mm
• Air Pumping Rate：5.5L/S
• Machine Size：About 1500*1150*1530mm
• Machine Weight：About 278kg
• Package Size：About 1660*1310*1670mm
• Package Weight：About 339kg

PARAMETER

• Machine Model：ZS-YG11U
• Voltage：220V/110V 50-60Hz
• Power：1.5kW
• Capping Speed：About 20 bottles/min (Depending on the bottle and cap size)
• Suitable Bottle Height：50-200mm
• Bottle Mouth Diameter：14-20mm

• Suitable Bottle Diameter：Standard:13/15/18/20mm

• Conveyor：113*2400mm
• Machine Size：About 2600*760*1700mm
• Weight：About 300kg
