Zonesun ZS-A3DP1 2-side Cellphane Wrapping Machine Manual Film Folding Machine

ZONEUSN ZS-A3DP1 Manual Film 2-side Cellphane Wrapping Folding Machine

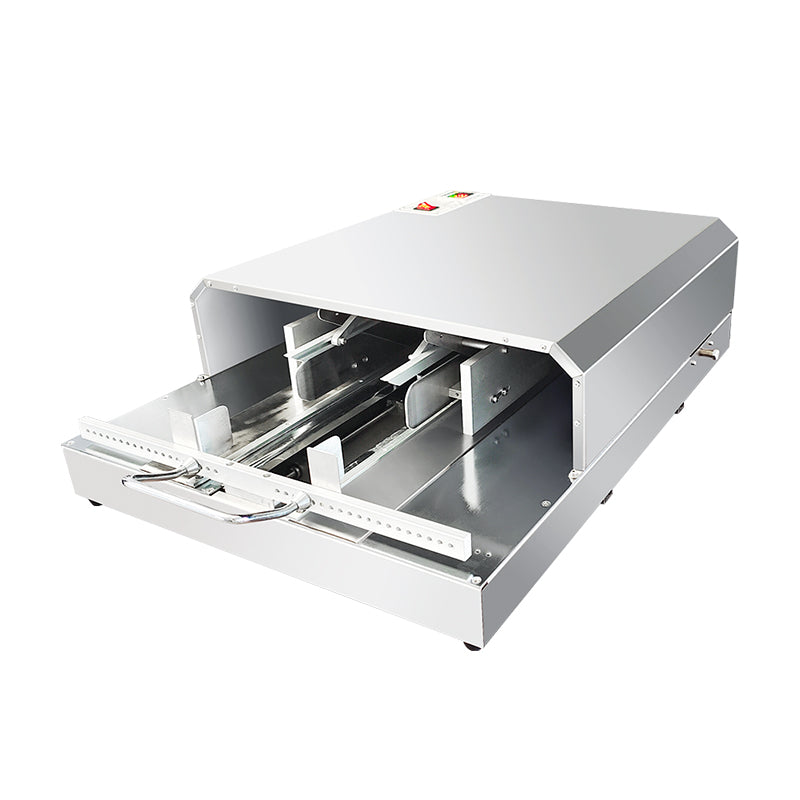

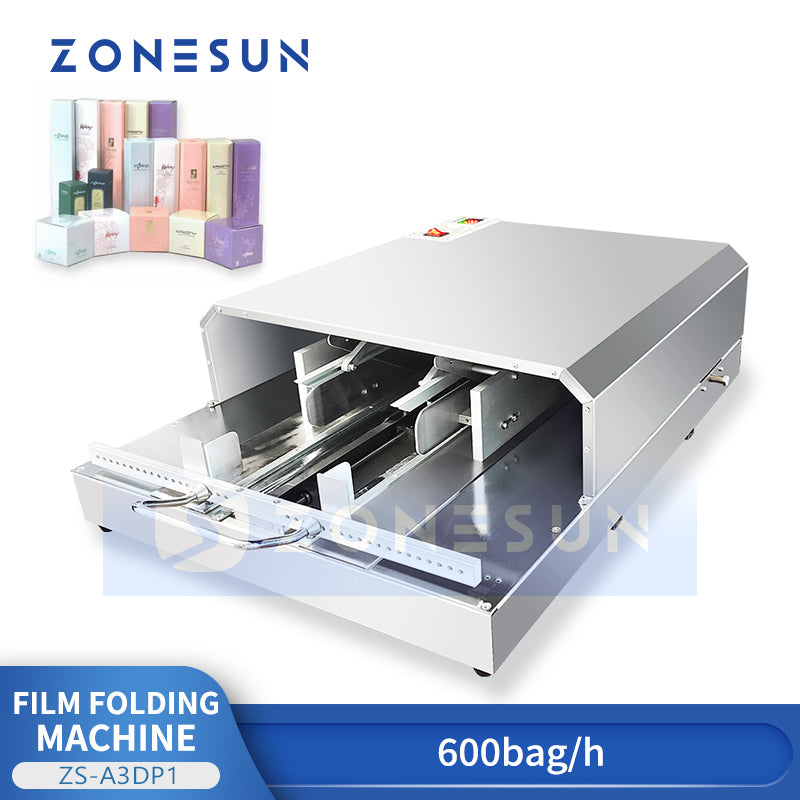

The ZONESUN ZS-A3DP1 is a compact and efficient cellophane overwrapping machine designed to streamline box packaging operations. It automates the wrapping process with a pneumatic pusher that ensures precise product feeding, reducing manual handling and improving consistency. The system features adjustable heat sealing technology, delivering secure and uniform two-side seals across various film types. Ideal for cosmetics, gift boxes, and small retail packaging, this machine enhances productivity while maintaining a clean, professional finish.

Manual film‑folding machine：ZS-A3DP1

• Power Supply: 220V, 50–60Hz
• Power Consumption: 1.5 kW
• Packing Speed: 20–40  times/min

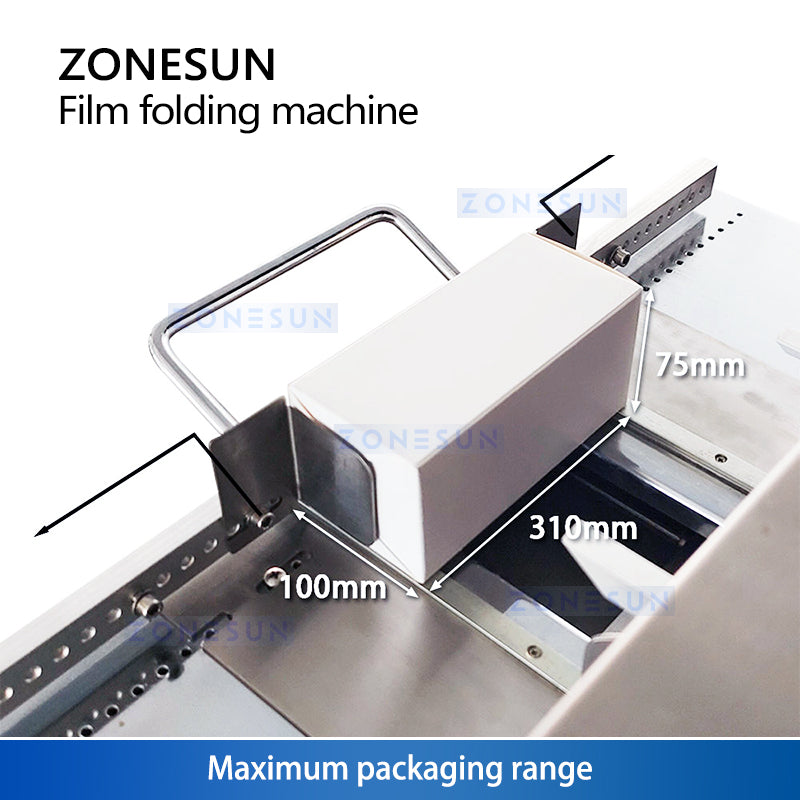

• Compatible Box Dimensions:
  • Length: 70–310 mm
  • Width: 10–100 mm
  • Height: 10–75 mm
• Net Weight: 24 kg
• Machine Dimensions (L×W×H): 710 × 320 × 190 mm

ZS-A3DP88 Pneumatic film‑folding machine:ZS-A3DP88

• Power Supply: 220 V, 50–60 Hz
• Power Consumption: 1.5 kW
• Packing Speed: 20 times/min
• Compatible Box Dimensions (L×W×H): 220× 140×110 mm
• Net Weight: 42 kg
• Machine Dimensions (L×W×H): 78 × 42 × 23 cm
• Automation Level: Semi automatic

Key Features:

• Push plate: Place the packed box into the designated slot. By pushing the handle of the machine, the film on both sides of the product will fold automatically.
• Packaging part: Helps to pack the boxed products smoothly and efficiently.
• Barometer: The air hose of the air compressor needs to be connected to the left side of the barometer. Connect to the power supply and reach the preset temperature, and the machine can be operated.

Benefits:

• Efficient Operation:The push plate mechanism simplifies the folding process, allowing boxes to be packed quickly and easily, thereby increasing overall productivity.
• Save Time:The combination of manual feeding and automatic folding significantly speeds up the packaging process, allowing companies to meet higher production demands.
• Increase Packaging Speed:Automation features help to significantly reduce the time required for each packaging cycle, thereby reducing turnaround time.

Applications

This manual film folding machine is ideal for folding and packaging products that have undergone heat sealing. It is specifically designed to efficiently handle finished laminated items, ensuring a neat and professional wrap for various products. Suitable for a range of industries, this machine enhances the packaging process for items like boxes, cosmetics, and food products, providing reliable and consistent results.

Important Notice:

• Please provide the product dimensions before placing an order so that we can manufacture the machine accordingly.
• Each machine is supplied with one mold, which is suitable for only one specific box height.If you need to accommodate products with different heights, additional customized molds are required.The cost is USD 90 per mold.

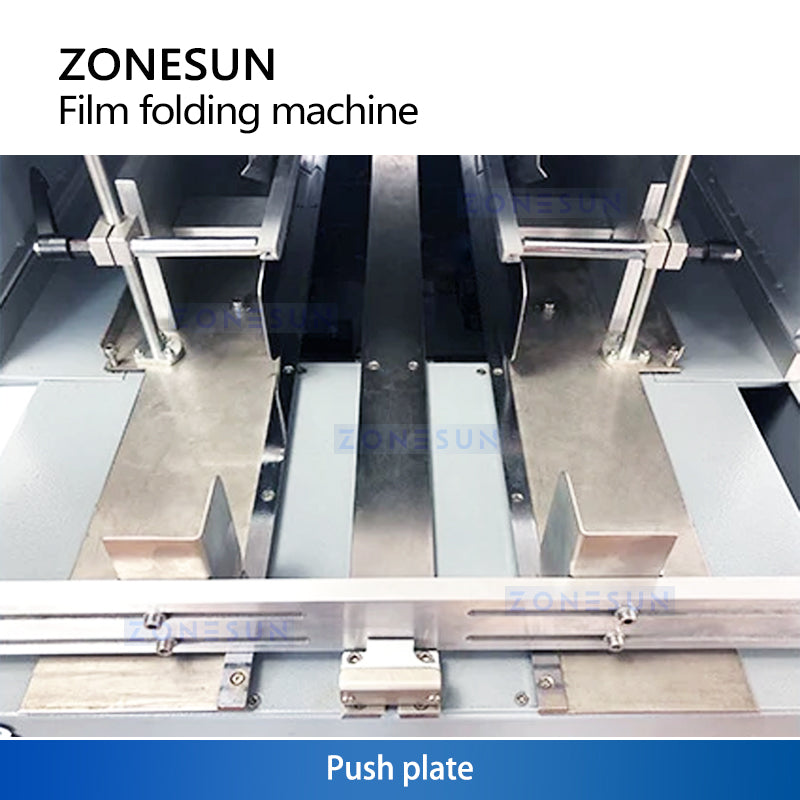

Push plate

Place the packed box into the designated slot. By pushing the handle of the machine, the film on both sides of the product will fold automatically.

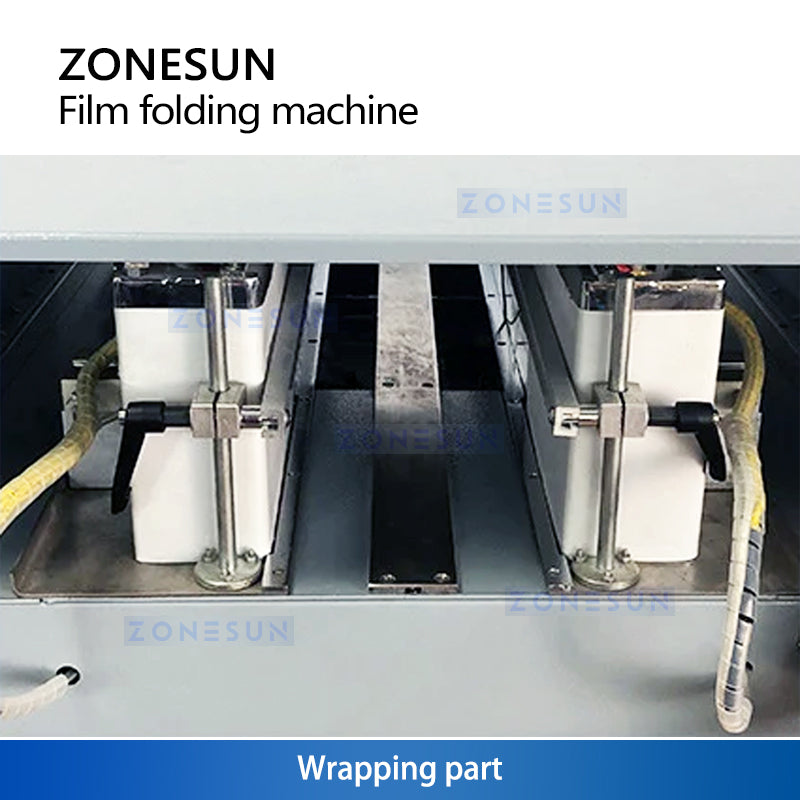

 Wrapping part

Helps to pack the boxed products smoothly and efficiently.

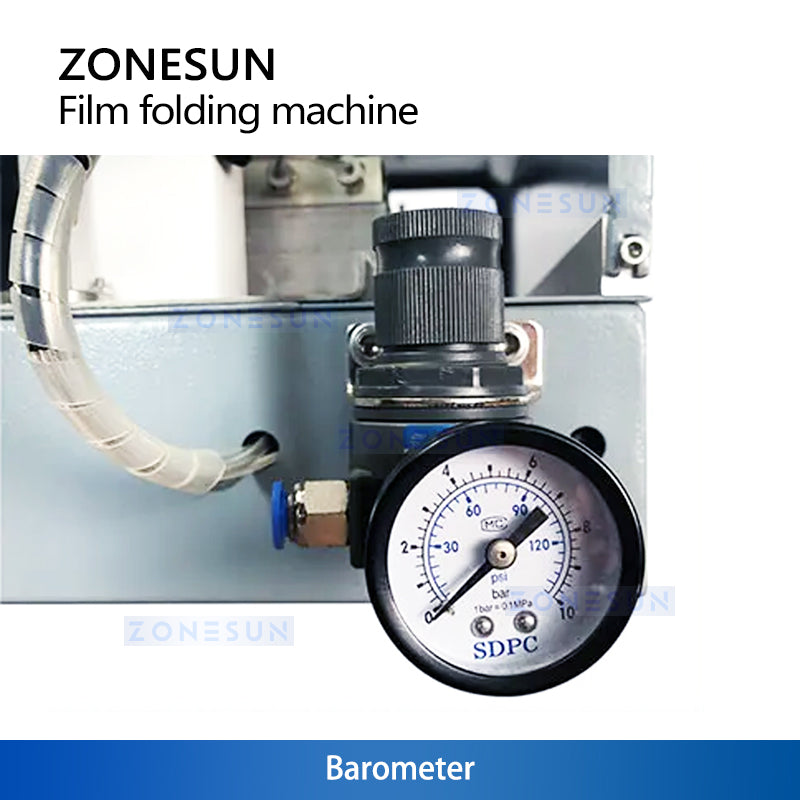

  Barometer

The air hose of the air compressor needs to be connected to the left side of the barometer. Connect to the power supply and reach the preset temperature, and the machine can be operated.
