Zonesun ZS-CTF50 Gummy Depositor Candy Filling Machine

Description

Introducing our advanced Gummy Candy Filling Machine with 20L cooker for dissolving, cooking and mixing ingredients. Once the syrup is ready, you can easily pour it into the hopper using the front or bottom butterfly valve to make various shapes. The intuitive touch screen allows you to place the syrup into the molds and set the program to get the exact deposit amount. The machine comes with 10 adjustable removable nozzles and servo PLC control to ensure accurate filling every time, perfect for the manufacture of gummy candies.

Parameter

• Model: ZS‑CTF50
• Power Supply: 380 V, 50 Hz
• Mold Size: 291.5 × 291.5 × 11.3 mm
• Cavity Size: 15.5 × 15.5 × 10 mm
• Cavity Volume: 2.4 ml (Gummy: 3.2 g; Chocolate: 2.8 g)
• Pistons: 10 pcs, adjustable & removable nozzles
• Depositing Speed: 30–60 shots/min
• Depositing Weight: 1–4.5 g/shot
• Hopper Capacity: 12 L
• Material: Stainless steel 304

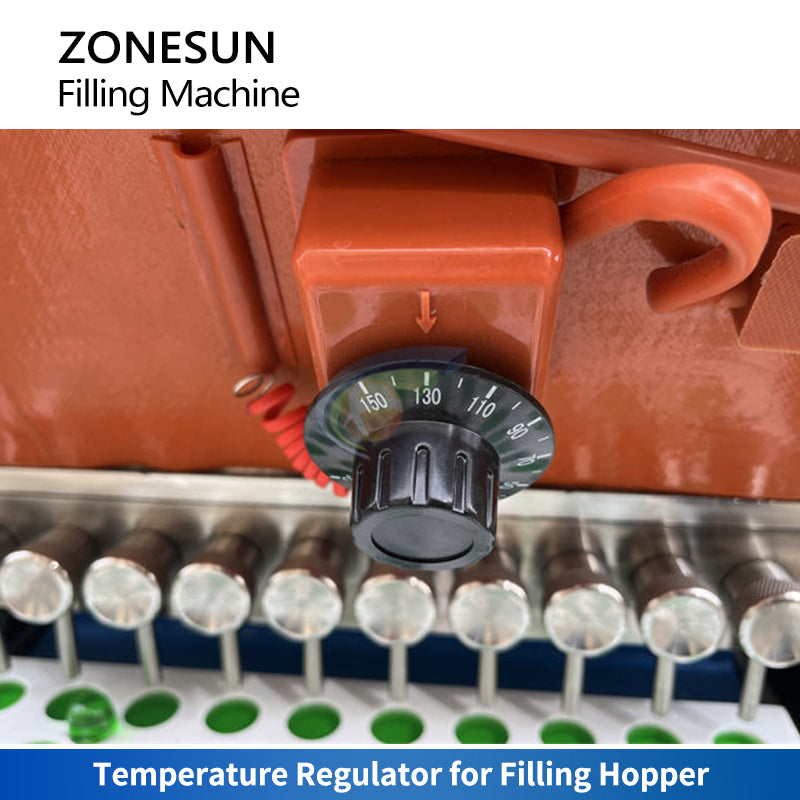

• Max Nozzle Heat: 130°C (extra part required)
• Cooking Pot Capacity: 20 L
• Heating Tubes: 2 × 3 kW
• Stirring Motor: 0.37 / 0.55 kW
• Heating Power: 6.5 kW / 380 V
• Heat Transfer Oil System: With oil level gauge & filling port
