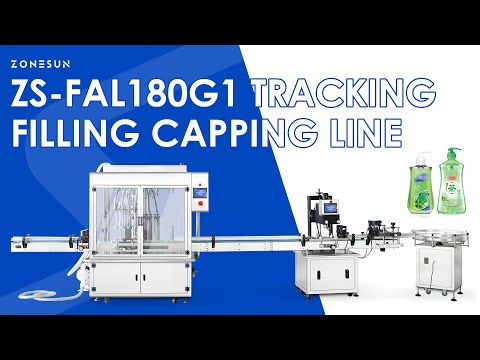

ZONESUN ZS-FAL180G1 Automatic Liquid Filling and Capping Line for Shampoo Soap and Lotion Bottles

Description

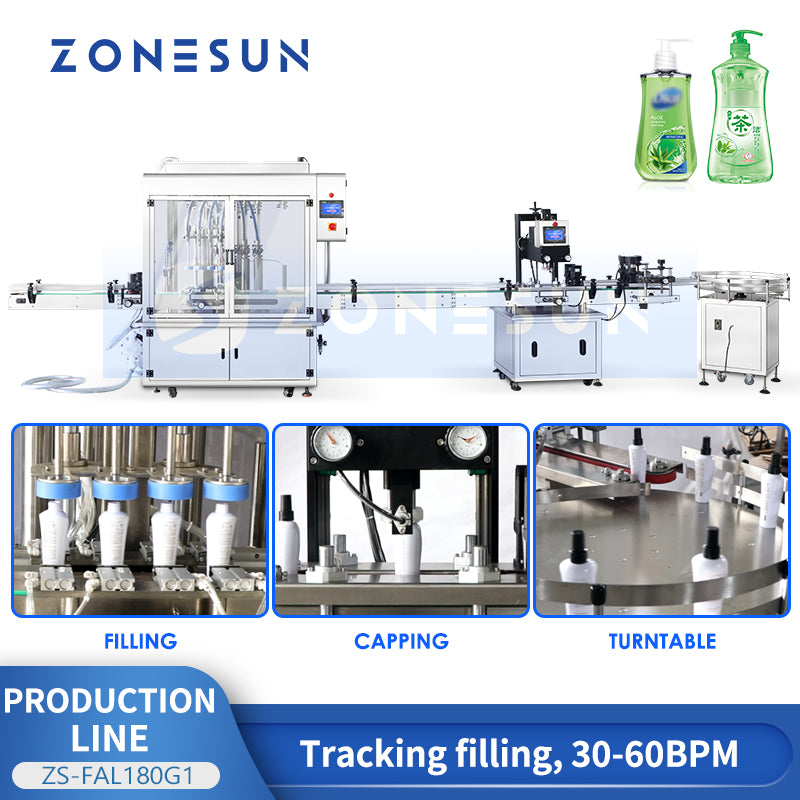

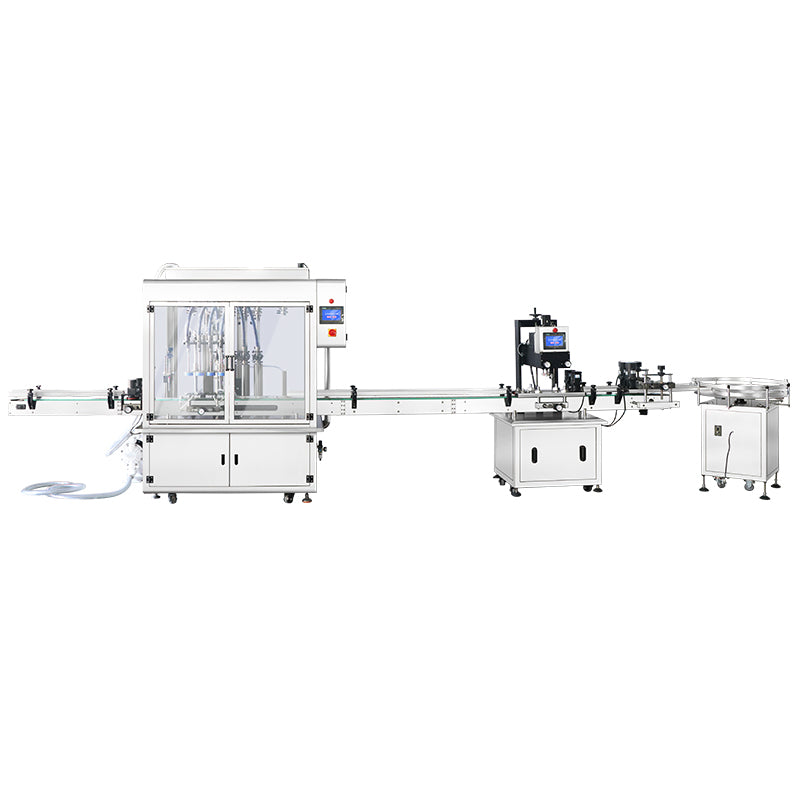

The ZONESUN ZS-FAL180G1 is a high-efficiency automatic filling and capping line designed for liquid packaging. It features a tracking filling system, servo capping machine, and bottle turntable, ensuring stable and accurate performance across various bottle shapes. Perfect for products like shampoo, liquid soap, and body lotion, this system streamlines production while maintaining precision and speed. Ideal for personal care and household goods industries.

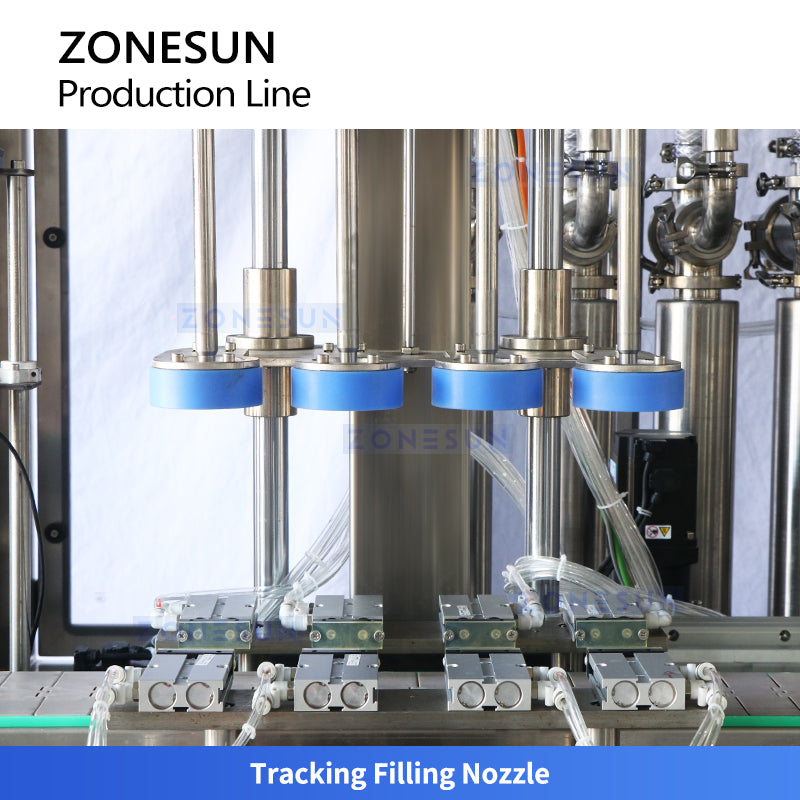

Tracking Filling Machine Parameters

• Machine model: ZS-SV4X
• Voltage: 110/220V 50-60HZ
• Machine power: 2KW
• Filling range: 5-100 ml/10-300 ml/50-500 ml/100-1000 ml

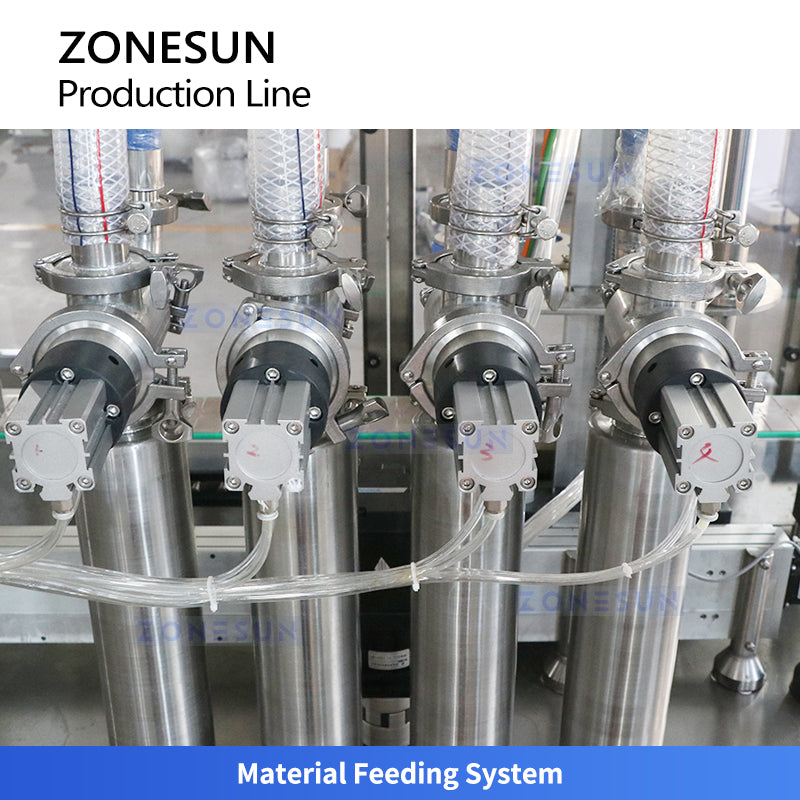

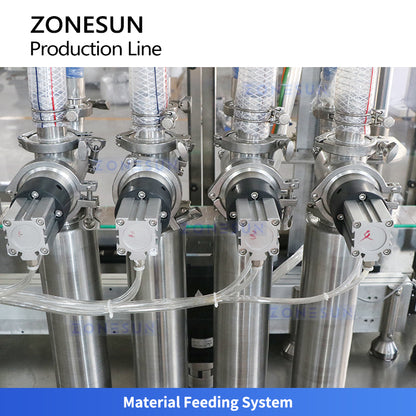

• Filling pump: Piston Pump
• Bottle height: 40-250 mm
• Bottle diameter: 30-100 mm
• Working speed: 30-60 bottles/min
• Package size: About 2210*1260*2220 mm
• Package weight: About 950 kg

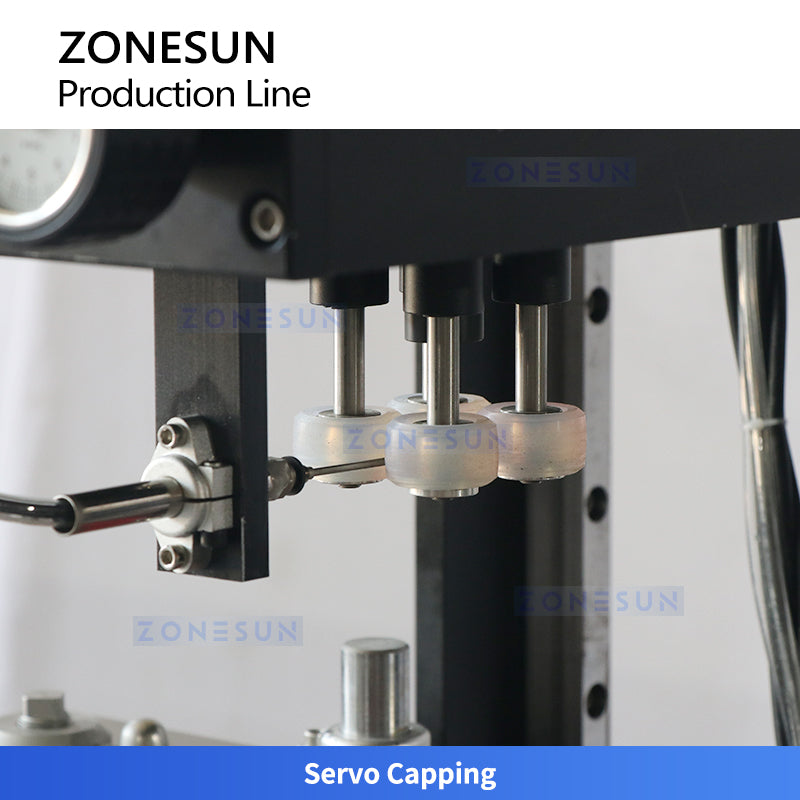

Servo Capping Machine Parameters

• Machine model: ZS-XG440S
• Voltage: 110/220V 50-60HZ
• Machine power: About 2.8 KW
• Suitable bottle size: H=50-300 mm φ=30-120 mm
• Suitable cap size: φ=20-60 mm
• Working speed: About 30-100 bottles/min
• Machine size: About 2000*750*1650 mm
• Machine weight: About 300 kg

Bottle Turntable Machine Parameters

• Machine model: ZS-SP800S
• Bottle specifications: Square bottle/round bottle
• Conveying speed: 0-20 revolutions per minute(adjustable)
• Voltage: 220V 50Hz (110V can be customized)
• Power supply: 200 W
• Turntable diameter: 800 mm Available
• Dimensions: About 550*550*990 mm
• Package size: About 1050*1000*1130 mm
• Net weight/Gross weight: About 93/120 kg
