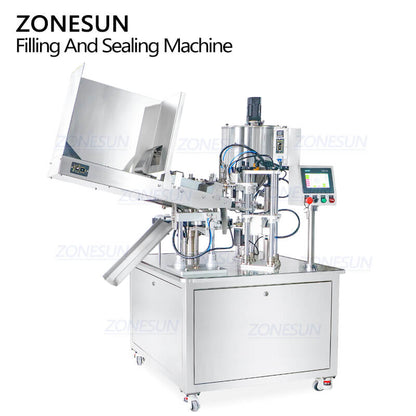

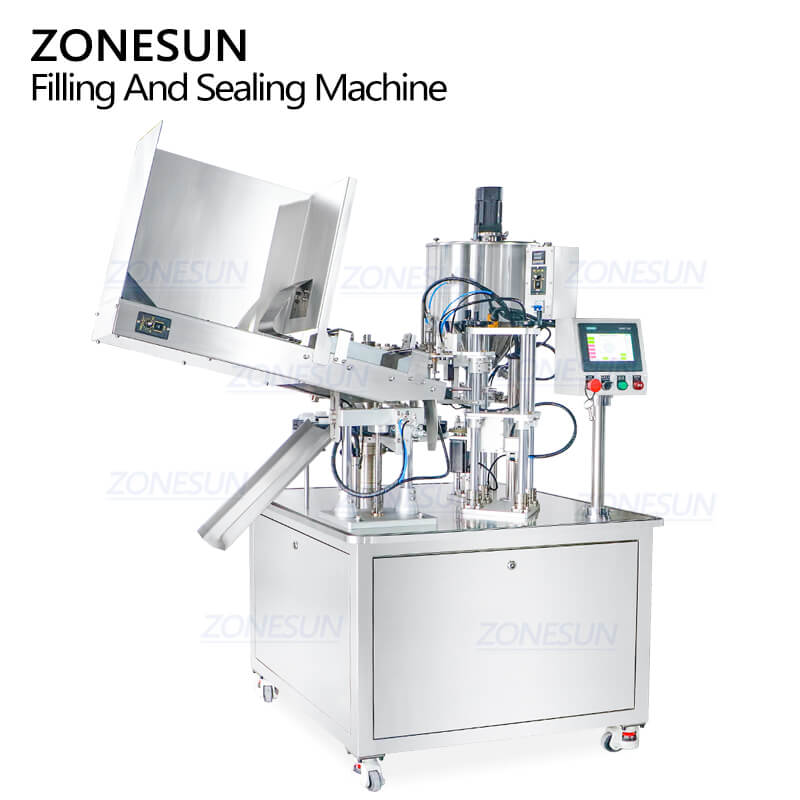

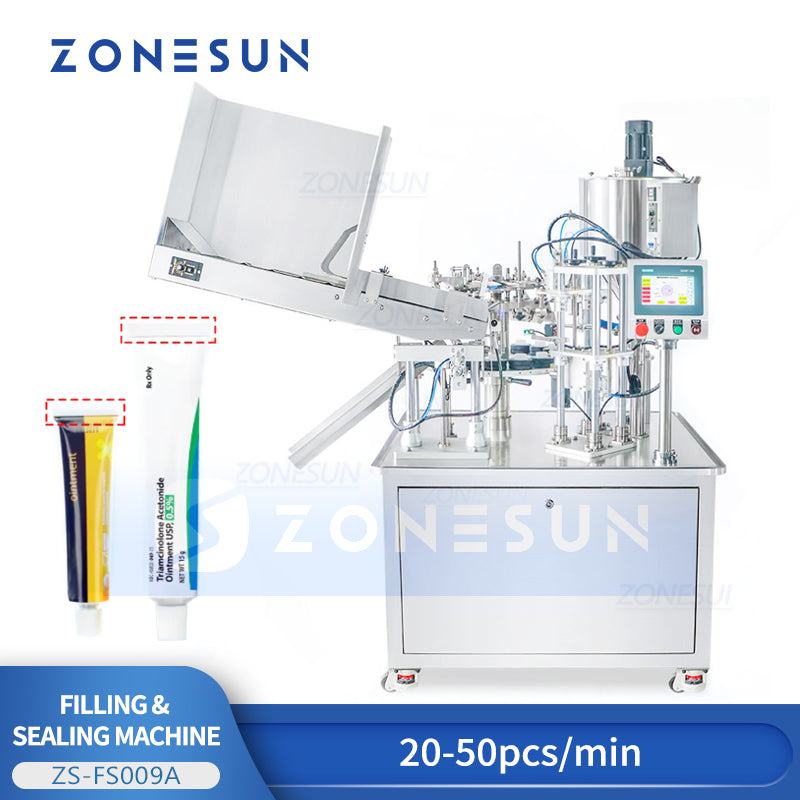

ZONESUN ZS-FS009A Aluminum Tube Filling and Sealing Machine for Toothpaste and Ointment
ZONESUN ZS-FS009A Aluminum Tube Filling and Sealing Machine for Toothpaste and Ointment
Обычная цена
$10,499.00 USD
Обычная цена
$13,499.00 USD
Цена со скидкой
$10,499.00 USD
Цена за единицу
за
Стоимость доставки рассчитывается при оформлении заказа.
Не удалось загрузить сведения о доступности самовывоза
This filling sealing machine combines filling structure, sealing structure at one rotary workbench, it is designed for packaging aluminium tube products like toothpaste, hand cream.ointment etc.
Parameter
- Machine Model: ZS-FS009A
- Voltage: 220V/110V 50-60 Hz
- Power: About 3 KW
- Working speed: About 20-50 pcs/min(depending on tube size and filling materials)
- Filling pump: Piston Pump
- Filling range: 30-150 ml (Can be customized)
- Filling accuracy: ≤±1%
- Applicable tubes: Fully-aluminum tubes
- Tube diameter: Φ13-38 mm
- Tube length: 100-200 mm
- Machine part in contact with materials: SUS 304
- Air pressure: 0.6-0.8 Mpa
- Machine size: About 1800*945*1945 mm/ About 70.9*37.2*76.6 inch

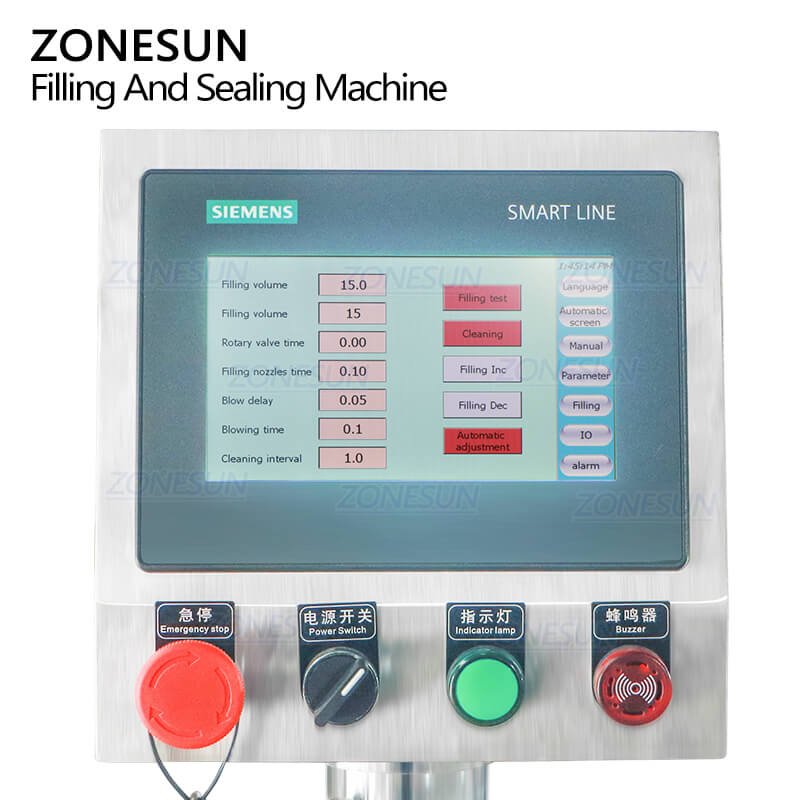

Control Panel
Touchscreen panel makes it convenient to set parameters like filling volume. Language of panel can be customized.
Touchscreen panel makes it convenient to set parameters like filling volume. Language of panel can be customized.

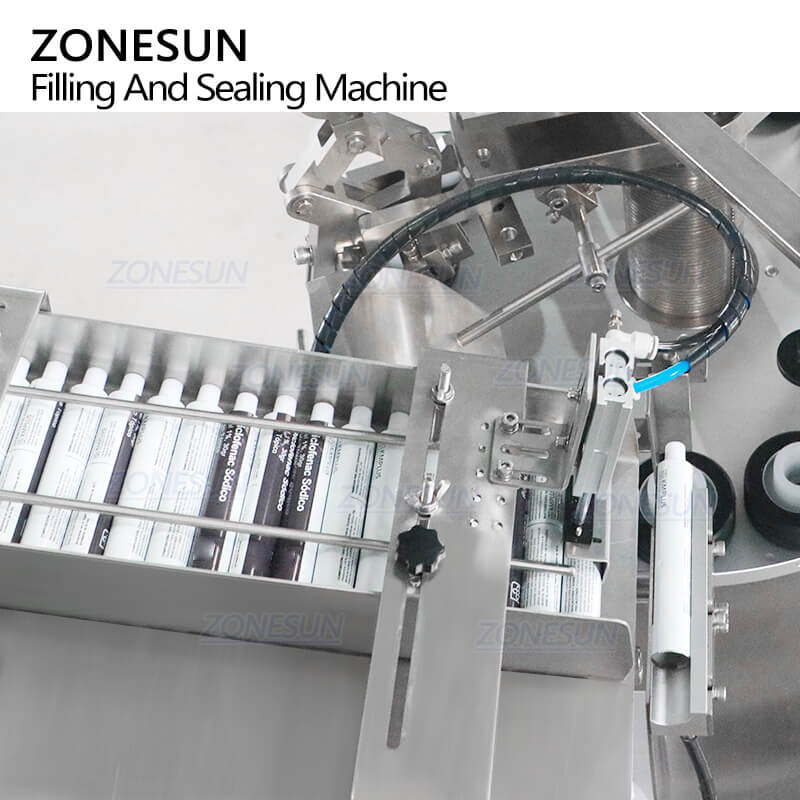

Tube Feeding Structure
Can feed aluminum tubes to molds automatically, saving labor cost.
Can feed aluminum tubes to molds automatically, saving labor cost.

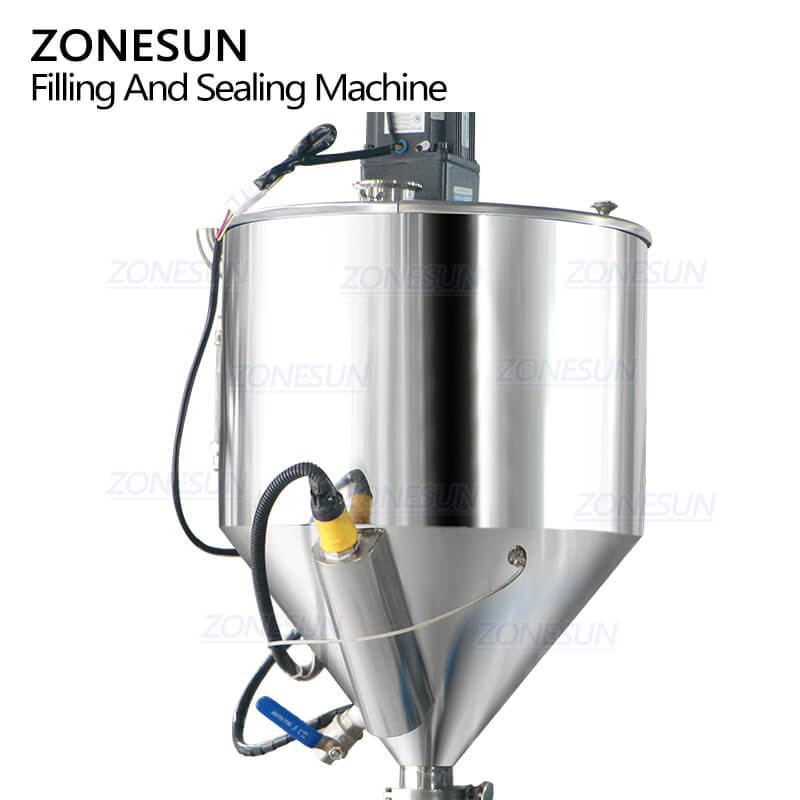

Hopper
The hopper has mixing and heating function, making it fill viscous paste smoothly.
The hopper has mixing and heating function, making it fill viscous paste smoothly.
Filling Head
Driven by piston pump, it can fill viscous liquid or paste accurately. Filling range can be customized.
Driven by piston pump, it can fill viscous liquid or paste accurately. Filling range can be customized.

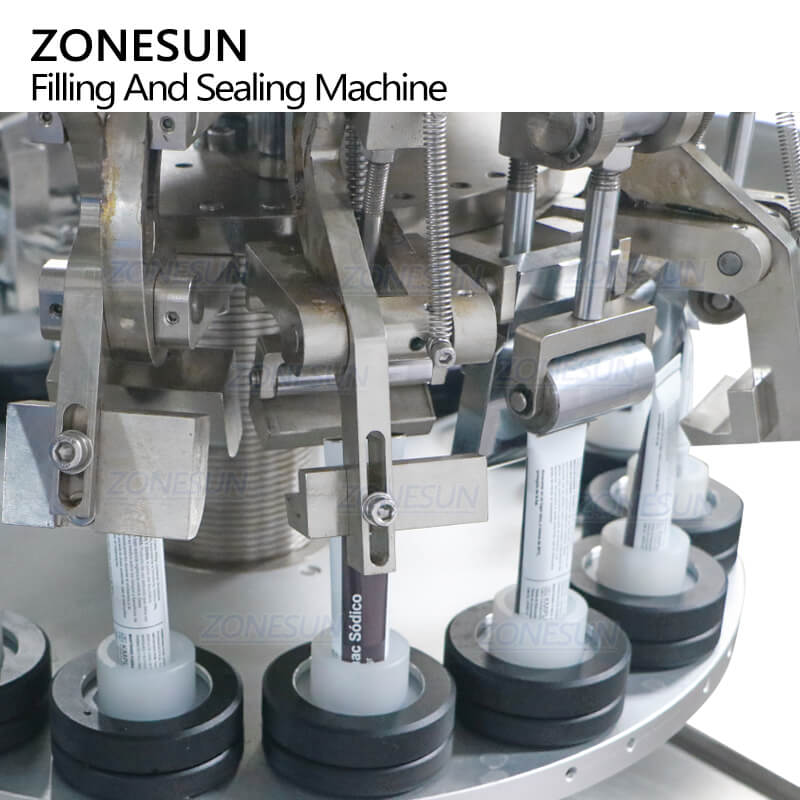

Tube Folding Structure
Can fold and press tube ends automatically. It can be customized as your products.
Can fold and press tube ends automatically. It can be customized as your products.
Letter Stamping Structure
Can be used for printing production date or batch on tube ends automatically.
Can be used for printing production date or batch on tube ends automatically.
