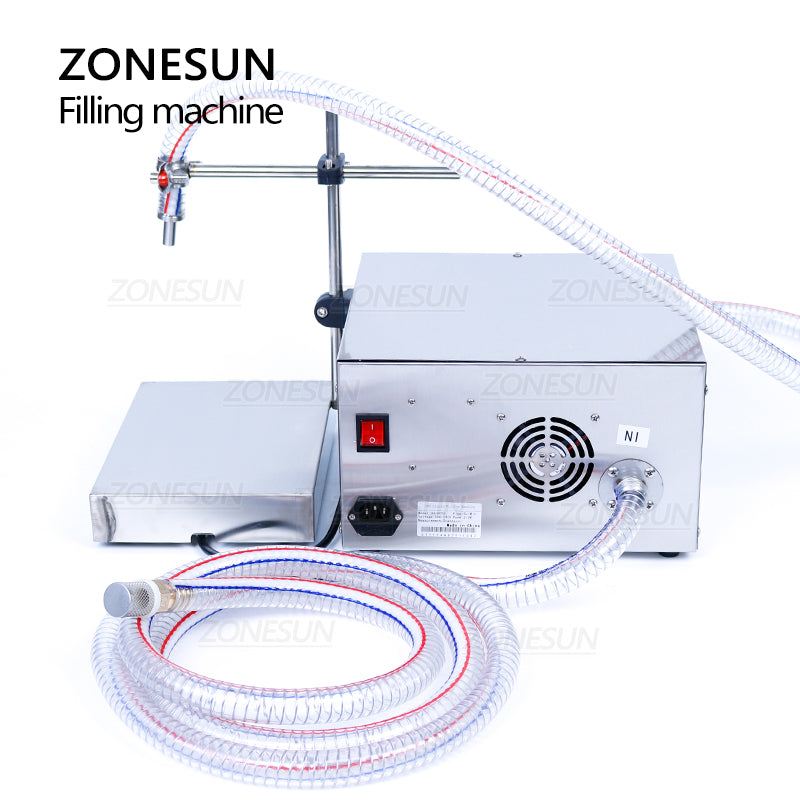

ZONESUN ZS-GP631 50-8000ml Semi Automatic Gear Pump Liquid Filling and Weighing Machine
ZONESUN ZS-GP631 50-8000ml Semi Automatic Gear Pump Liquid Filling and Weighing Machine
Не удалось загрузить сведения о доступности самовывоза
Parameter
|
Machine Model |
ZS-GP631 |
|
Machine Power |
220V/110V 50-60Hz 210W |
|
Machine Pump |
Gear Pump |
|
Max Flow Rate |
8L/min |
|
Filling Range |
50mL-8L |
|
Weighing Range |
50g-10kg |
|
Suitable Liquid Temperature |
＜90℃ |
|
Repetitive Error |
±10g |
|
Filling Nozzle Diameter |
Φ12mm&Φ19mm |
|
Hose Diameter |
12mm(ID)/16mm(OD) |
|
Hose Length |
2m(inlet)/2m(outlet) |
|
Max Suction Distance |
4m |
|
Weighing Device Size |
180*250*42mm |
|
Machine Weight |
9kg |
|
Machine Size |
280*275*160mm |
|
Package Weight |
9.5kg |
|
Package Size |
400*365*240mm |
Description
This gear pump weighing filling machine is suitable for filling oil, such as edible oil, lubricating oil, engine oil, hydraulic oil, etc. It is not suitable for filling water. With weighing function, it can fill oil more accurately. It can be widely used in food, daily chemical, cosmetic industries.
Gear pumps are commonly used for transferring:
Lubricating oils (e.g., machinery oil, hydraulic oil, engine oil)
Fuels (e.g., diesel, heavy oil, light oil)
Chemical liquids (e.g., resin, paint, additives)
Food-grade liquids (e.g., syrup, chocolate paste, vegetable oil) — requires a stainless steel food-grade gear pump
Polymers and viscous materials (e.g., glue, bitumen)
👉 If you need a food-grade filling machine, feel free to contact us for customized solutions!
