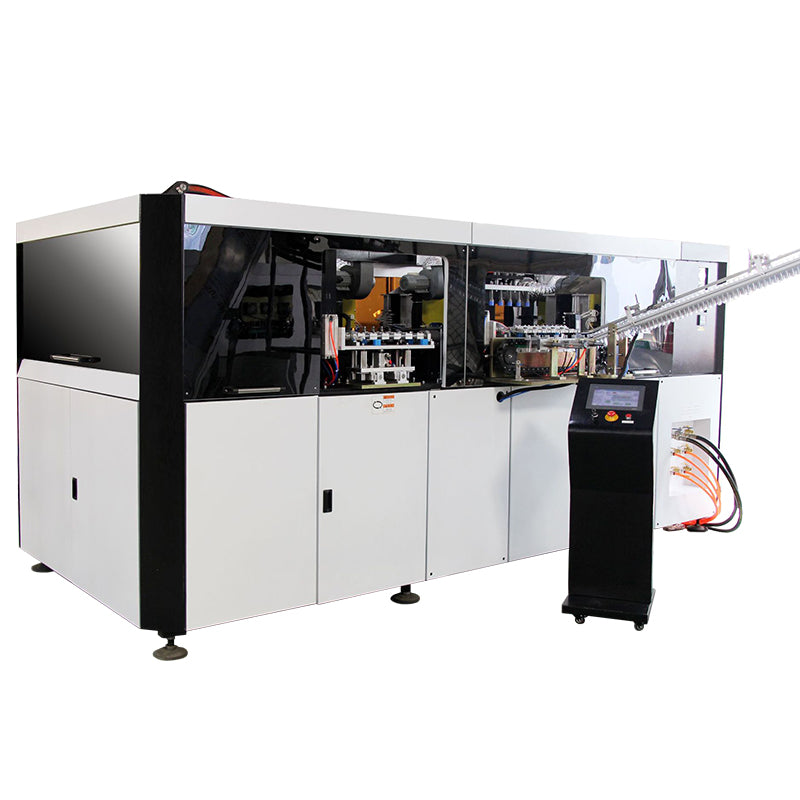

ZONESUN ZS-SBM6A Fully Automatic PET Blow Molding Machine for Oil Juice Cosmetic Water Bottles Up to 750ml High-Speed Servo Design

Description

Introducing our fully automatic PET blow molding machine, a high-speed blow molding machine built for efficient PET bottle manufacturing up to 750 ml. Ideal for edible oil bottles, cosmetic containers, juice, and mineral water bottle manufacturing.This plastic blow molding machine uses advanced servo blow molding technology with a fully electric molding machine design. It features intelligent temperature control and a cooling system to ensure high output, energy saving, and stable operation—perfect for modern bottle production.

Parameter

• Production Capacity： 9000-10000BPH
• Max. Bottle Size： 750 ml
• Max. Bottle Diameter： 70mm
• Max. Bottle Height: 260mm
• Mold Cavity Pitch :76.2mm
• Mold Cavity: 6 cavities
• Heating Power: 65 KW
• General Power: 70 KW
• Blow Air :2.5 – 4.0 MPa
• Drive Air: 0.8 – 1.2 MPa
• Main Machine Dimensions :4300* 2150 * 2250 mm
• Preform-Unscrambler Dimensions :1300 * 600 * 2750 mm
• Auto-loader Dimensions: 1160 * 1600 * 3300 mm
• Main Machine Weight: 5500KG
