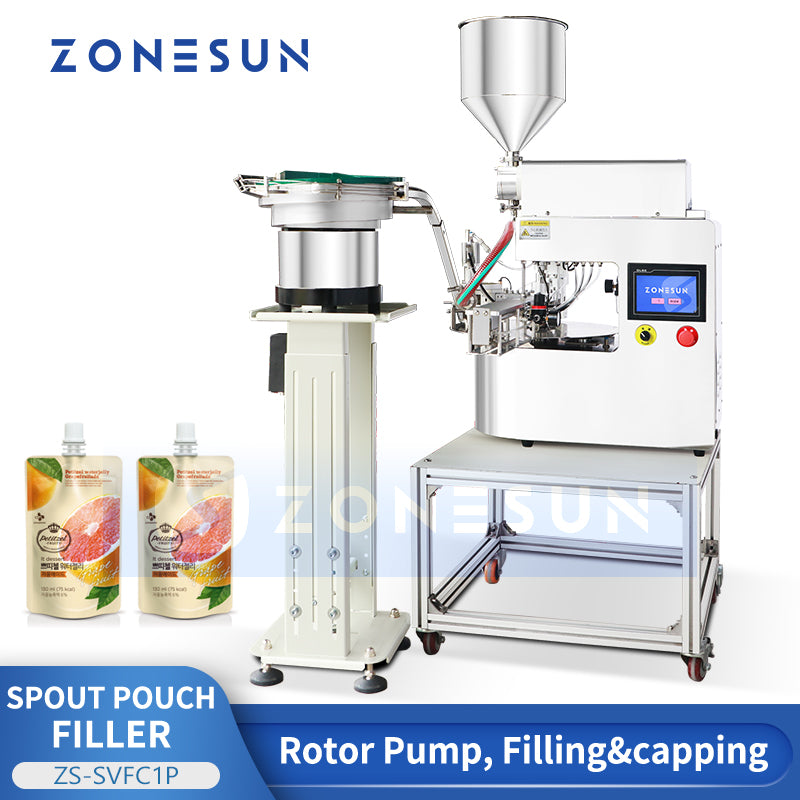

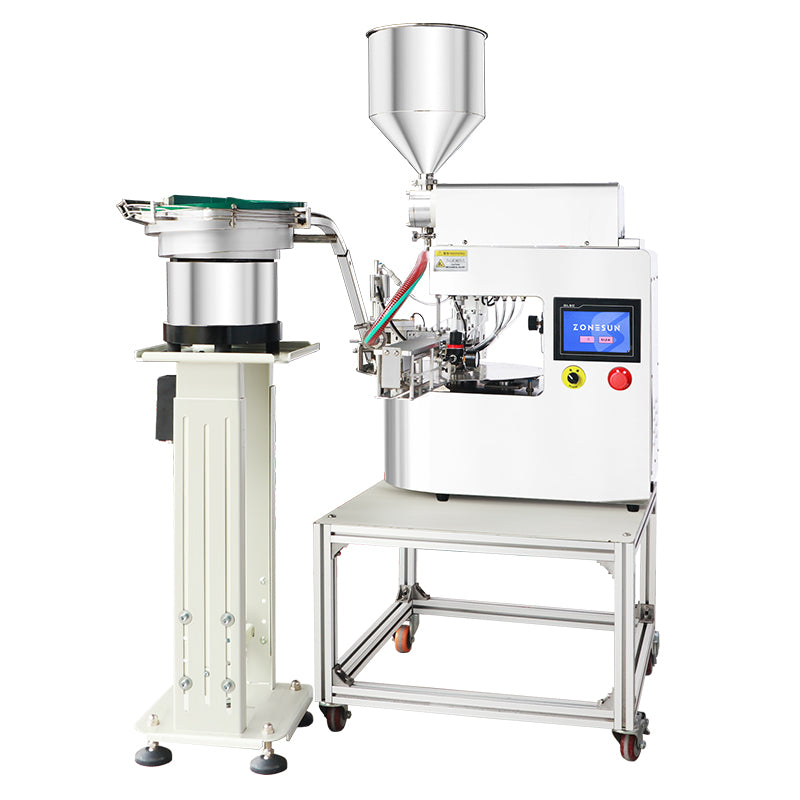

ZONESUN ZS-SVFC1P Desktop Rotary Lobe Pump Filling and Capping Machine for Viscous Products like Jam Ketchup and Tomato Paste

Description

The ZONESUN ZS-SVFC1P is a desktop rotary lobe pump filling and capping machine designed for high-viscosity products like jam, ketchup, and tomato paste. Featuring a servo-driven rotor lobe pump, it ensures accurate, drip-free filling into spout pouches, with a reliable rotary capping system. This compact unit is ideal for automated pouch packaging in food, cosmetic, and pharmaceutical production.

Parameter

• Machine Model: ZS-SVFC1P
• Voltage: 110/220V 50-60HZ 2KW
• Filling Range: 100-2000 g(customizable, ＜5000g)
• Working Capacity: 15-20 bags/min(based on filling range)
• Filling Pump: Rotor Pump
• Filling Accuracy: ±2 g
• Air Pressure: 0.5-0.8 Mpa
• Air Consumption: 0.5 m³/min
• Hopper Size: 30L
• Machine Size: About 1810*1320*1730 mm
• Machine Weight: About 80 kg
