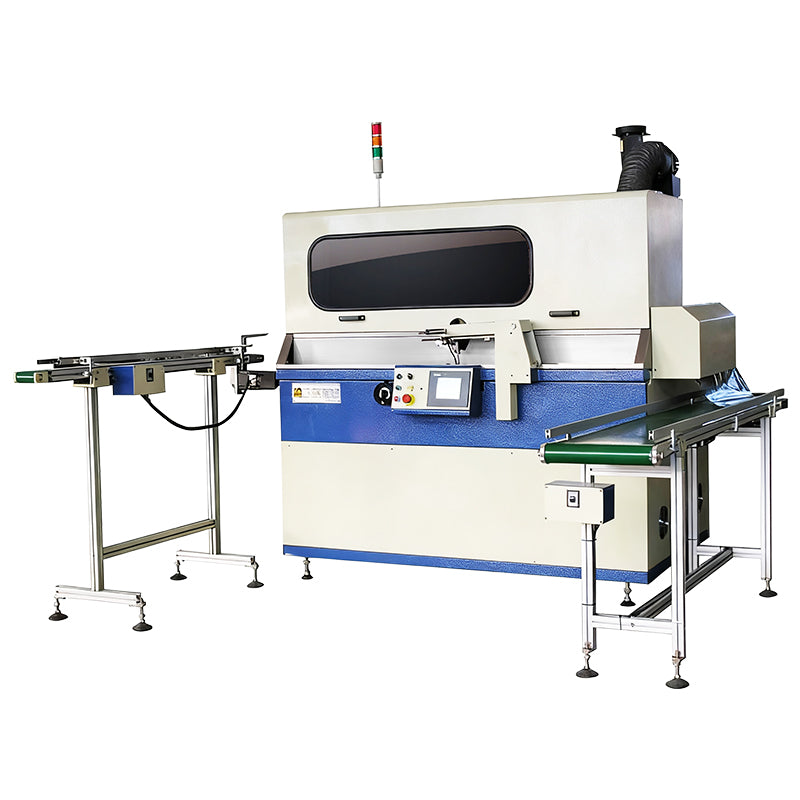

ZONESUN ZS-SWP2 Single-Color Automatic Bottle Screen Printing Machine

Description

The ZONESUN ZS-SWP2 is a fully automatic single-color screen printing Machine designed for round and oblate bottles. It integrates automatic feeding, flame surface treatment, UV screen printing, and UV curing into one intelligent system, enabling high-speed one-pass printing with consistent quality. Ideal for cosmetics, food, pharmaceuticals, and daily chemical packaging, it offers a complete solution for factories facing labor shortages and productivity challenges. With stable performance and precise alignment, it ensures reliable output across a wide range of rigid containers.

Parameter

• Model: ZS-SWP2
• Printing Color: Single Color
• Automation Level: Fully Automatic
• Min Bottle Diameter: Ø25 mm
• Max Bottle Diameter: Ø90 mm
• Max Print Length: 260 mm
• Air Supply: 6 bar
• Air Consumption: 400 L/min
• Applicable Bottle Shape: Round / Oblate Bottle
• Working Speed: 3600 pcs/hour
• Power Supply: 380V
• Machine Dimensions: 1900 × 1500 × 3000 mm
• Machine Weight: 1000 kg
• Applicable Industries: Cosmetics / Food / Daily Chemical / Pharma Packaging
