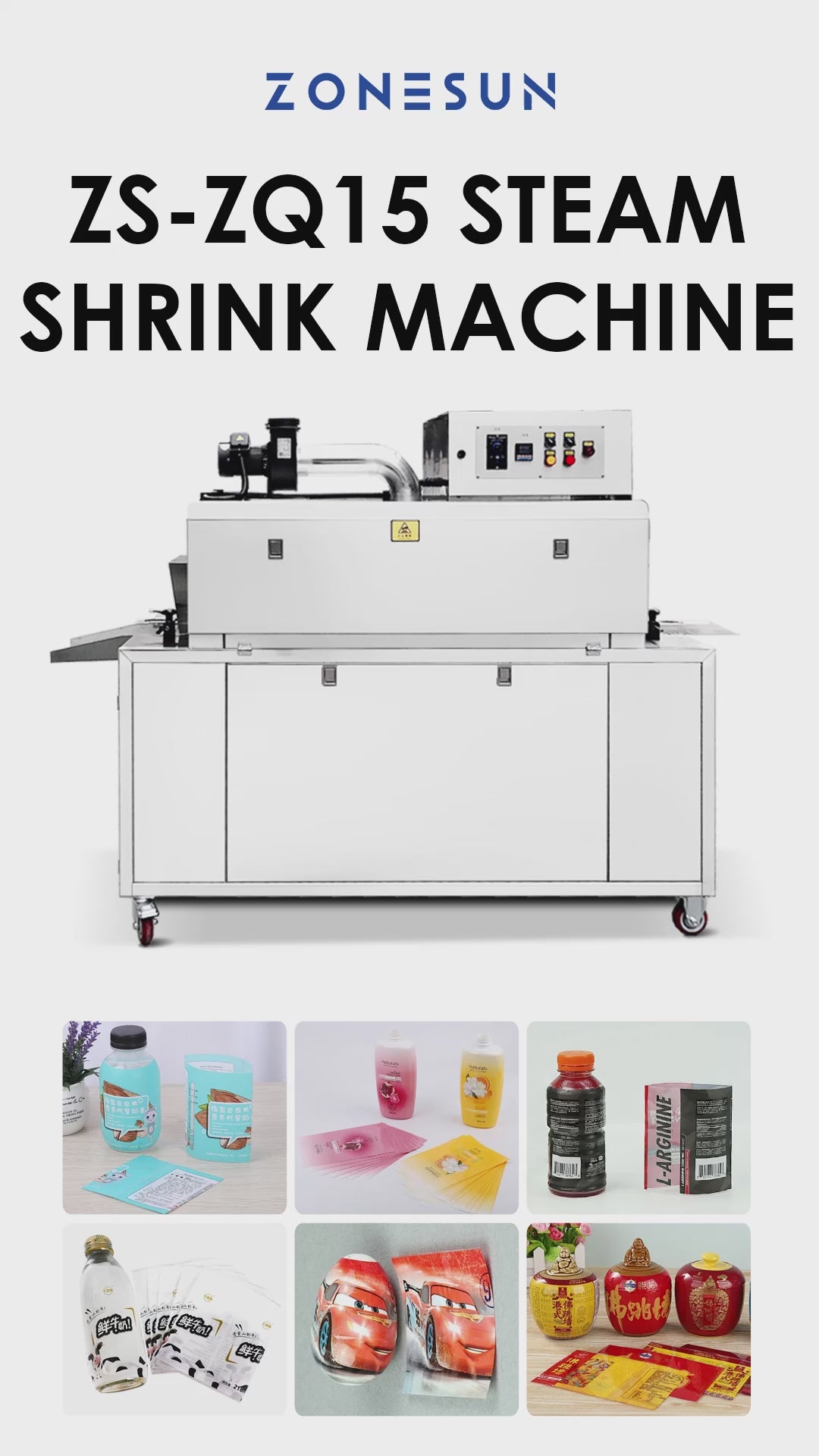

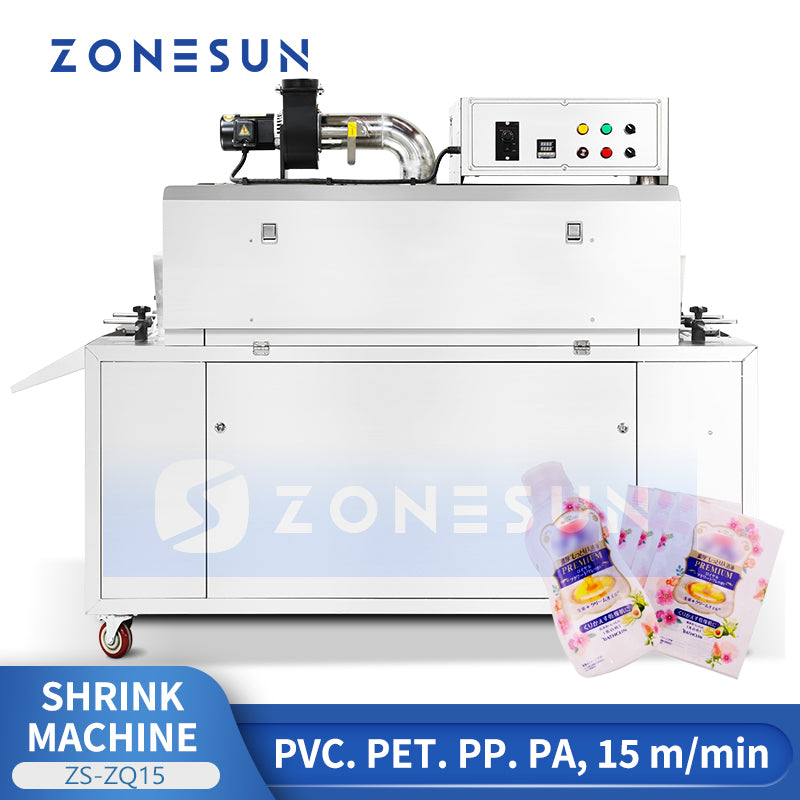

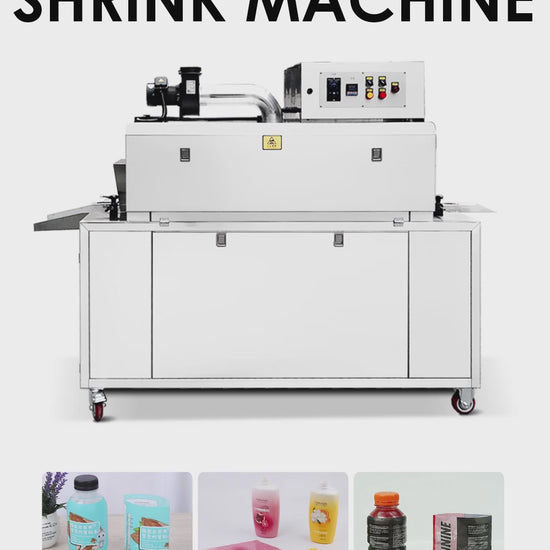

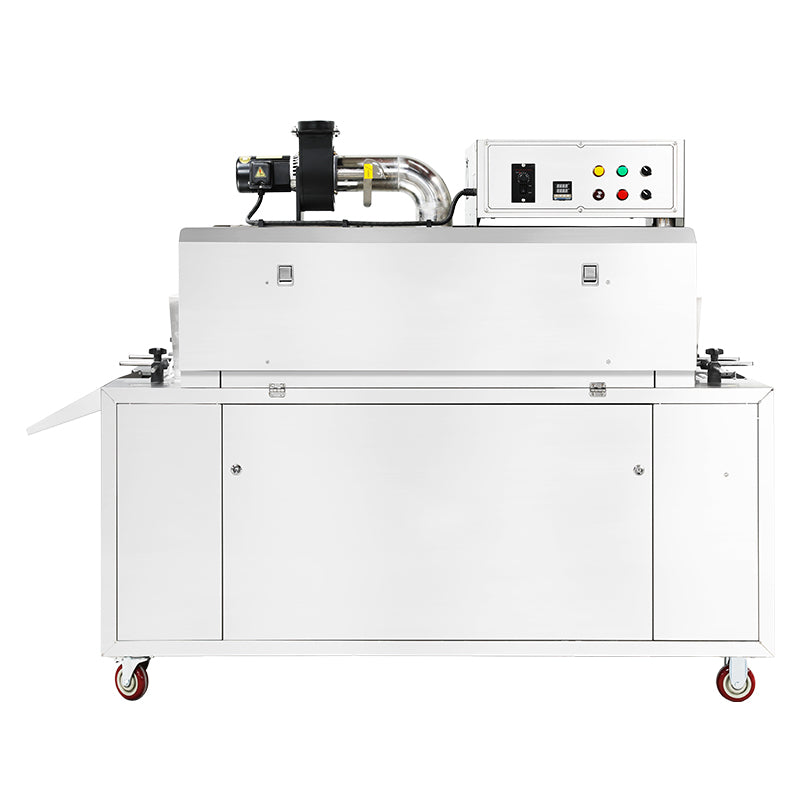

ZONESUN ZS-ZQ15 Semi-automatic Steam Shrink Sleeve Tunnel for Bottle Sleeve Labels

Designed for precision sleeve shrinking, the ZS-ZQ15 is ideal for labeling bottles, jars, cans, and other cylindrical containers. Its direct steam heating ensures a smooth, wrinkle-free finish across PVC, PET, PP, and PA materials. Perfect for beverage, cosmetics, pharmaceuticals, and chemical packaging lines, this machine supports both small-batch and high-speed production environments.

Parameter

• Model: ZS-ZQ15
• Rated voltage: 380V 50Hz (three-phase four-wire)
• Production capacity: 0–15 m/min
• Movement type: linear
• Maximum power: 24KW
• Maximum packaging size: 20×20cm
• Temperature control: 0–100°C
• Dimensions (L×W×H): 2135×706×1490mm
• Product weight: 150KG
• Applicable packaging materials: PVC, PET, PP, PA

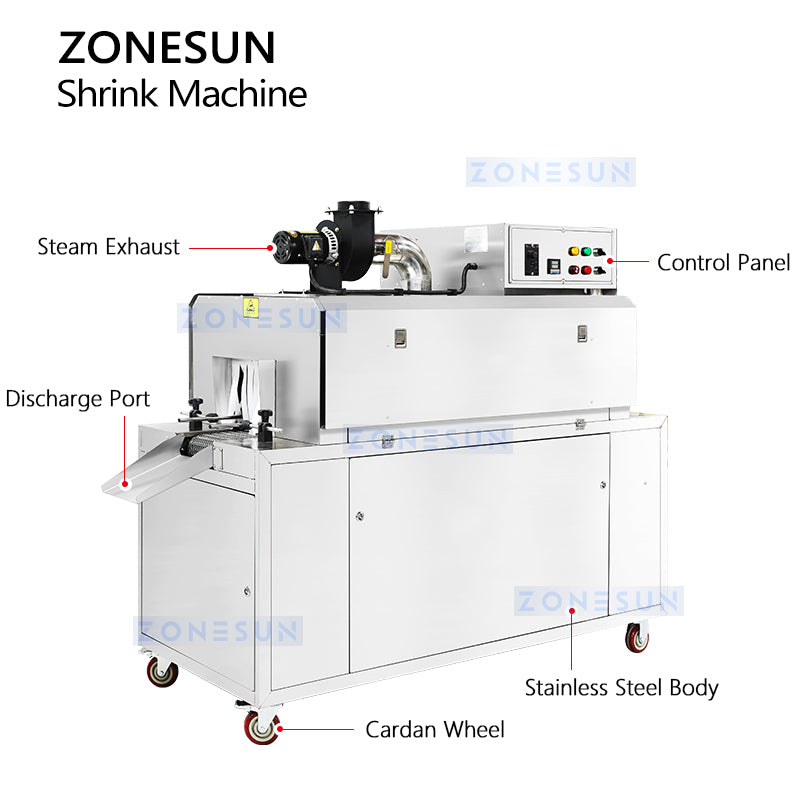

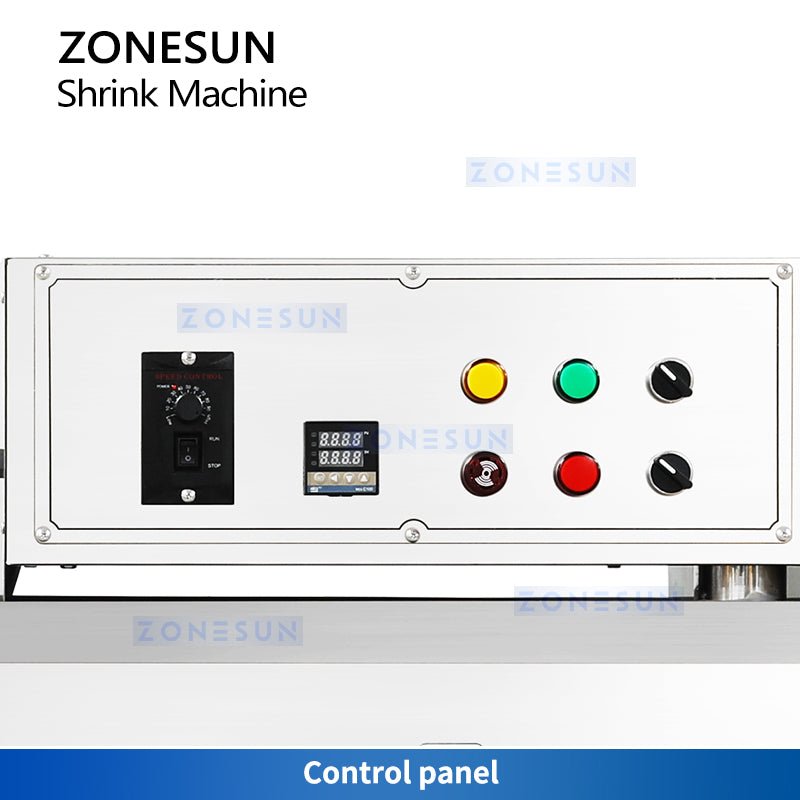

Control Panel

Provides simple operating settings and working-status monitoring.

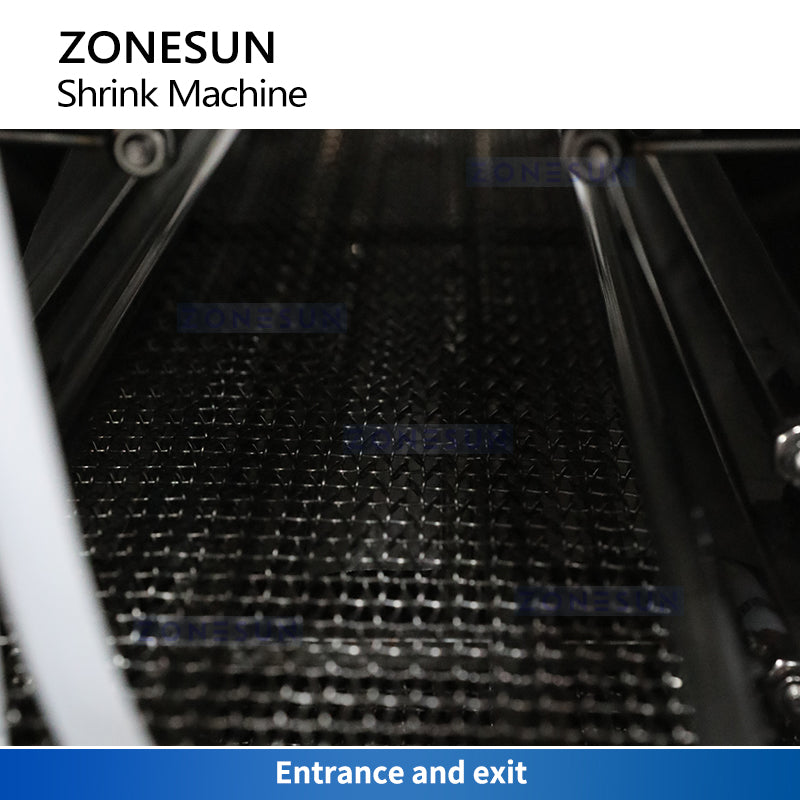

Entrance and Exit

The heat-resistant, moisture-resistant tunnel supports stable steam shrinking.

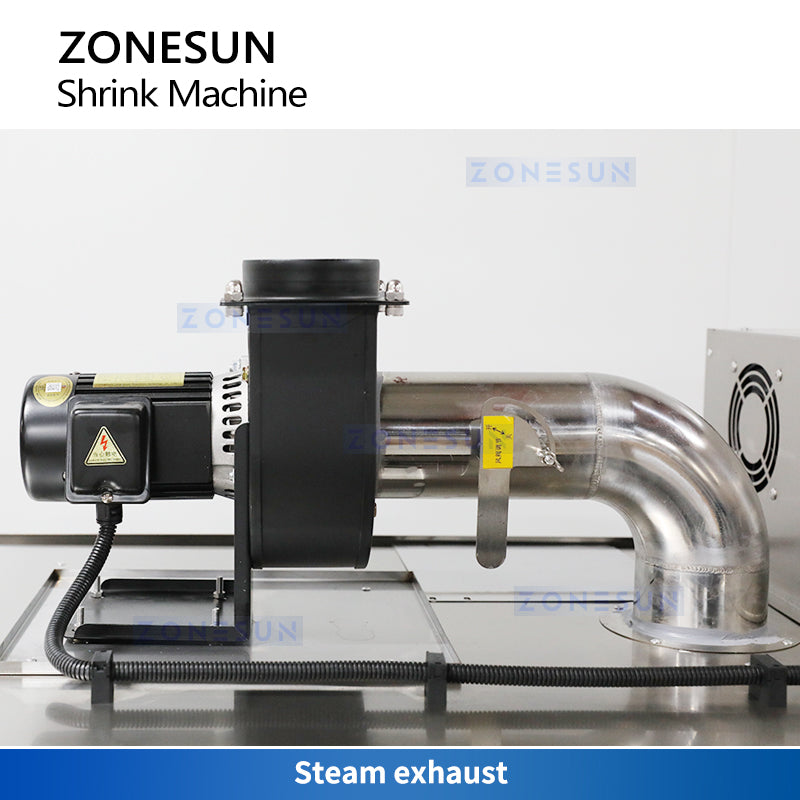

Steam Exhaust

Provides adjustable steam positioning and exhaust direction.

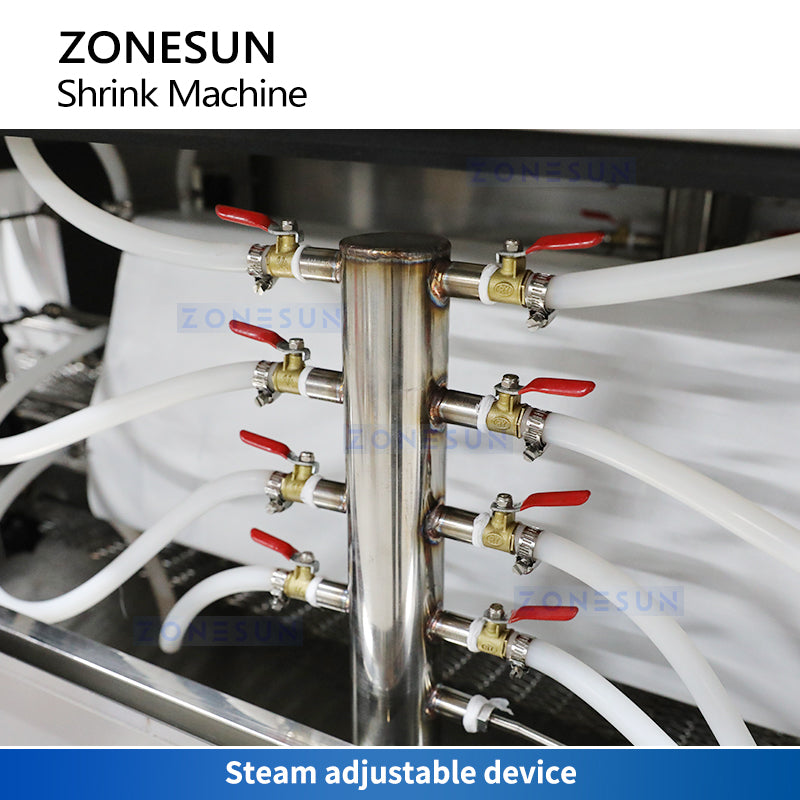

Adjustable Steam Device

Allows steam injection size and direction to be adjusted.
