DESCRIPTION

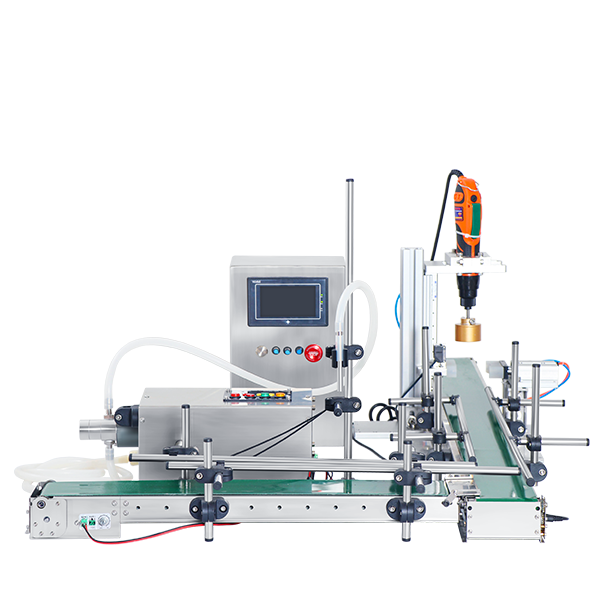

The ZONESUN ZS-FAL90S Automatic Liquid Bottle Filling Line is built for space-efficient, small-scale production of low-viscosity liquids. Featuring a compact footprint and smooth conveyor design, this system enables consistent bottle transport and precise filling through either a peristaltic or magnetic pump. Ideal for cosmetics, beverages, and daily chemical industries, it supports a customizable cap diameter and adjustable filling range for flexible packaging needs.

PARAMETER

Model ZS-FAL90S
Voltage 220V/110V, 50–60Hz
Machine Pump Peristaltic Pump / Magnetic Pump
Production Capacity Approx. 5–15 bottles/min (based on bottle size)
Recommended Filling Range 80–500mL
Max Flow Rate 700mL/min (based on water)
Suitable Bottle Diameter 30–60mm
Suitable Bottle Height 50–150mm
Cap Diameter Customizable
Conveyor Size 600×100mm ×1 + 1200×100mm ×1 (Customizable)
Conveyor Max Load 6kg
Filling Nozzle Diameter OD 3.3mm
Machine Weight Approx. 20kg
Machine Dimensions Approx. 1200 × 600 × 505mm

PRODUCT DETAILS

CONTROL PANEL

It controls the filler and the conveyors.

NOZZLE

Suitable for small-volume filling. Drip proof design, adjustable height.

CAPPING

The capper comes in an electric and a pneumatic model. The pneumatic one is more powerful.

PUMP

Peristaltic pump: easy to replace the hose.
Magnetic pump: high accuracy.

ELECTRIC EYE

Automatic and foot switch modes, easy to operate. .

CONVEYOR

600*100mm+1200*100mm
Max load: 6kg
