DESCRIPTION

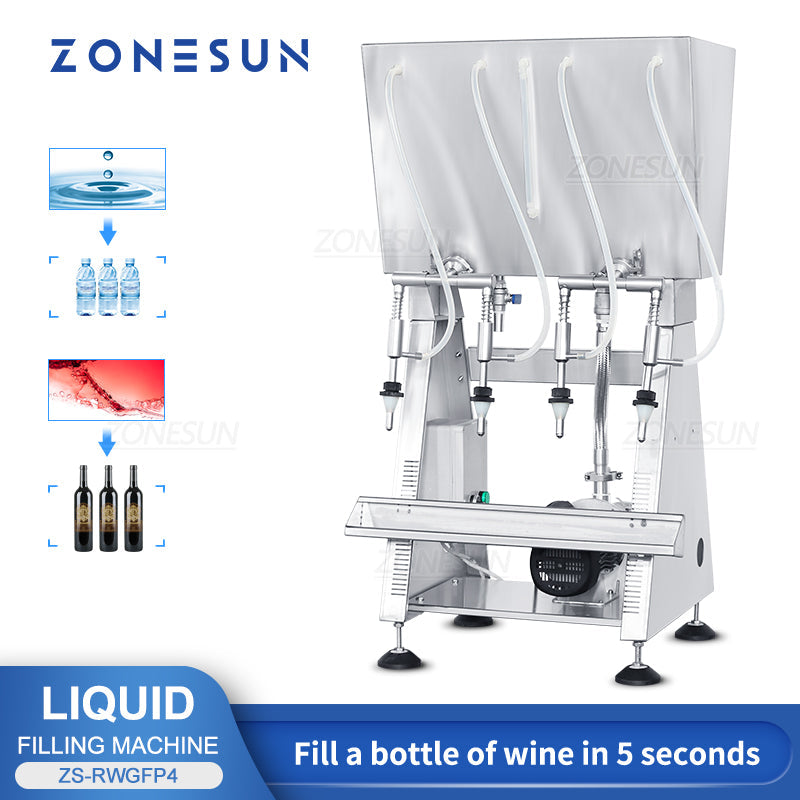

With intelligent sensors, the ZONESUN ZS-RWGFP4 machine can automatically fill liquid and stop when the bottle is full. It can fill 375ml red wine in 5 seconds. It is widely used in food and beverages industries. We have an entire solution for automated production line. This machine is suitable for filling liquid such as wine, soy sauce, olive oil, Baijiu, etc.

PARAMETER

Product Model ZS-RWGFP4
Rated Power 0.37 kW (with pump)
Machine Weight 35 kg
Production Capacity 500–1000 bottles/hour
Bottle Height 160–350 mm
Bottle Diameter 60–100 mm
Bottle Opening Inner Diameter ≥16 mm
Machine Size 610 × 550 × 1050 mm
Net Weight 45 kg
Package Size Approx. 710 × 580 × 1160 mm
Package Weight Approx. 50 kg

PRODUCT DETAILS

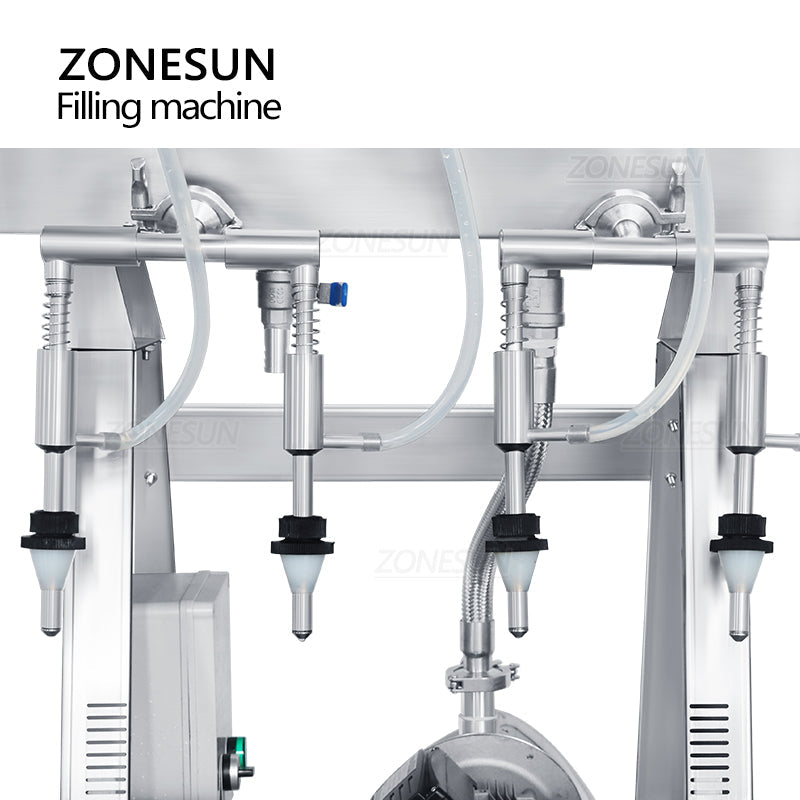

FILLING HEAD

Four-head design, stainless steel casing, stable and durable. High working efficiency, high precision and anti-dripping system.

PUMP

370W, 2860r/min, max flow rate: 2.73m3/h, heat-resistant and durable.

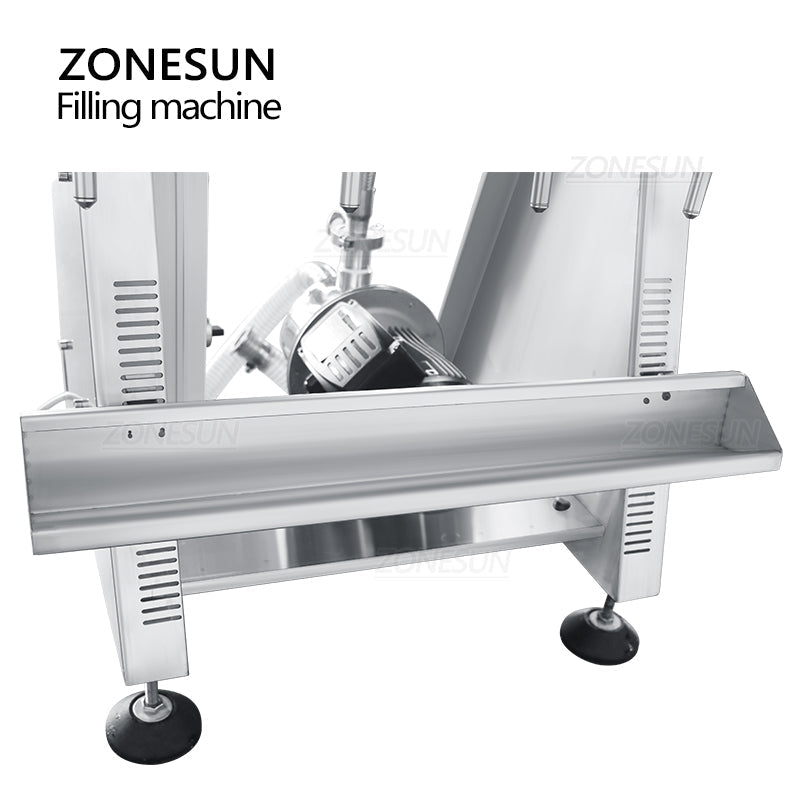

ADJUSTABLE TRAY

The thickened and height-adjustable stainless-steel tray is suitable for bottles in different heights.

WATER LEVEL

Easy to see the water level in the tank, with 2 level sensors.
