LABEL APPLICATION FOR FLAT PACKAGING SURFACES

Flat Surface Labeling Machines

Explore ZONESUN flat surface labeling machines for compatible bottle panels, boxes, pouches, lids and trays. Match product support, label dimensions and placement to your packaging, with standalone or conveyor-based configurations assessed for your production workflow.

Flat Panels & Packages

Check the label panel, product dimensions and surface condition for suitable application.

Product Support & Feeding

Assess guides, fixtures or conveyor handling for stable product presentation.

Labels & Positioning

Match label size, material, roll specifications and the required application position.

Output & Line Integration

Review loading, product spacing and conveyor connections for your workflow.

Share product and label samples, placement requirements and target output for selection guidance.

GET A CUSTOM SOLUTION

37 products

1 5

CHOOSE YOUR LABELING SETUP

Find the Right Flat Surface Labeling Machine

Choose equipment around product presentation, operator involvement and required output.

Semi-Automatic Application

Assess operator-loaded machines for small batches and frequent changes. Check fixtures, label placement and practical cycle time.

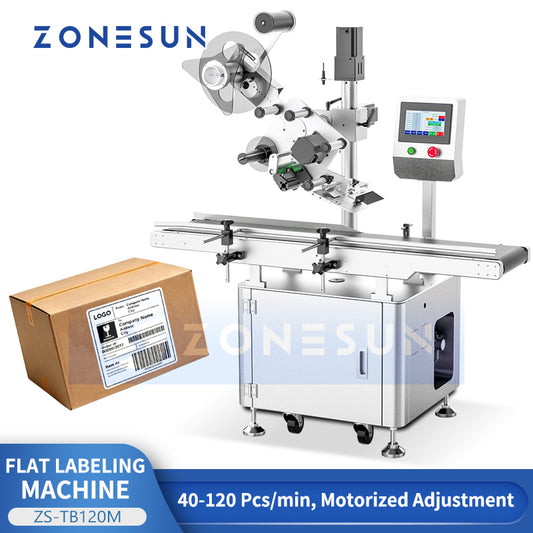

Automatic Conveyor Labeling

Review product guides, spacing and application height for compatible packages moving along a conveyor.

Paging & Specialized Configurations

For stack-fed pouches, cards, print-and-apply or multiple surfaces, confirm the required feeder, applicator and control arrangement.

Planning note: Feeding, printing and multi-surface application vary by model. Confirm the configuration rather than assuming all functions are included.

PRODUCTS & LABEL PANELS

Match the Product to the Application Surface

A stable, accessible label panel is the starting point for reliable application.

Boxes & Cartons

Specify the target face, dimensions and edge clearances. Check folds, seams and package rigidity.

Flat Bottle Panels

Assess the usable panel on compatible square or rectangular bottles. Confirm orientation, guides and support.

Pouches & Bags

Provide empty or filled samples. Check wrinkles, thickness and whether a backing surface or special feeder is needed.

Cards & Flat Sheets

Assess stack separation, thickness, friction and material stiffness where paging operation is required.

Lids & Trays

Check rims, recesses and surface height. Confirm access to the label panel and support during application.

Clear & Special Labels

Share label and liner samples for sensor assessment. Check adhesion and appearance on the intended surface.

Planning note: Uneven, recessed, flexible or curved surfaces may need a different applicator or fixture. Evaluate actual product and label samples.

FROM PRODUCT FEEDING TO FINISHED LABEL

How Flat Surface Labeling Works

A typical self-adhesive workflow combines product support, detection, application and checking.

  1. 01

    Feed & Support

    Load manually, convey products or separate compatible stacks. Keep the target panel stable and accessible.

  2. 02

    Detect & Align

    Detect the product and label, then set guides, trigger timing and the required label position.

  3. 03

    Dispense & Apply

    Separate the label from its liner and apply it using the selected wipe-on, tamp or other suitable mechanism.

  4. 04

    Check & Transfer

    Inspect placement, wrinkles and adhesion. Collect products or transfer them to the next station.

Planning note: The application mechanism depends on the model and product. Automatic inspection and rejection require suitable additional equipment.

KEY SELECTION POINTS

What to Confirm Before Choosing a Flat Labeler

Provide these six details to assess compatibility and the required setup.

Product Dimensions

Share length, width, height, weight and material. Include all formats and the condition in which products arrive.

Label & Roll Details

Provide label dimensions, liner width, roll core, outside diameter, gap and winding direction.

Panel & Placement

Mark the target panel and edge clearance. Specify position tolerances, label orientation and any multiple-label requirement.

Output & Feeding

State products per minute, hours of operation and manual, conveyor or stack feeding. Assess complete-workflow output.

Fixtures & Changeovers

List format changes and assess guides, backing surfaces, fixtures and adjustment limits for each product.

Layout & Utilities

Provide available space, conveyor height and direction, power and any model-specific compressed-air requirements.

AUTOMATED PACKAGING & CUSTOMIZED SOLUTIONS

Plan Flat Labeling Around Your Packaging Line

Coordinate feeding, product support, coding and downstream handling for the selected machine.

Product Presentation

Assess guides or fixtures to hold the target panel in a consistent position without distorting the product.

Conveyor Interfaces

Check transfer gaps, speed, height and direction. Review spacing and controls with connected equipment.

Pouch & Sheet Feeding

For paging projects, assess stack separation and material behavior. Empty-pack feeding differs from filled-pack handling.

Coding or Print & Apply

Define fixed artwork, dates, batch information or variable data. Select compatible printing and application equipment.

Inspection & Rejection

Define label presence, placement or code checks. Confirm inspection capability and the required rejection arrangement.

Bottling & End-of-Line Transfer

Assess labeling before or after filling and capping, or on outer packs, around access, cleanliness and packaging flow.

Explore Automatic Production Lines DISCUSS YOUR LABELING PROJECT

FLAT SURFACE LABELING FAQ

Frequently Asked Questions

Can one machine label boxes, bottles and pouches?
Only where the product formats, support and application method fall within the machine’s capabilities. Confirm each format with samples; different fixtures or machines may be needed.
Can it label filled pouches or flexible bags?
This depends on product shape and support. Wrinkles and uneven contents can affect placement; assess filled samples and any required backing or holding fixture.
Can it separate stacked cards or empty pouches automatically?
Selected paging configurations support suitable materials. Confirm thickness, stiffness, friction and stack behavior; an ordinary conveyor labeler does not necessarily include a feeder.
Are transparent labels supported?
Support depends on the label sensor and label construction. Provide the actual label and liner for detection assessment.
Can it apply top, bottom or corner labels?
These tasks require suitable access and application configurations. A standard flat labeler should not be assumed to support bottom access or corner wrapping.
Can it print barcodes or changing batch information?
Selected print-and-apply or coding configurations may support these tasks. Confirm data formats, printer functions, consumables and control requirements.
What information is needed for a recommendation?
Share product and label samples, dimensions, roll details, target panel, placement requirements, output and feeding method. Include the existing line layout for integration.

CUSTOM FLAT SURFACE LABELING SOLUTION

Need Help Labeling Your Flat Packaging Surfaces?

Share your products, labels and production goals. ZONESUN can help assess a standalone flat labeler or a labeling station within your bottling and packaging workflow.

Helpful details: product samples · label and roll specifications · target panel · required output · feeding method · line layout
