TWO-SIDE LABEL APPLICATION FOR COMPATIBLE CONTAINERS

Front & Back Labeling Machines

Explore ZONESUN front and back labeling machines for compatible flat-sided, oval and other container formats. Match container guiding, label dimensions and placement to your packaging, with standalone or conveyor-based configurations assessed for your bottling workflow.

Container Shape & Support

Assess label panels, product dimensions and guides for stable container handling.

Front & Back Placement

Define both label positions, application height and required alignment.

Labels & Roll Setup

Confirm label sizes, materials, roll specifications and the selected feed arrangement.

Output & Line Integration

Review loading, bottle spacing and conveyor connections for your production needs.

Share container samples, both label specifications and target output for selection guidance.

GET A CUSTOM SOLUTION

15 products

1 5

CHOOSE YOUR LABELING SETUP

Find the Right Front & Back Labeling Machine

Match automation, container handling and two-label placement to your production needs.

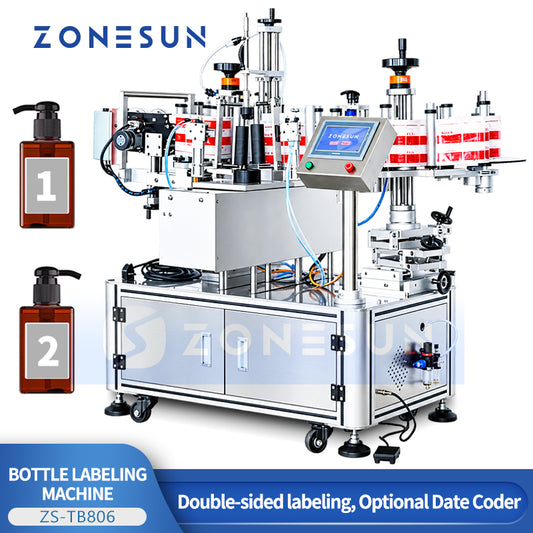

Semi-Automatic Two-Label Setups

Assess operator-loaded equipment for smaller batches. Confirm container positioning, cycle sequence and handling of both labels.

Automatic Conveyor Systems

Review guided container transport and front-and-back application for compatible bottles. Match feeding, stabilization and output.

Round Bottle Positioning Setups

For two labels around a cylindrical bottle, assess rotation, angular spacing and positioning. This differs from labeling two flat opposing panels.

Planning note: Two-label application may use separate heads, alternating labels on one roll or another model-specific arrangement. Confirm the actual configuration.

CONTAINERS & LABEL PANELS

Match Both Labels to Your Container

Container shape and support affect front-and-back alignment and the finished appearance.

Flat & Rectangular Bottles

Check panel dimensions, corners, shoulders and bottle orientation. Keep both label areas accessible.

Oval Bottles

Assess curved panels, container stability and label flexibility. Confirm suitable guides and smoothing mechanisms.

Handled & Irregular Bottles

Review handles, offset necks, uneven profiles and usable panels. Specialized handling may be required.

Round Bottles with Two Labels

Specify label sizes and angular separation. Assess rotational positioning and any feature used as a reference.

Flexible or Lightweight Containers

Provide empty and filled conditions where relevant. Assess support pressure to prevent distortion or slipping.

Transparent & Special Labels

Share both label materials and liners. Confirm detection, adhesion and appearance on the actual container.

Planning note: Taper, texture, seams and panel curvature can affect results. Evaluate actual container samples together with both labels.

FROM FEEDING TO FINISHED BOTTLE

How Front & Back Labeling Works

This overview describes a typical conveyor setup; operator-loaded and rotary configurations differ.

  1. 01

    Feed & Space

    Guide containers into the station and establish spacing appropriate to the selected application method.

  2. 02

    Align & Stabilize

    Present the intended panels consistently. Use suitable guides, fixtures or hold-down arrangements.

  3. 03

    Apply Both Labels

    Dispense and smooth the front and back labels in the required sequence, with position settings for each.

  4. 04

    Check & Transfer

    Inspect both positions, alignment and adhesion. Transfer bottles to the next packaging stage.

Planning note: Automatic verification and rejection require suitable inspection and handling systems. They are not included on every front-and-back labeler.

KEY SELECTION POINTS

What to Confirm Before Choosing a Two-Side Labeler

Provide these six details to assess suitability, adjustments and practical production output.

Container Dimensions

Share width, depth or diameter, height, weight, material and shape. Include every planned format.

Two Label Specifications

Provide front and back sizes, materials, liner widths and roll dimensions. Confirm winding direction and label sequence.

Placement & Alignment

Mark application heights, edge clearances and relative alignment. For round bottles, define angular spacing.

Output & Operating Mode

State bottles per minute, working hours and operator involvement. Assess output with the actual two-label cycle.

Guides & Changeovers

List all bottle and label combinations. Check tooling, stabilization and adjustment limits for each format.

Layout & Utilities

Provide floor space, conveyor height and direction, power and any model-specific air requirements.

AUTOMATED BOTTLING & CUSTOMIZED SOLUTIONS

Integrate Front & Back Labeling into Your Line

Coordinate the station with filling, capping, coding and downstream packaging.

Feeding & Orientation

Assess bottle presentation so the intended front and back panels reach the applicators consistently.

Filling & Capping Transfer

Plan around filled weight, closure handling, surface moisture and stable movement between machines.

Conveyors & Controls

Match speed, height, direction and transfer gaps. Confirm spacing, accumulation and control compatibility.

Date & Batch Coding

Identify which label or container area carries the code. Assess print access, timing and a suitable coder.

Two-Side Inspection

Define checks for label presence, position and correct artwork on each side. Confirm the required cameras and rejection setup.

Format Changes & Access

Allow space to replace both rolls, adjust guides and maintain applicators. Plan transfer to packing equipment.

Explore Automatic Production Lines DISCUSS LINE INTEGRATION

FRONT & BACK LABELING FAQ

Frequently Asked Questions

Are the front and back labels applied at the same time?
The sequence depends on the machine. Some setups use separate applicators, while others apply labels sequentially. Confirm the arrangement and cycle for the selected model.
Can the front and back labels be different sizes?
Selected configurations can handle different labels within specified ranges. Confirm each label size, roll specification and application position.
Can the same machine label flat, oval and round bottles?
Only where the handling and application configurations support those formats. Different guides, fixtures or a separate round-bottle mechanism may be required.
How is front-and-back alignment established?
Stable bottle presentation, guides, applicator settings and label triggering all contribute. Define the required alignment and confirm results with samples.
Does a two-label machine always use two rolls?
No. Roll arrangements vary; some setups may use alternating labels on one roll. Confirm head count, roll format and label sequence before preparing consumables.
Can it handle clear labels or print batch information?
Clear labels need suitable detection, and coding needs a compatible printer or coding option. Confirm both requirements for the selected configuration.
What should I send for model selection?
Share container samples, both labels and roll specifications, placement drawings, target output and format range. Include the existing line layout for integration.

CUSTOM FRONT & BACK LABELING SOLUTION

Need Help Labeling Both Sides of Your Bottles?

Share your containers, front and back labels and production goals. ZONESUN can help assess a suitable standalone setup or a two-side labeling station within an automated bottling line.

Helpful details: container samples · both label specifications · placement drawings · target output · format range · line layout
