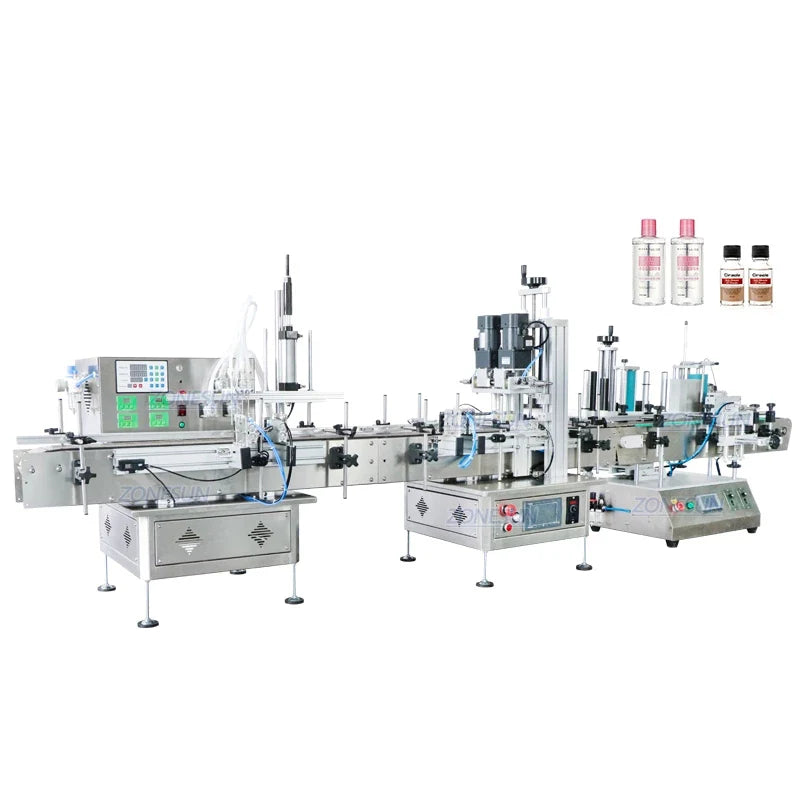

ZONESUN ZS-FAL180C4 Desktop Liquid Filling Capping Labeling Line

The ZONESUN ZS-FAL180C4 is a compact desktop production line that integrates liquid filling, bottle capping and round bottle labeling. Its four independently controlled peristaltic pump nozzles provide precise, contamination-resistant filling for small-volume liquids. Designed for flexible small-batch production, the system can be customized according to bottle size, cap type, label format and required output.

Liquid Filling Machine Specifications – Model ZS-DTPP4M
Specification Details
Model ZS-DTPP4M
Power Supply AC 110V / 220V, 50Hz–60Hz
Power Consumption 60W × 4
Filling Range ≤50 ml
Max Flow Rate 650 ml/min per nozzle (based on water)
Filling Nozzles 4 (customizable based on user requirements)
Working Speed 20–40 bottles/min (depends on bottles and liquid)
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤±1% (for water)
Nozzle Diameter 4 mm

Bottle Capping Machine Specifications
Specification Details
Bottle Height 60–270 mm
Cap Diameter 18–70 mm
Working Speed 20–40 bottles/min (depends on bottle & cap size)
Working Voltage AC 220V / 110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Conveyor Length 1117 mm
Machine Size Approx. 1120 × 580 × 1110 mm
Package Size Approx. 1160 × 610 × 1140 mm
Net/Gross Weight Approx. 65.5 kg / 97.5 kg
Air Compressor Connector Outer Diameter 8 mm

ZS-TB500A Labeling Machine Specifications
Specification Details
Machine Model ZS-TB500A
Voltage 110V–60Hz / 220V–50Hz
Working Speed Approx. 20–60 times/min
Labeling Size 15–140 mm (W) × 25–300 mm (L)
Roll Inner Diameter φ76 mm
Roll Outer Diameter φ250 mm
Suitable Bottle Diameter Approx. 30–130 mm
Conveyor Size Approx. 1310 × 100 mm
Package Size Approx. 1460 × 940 × 1060 mm
Package Weight Approx. 125 kg

Key Features

• Integrated filling, capping and labeling workflow
• Four independently controlled peristaltic pump nozzles
• Fluid contacts limited to the tubing for hygienic filling
• Adjustable system for different small bottle sizes
• Supports single-sided and wrap-around labeling
• Compact desktop design for limited production spaces
• Customizable bottle handling, cap feeding and line configuration
• Suitable for standalone use or connection with bottle feeding equipment

Complete Line Workflow

Bottle Feeding → 4-Head Peristaltic Filling → Cap Placement → Automatic Capping → Round Bottle Labeling → Finished Product Collection

Bottles are continuously conveyed through the integrated filling, capping and labeling process. The four-head peristaltic filling system provides clean and consistent liquid dosing, followed by cap placement, automatic capping and round-bottle labeling for an efficient compact production workflow.

The line can be customized according to bottle size, filling volume, cap type, label specifications and production requirements. Optional bottle feeding and collection equipment can also be integrated to create a more complete automatic bottling solution.
