ZONESUN ZS-FAL180XW Custom Perfume Production Line | Mixing, Filtration, Filling & Capping

$20,629.00 USD

Sale Sold out

Shipping calculated at checkout.

Voltage 380V 220V

Mixing & Filtration System 100L mixing tank & 200L freezing filter & 200Lstorage tank

Quantity

DESCRIPTION

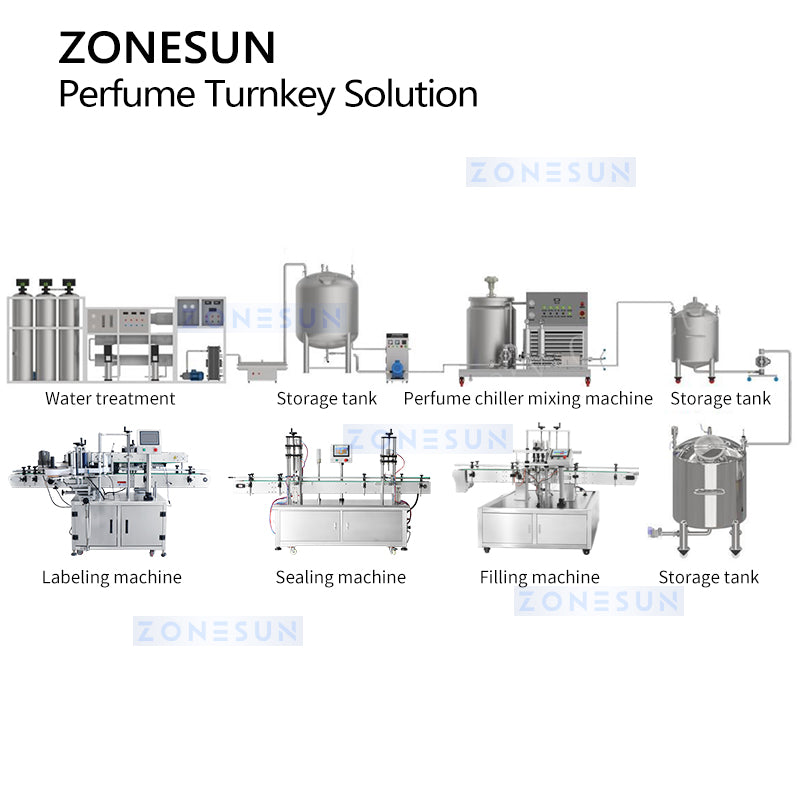

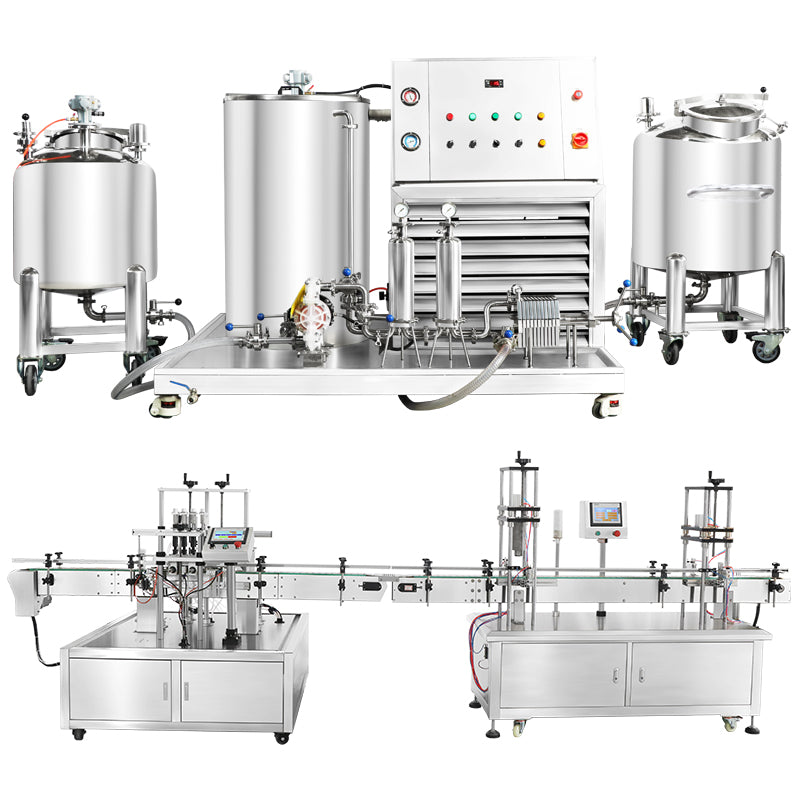

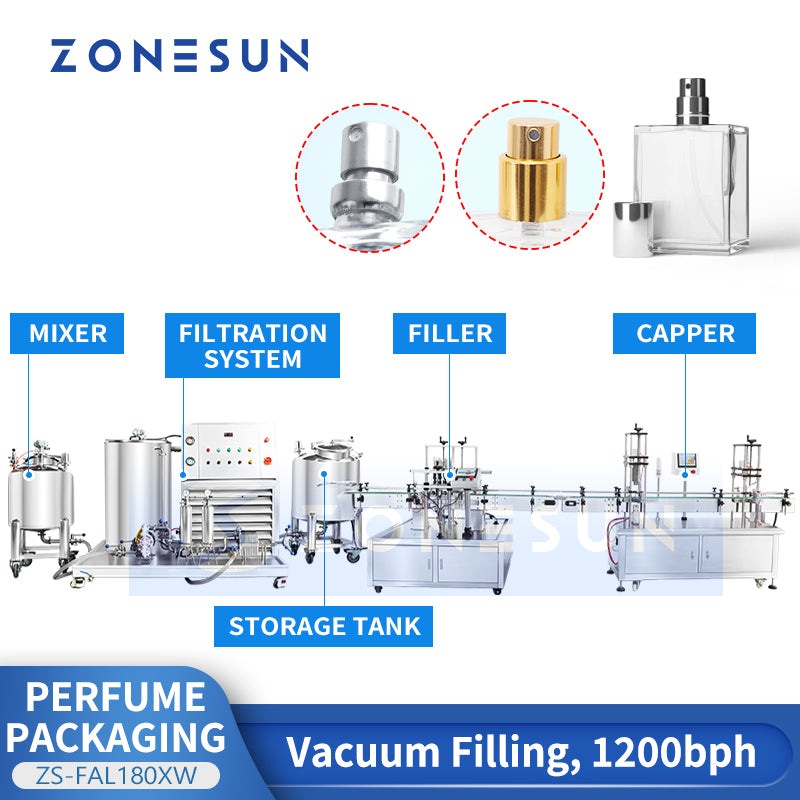

The ZONESUN ZS-FAL180XW is a configurable perfume production line that connects mixing, cooling filtration, bottle filling and capping. We configure the equipment around your fragrance, bottle and cap specifications, target output, available space and electrical requirements.

Configuration shown in the listed price: 100L mixing tank, 200L storage tank, 200L freezing filter, 4-head filling machine and capping machine. Other capacities, filling heads and downstream equipment are available according to project requirements. Please confirm the final equipment list and quotation with ZONESUN before ordering.

Get a custom solution: Send us your perfume formulation, bottle and cap samples or drawings, fill volume, target bottles per hour, factory layout and local power supply.

NOTE

Because this production line has a high overall power requirement, it is available only in 220V or 380V versions. To ensure proper operation, please confirm with customer service whether the voltage in your region is compatible before placing your order.

Online price is for 100L mixing tank + 200L storage tank +200L freezing filter+ 4 heads filling machine+ capping machine. More information please contact us.

Mixing Tank Specifications:

Machine Capacity: 20L / 50L / 100L / 200L / 300L / 500L / 800L / 1000L / 1500L / 2000L / 3000L / 4000L / 5000L
Rotating Speed: 40r/min (customizable: 0–80r/min)
Tank Material: 304 or 316 stainless steel
Extra Functions: Emulsifying, Explosion-proof, Vacuum, Heating, Weighing, and more

Filtration System Specifications (Model Comparison):

Model	ZS-PF100	ZS-PF200	ZS-PF300	ZS-PF500	ZS-PF1000
Volume	100L	200L	300L	500L	1000L
Cooling Capacity	2P	3P	5P	5P	10P
Voltage	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Power	1.5kW	2.2kW	3.7kW	5.5kW	7.5kW
Refrigeration Temp.	-5 ~ -15°C	-5 ~ -15°C	-5 ~ -15°C	-5 ~ -15°C	-5 ~ -15°C
Refrigerating Fluid	404A	404A	404A	404A	404A
Air Pressure	0.5–0.6MPa	0.5–0.6MPa	0.5–0.6MPa	0.5–0.6MPa	0.5–0.6MPa
Filter Pressure	0.2MPa	0.2MPa	0.2MPa	0.2MPa	0.2MPa
Filter Accuracy	1μm	1μm	1μm	1μm	1μm

ZS-YTZL4A Specifications:

Model: ZS-YTZL4A
Filling Head: 4 Head
Air Pressure: 0.5–0.8MPa
Liquid Level Accuracy: ±1mm
Viscosity Range: ≤20cps (static viscosity)
Working Speed: 20–40 bottles/min
Bottle Height: ≤250mm
Bottle Opening Size: ⌀4.5–⌀28mm
Adjustable Liquid Level (from bottle mouth): 20–200mm
Air Pumping Rate: 5.5L/s
Machine Size (L × W × H): Approx. 1500 × 1150 × 1530mm
Machine Weight: Approx. 278kg
Package Size: Approx. 1660 × 1310 × 1670mm
Package Weight: Approx. 339kg

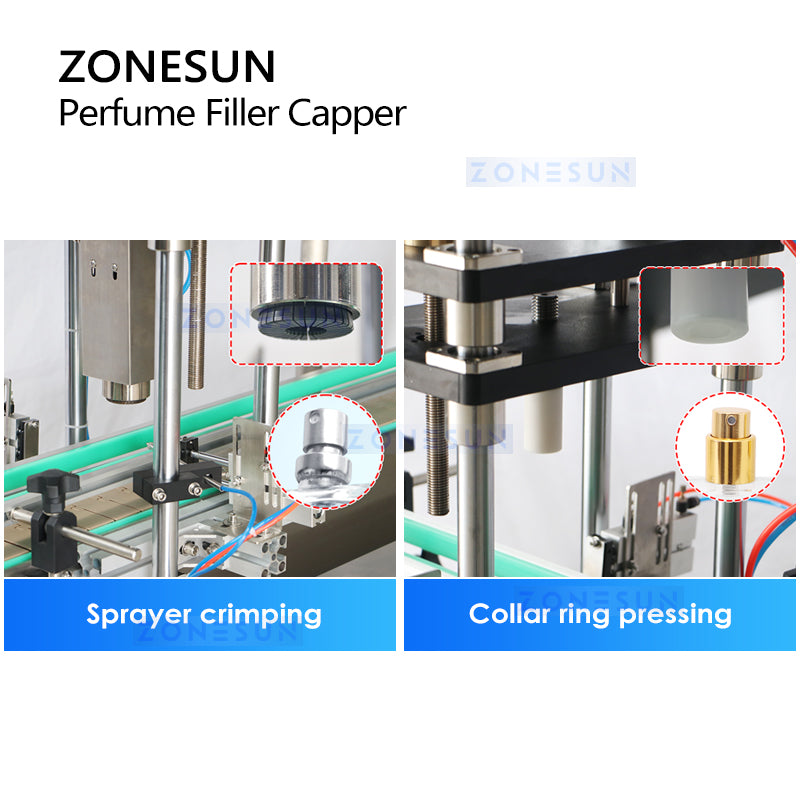

ZS-YG11U Bottle Capping Machine Specifications:

Machine Model: ZS-YG11U
Voltage: 220V, 50–60Hz
Power: 1.5kW
Capping Speed: Approx. 20 bottles/min (varies by bottle and cap size)
Suitable Bottle Height: 50–200mm
Bottle Cap Diameter: 15–22mm
Bottle Mouth Diameter: 14–20mm
Suitable Bottle Diameter: 40–110mm
Conveyor Size: 113 × 2400mm
Machine Size (L × W × H): Approx. 2600 × 760 × 1700mm
Weight: Approx. 300kg

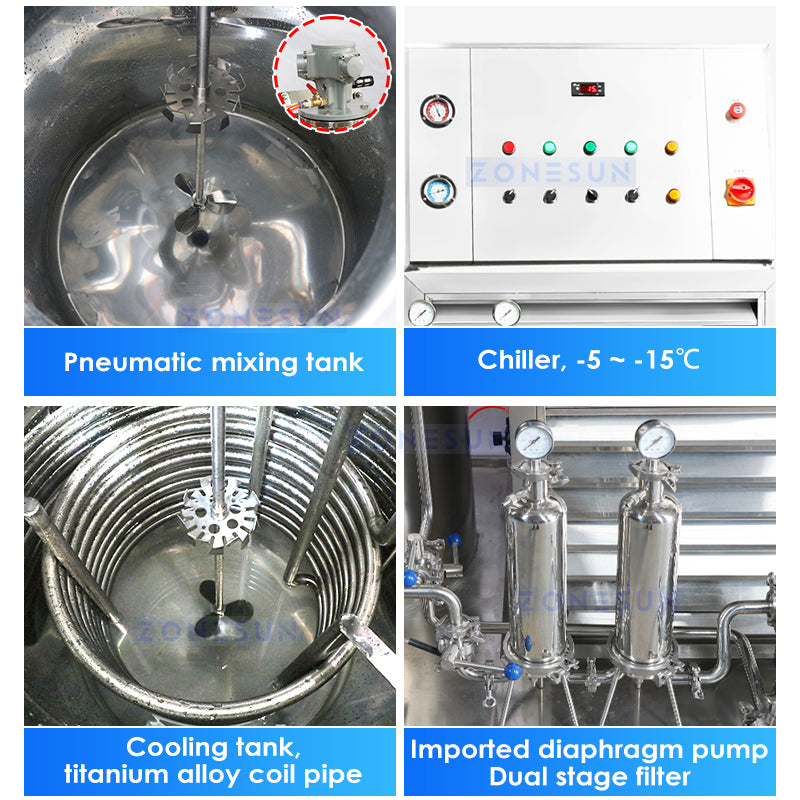

Perfume Mixing, Cooling, and Filtration

The production line combines pneumatic mixing, chilling, a cooling tank, and dual-stage filtration for perfume processing.

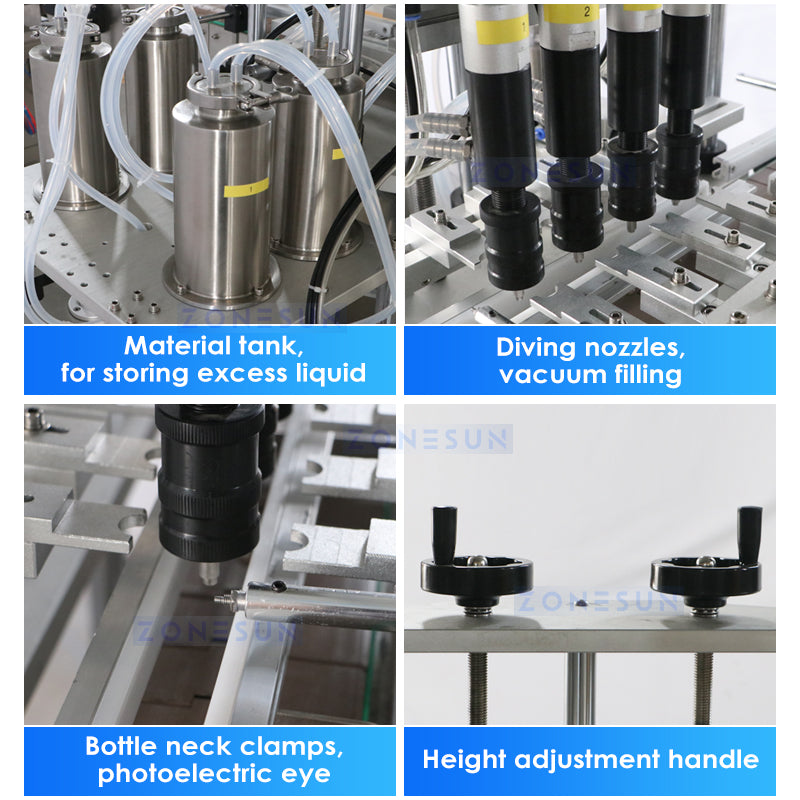

Vacuum Filling Components

The filling section uses a material tank, diving nozzles, bottle-neck clamps, photoelectric detection, and height adjustment for compatible perfume bottles.
